Fail-Safe Chart

FAIL-SAFE CHART

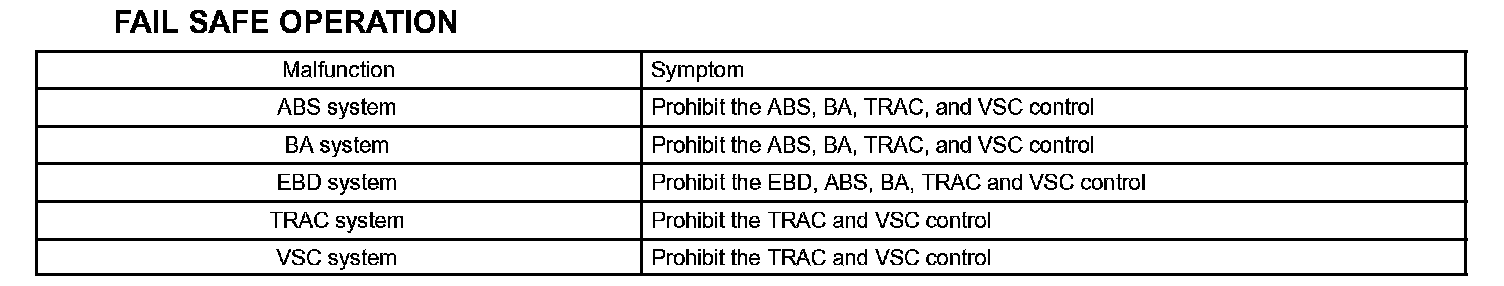

Fail-Safe Chart:

HINT:
- A malfunction in either the ABS or BA system will result in identical operation, with ABS, BA, EBD, TRAC, and VSC system control prohibited.
- If control is prohibited due to a malfunction during operation, control will be disabled gradually. This is to avoid sudden vehicle instability.
