TC and CG Terminal Circuit

TC AND CG TERMINAL CIRCUIT

CIRCUIT DESCRIPTION
Connecting terminals Tc and CG of the DLC3 causes the ECU to display the DTC by blinking the ABS warning light.

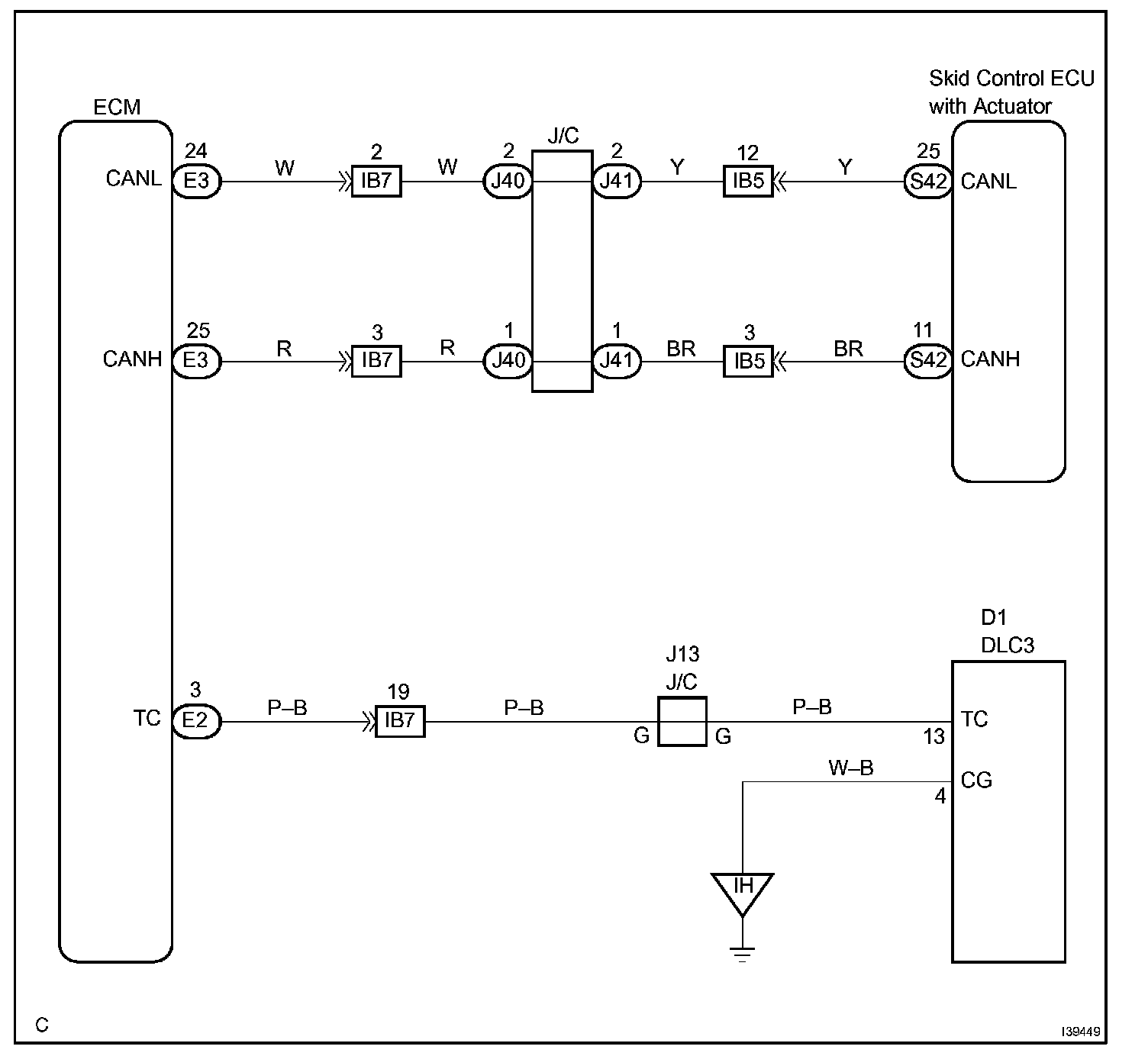

Wiring Diagram:

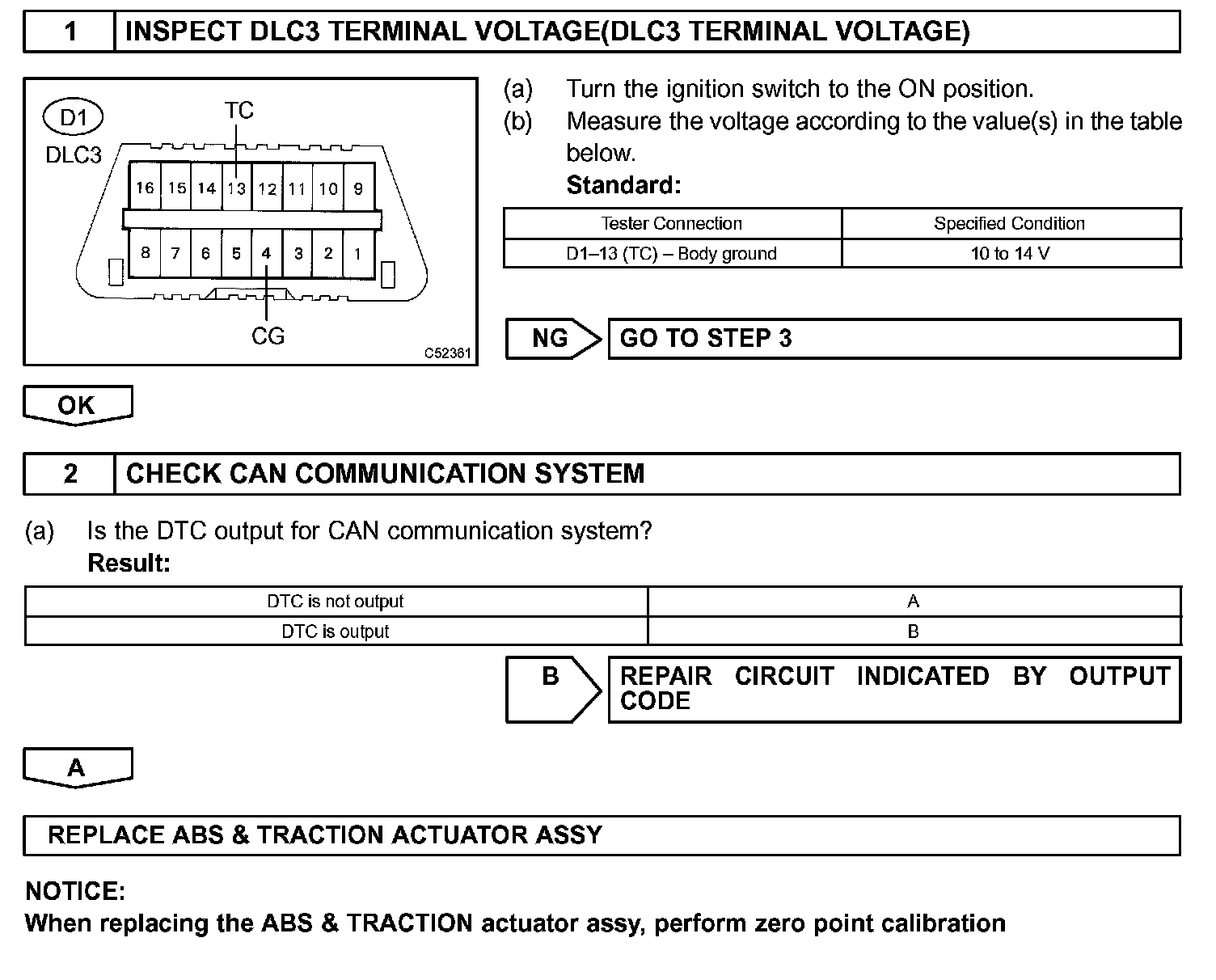

Step 1 - 2:

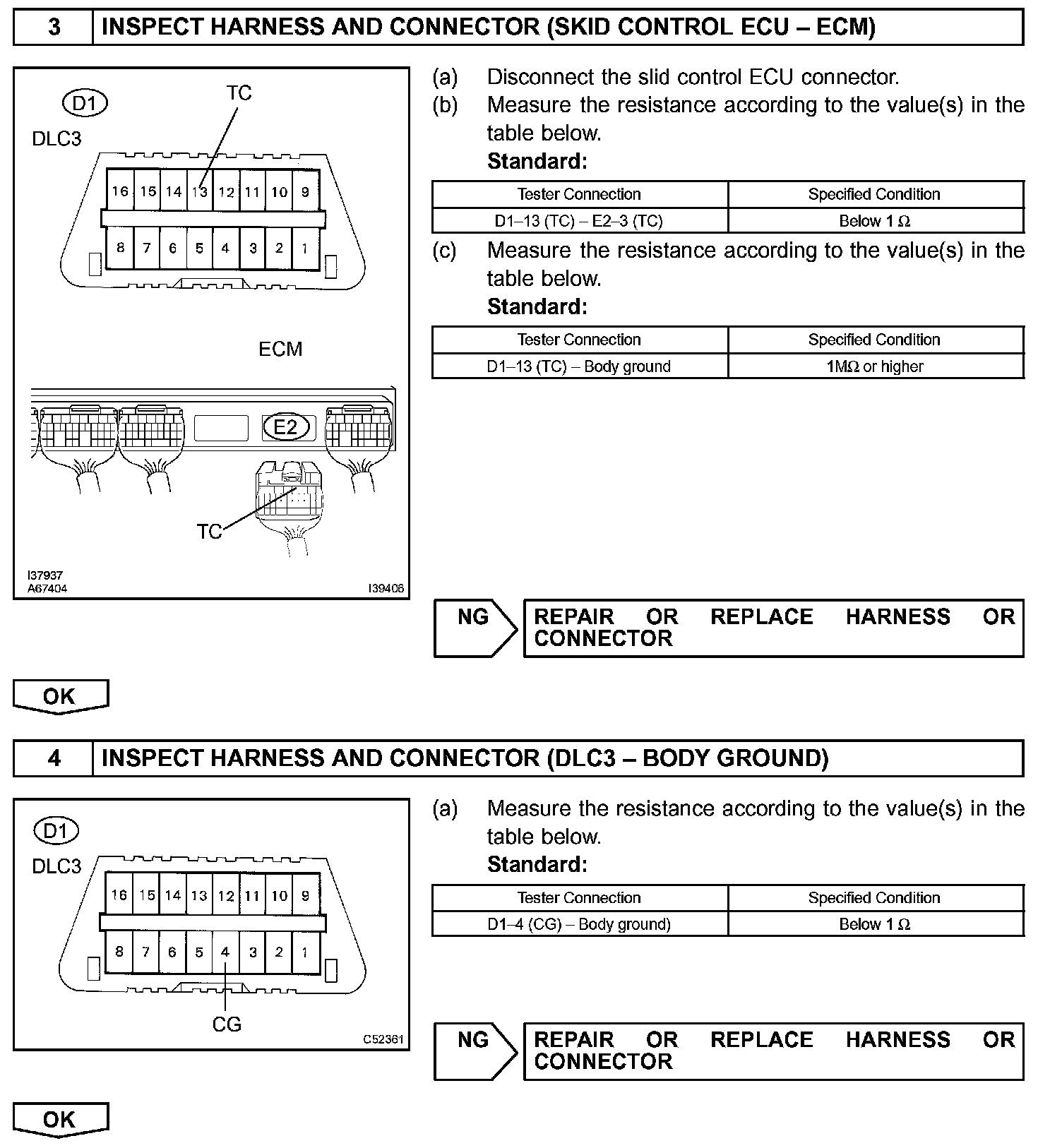

Step 3 - 4:

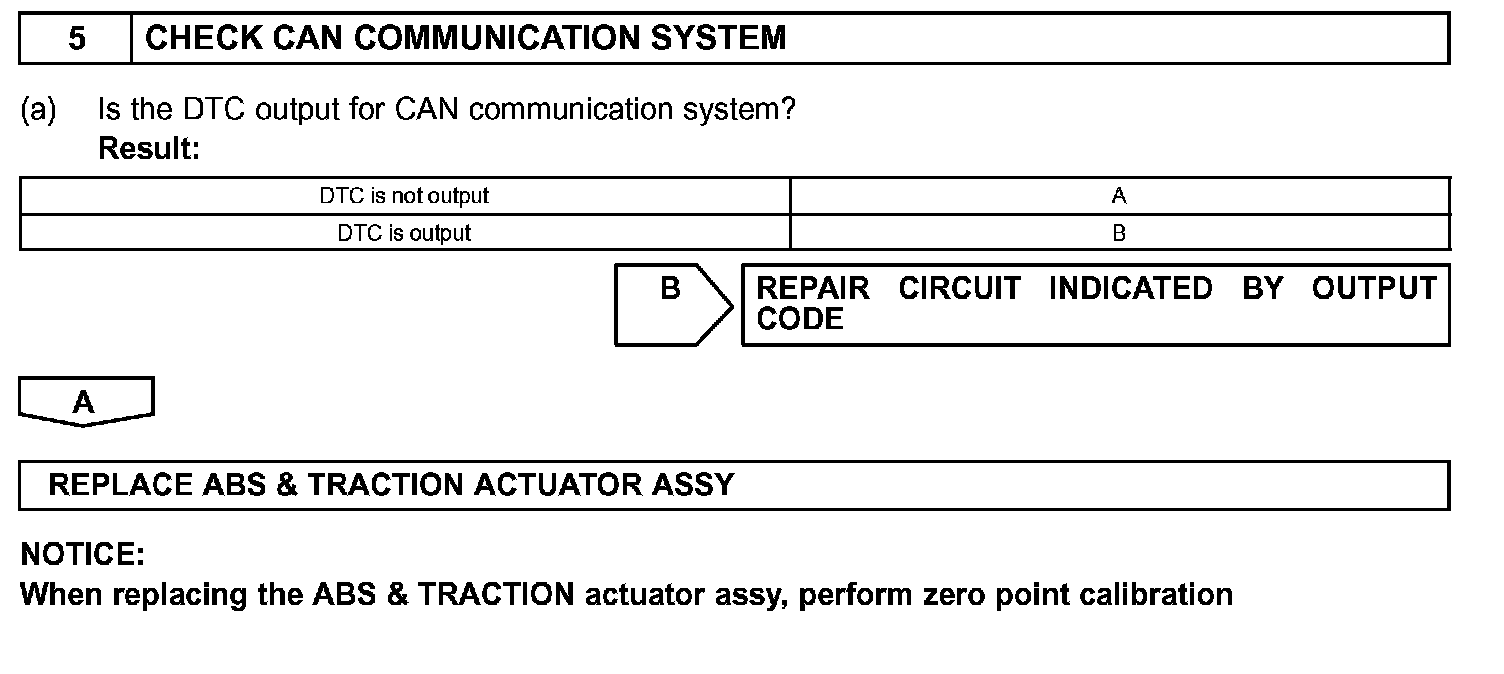

Step 5:

INSPECTION PROCEDURE
