Canada - Mirrors - Outer Mirror's Extend Past Original Position
BulletinTSB2111
Issue Date
April 18, 2005
Title
OUTER VIEW MIRROR DOES NOT RETURN TO PROPER POSITION WHEN UNFOLDED BEFORE DRIVING
Component
BODY ELECTRICAL
Models
'04 - '05 LS430
INTRODUCTION:
Some 2004 and 2005 model year LS 430 may experience a condition where one or both outer rear view mirrors extend past the original stop position when returning from the folded position prior to driving. This TSB provides information for replacement mirrors with improved detent stopping positions. Follow the replacement procedures listed below.
APPLICABLE VEHICLES:
- 2005 - 2005 model year LS430 vehicles produced BEFORE the Production Change Effective VIN shown below.

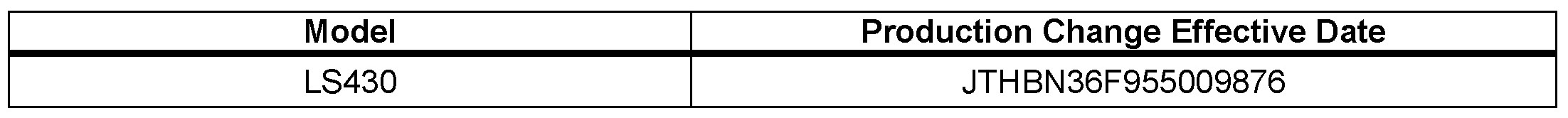

PRODUCTION CHANGE INFORMATION:

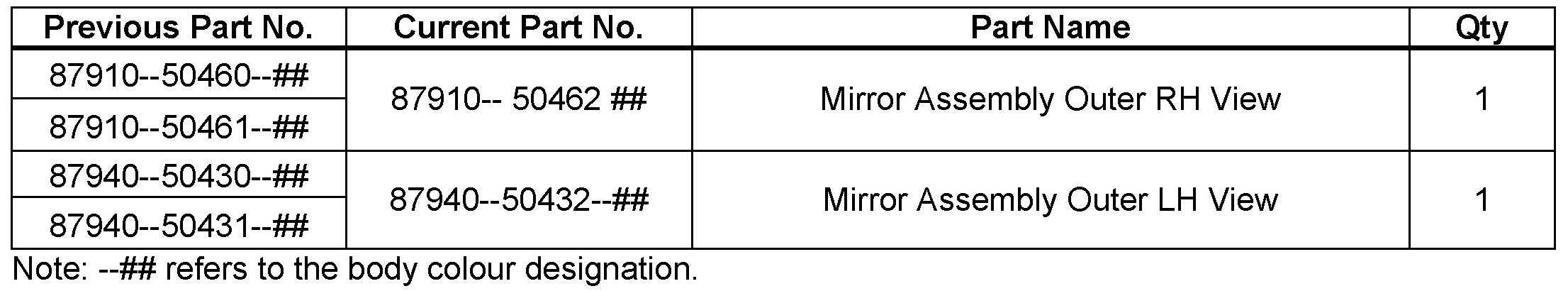

PARTS INFORMATION:
WARRANTY INFORMATION:
REPAIR PROCEDURE:
Verify condition by folding and extending the mirrors and observing stop location.
Replace affected outer rear view mirror assembly/assemblies with the procedures referenced below:
To replace either the RH or LH outer rear view mirror, please refer to ETAS: 2004 - 2005 model year LS 430 Repair Manual: Windshield/windowglass/mirror: Outer Rear View Mirror Assembly.
NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
