Vibrator Circuit (RH)

VIBRATOR CIRCUIT (RH)

CIRCUIT DESCRIPTION

The rear RH seat ECU sends a vibration seat function signal to the vibrator through the vibration seat ECU.

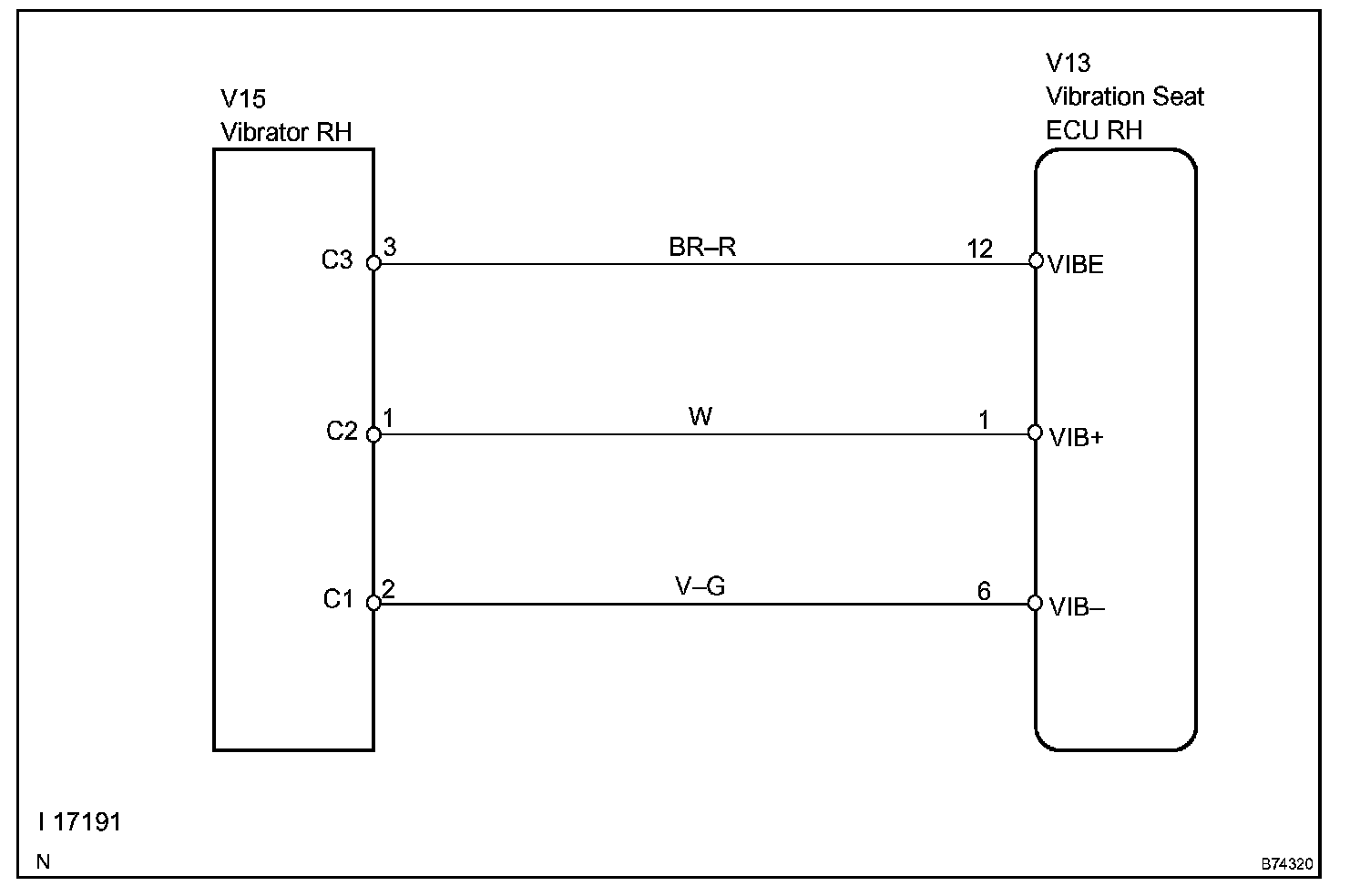

Wiring Diagram:

Step 1 - 2:

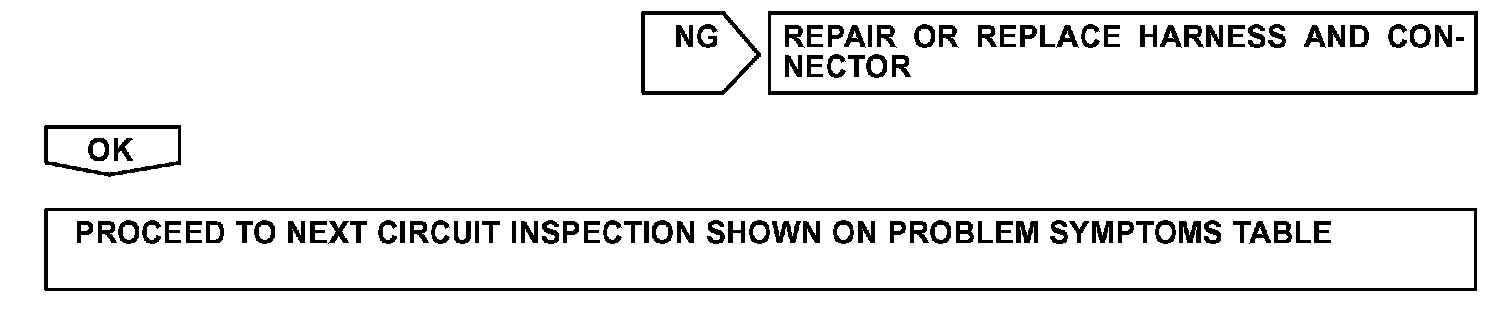

Step 2 (Continued):

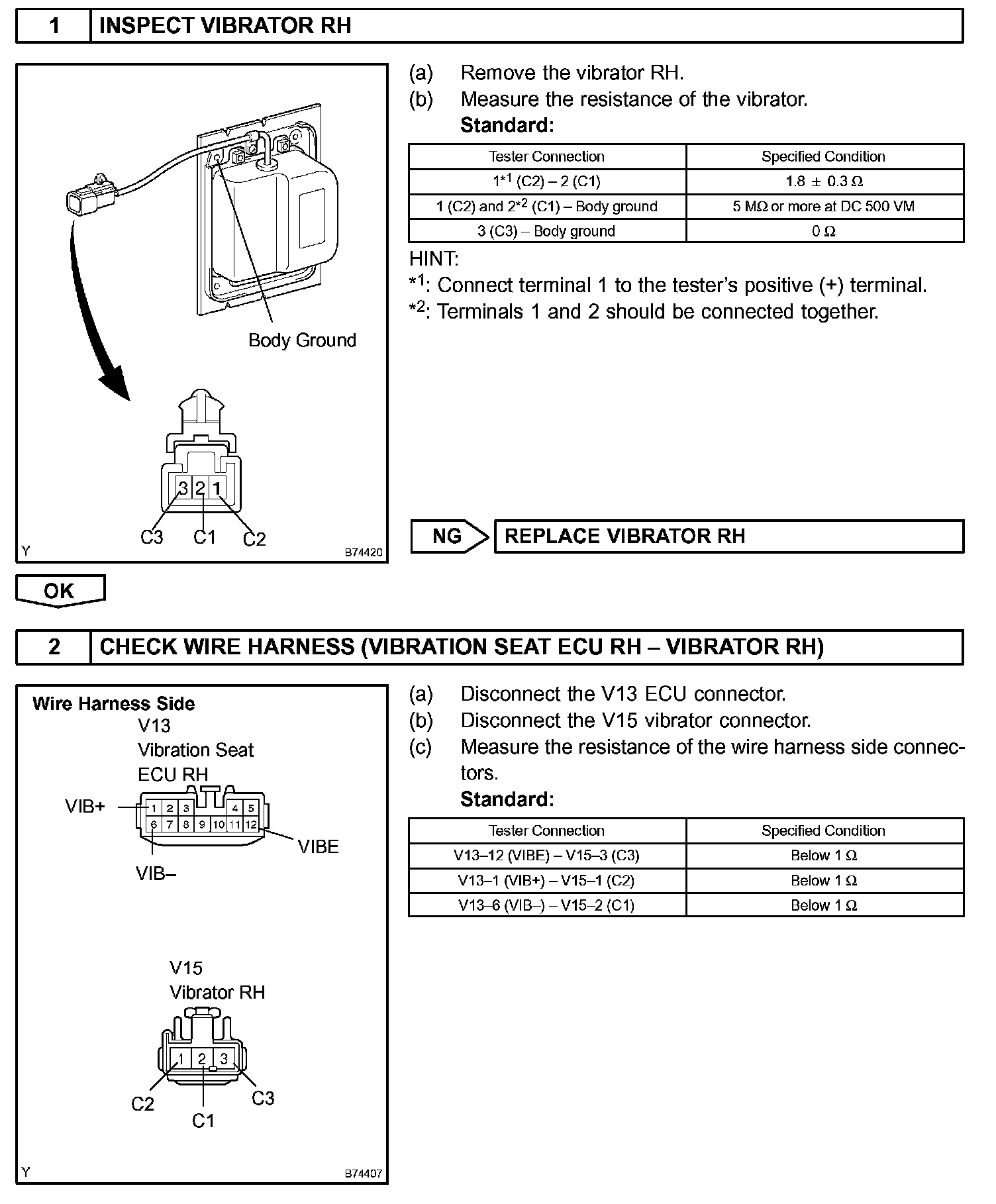

INSPECTION PROCEDURE
