Vibration Seat ECU Communication Circuit (RH)

VIBRATION SEAT ECU COMMUNICATION CIRCUIT (RH)

CIRCUIT DESCRIPTION

The rear RH seat ECU sends a signal to the vibration seat ECU to operate the vibration seat function.

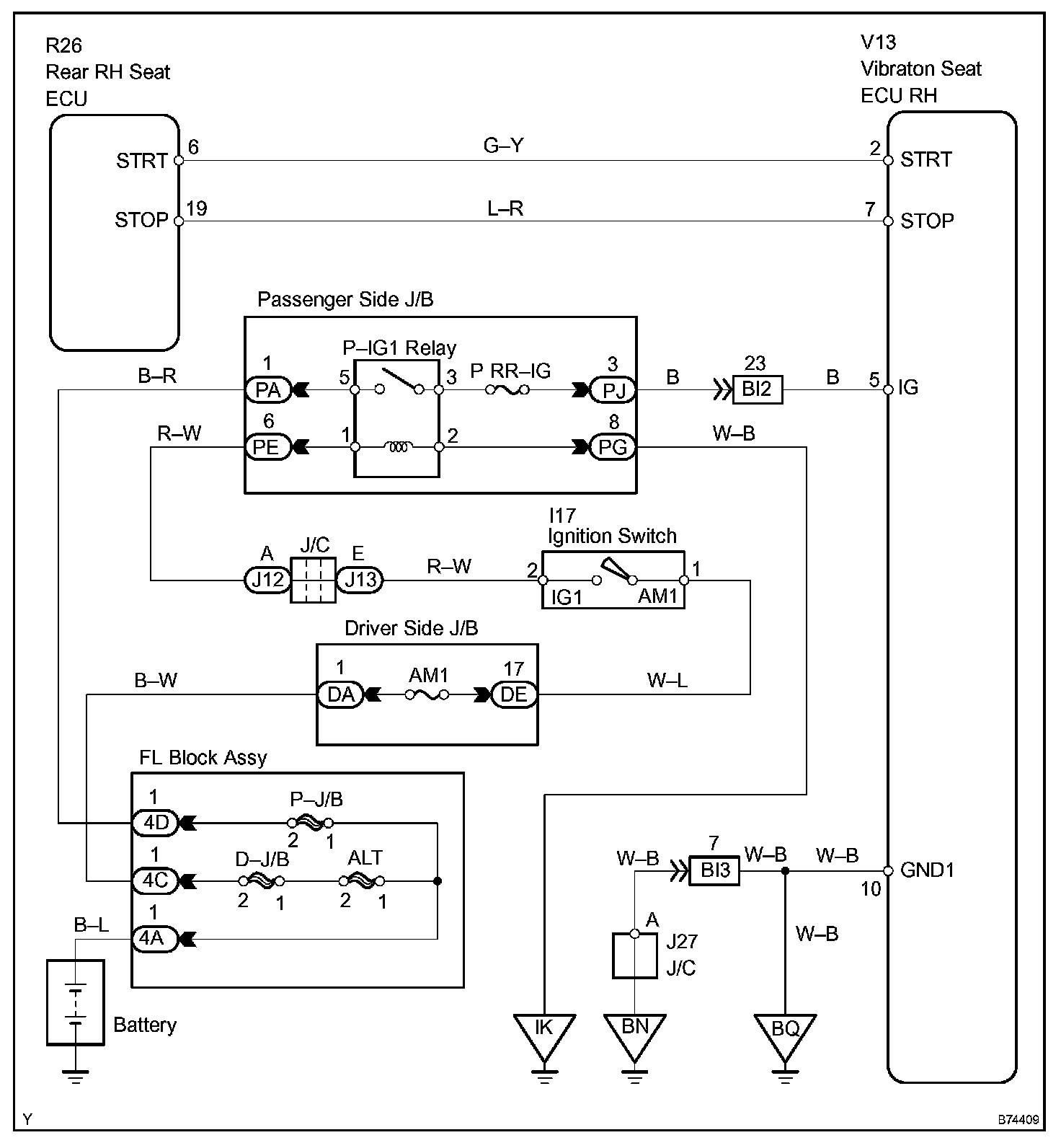

Wiring Diagram:

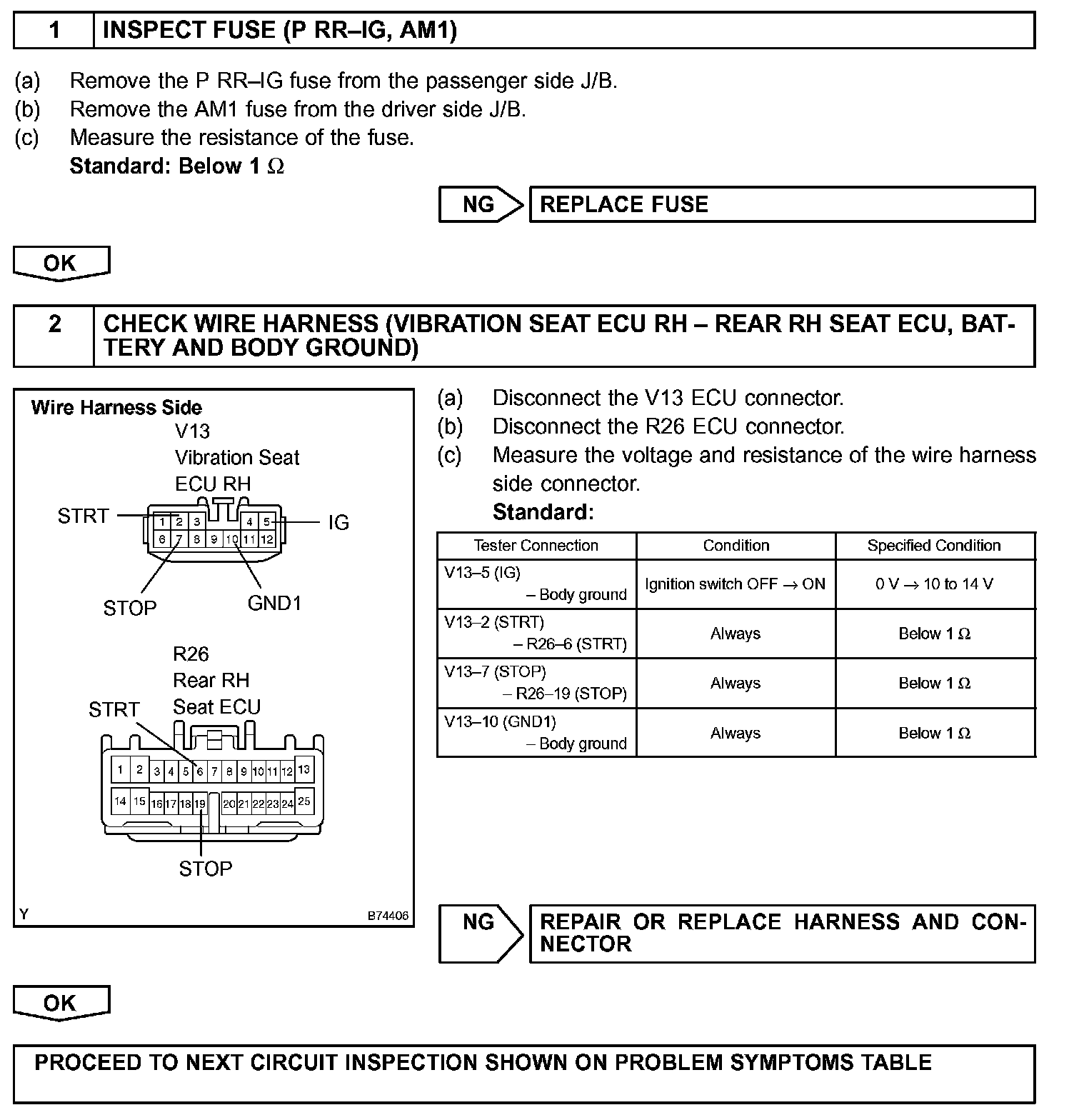

Step 1 - 2:




INSPECTION PROCEDURE
