Rear Seat Memory Switch (RH) (W/ Memory)
REAR SEAT MEMORY SWITCH (RH) (W/ MEMORY)CIRCUIT DESCRIPTION
Each terminal receives the following switch signals:
M: Memory switch signal.
SET: Reproduction of memorized position switch signal.
CAN: Cancel switch signal.

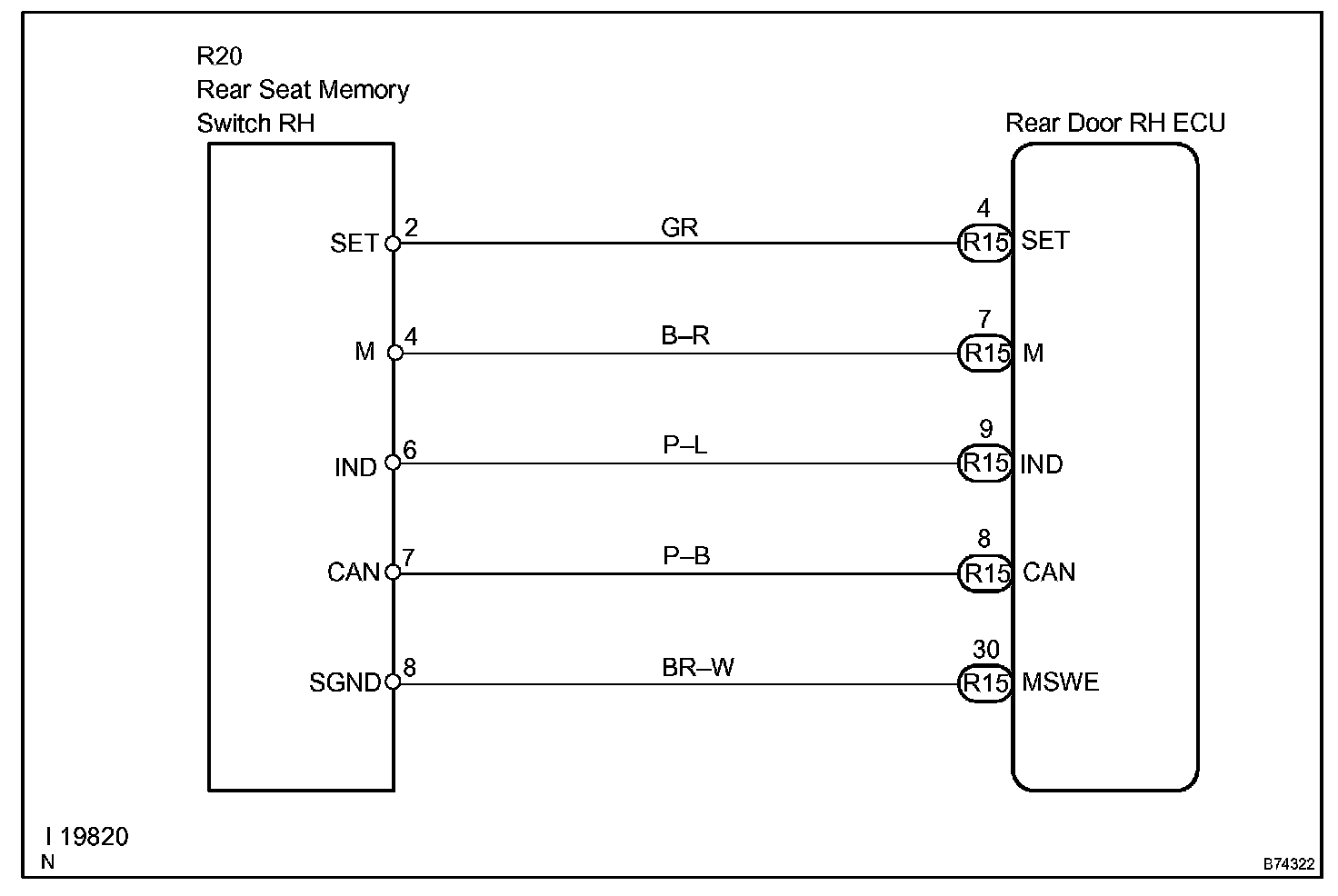

Wiring Diagram:

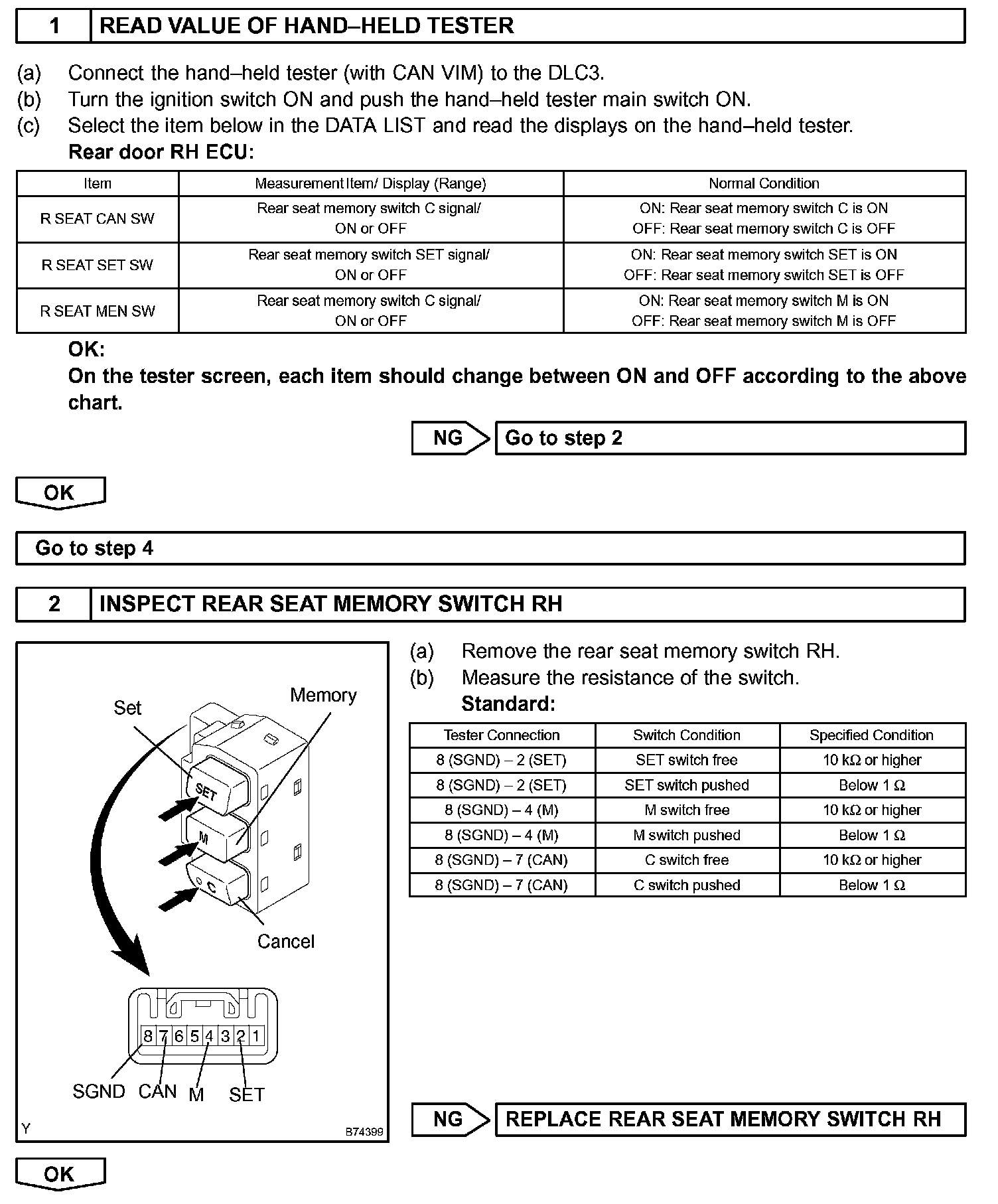

Step 1 - 2:

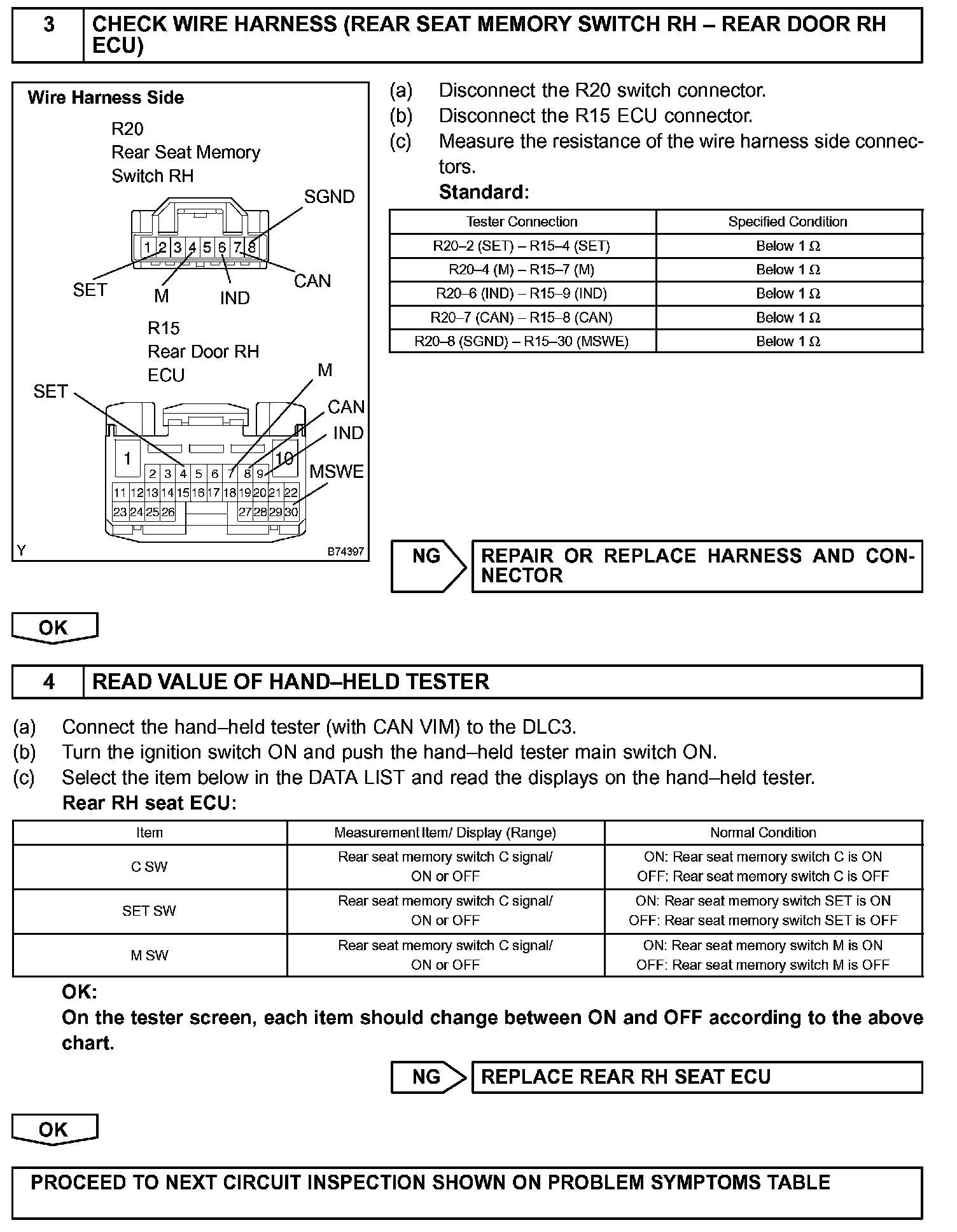

Step 3 - 4:
INSPECTION PROCEDURE
