Rear RH Seat ECU Power Source Circuit

REAR RH SEAT ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the rear RH seat ECU.

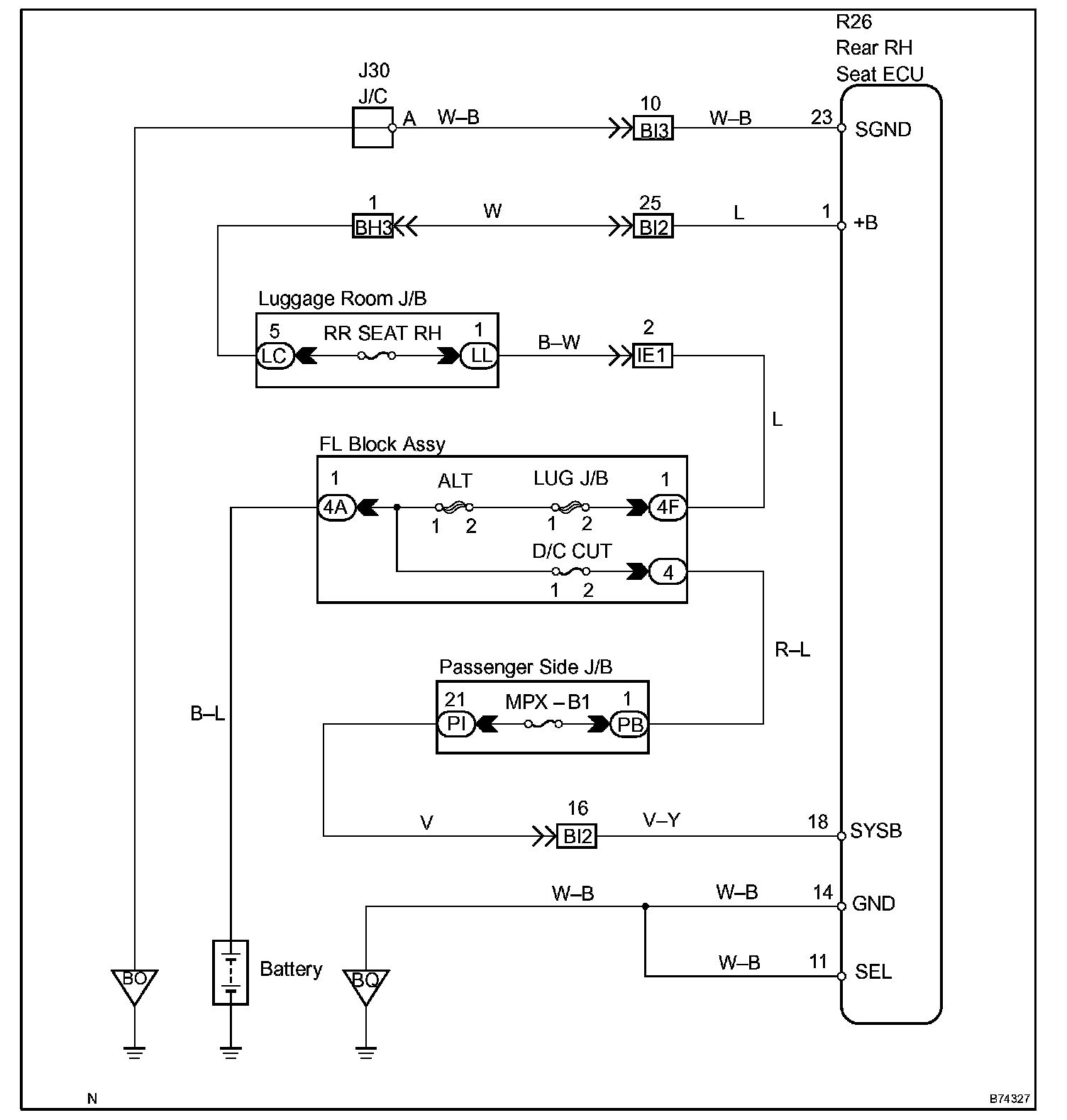

Wiring Diagram:

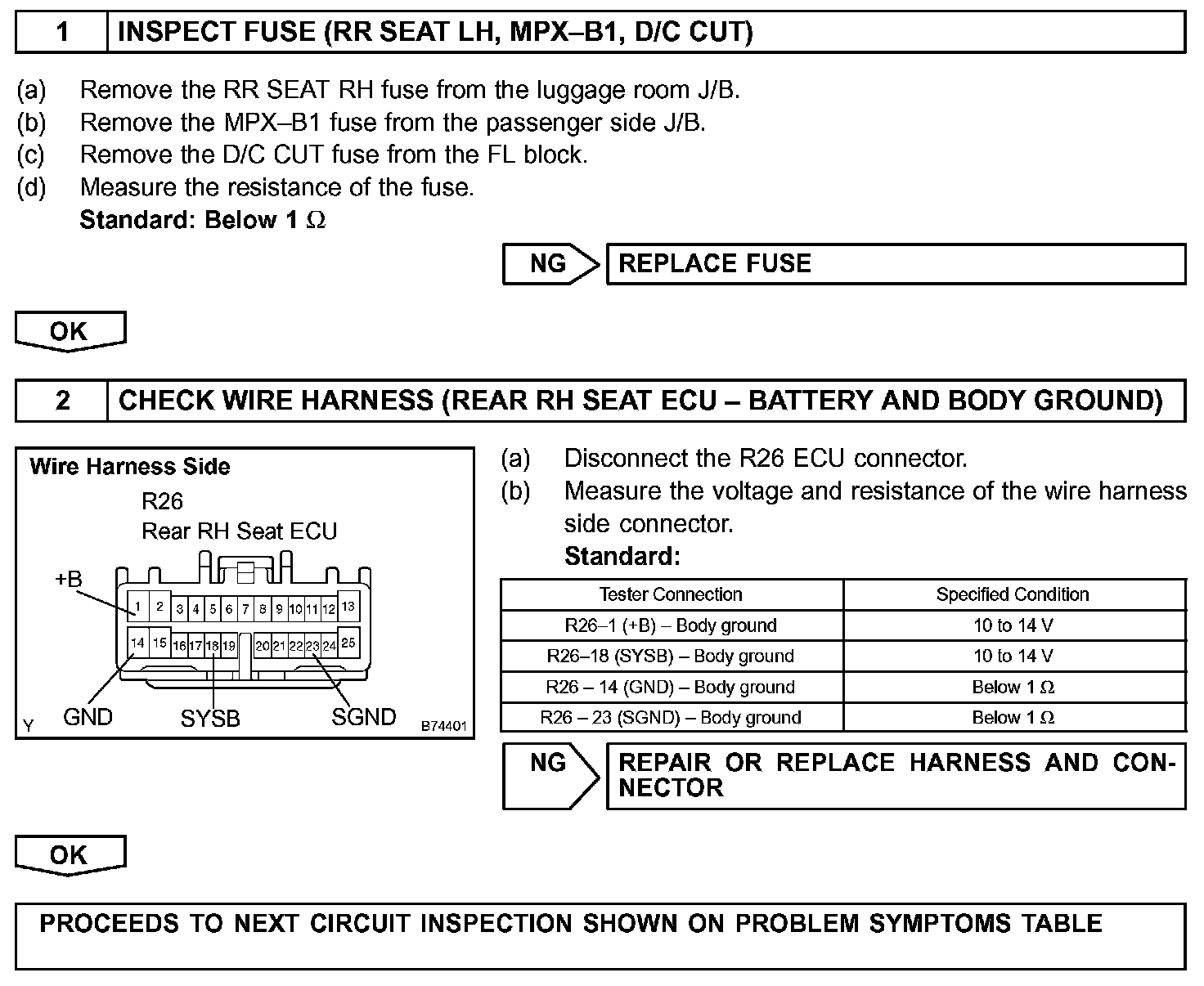

Step 1 - 2:




INSPECTION PROCEDURE
