Passenger Side J/B ECU Power Source Circuit

PASSENGER SIDE J/B ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the passenger side J/B ECU.

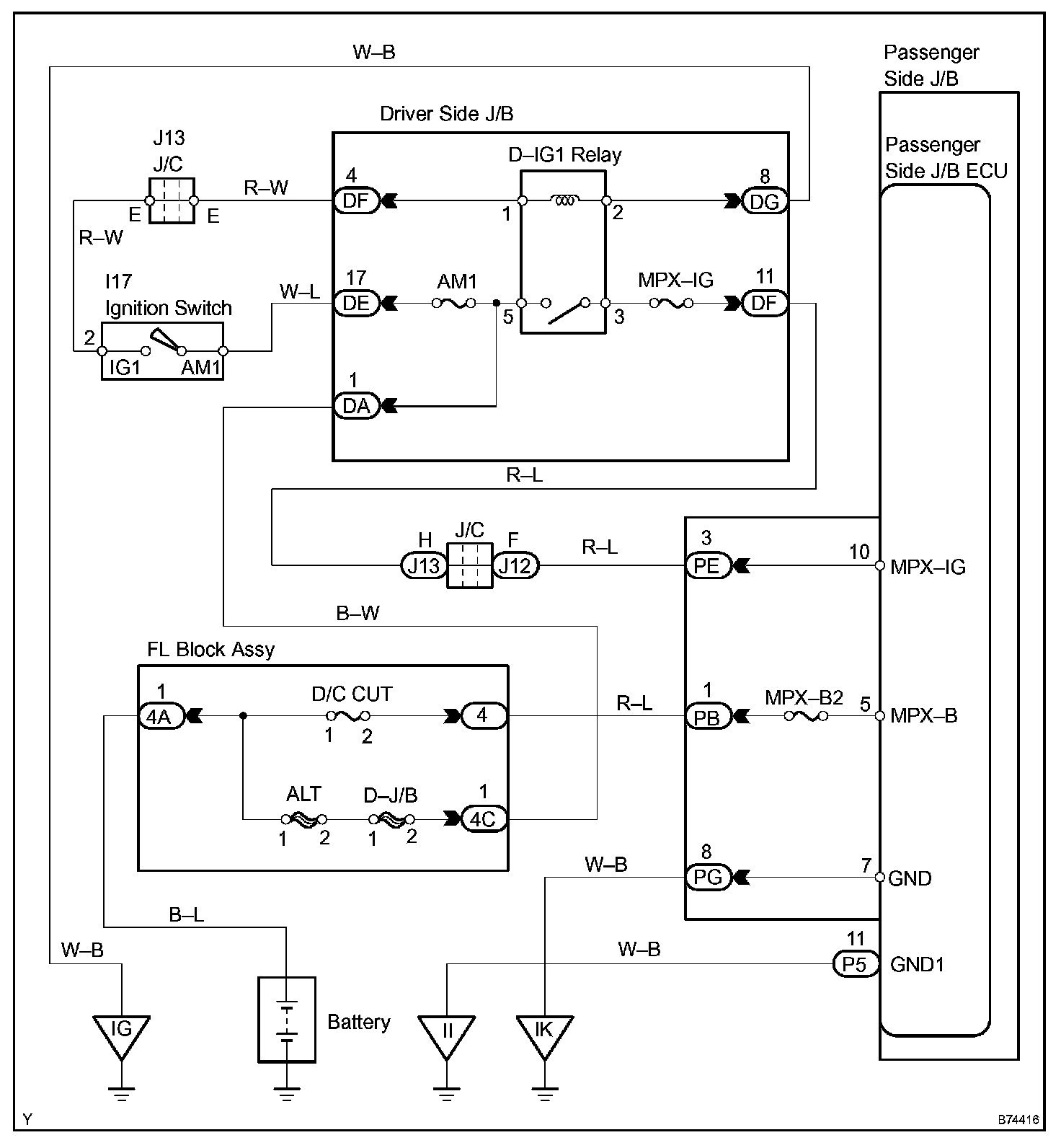

Wiring Diagram:

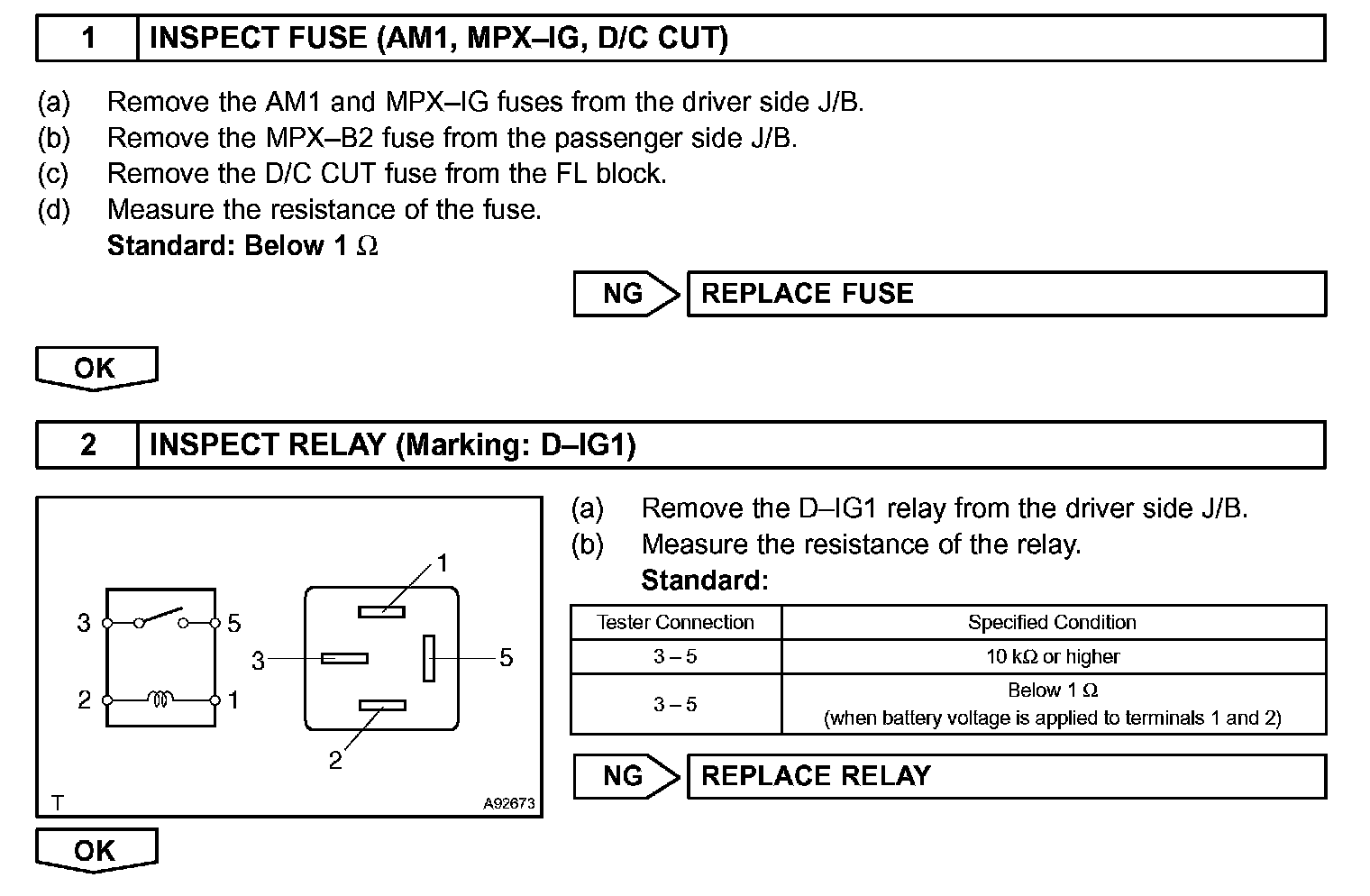

Step 1 - 2:

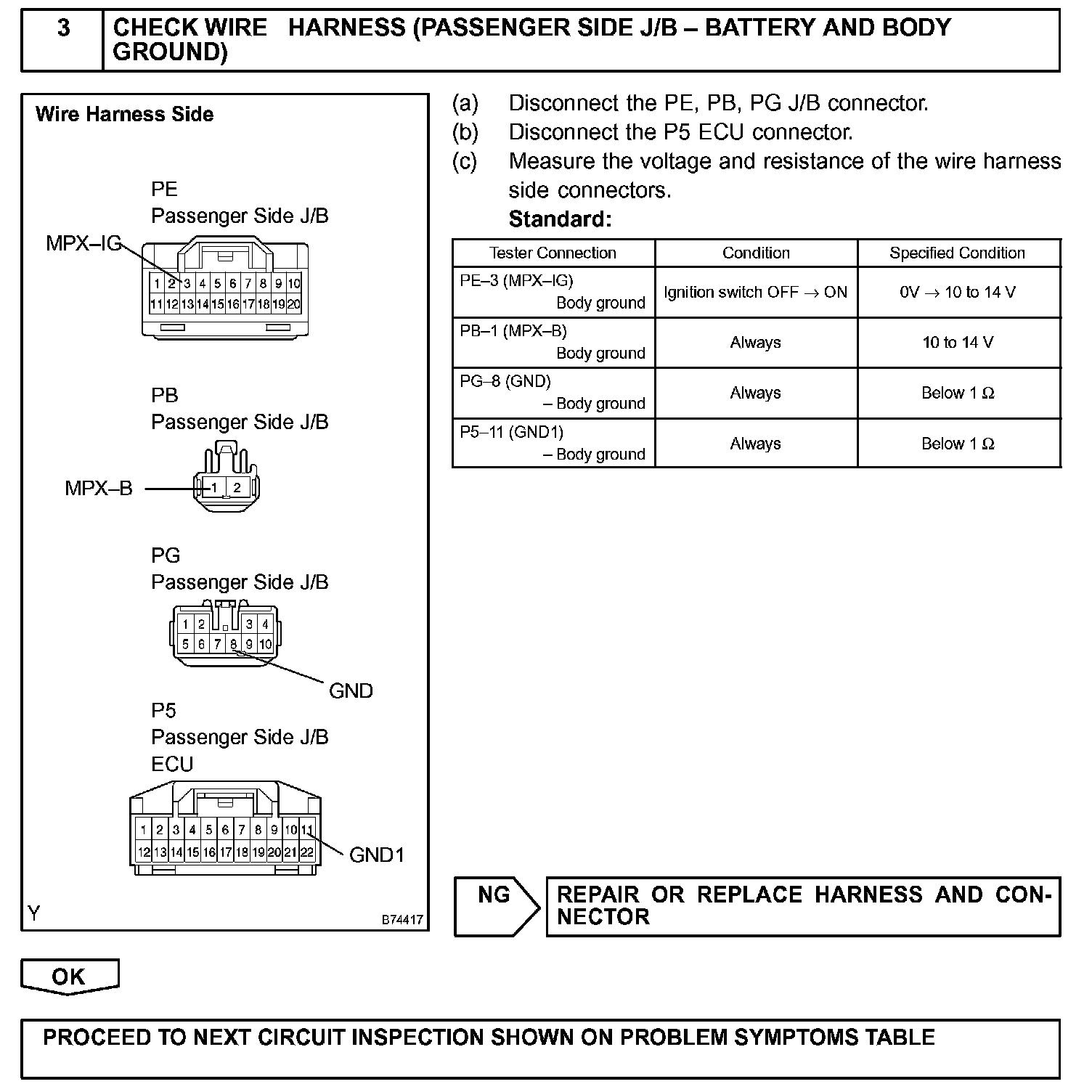

Step 3:

INSPECTION PROCEDURE
