Headrest Limit Switch Circuit (RH)

HEADREST LIMIT SWITCH CIRCUIT (RH)

CIRCUIT DESCRIPTION

The rear RH seat ECU detects the state of the headrest limit switch.

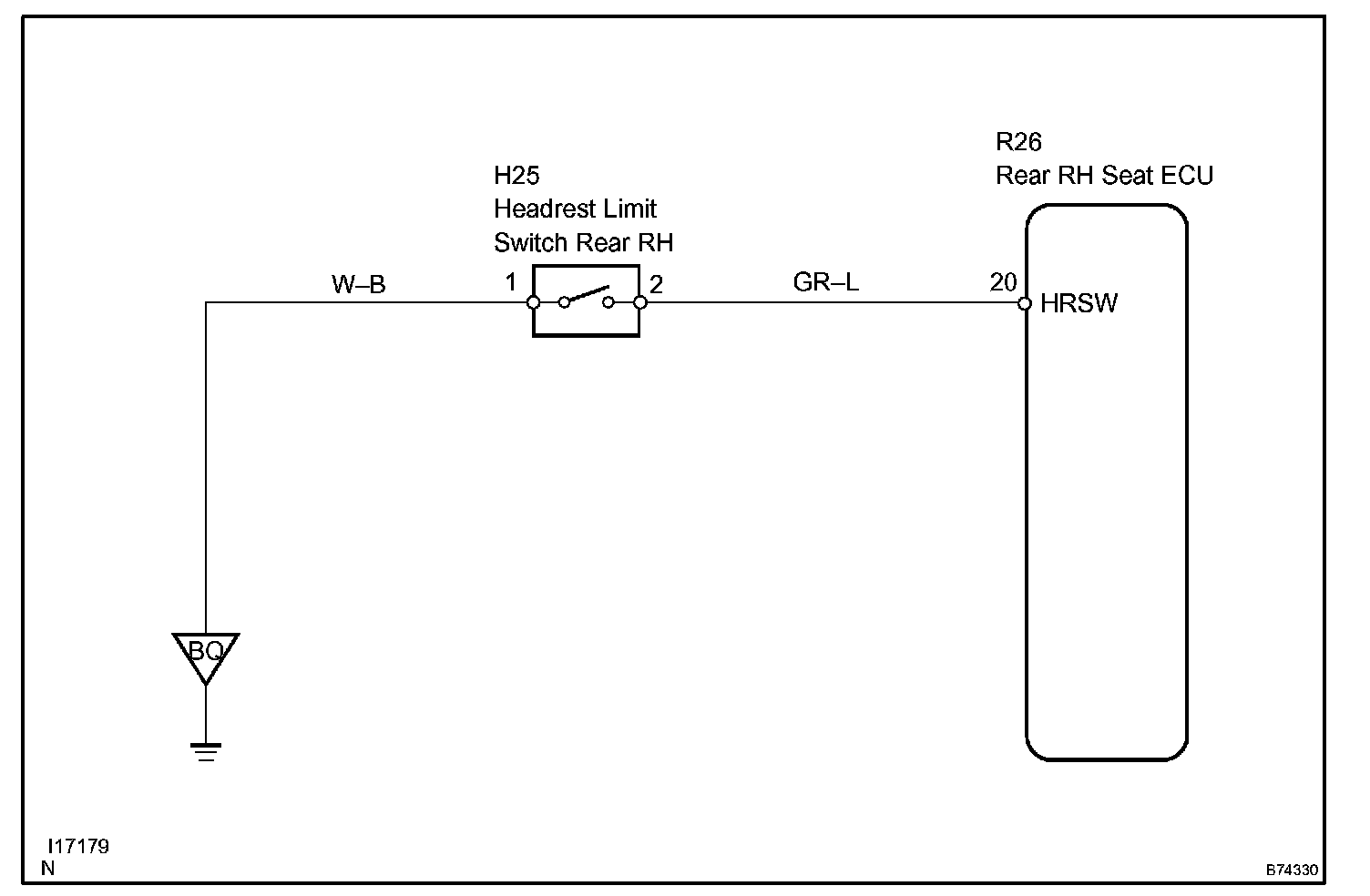

Wiring Diagram:

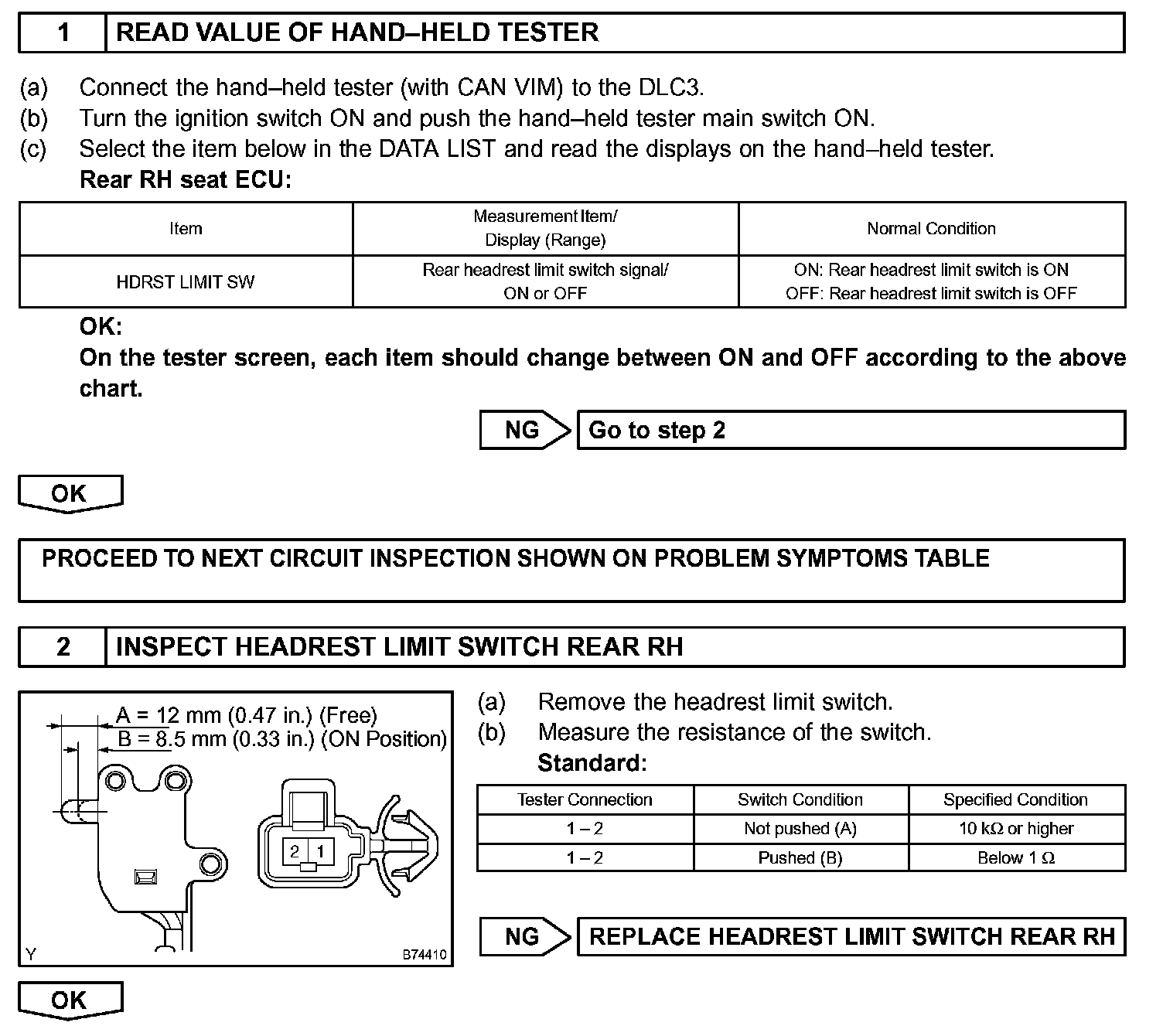

Step 1 - 2:

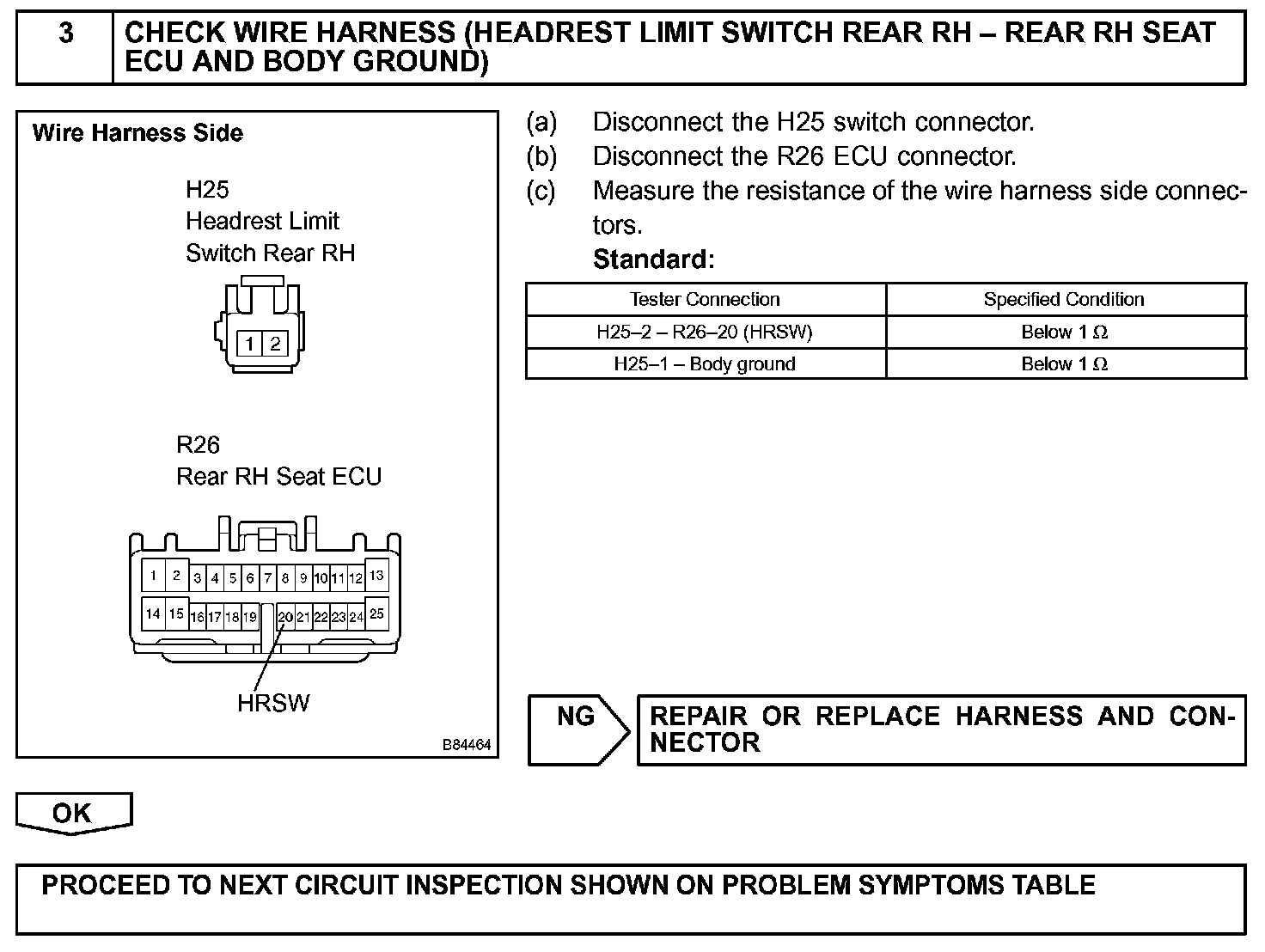

Step 3:




INSPECTION PROCEDURE
