Component Inspection

INSPECTION

1. INSPECT POWER SEAT MOTOR

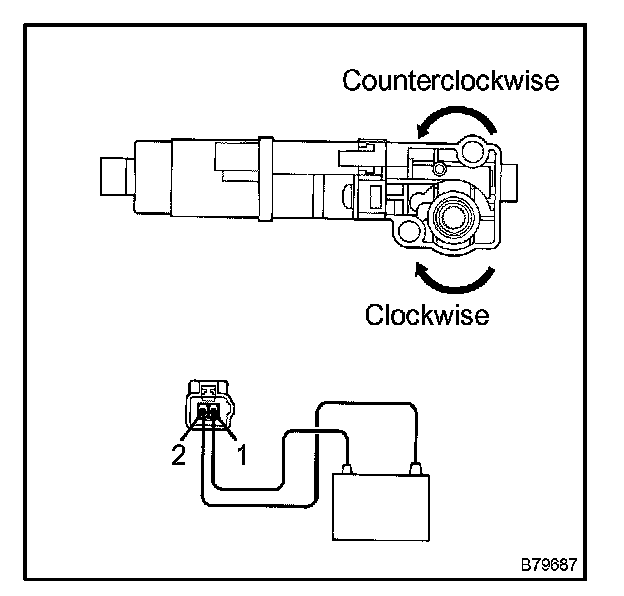

a. Check operation of the reclining motor.

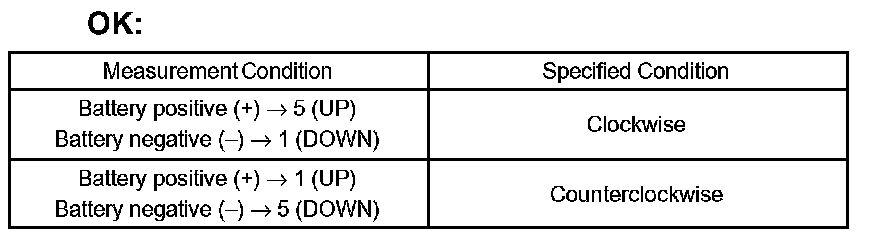

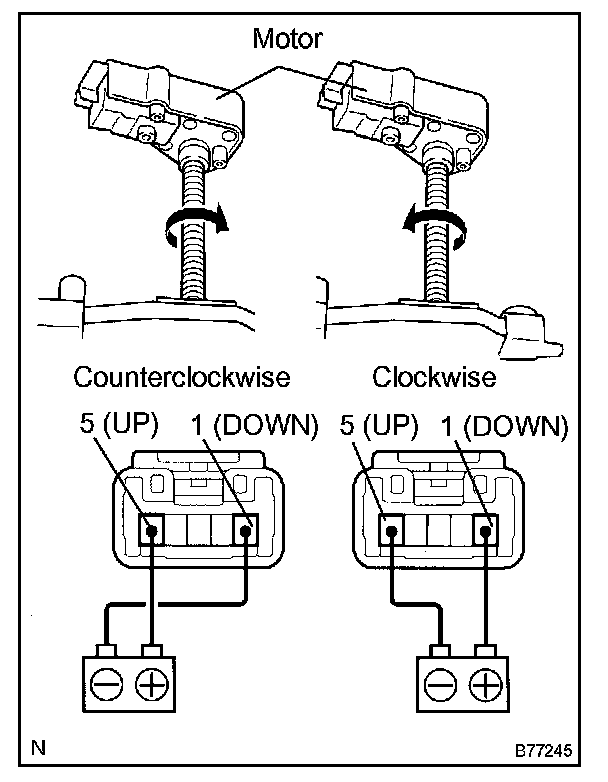

1. Check if the motor rotates smoothly when the battery is connected to the reclining motor connector terminals.

If the result is not as specified, replace the reclining motor.

2. INSPECT POWER SEAT MOTOR







a. Check operation of the headrest motor.

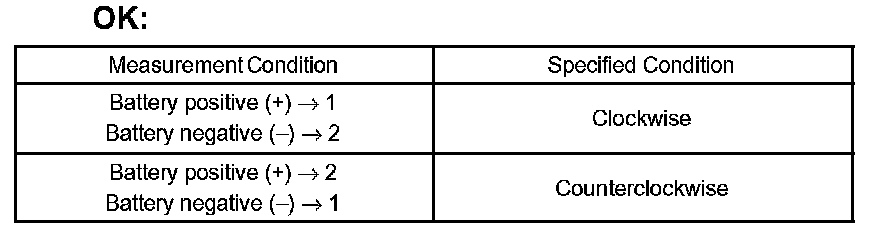

1. Check if the motor rotates smoothly when the battery is connected to the headrest motor connector terminals.

If the result is not as specified, replace the headrest motor.

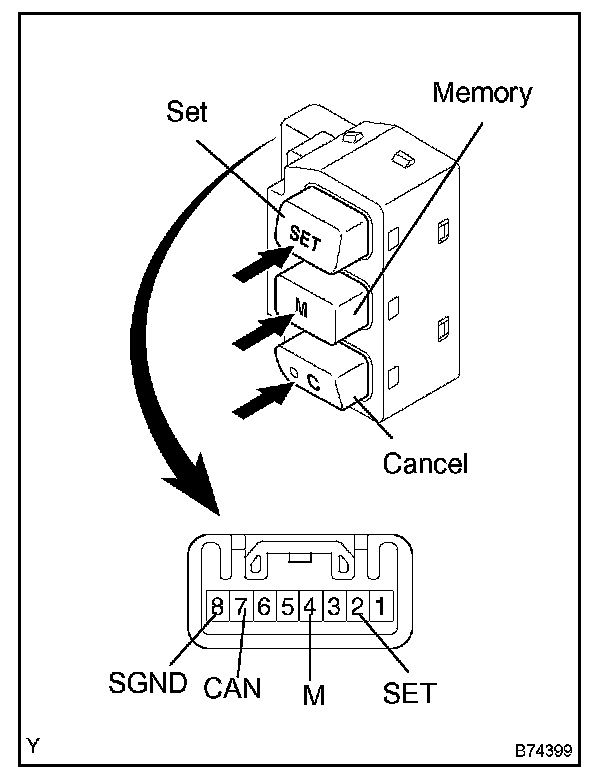

3. INSPECT REAR SEAT MEMORY SWITCH LH

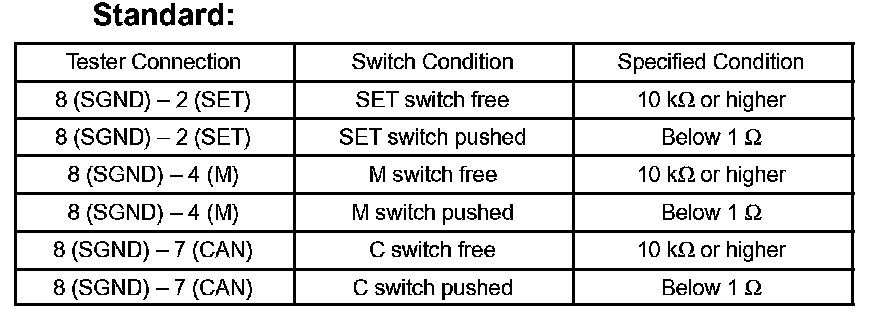

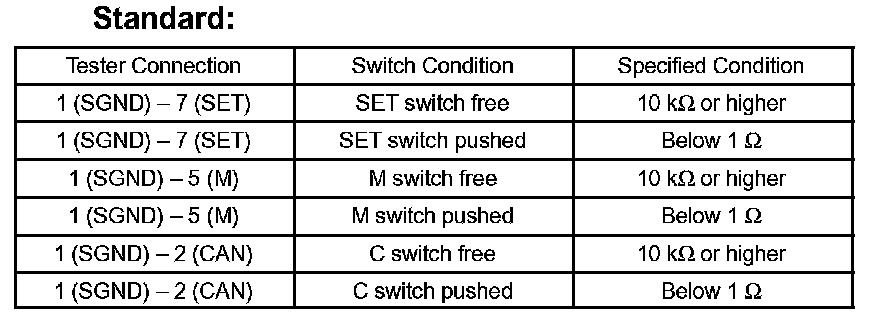

a. Measure the resistance between the terminals when the switch is operated.

If the result is not as specified, replace the switch.

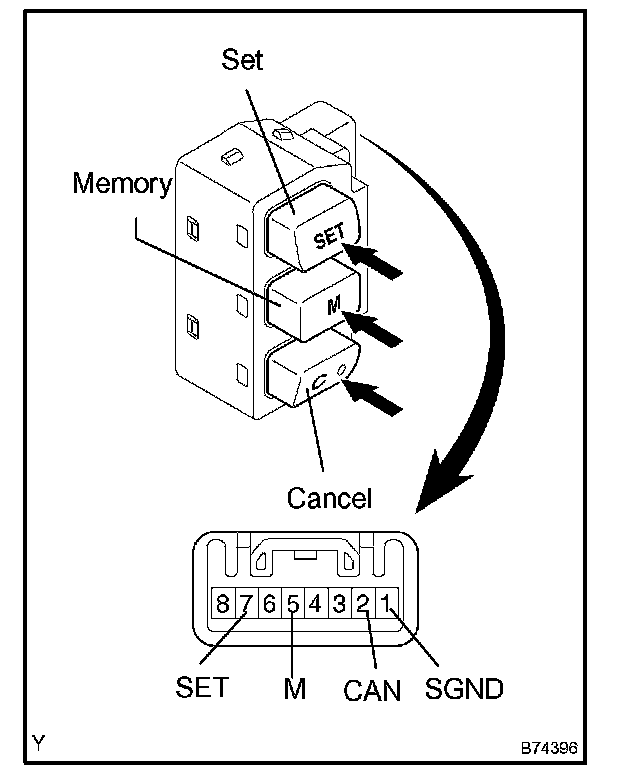

4. INSPECT REAR SEAT MEMORY SWITCH RH







a. Measure the resistance between the terminals when the switch is operated.

If the result is not as specified, replace the switch.

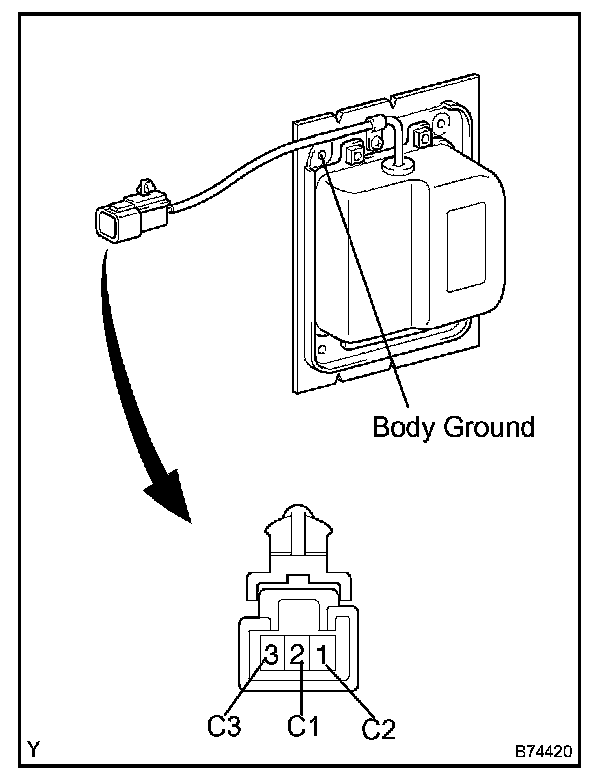

5. INSPECT VIBRATOR LH

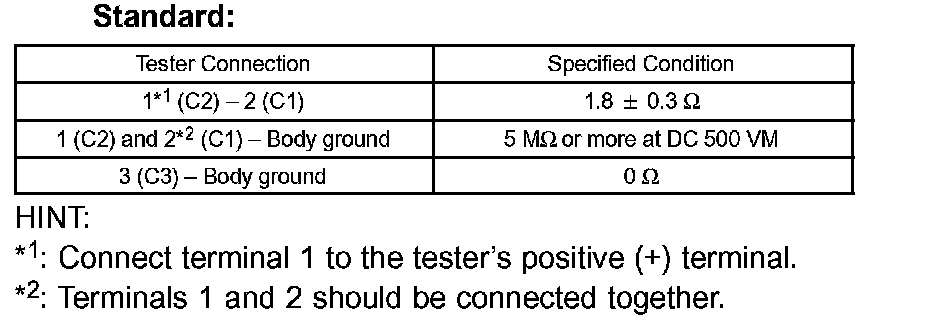

a. Measure the resistance between the terminals.

If the result is not as specified, replace the vibrator.

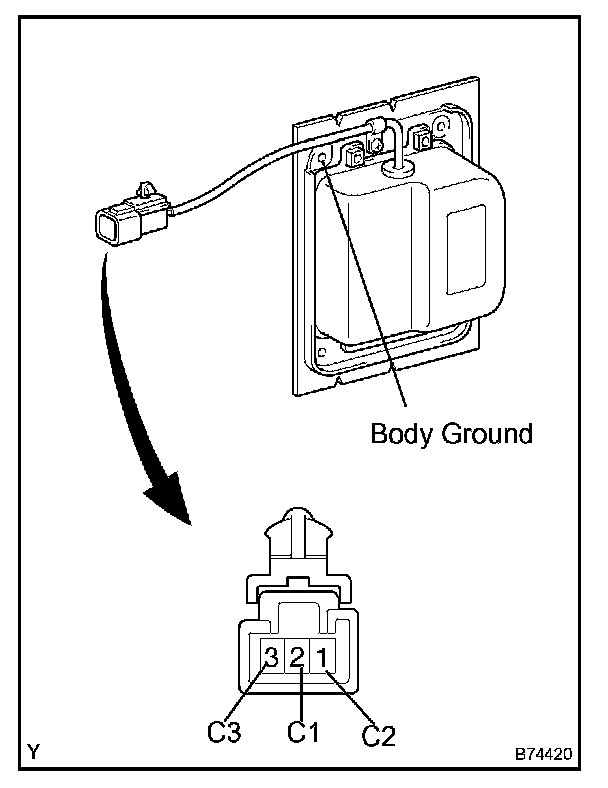

6. INSPECT VIBRATOR RH

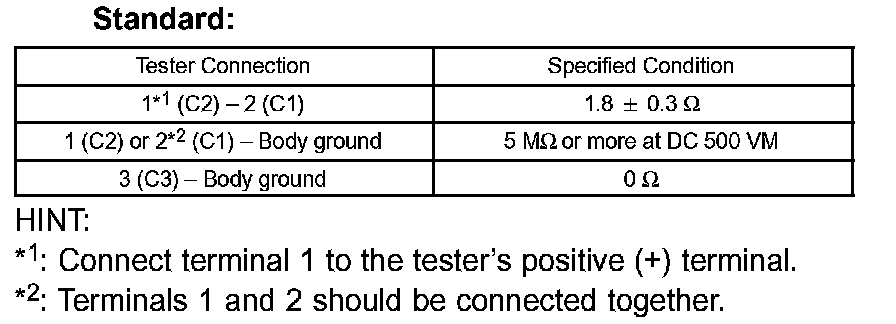

a. Measure the resistance between the terminals.

If the result is not as specified, replace the vibrator.
