Power Source Circuit (Driver Door ECU)

POWER SOURCE CIRCUIT (DRIVER DOOR ECU)

CIRCUIT DESCRIPTION

This circuit supplies power to operate the driver side J/B ECU.

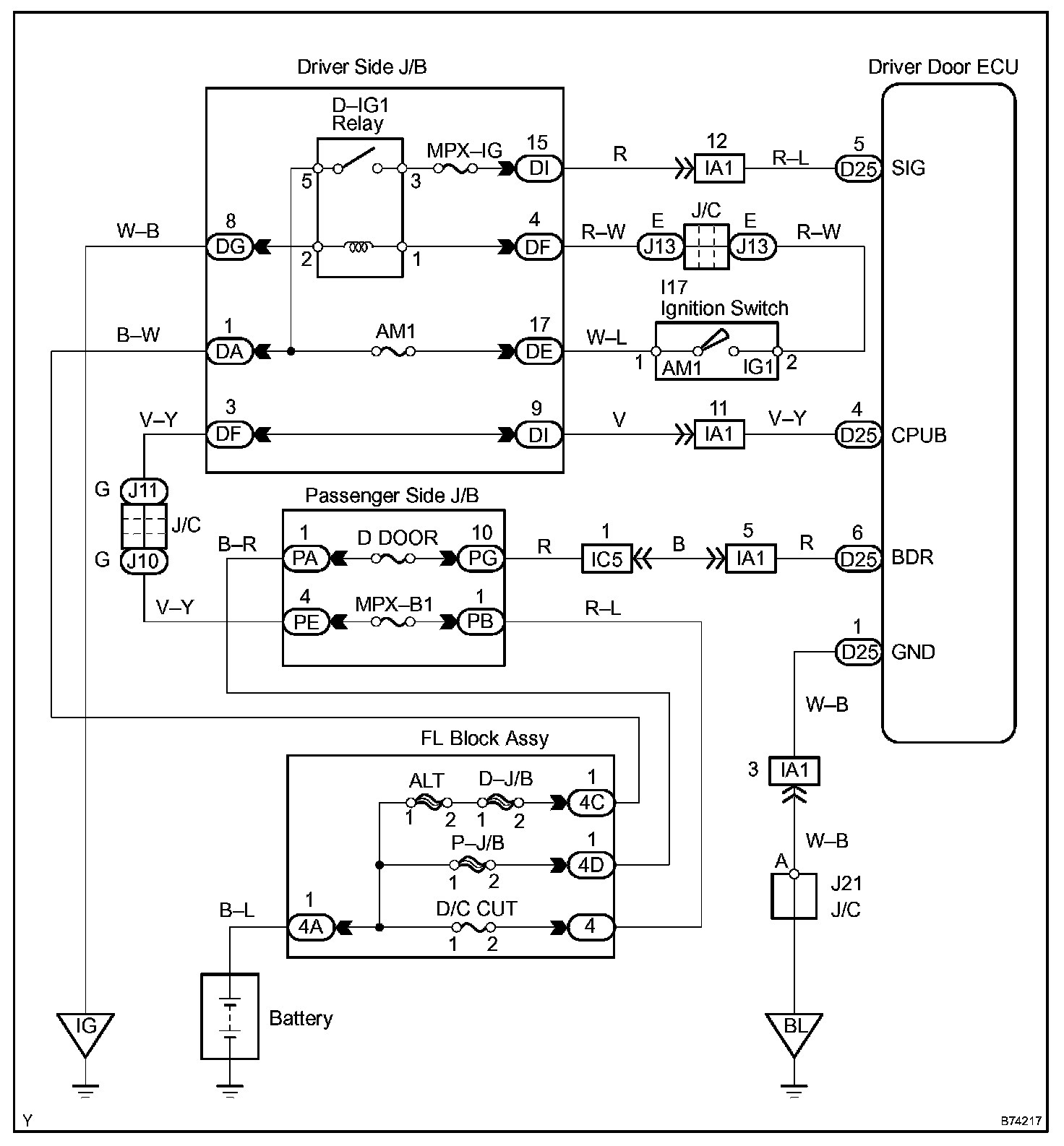

Wiring Diagram:

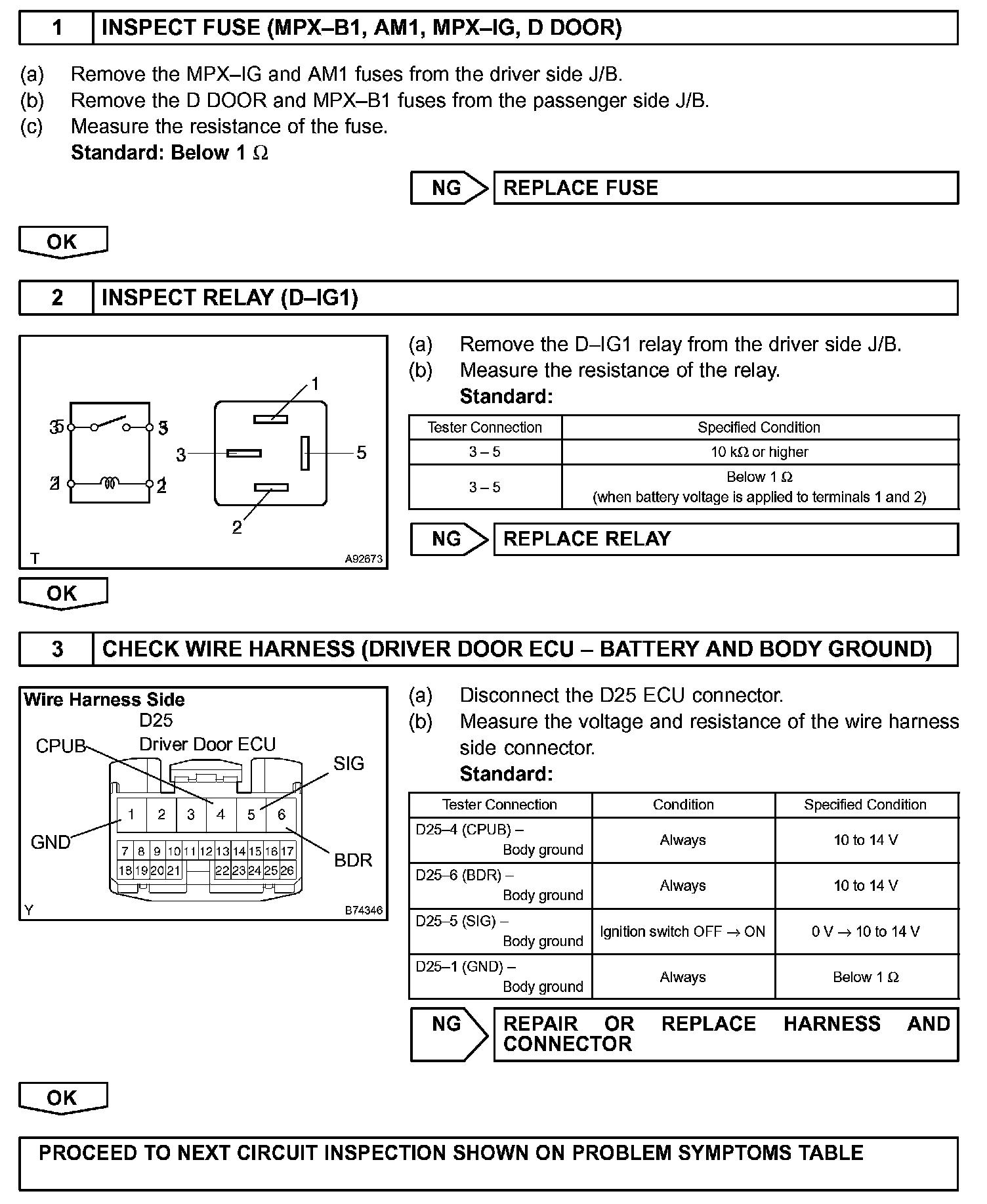

Step 1 - 3:




INSPECTION PROCEDURE
