ECU Power Source Circuit (Driver Seat ECU)

ECU POWER SOURCE CIRCUIT (DRIVER SEAT ECU)

CIRCUIT DESCRIPTION

This circuit provides power to operate the driver seat ECU.

This driver seat ECU is built into this power seat switch. The lumbar support switch and the seat cushion switch are separate from the power seat switch.

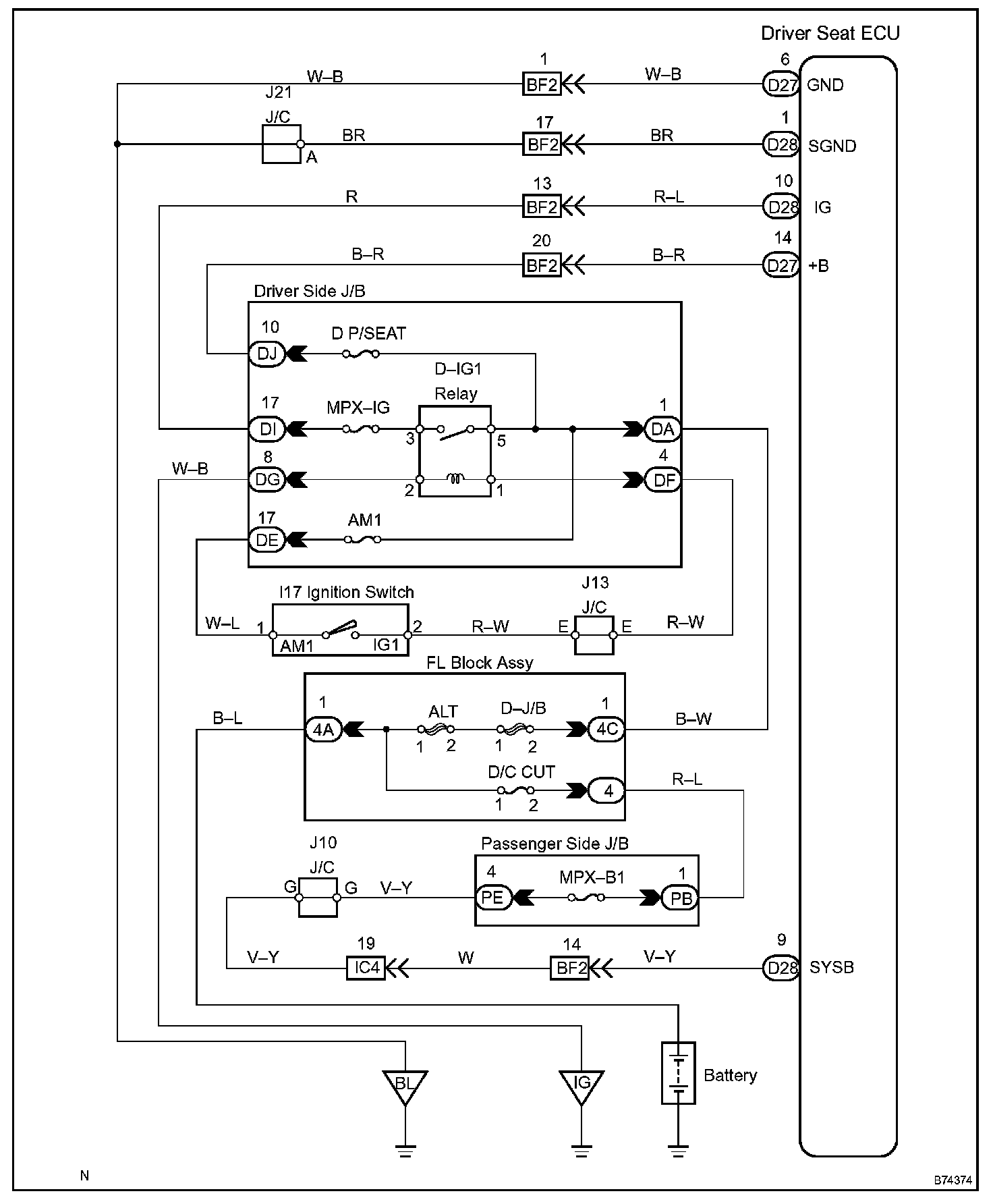

Wiring Diagram:

Step 1 - 3:

Step 3 (Continued):

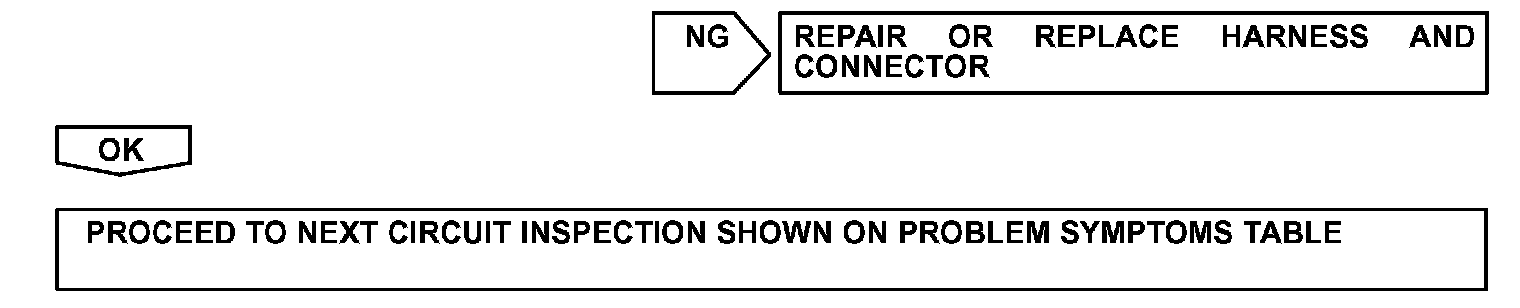

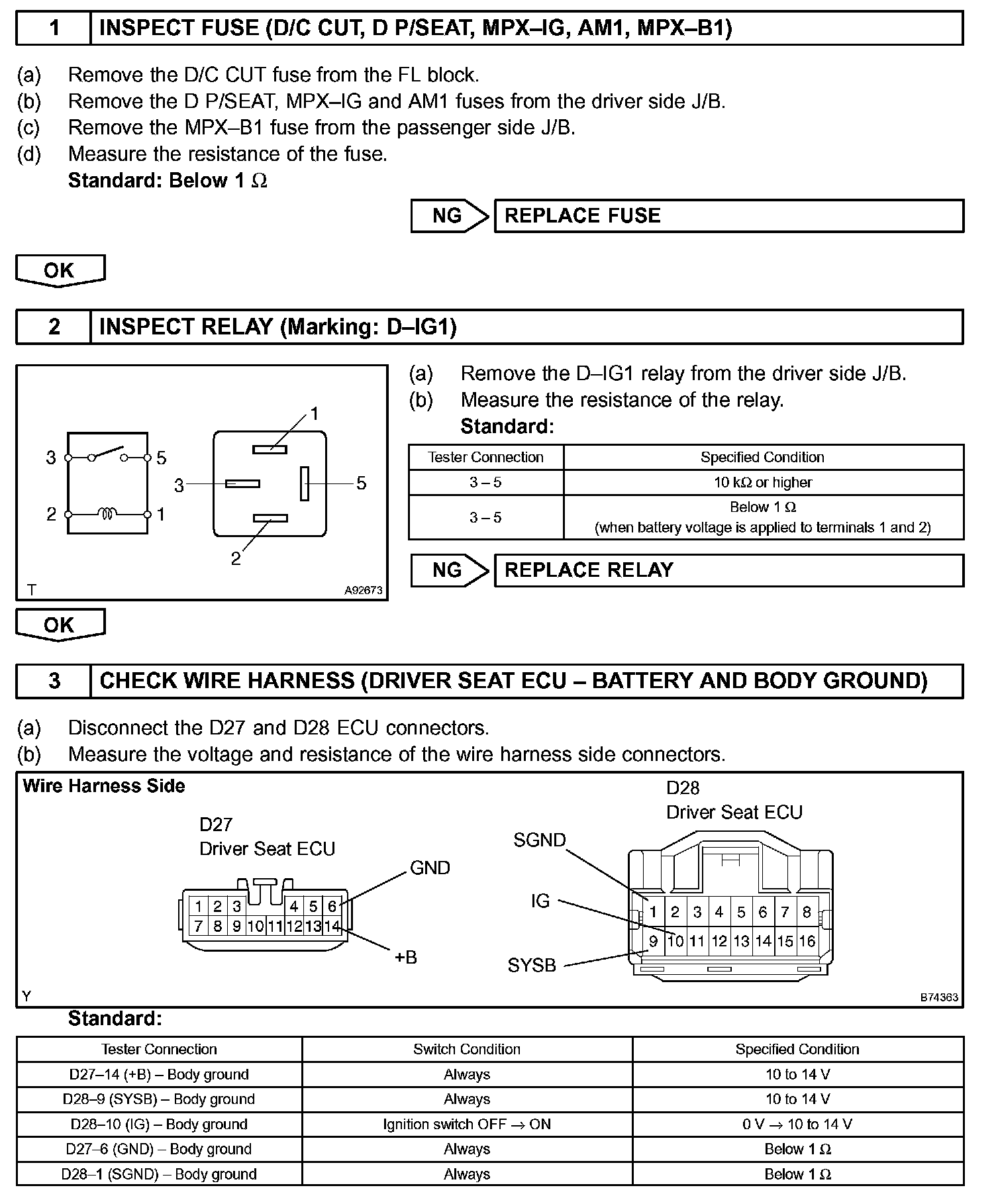

INSPECTION PROCEDURE
