Pinout Values and Diagnostic Parameters
TERMINALS OF ECUTerminals Of Control Module / Pinouts:

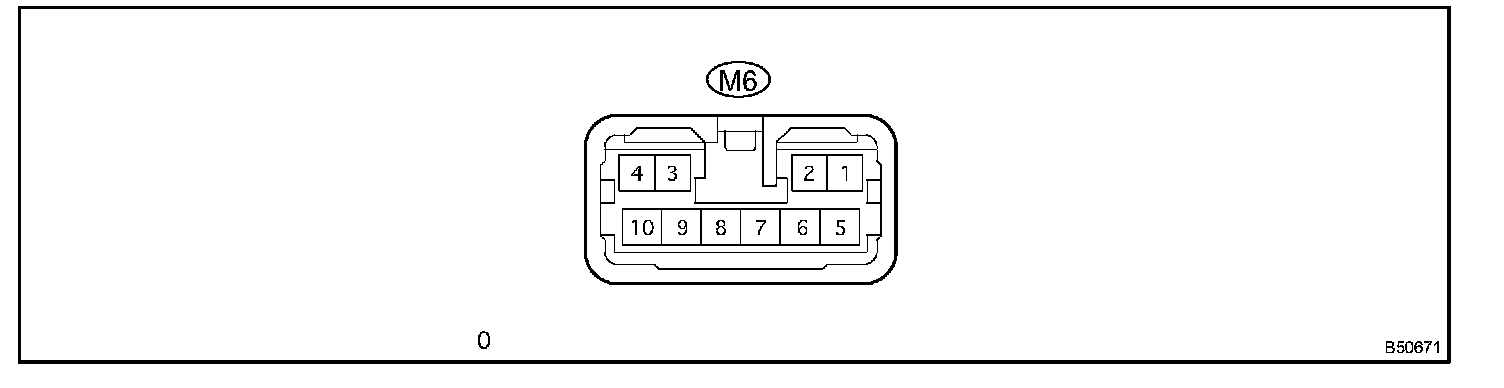

1. CHECK SLIDING ROOF DRIVE GEAR ASSEMBLY (SLIDING ROOF ECU)
a. Disconnect the M6 ECU connector.

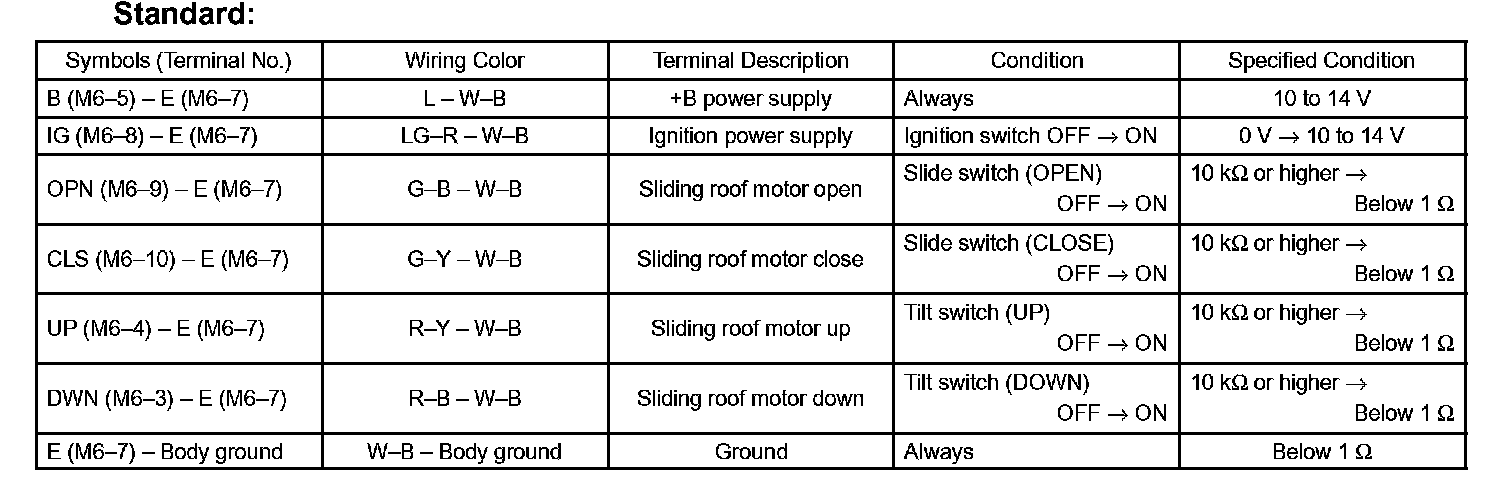

b. Measure the voltage and resistance of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the M6 ECU connector.

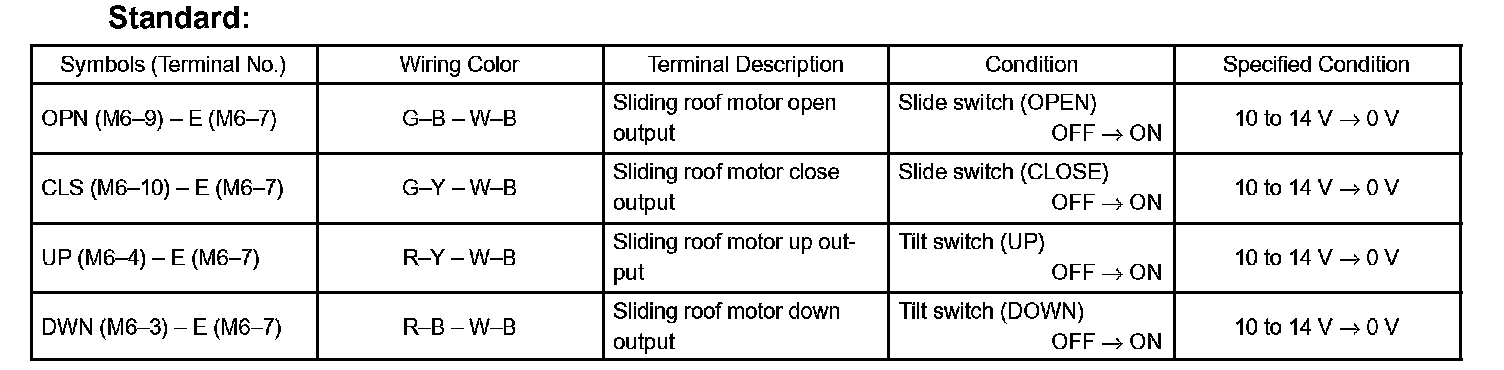

d. Measure the voltage of the connector.
If the result is not as specified, the sliding roof ECU may have a malfunction.
Terminals Of Control Module / Pinouts:

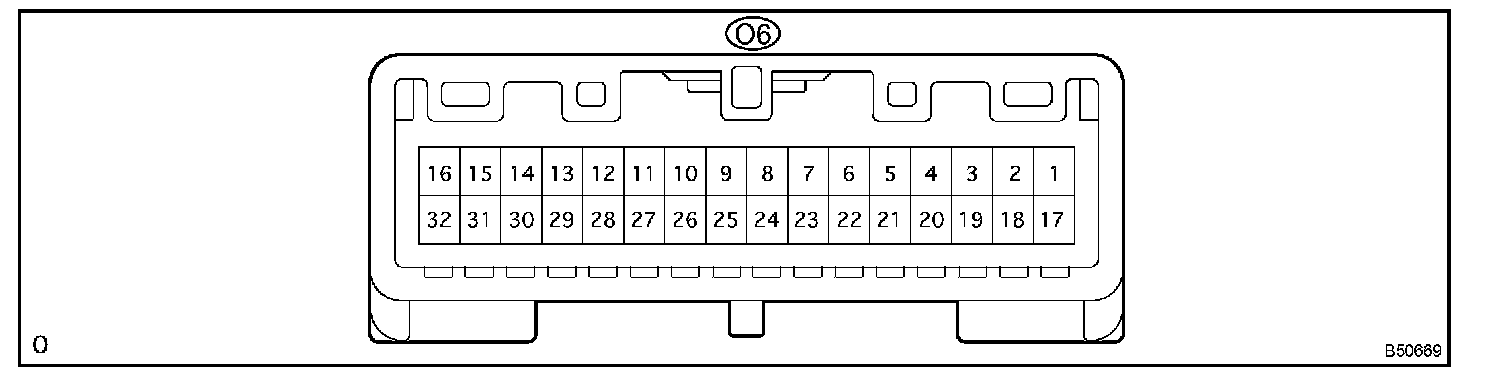

2. CHECK OVERHEAD J/B
a. Disconnect the O6 J/B connector.

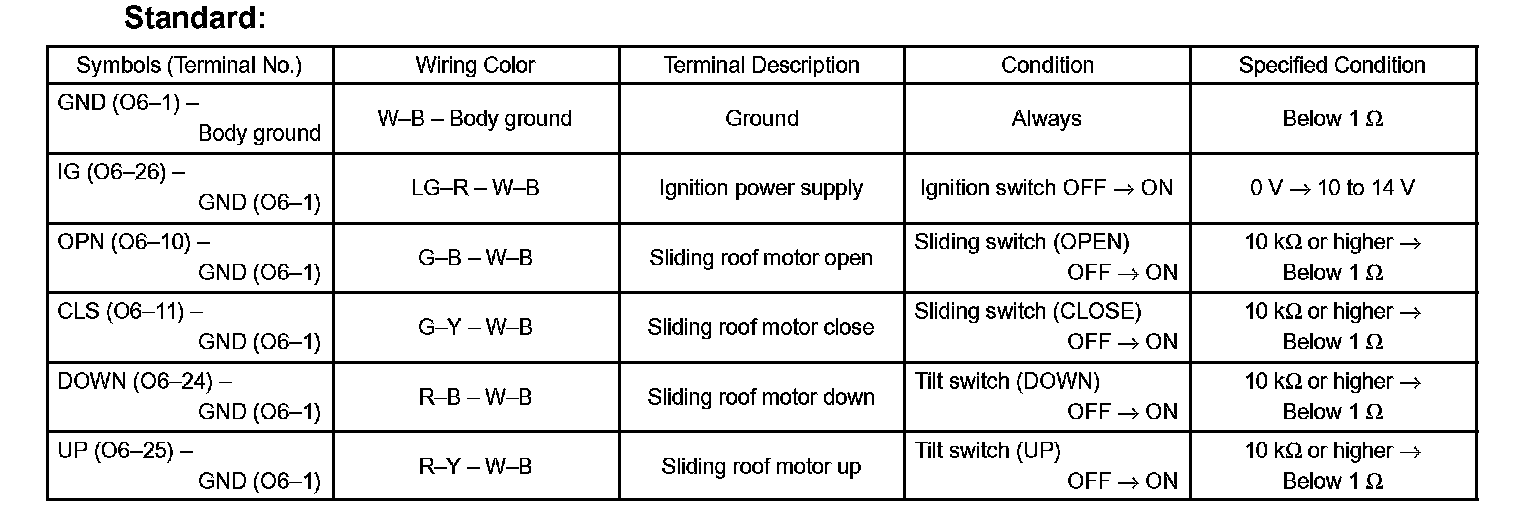

b. Measure the voltage and resistance of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the the O6 J/B connector.

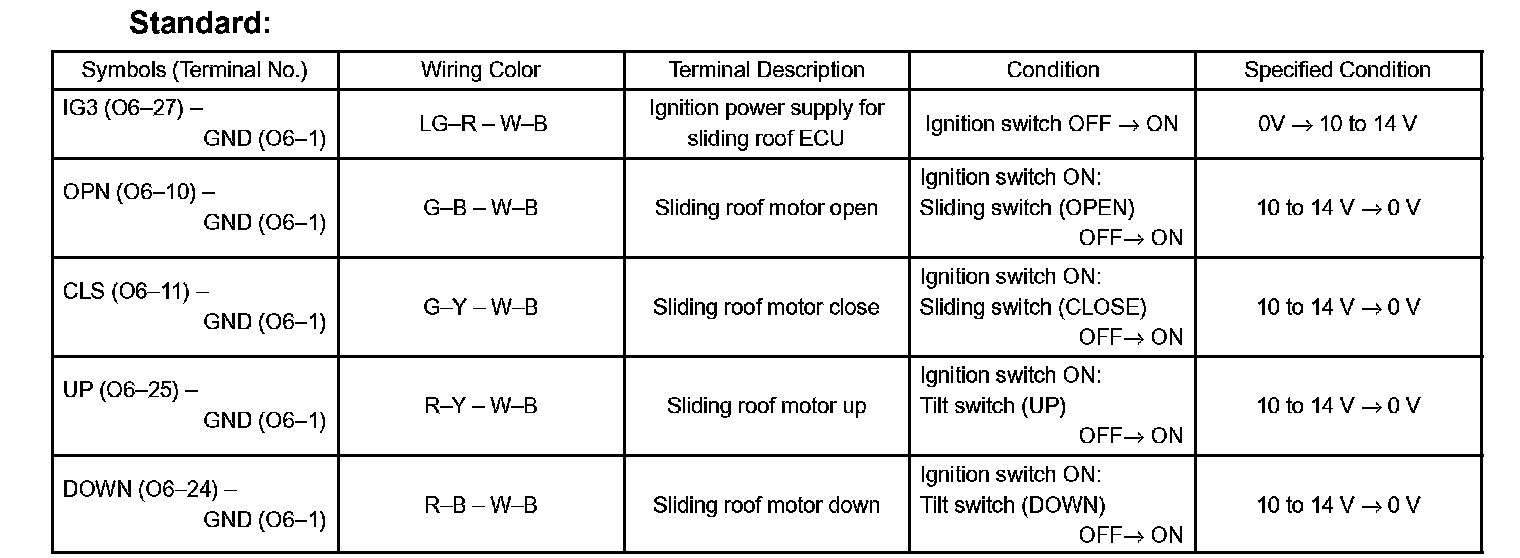

d. Measure the voltage of the connector.
If the result is not as specified, the overhead J/B may have a malfunction.
