Sliding Roof Control Switch Circuit

SLIDING ROOF CONTROL SWITCH CIRCUIT

CIRCUIT DESCRIPTION

Pressing the sliding roof switch sends a control signal to the overhead J/B, which outputs this signal to the sliding roof ECU. The sliding roof ECU then operates the sliding roof motor.

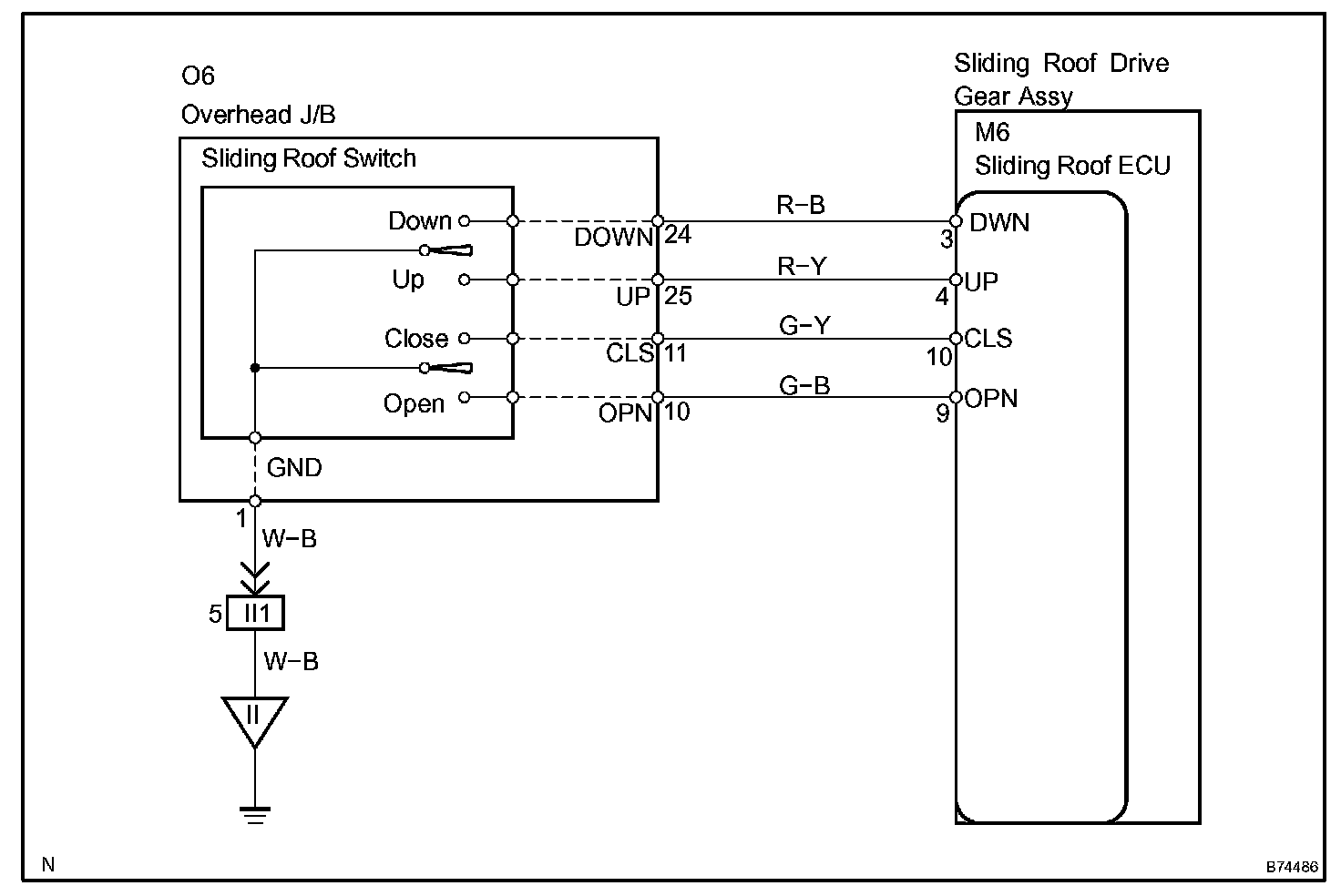

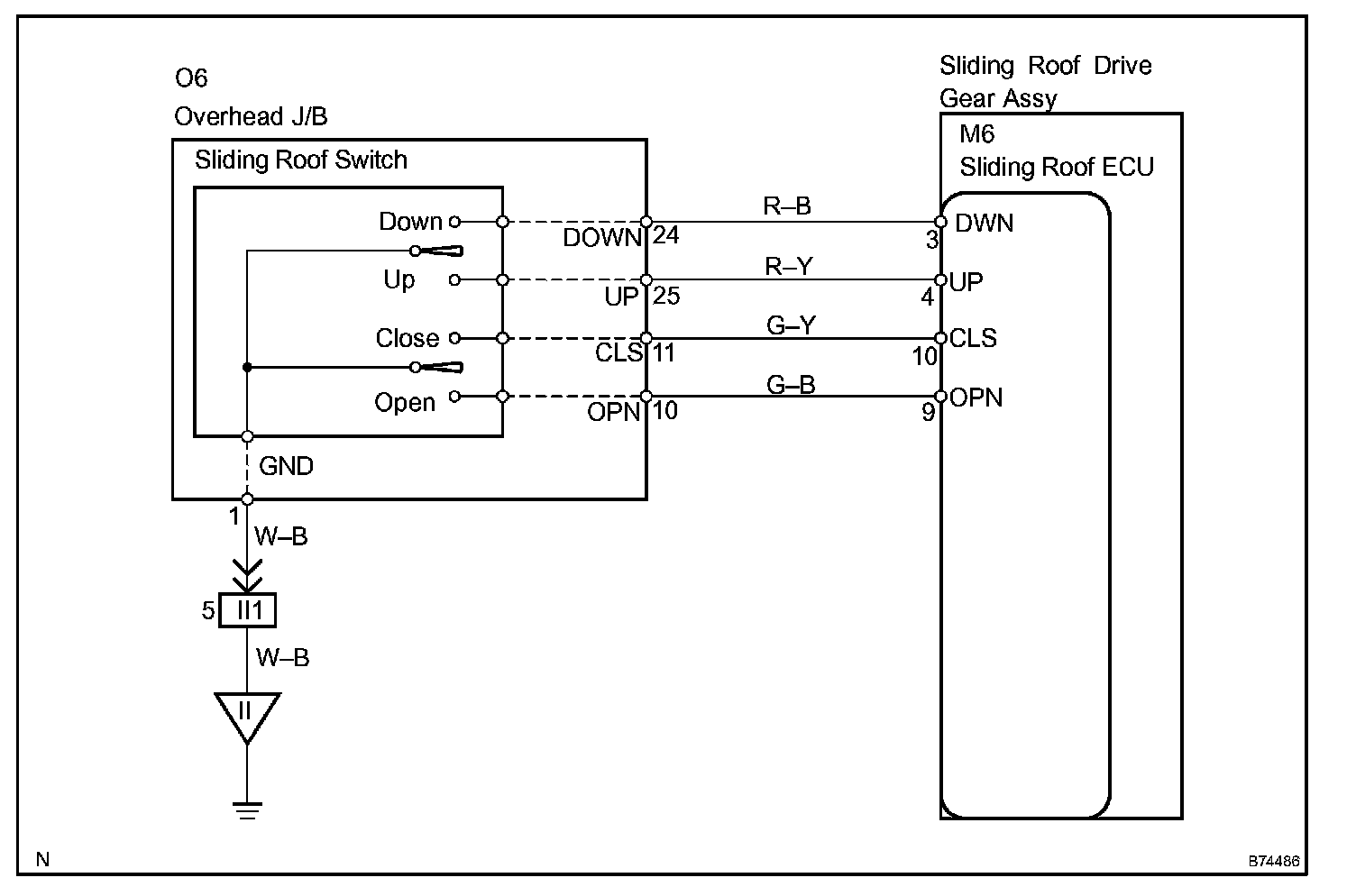

Wiring Diagram:

Step 1 - 2:

Step 3:

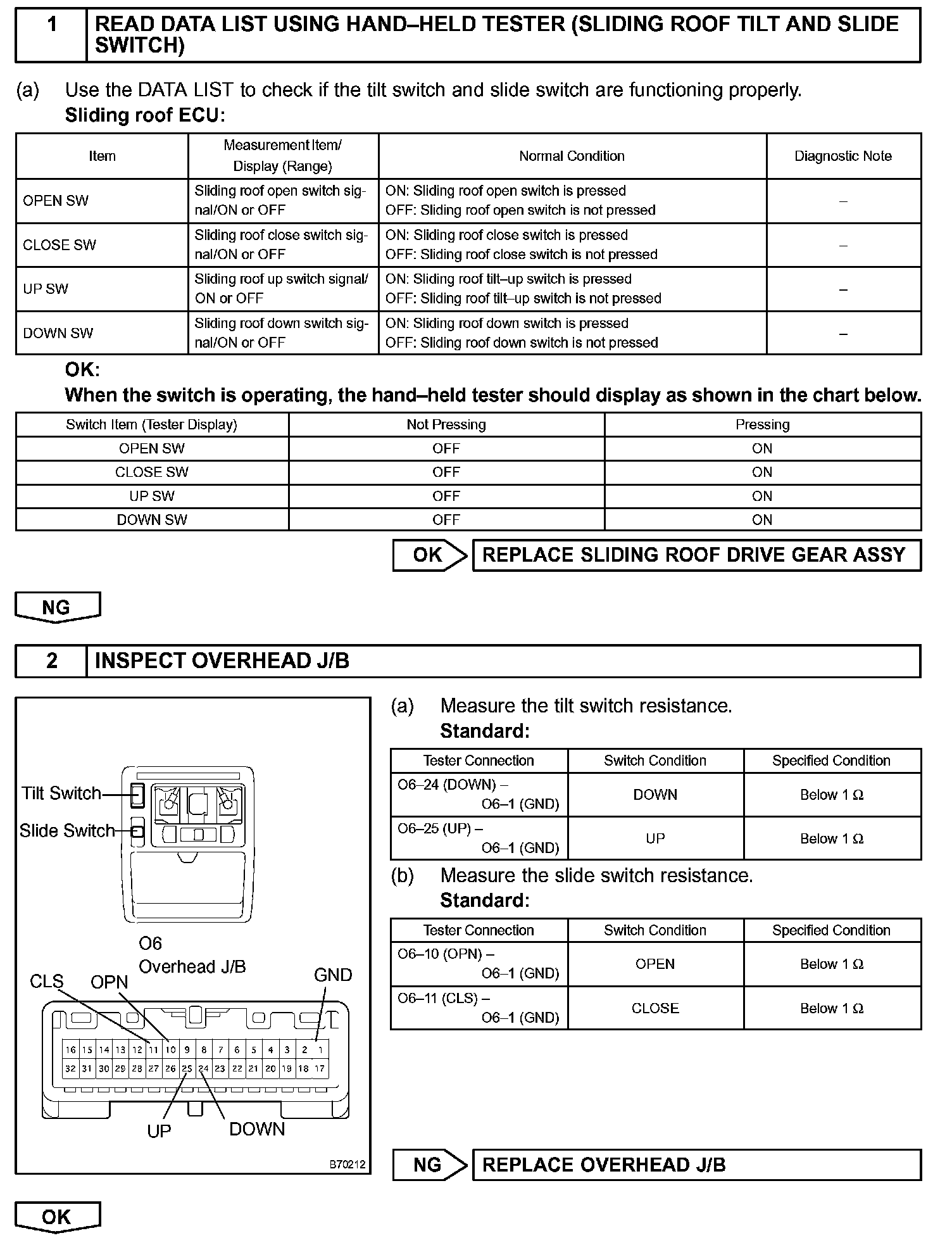

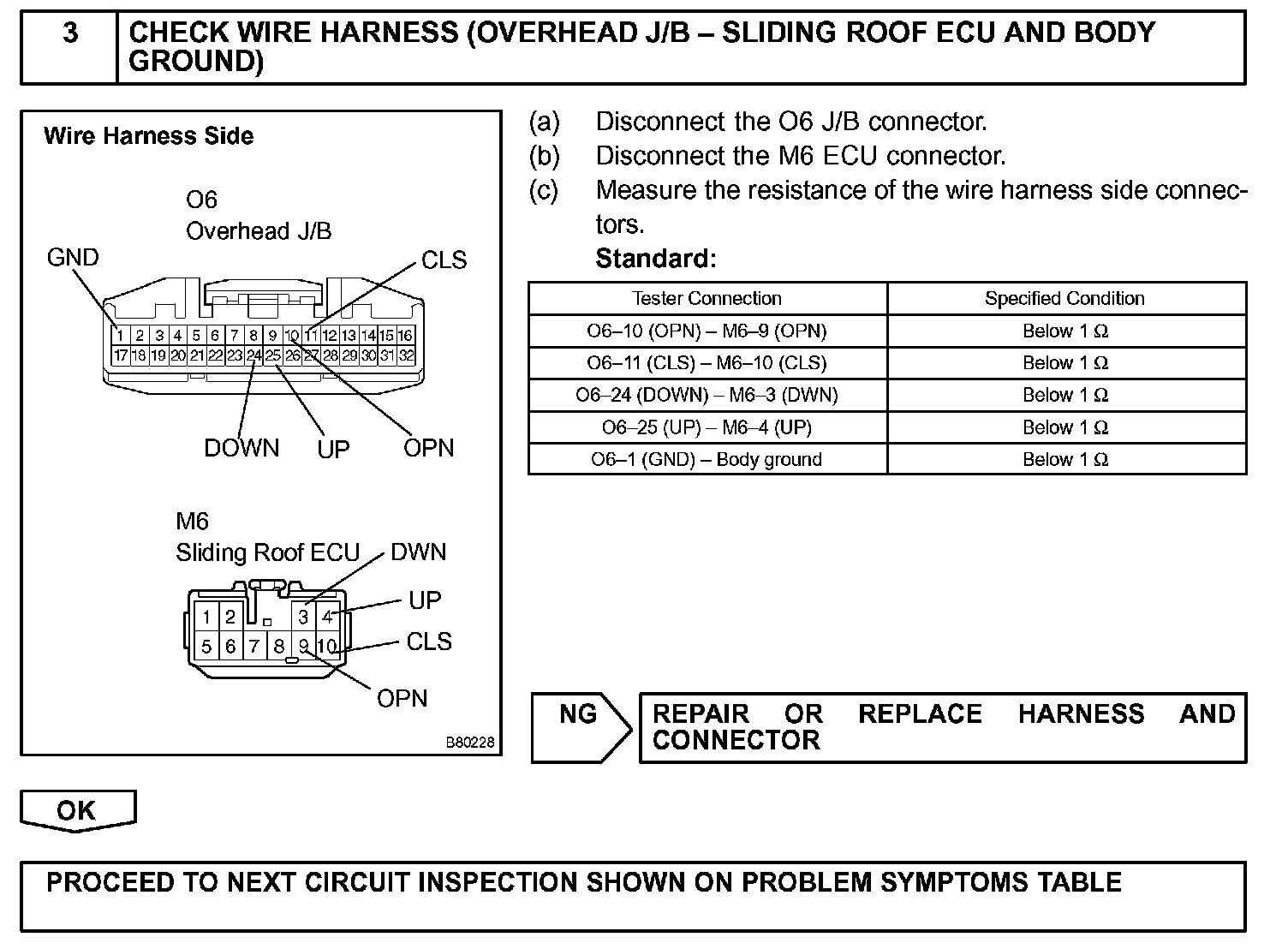

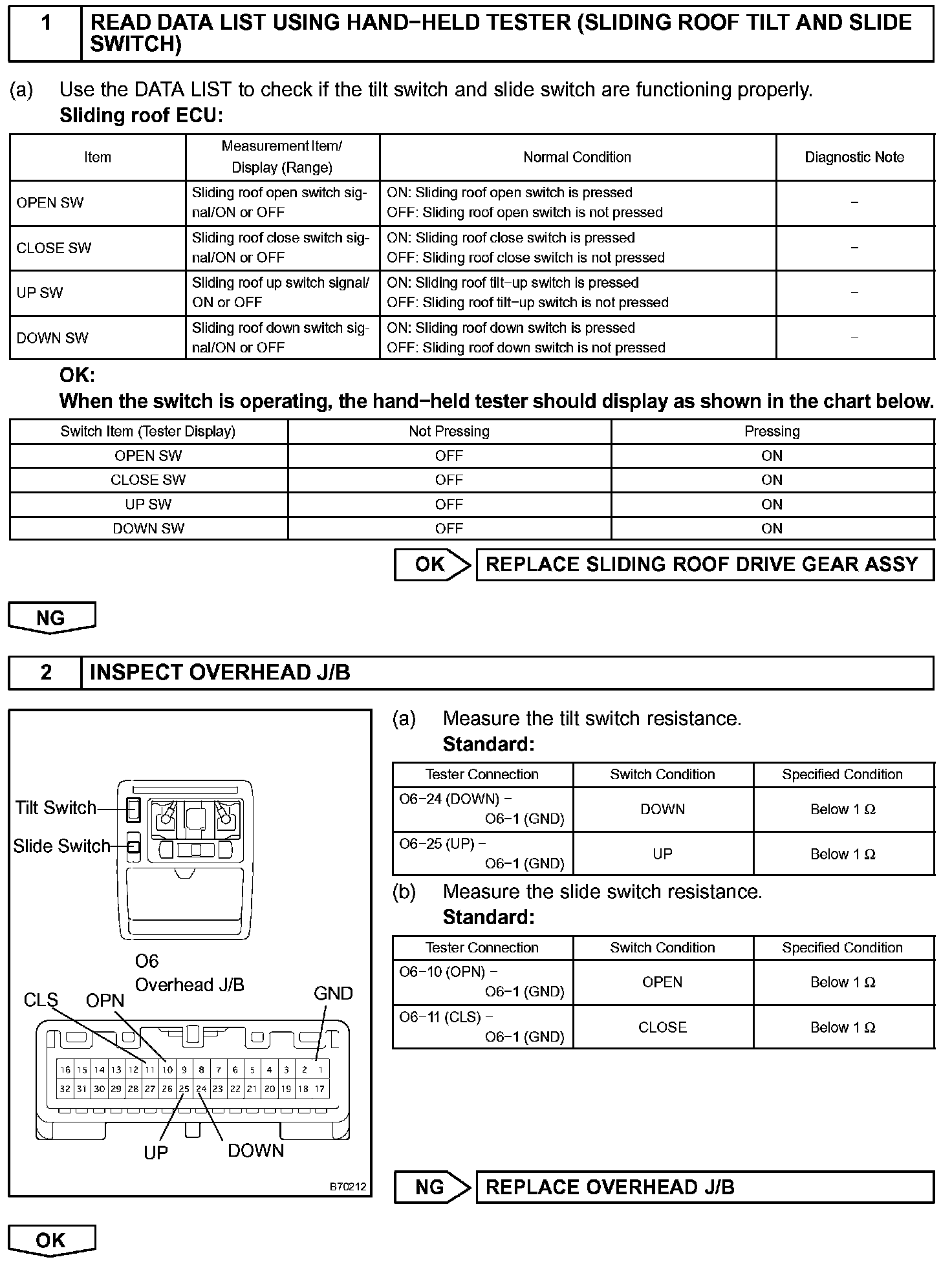

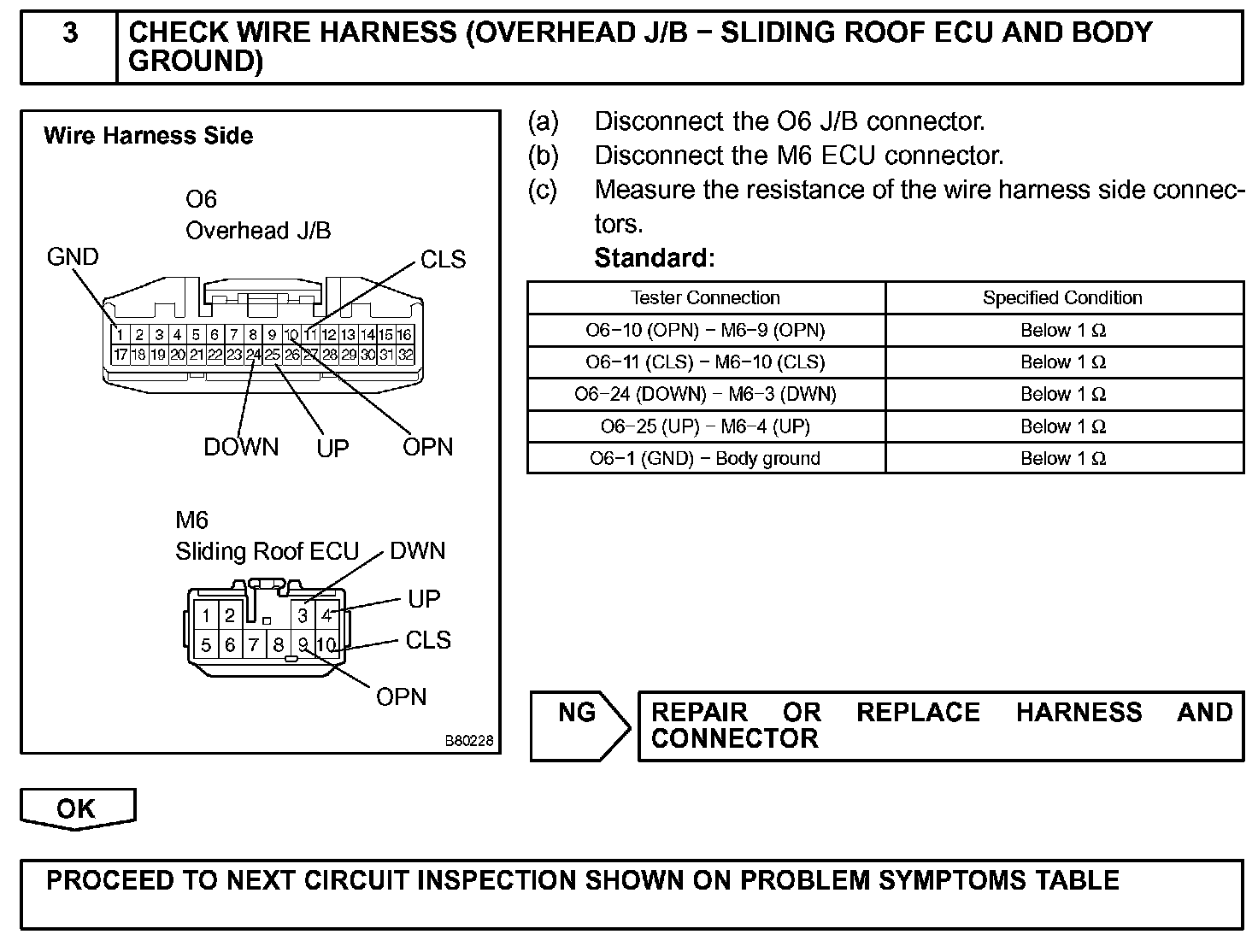

INSPECTION PROCEDURE
