System Description

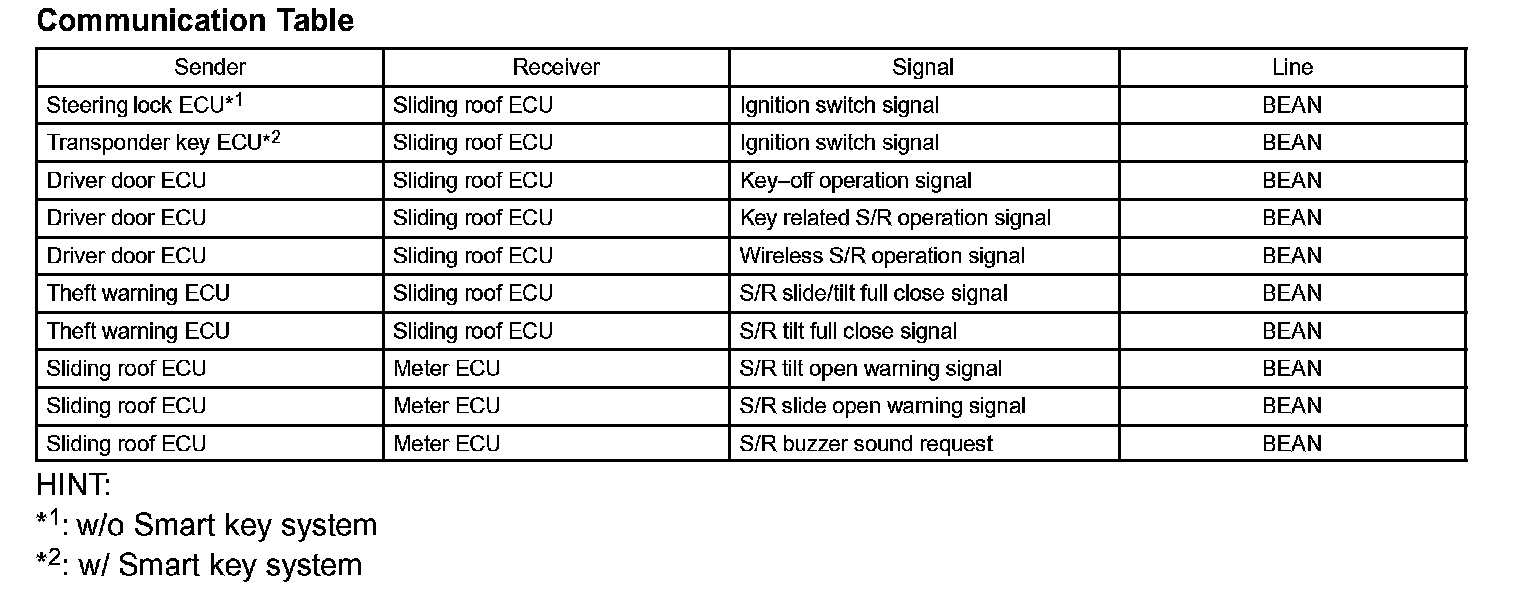

System Diagram:

SYSTEM DESCRIPTION

1. GENERAL
In this system, available functions are AUTO tilt-up and tilt-down; AUTO sliding open and close; jam protection; key-linked open and close; transmitter-linked open; and AUTO operation open and close (with ignition switch OFF).

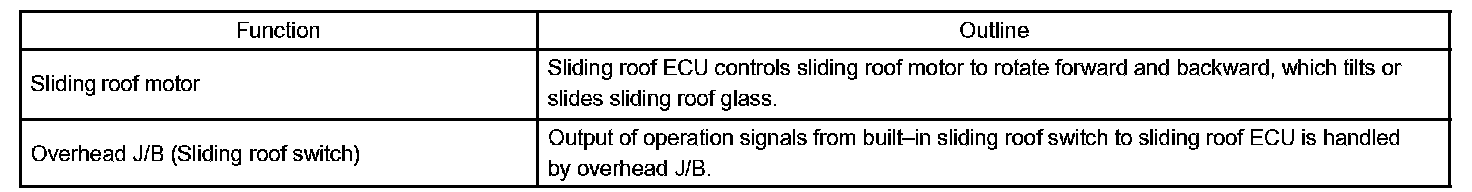

2. FUNCTION OF COMPONENT

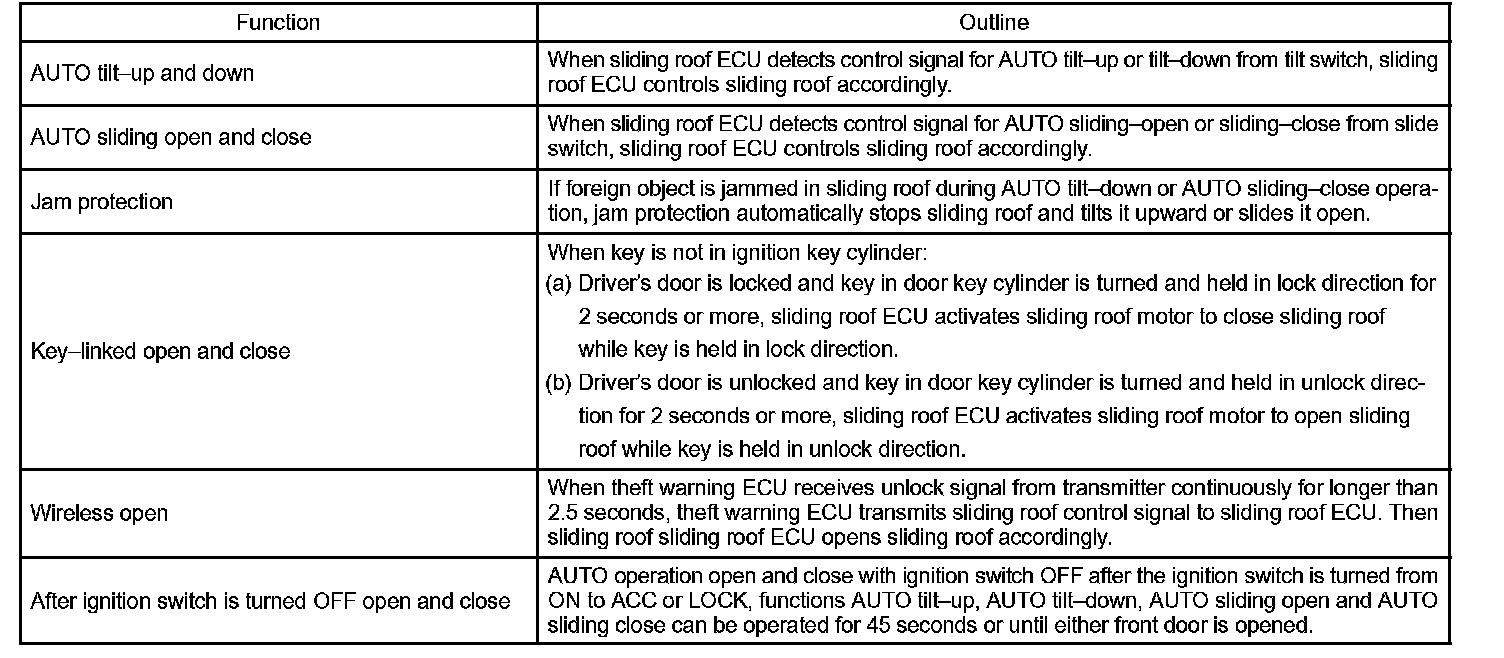

3. SYSTEM OPERATION
