Power Source Circuit (Driver Side J/B ECU)

POWER SOURCE CIRCUIT (DRIVER SIDE J/B ECU)

CIRCUIT DESCRIPTION

This circuit provides power to operate the driver side J/B ECU.

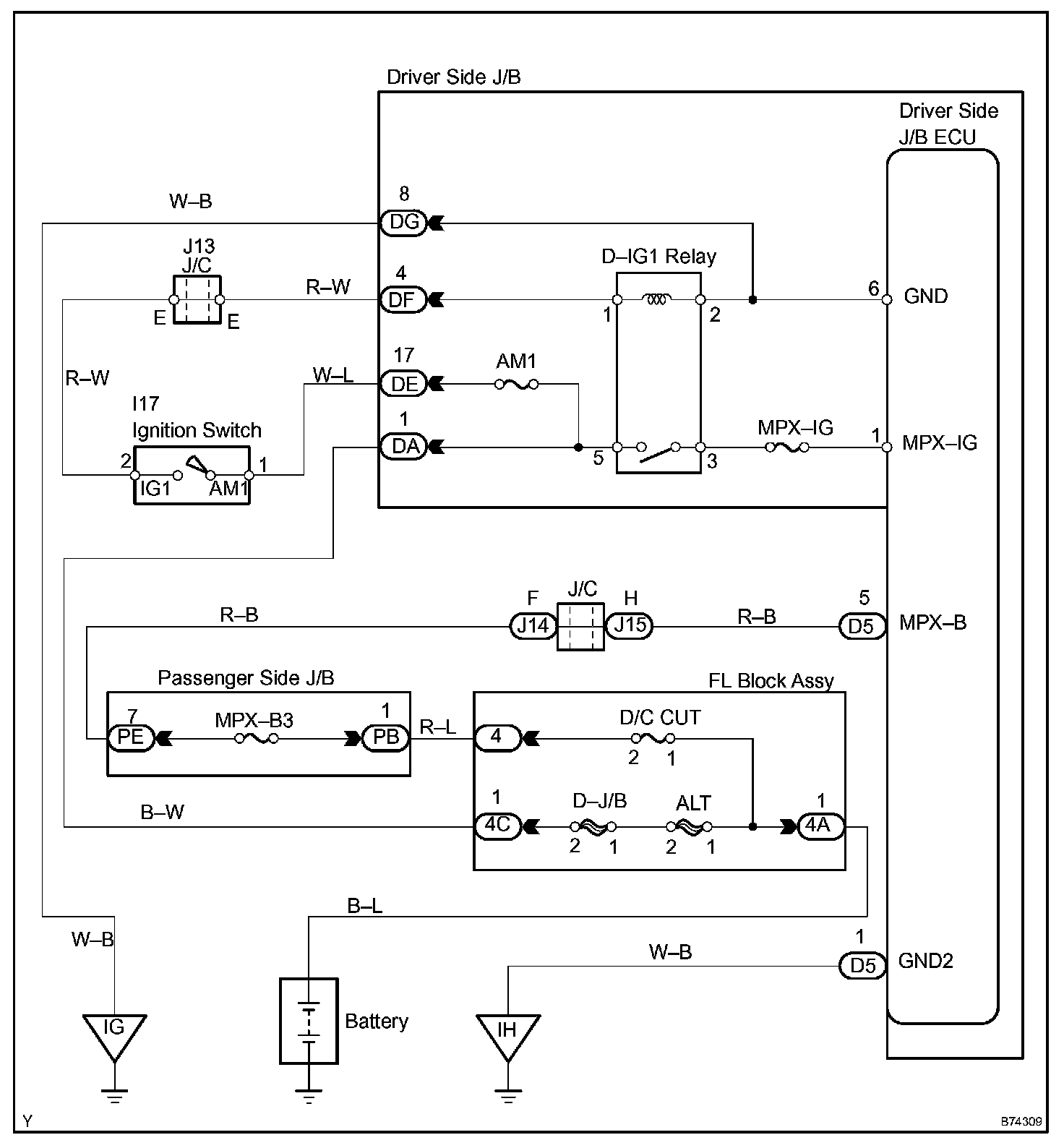

Wiring Diagram:

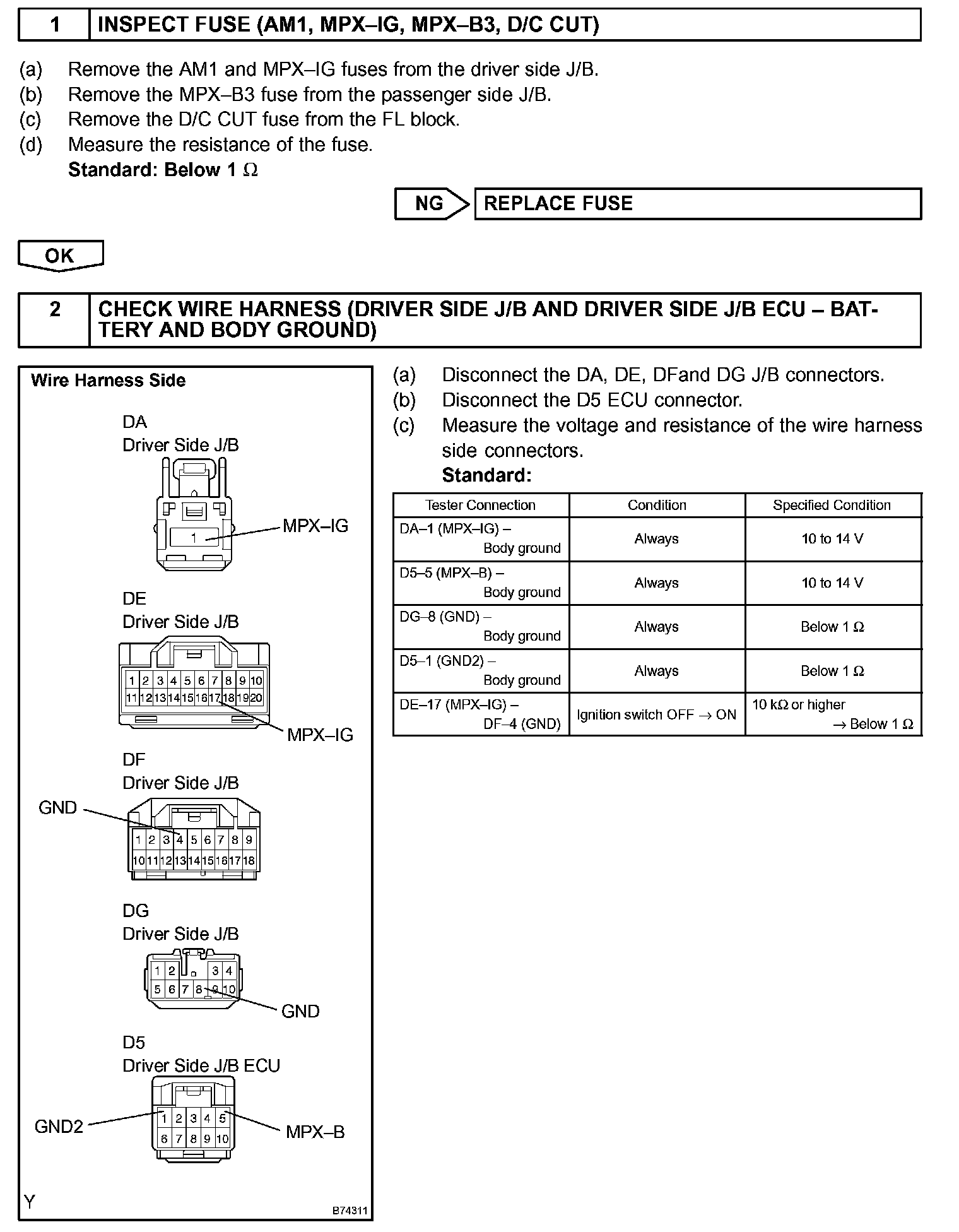

Step 1 - 2:

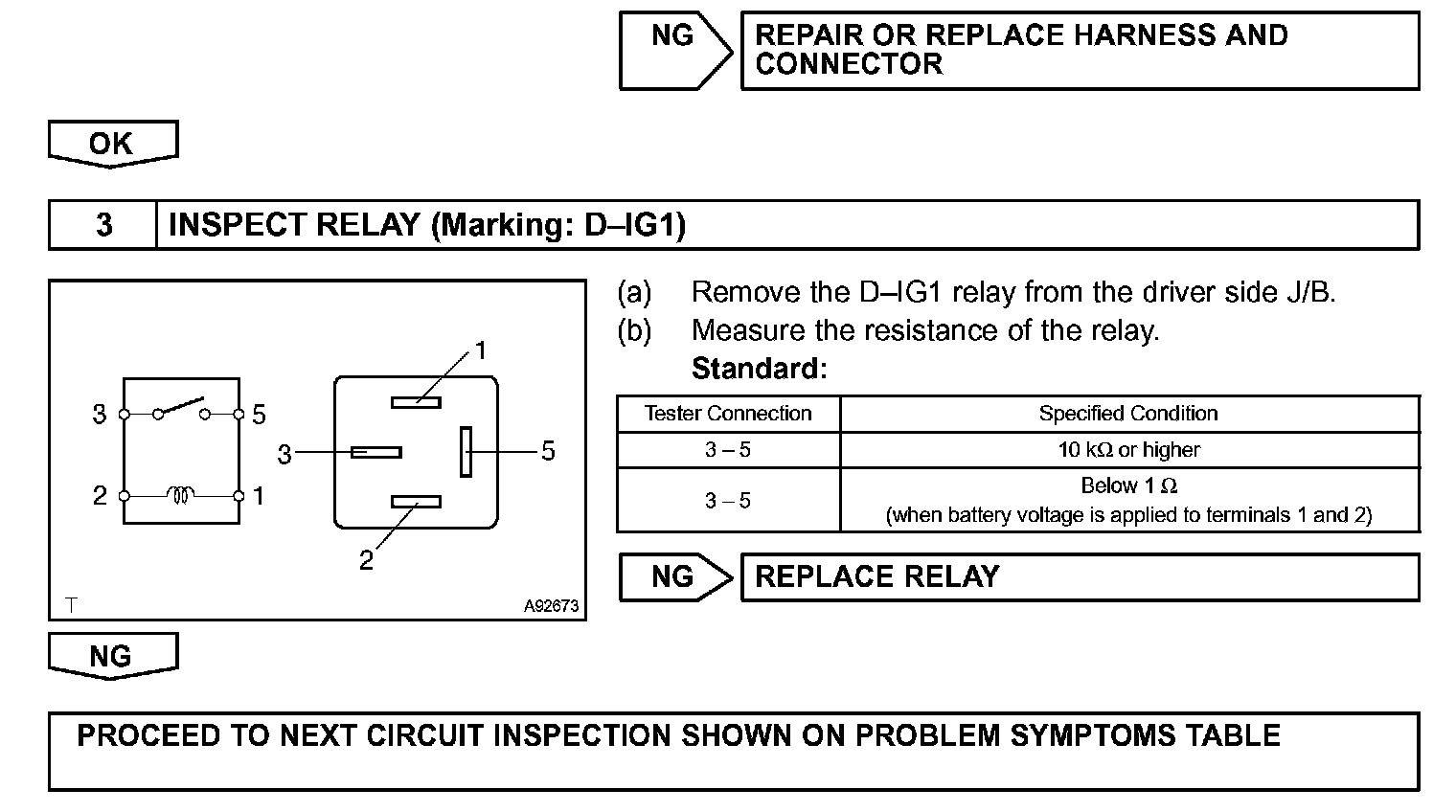

Step 2 (Continued) - 3:

INSPECTION PROCEDURE
