Active Test

ACTIVE TEST

HINT: Performing the hand-held tester's ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time. The DATA LIST can be displayed during the ACTIVE TEST.

a. Connect the hand-held tester (with CAN VIM) to the DLC3.
b. Turn the ignition switch ON.
c. Perform the ACTIVE TEST according to the display on the tester.

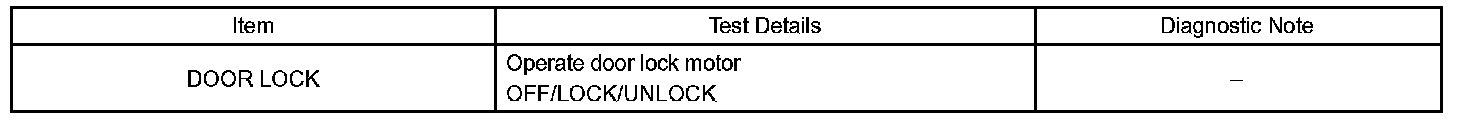

Multiplex network body ECU (Driver door ECU):

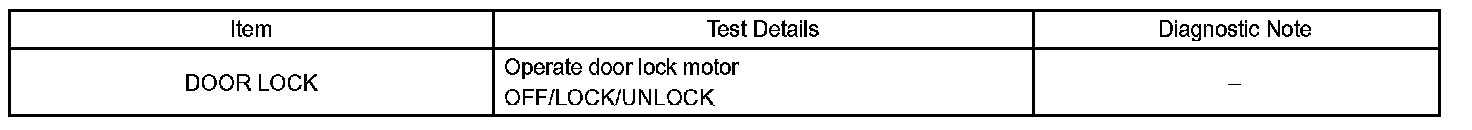

Multiplex network body ECU (Passenger door ECU):

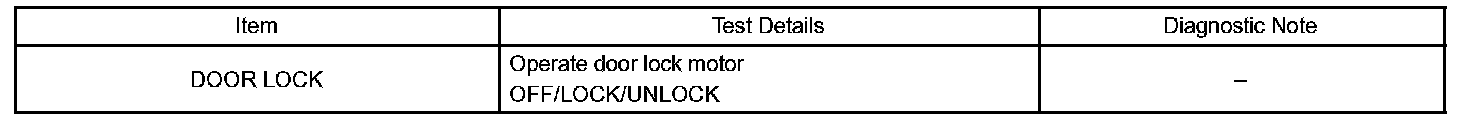

Multiplex network body ECU (Rear left door ECU):

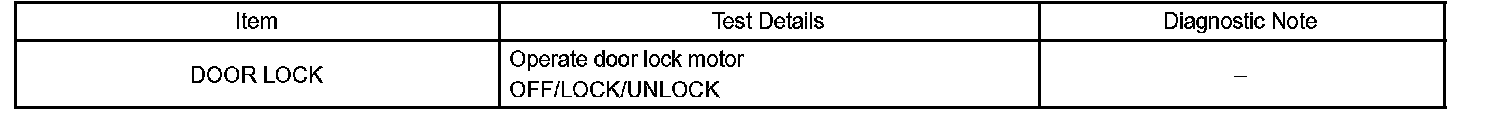

Multiplex network body ECU (Rear right door ECU):
