Door Lock Motor Circuit On Driver Side Door
DOOR LOCK MOTOR CIRCUIT ON DRIVER SIDE DOORCIRCUIT DESCRIPTION
The door lock motor is built in the door lock assembly.
The driver door ECU receives the driver door lock switch signal from the master switch and operates the door lock motor.

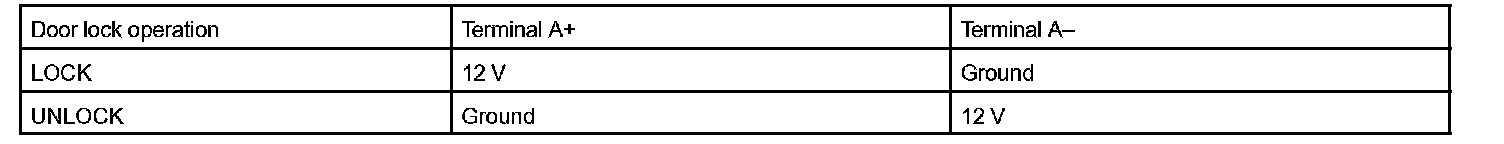

When the battery voltage is supplied to the terminal as follows, the door lock functions accordingly.
Wiring Diagram:

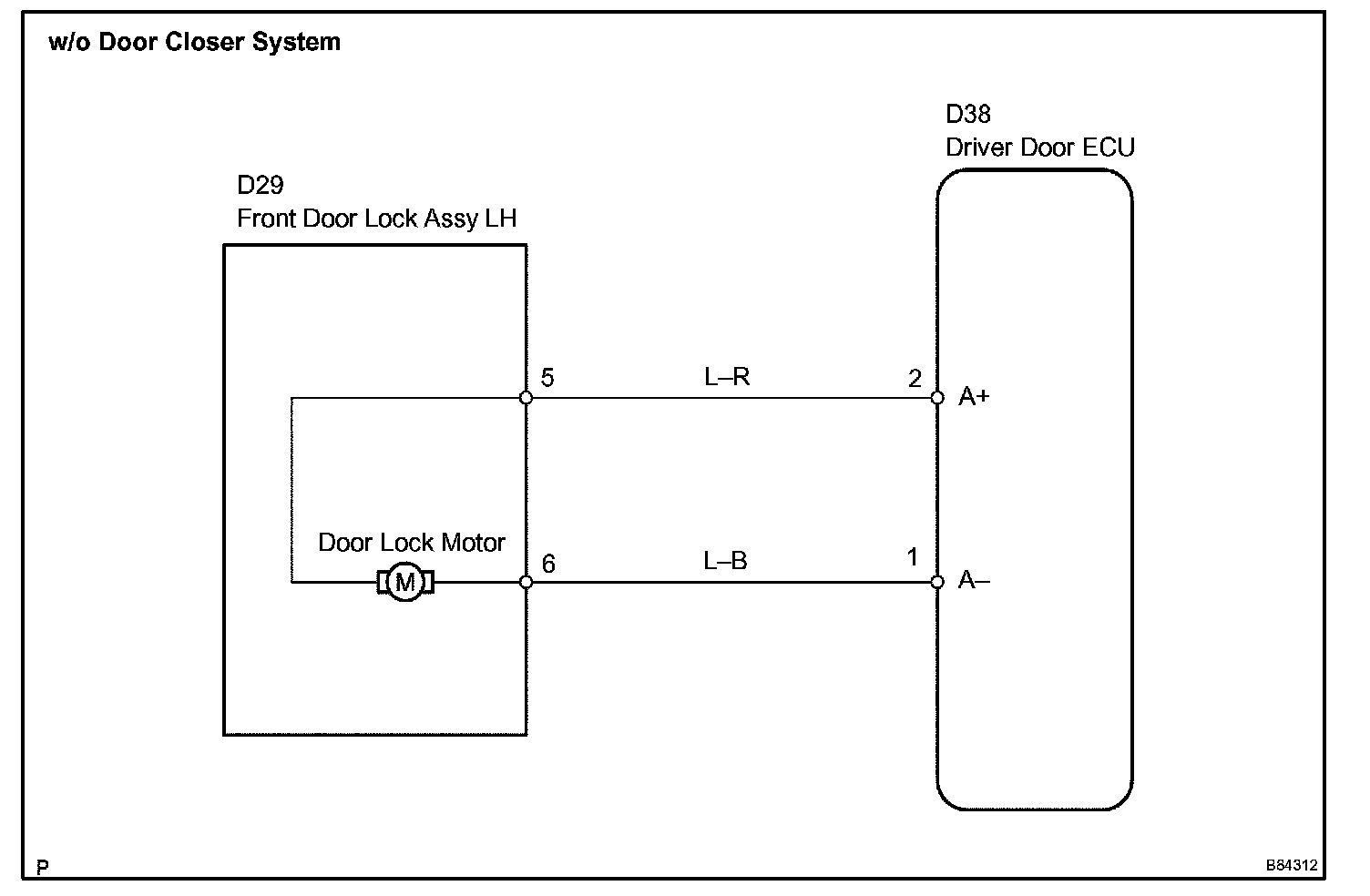

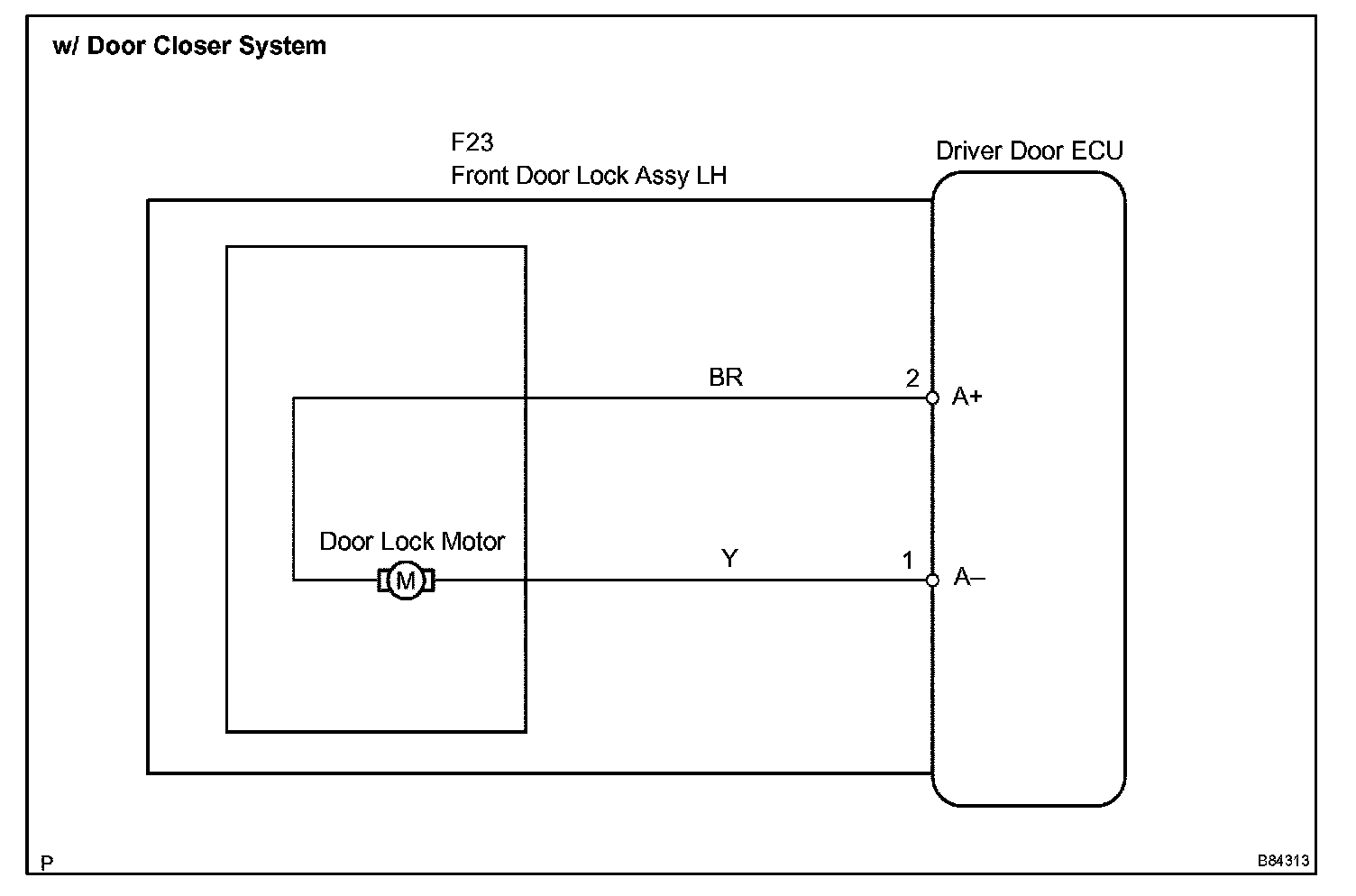

Wiring Diagram:

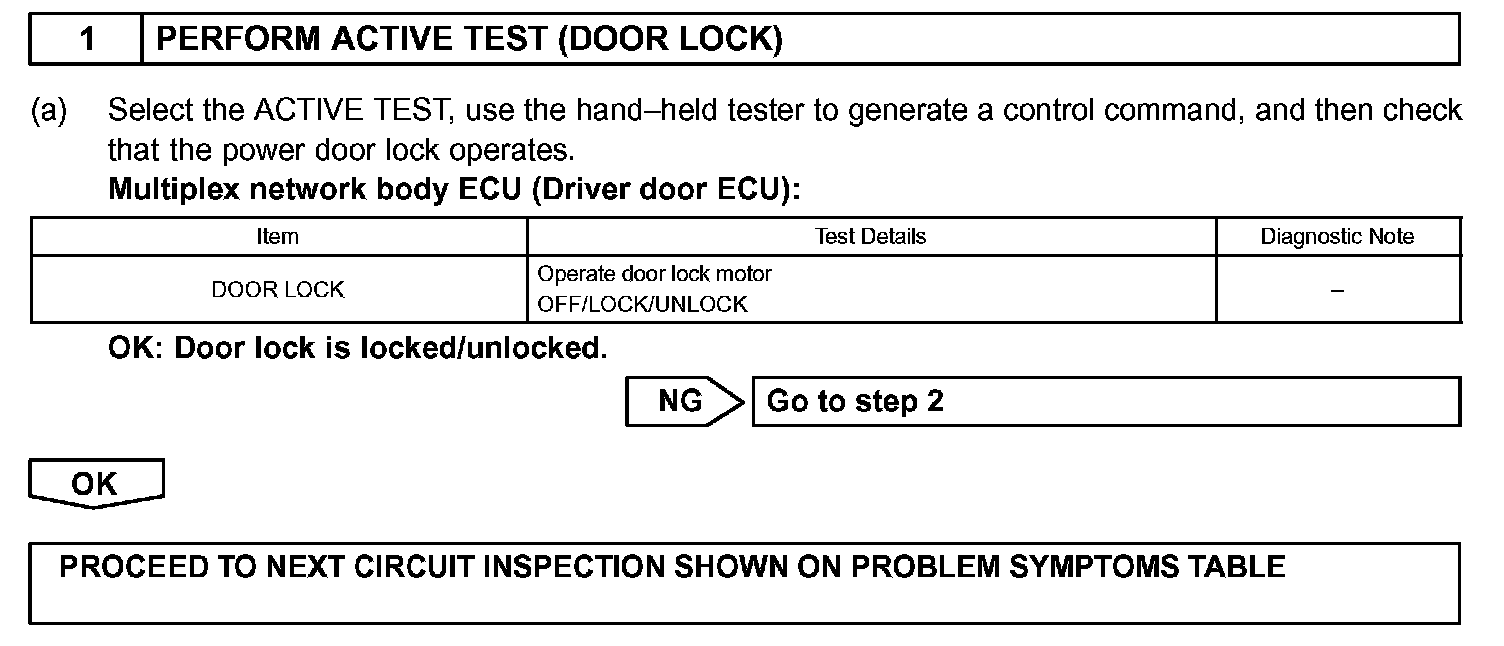

Step 1:

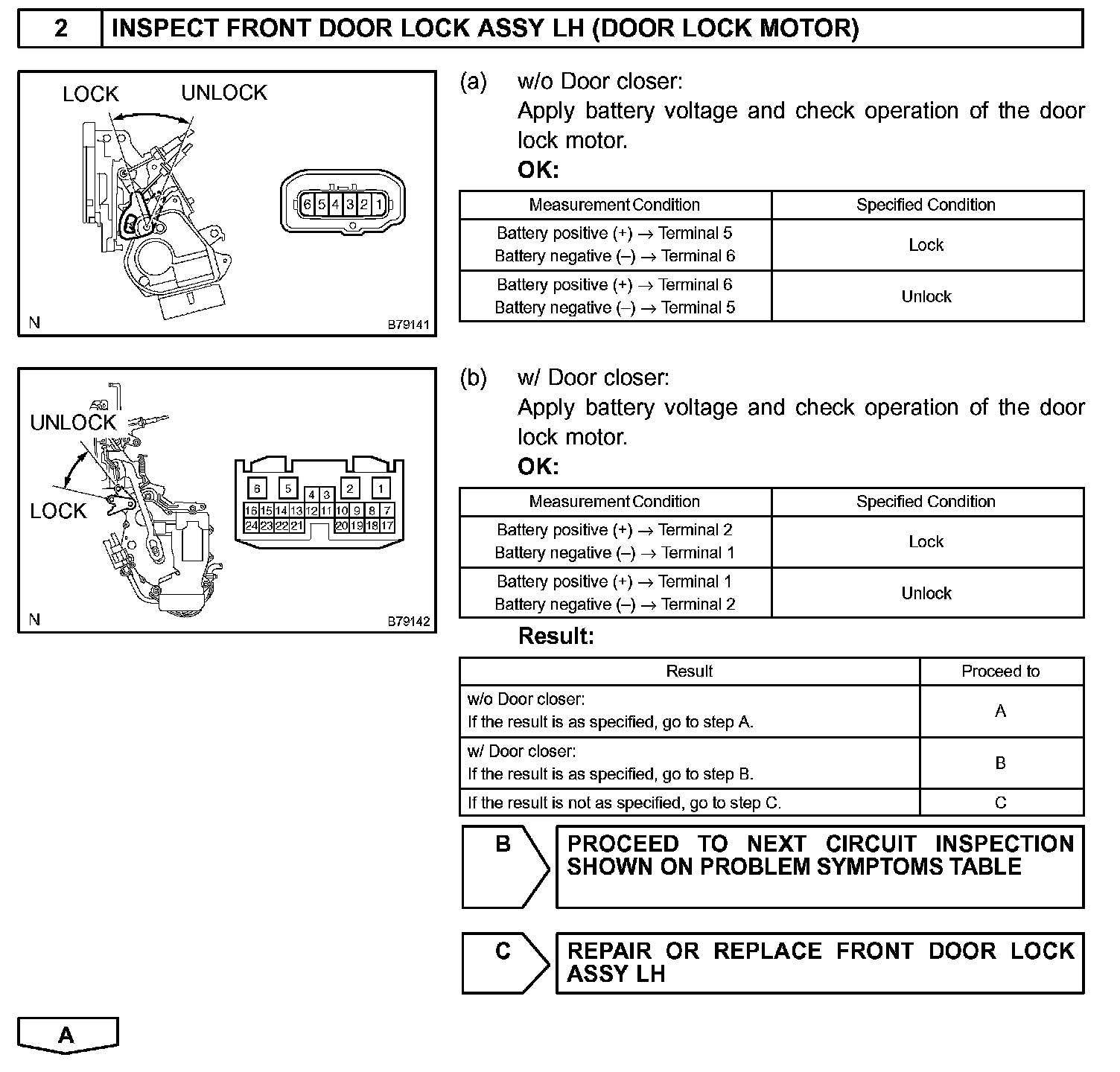

Step 2:

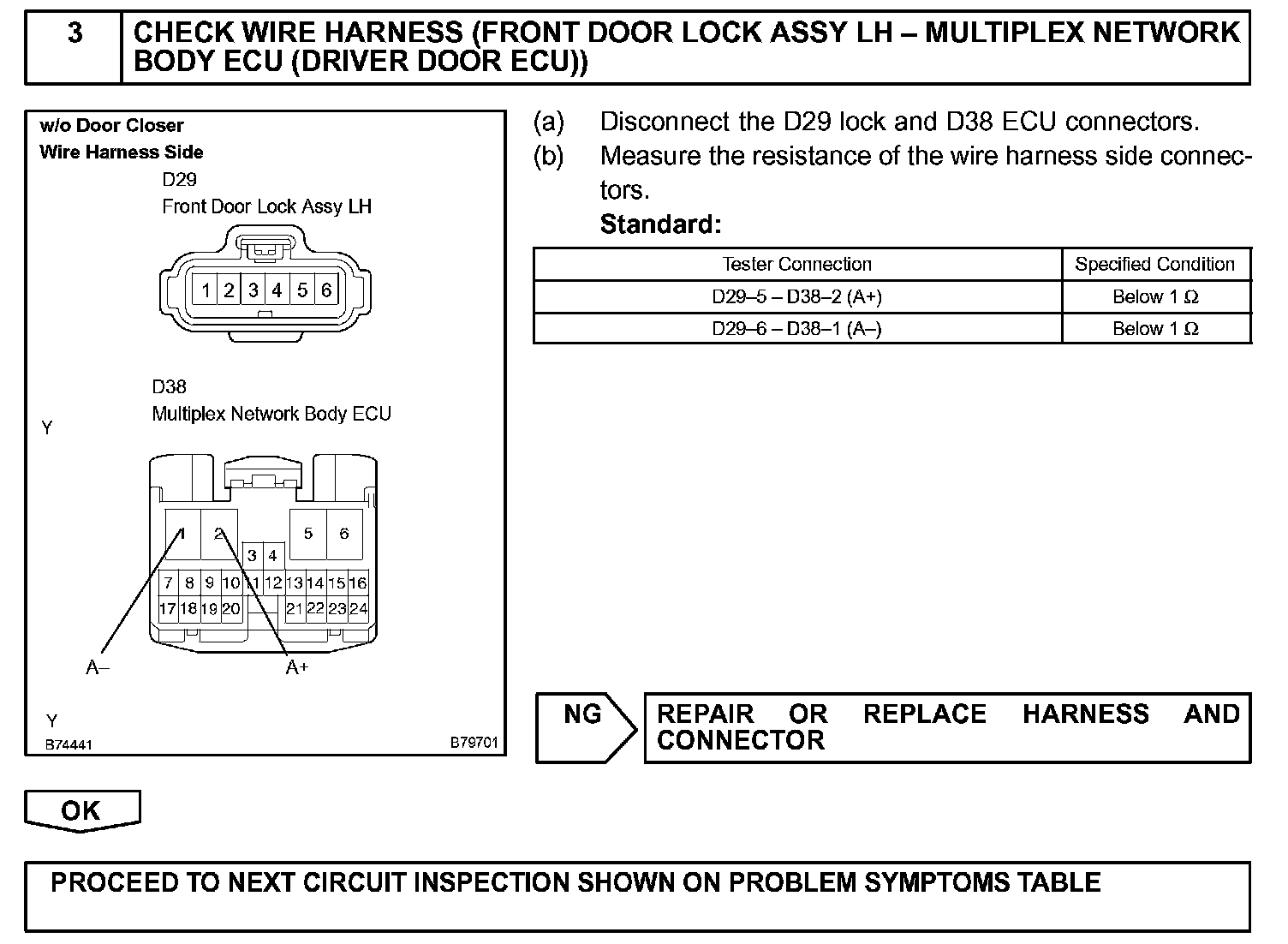

Step 3:
INSPECTION PROCEDURE
