Pinout Values and Diagnostic Parameters
TERMINALS OF ECUTerminals Of Control Module / Pinouts:
1. CHECK DRIVER SIDE J/B (DRIVER SIDE J/B ECU)

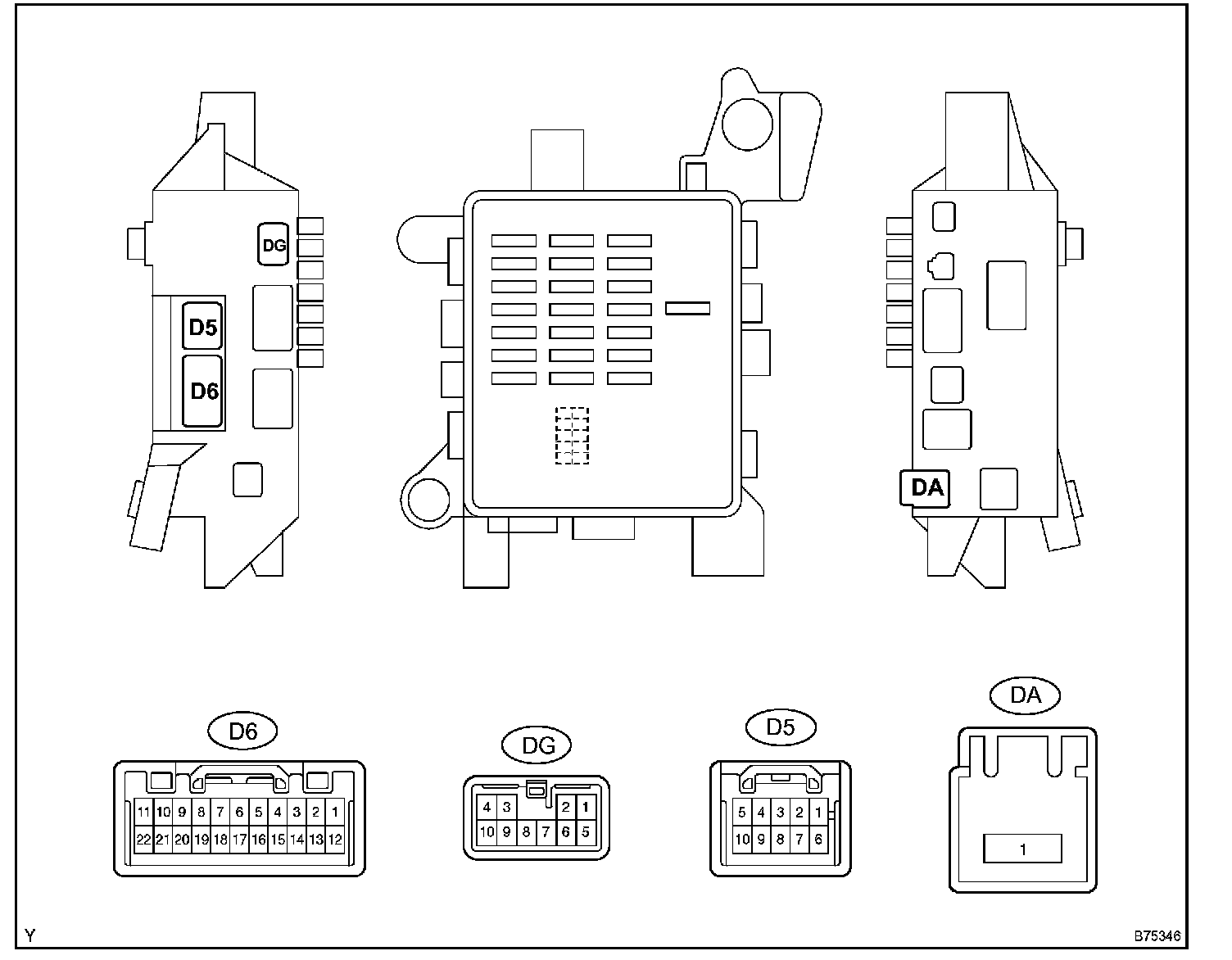

a. Disconnect the DA and DG J/B, and D5 and D6 ECU connectors.

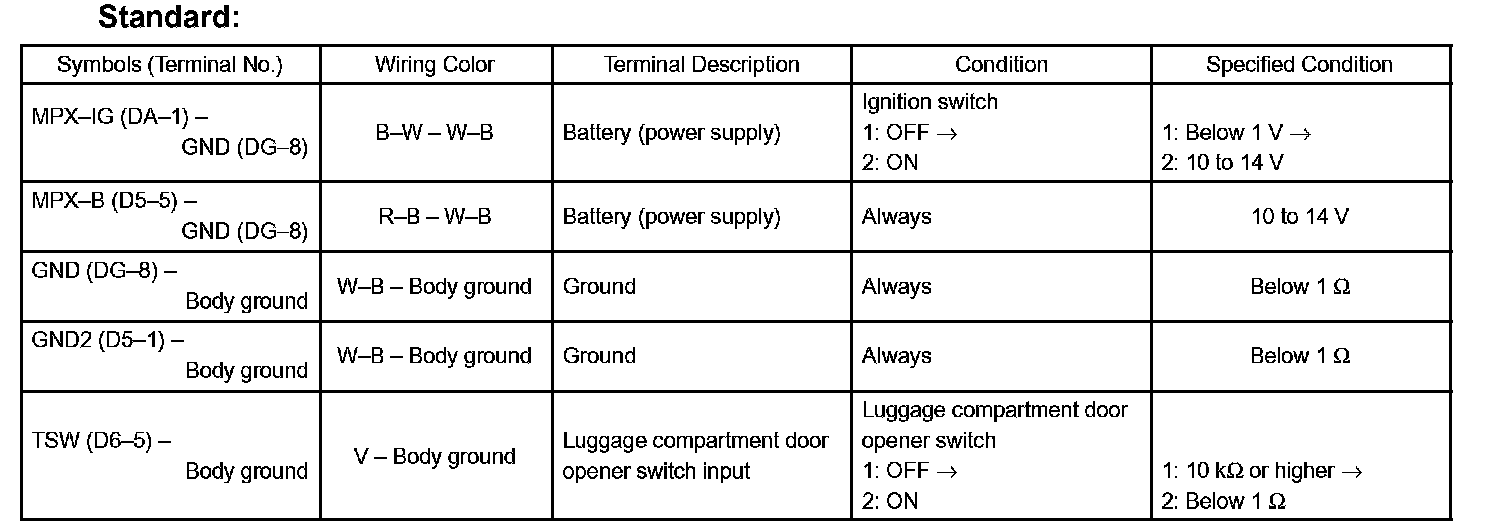

b. Measure the resistance and voltage of the wire harness side connectors.
If the result is not as specified, there may be a malfunction on the wire harness side.
Terminals Of Control Module / Pinouts:
2. CHECK LUGGAGE ROOM J/B (LUGGAGE ROOM J/B ECU)

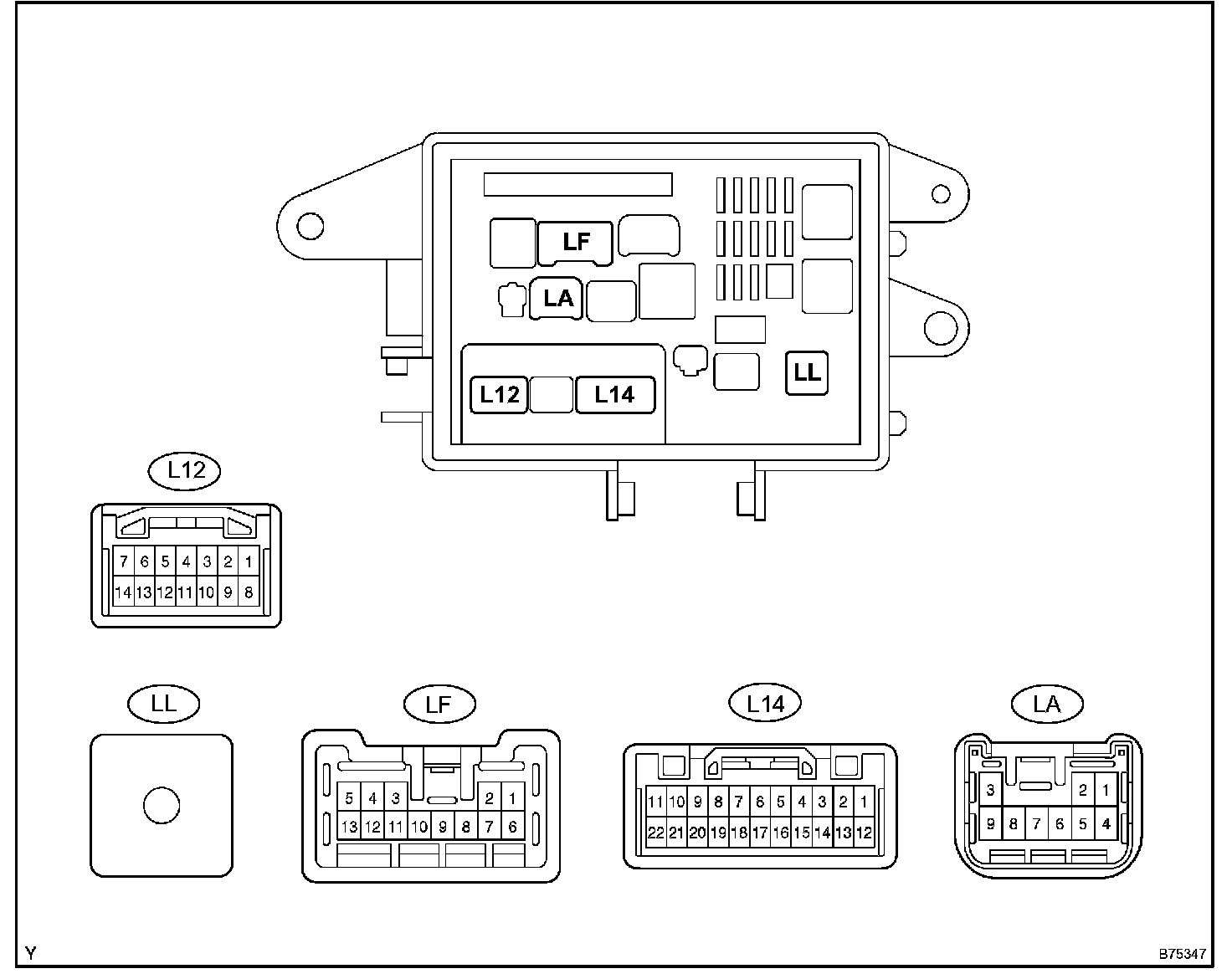

a. Disconnect the LA, LL and LF J/B, and L12 and L14 ECU connectors.

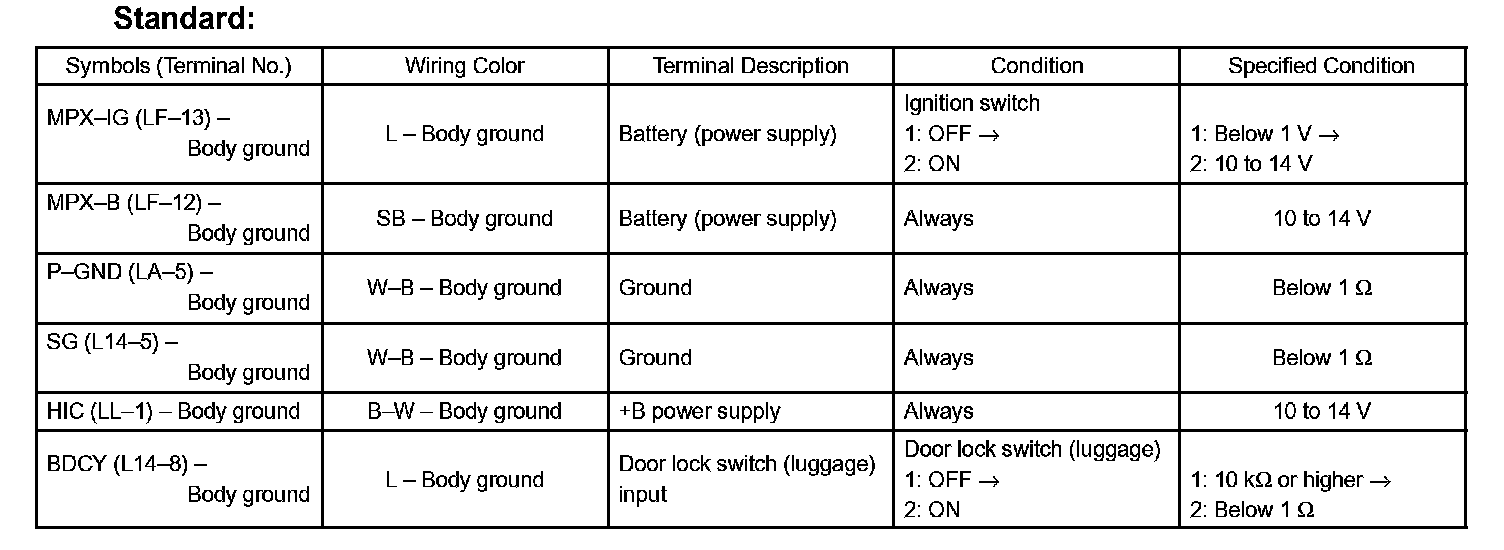

b. Measure the resistance and voltage of the wire harness side connectors.
If the result is not as specified, there may be a malfunction on the wire harness side.
*: w/ Smart key system
c. Reconnect the LA, LL and LF J/B, and L12 and L14 ECU connectors.

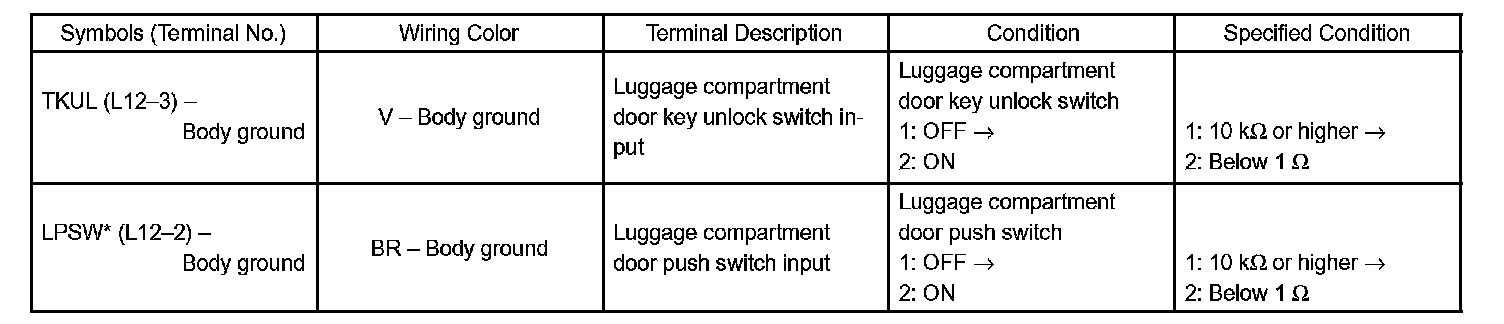

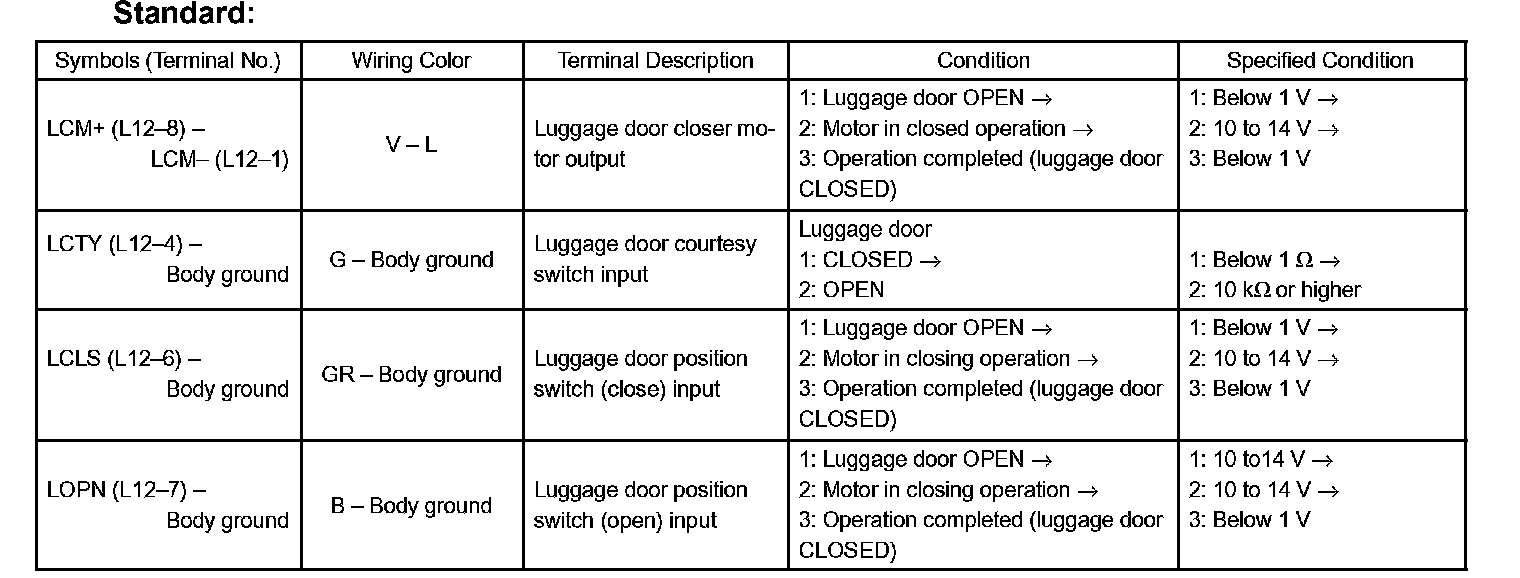

d. Measure the voltage of the connector.
If the result is not as specified, the luggage room J/B ECU may have a malfunction.
