Door Unlock Switch (Luggage Compartment Door Open Switch) Circuit
DOOR UNLOCK SWITCH (LUGGAGE COMPARTMENT DOOR OPEN SWITCH) CIRCUITCIRCUIT DESCRIPTION
The door unlock switch (luggage compartment door open switch) is built in the luggage door lock assembly. This switch is turned on when the luggage door is opened and turned off when the door is closed.

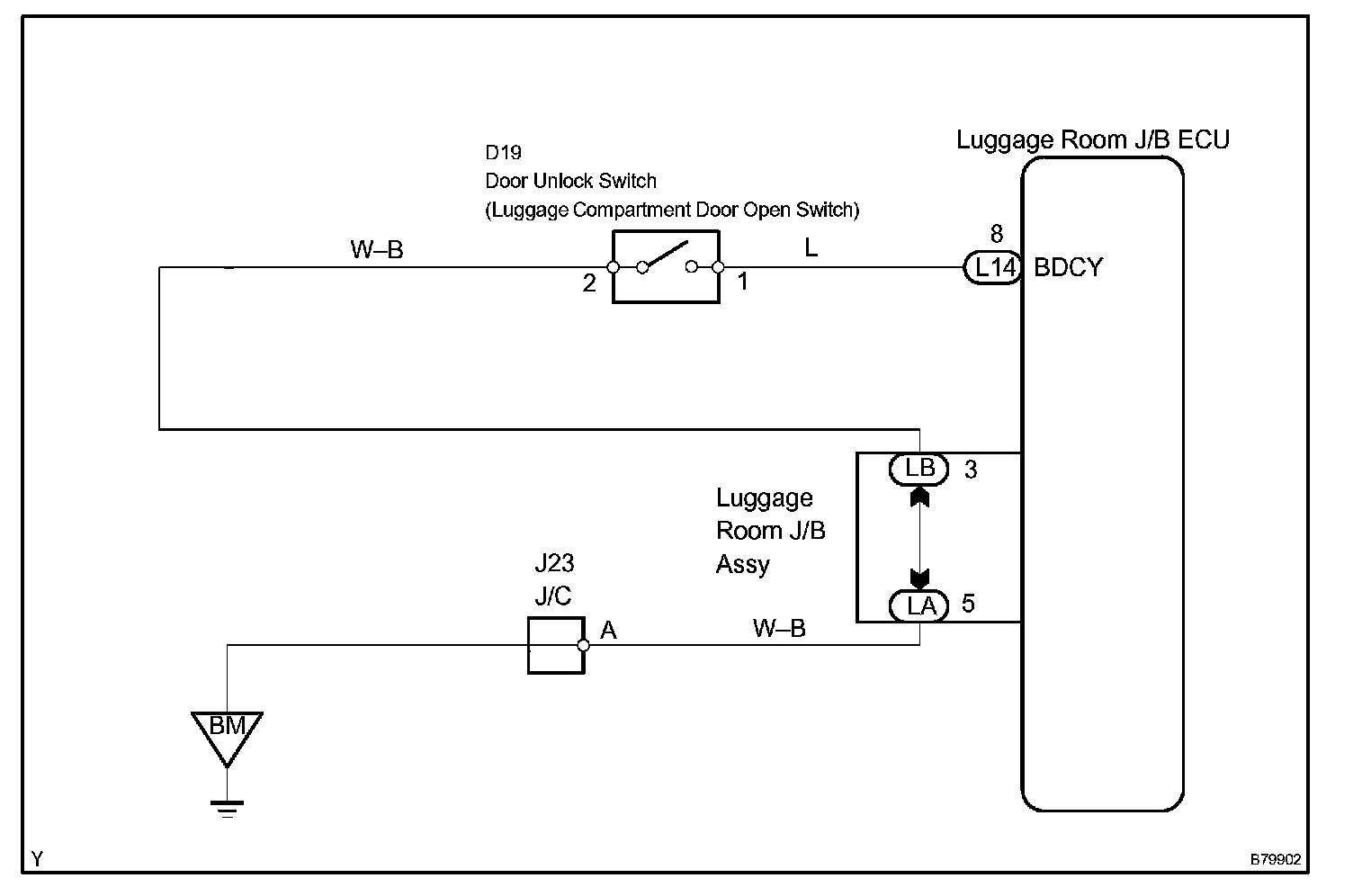

Wiring Diagram:

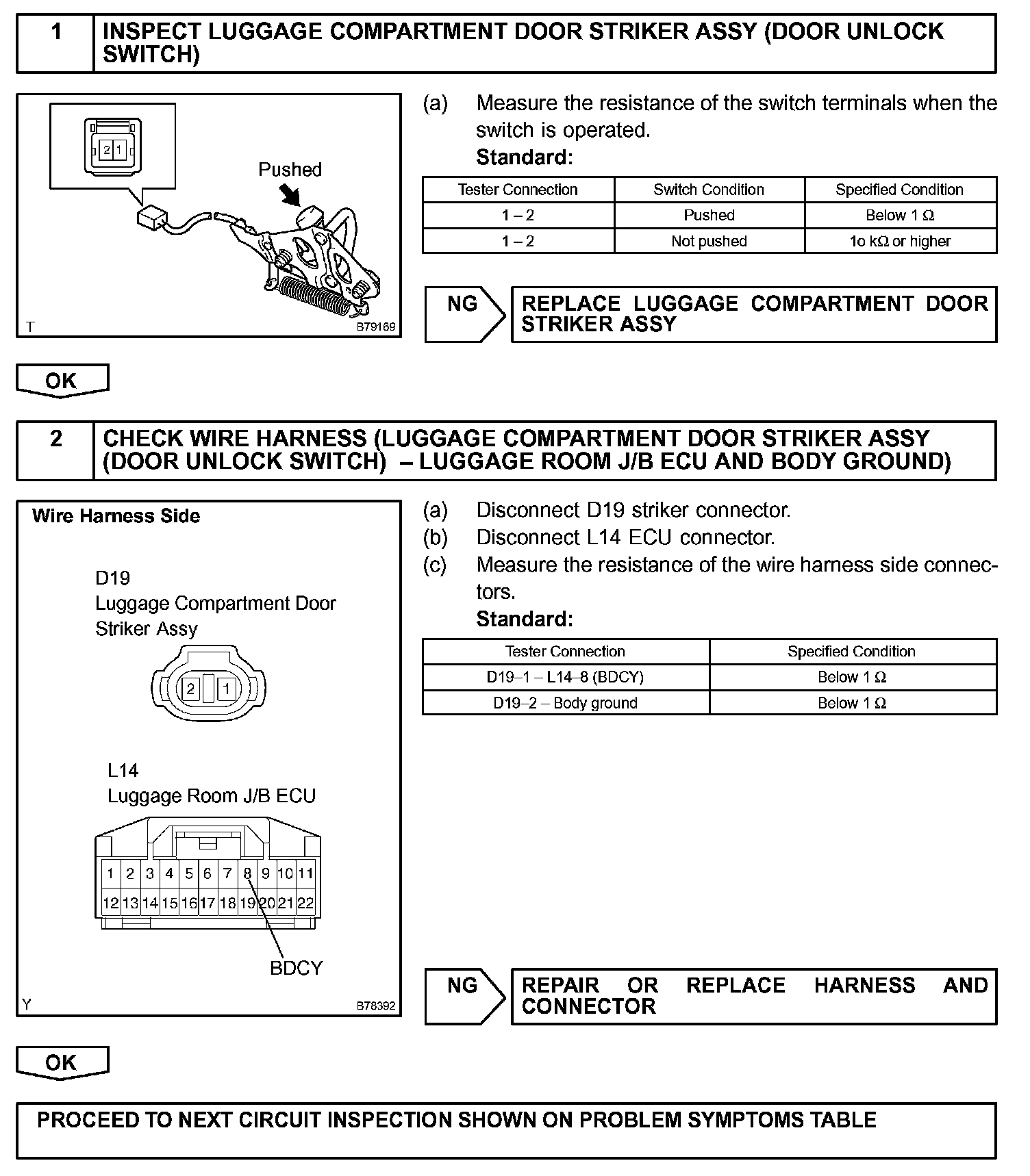

Step 1 - 2:
INSPECTION PROCEDURE
