Pinout Values and Diagnostic Parameters
TERMINALS OF ECUTerminals Of Control Module / Pinouts:

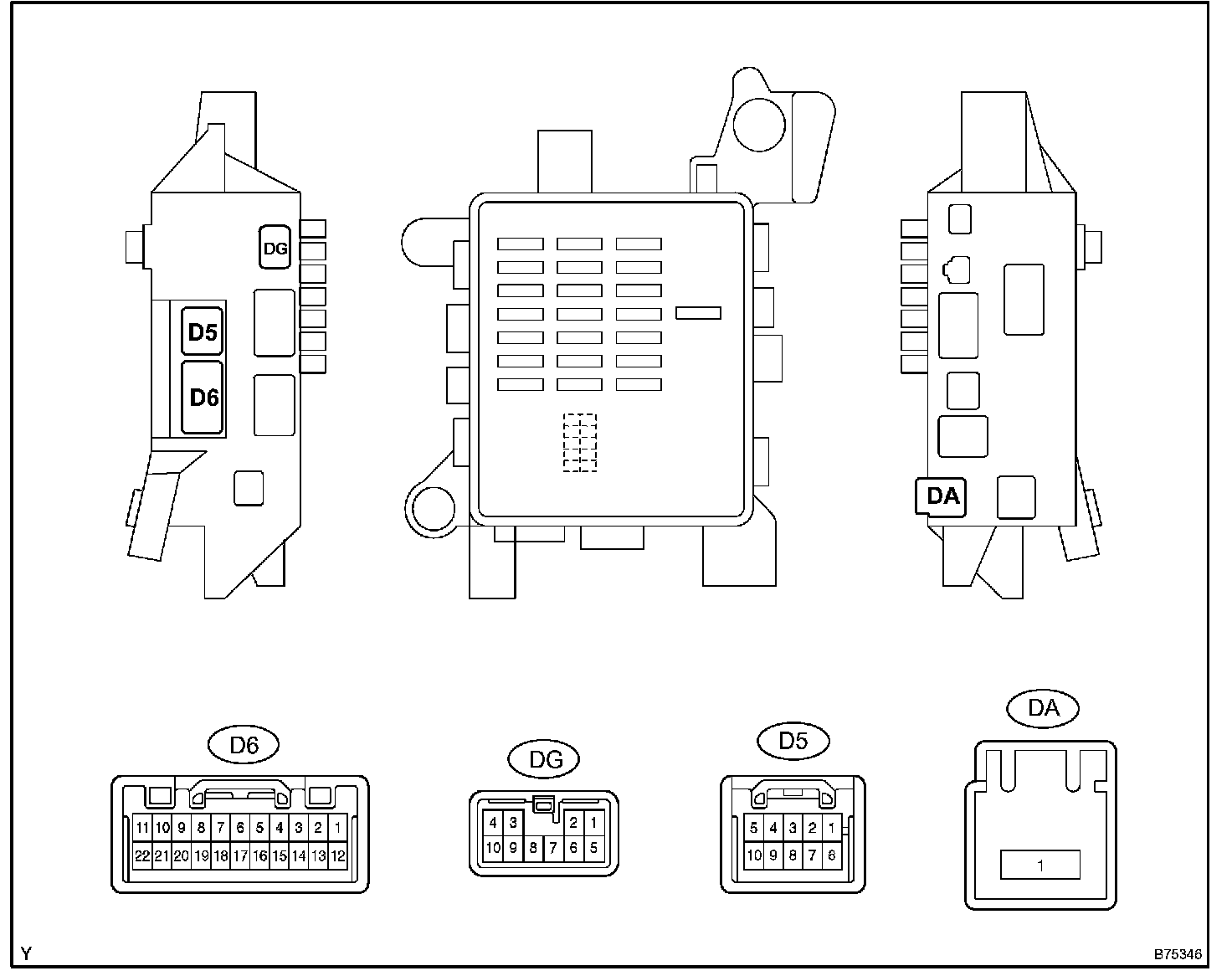

1. CHECK DRIVER SIDE J/B (DRIVER SIDE J/B ECU)
a. Disconnect the DA and DG J/B, and D5 and D6 ECU connectors.

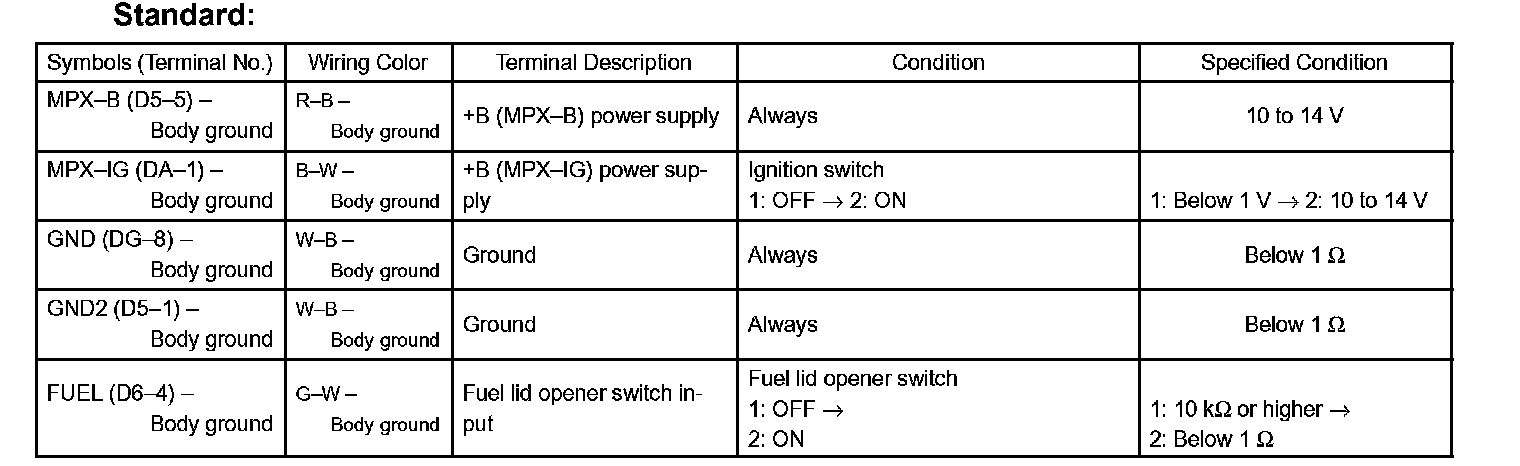

b. Measure the voltage and resistance of the wire harness side connectors.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the DA and DG J/B, and D5 and D6 ECU connectors.

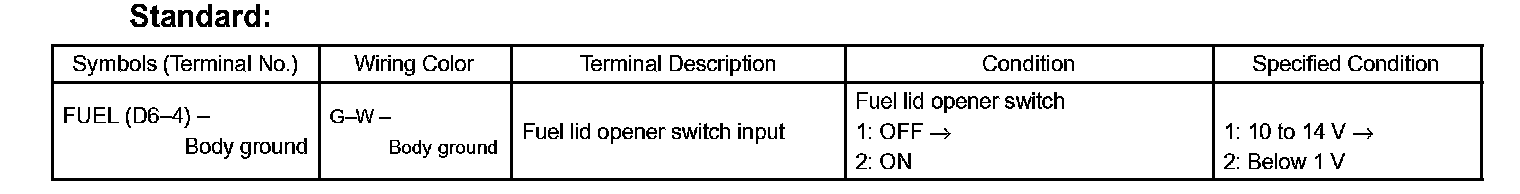

d. Measure the voltage of the connector.
Terminals Of Control Module / Pinouts:

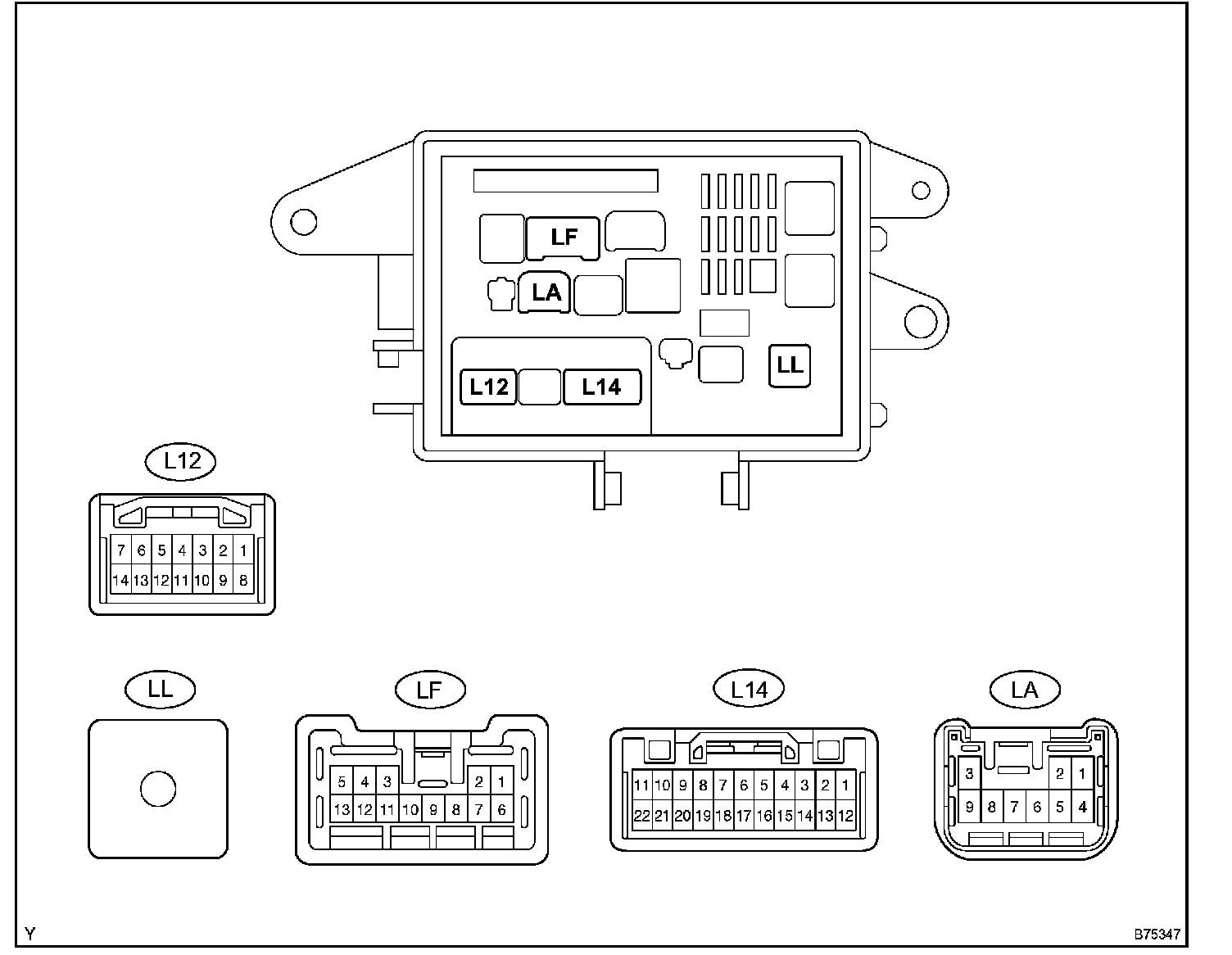

2. CHECK LUGGAGE ROOM J/B ASSEMBLY (LUGGAGE ROOM J/B ECU)
a. Disconnect the LA, LF and LL J/B, and L12 and L14 ECU connectors.

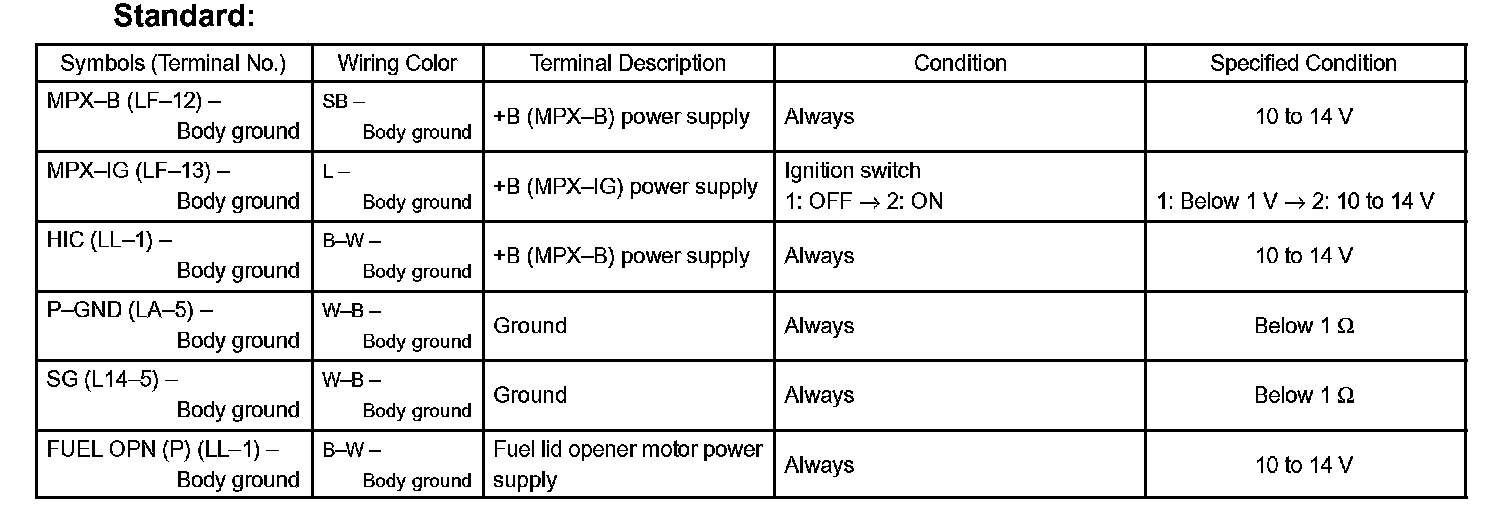

b. Measure the voltage and resistance of the wire harness side connectors.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the LA, LF and LL J/B, and L12 and L14 ECU connectors.

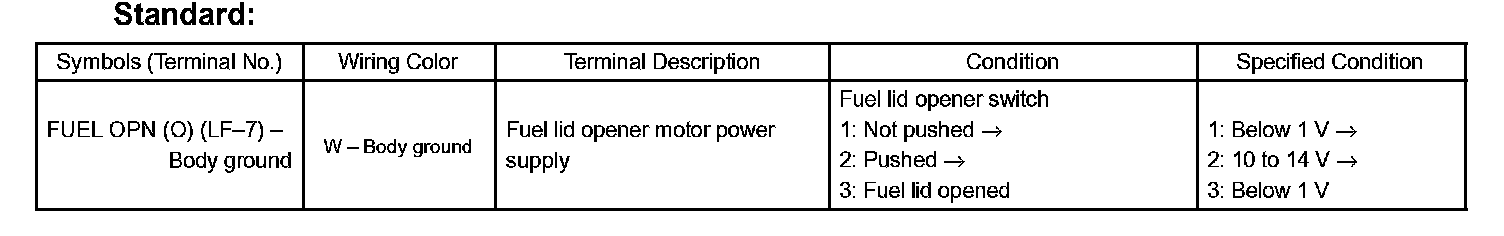

d. Measure the voltage of the connector.
