Pinout Values and Diagnostic Parameters
TERMINALS OF ECUTerminals Of Control Module / Pinouts:

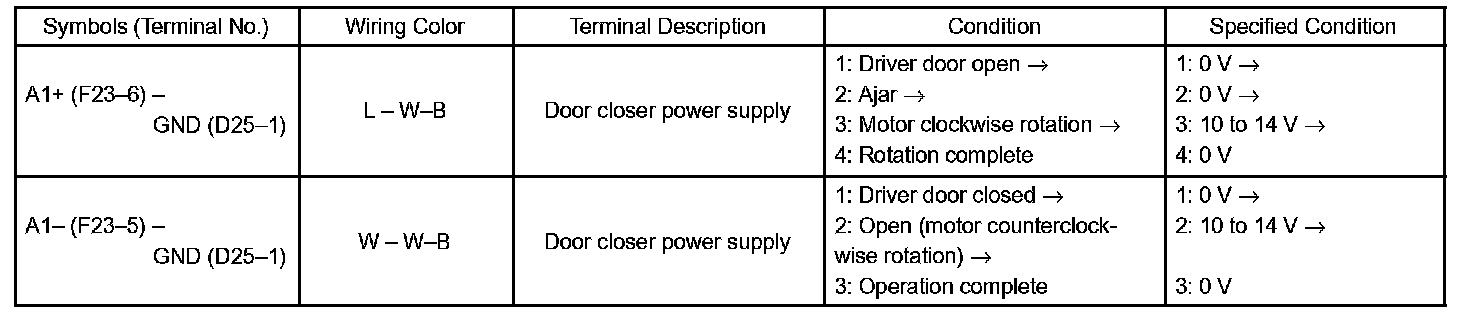

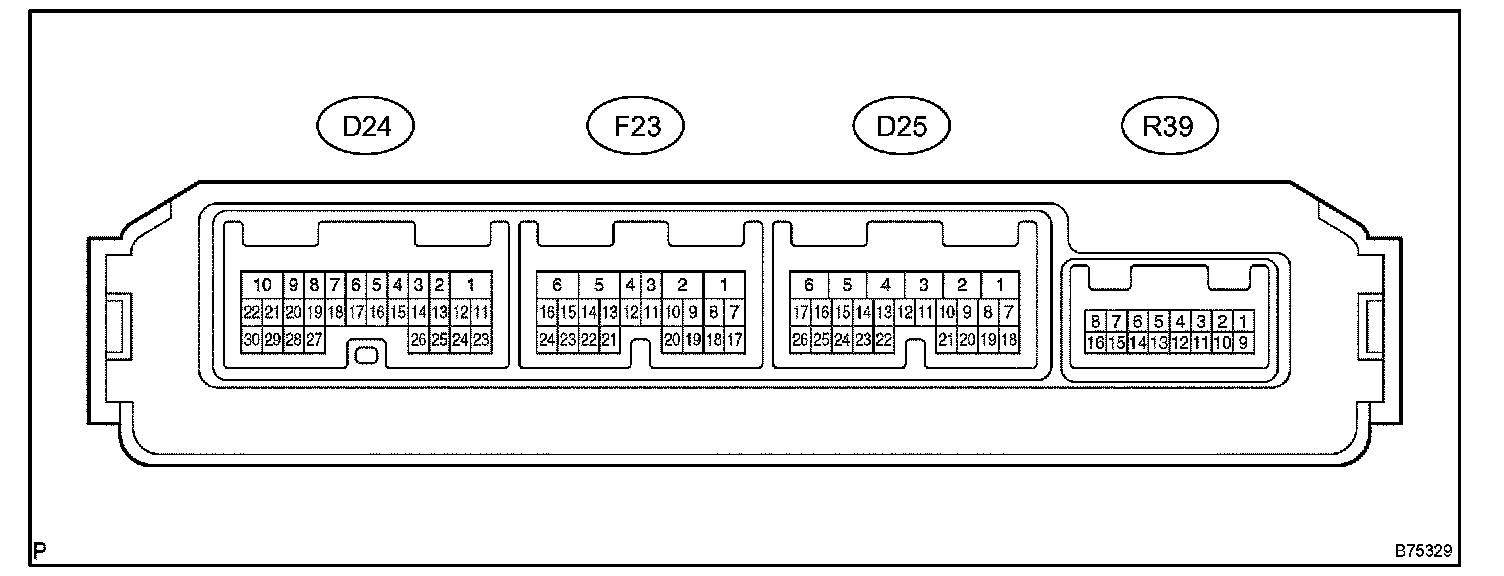

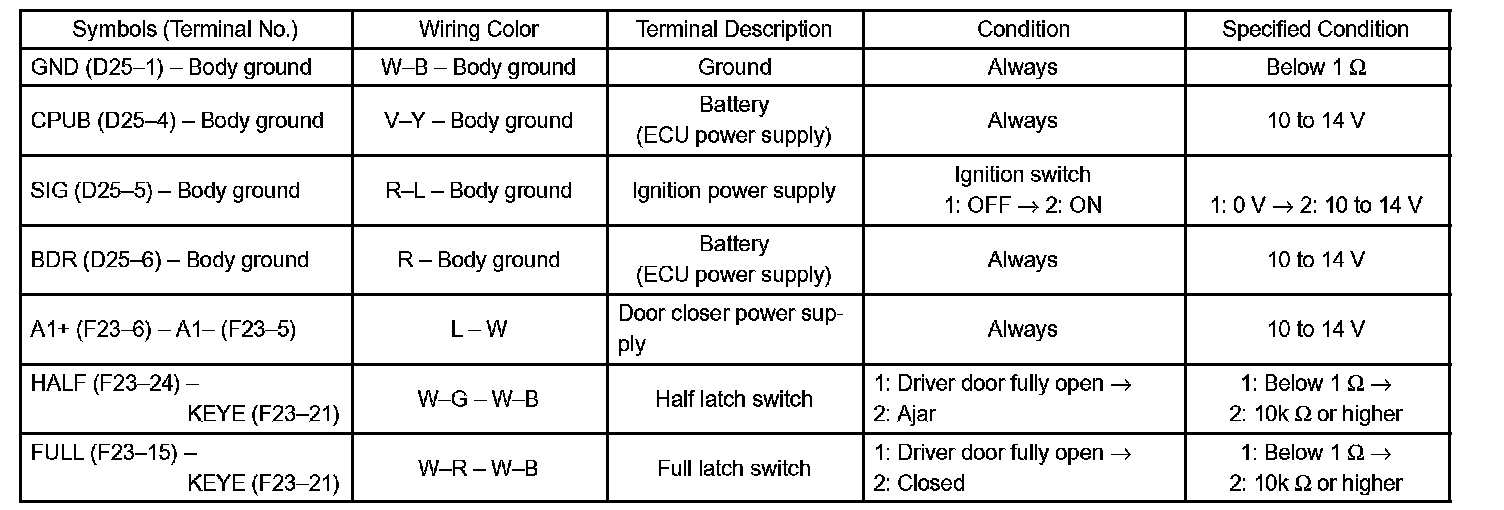

1. DRIVER DOOR ECU
a. Disconnect the F23 and D25 ECU connectors
b. Measure the voltage and resistance of the wire harness side connectors.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the F23 and D25 ECU connectors.
d. Measure the voltage of the connectors.
If the result is not as specified, the driver door ECU may have a malfunction.

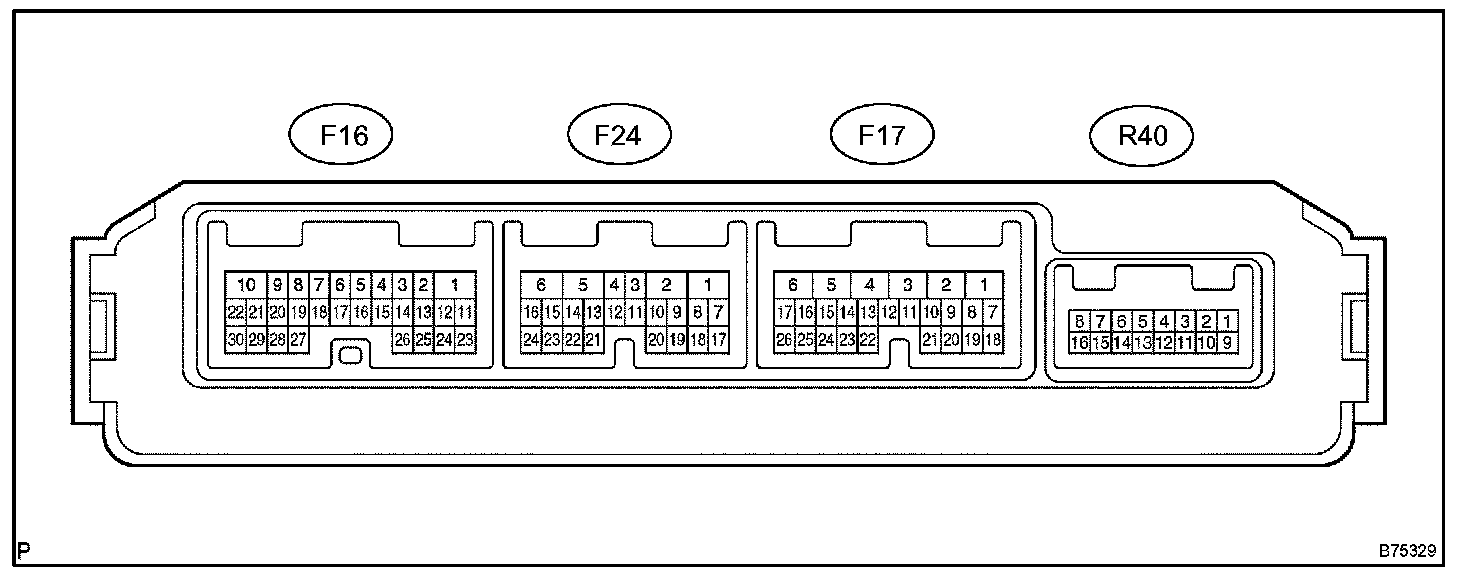

Terminals Of Control Module / Pinouts:

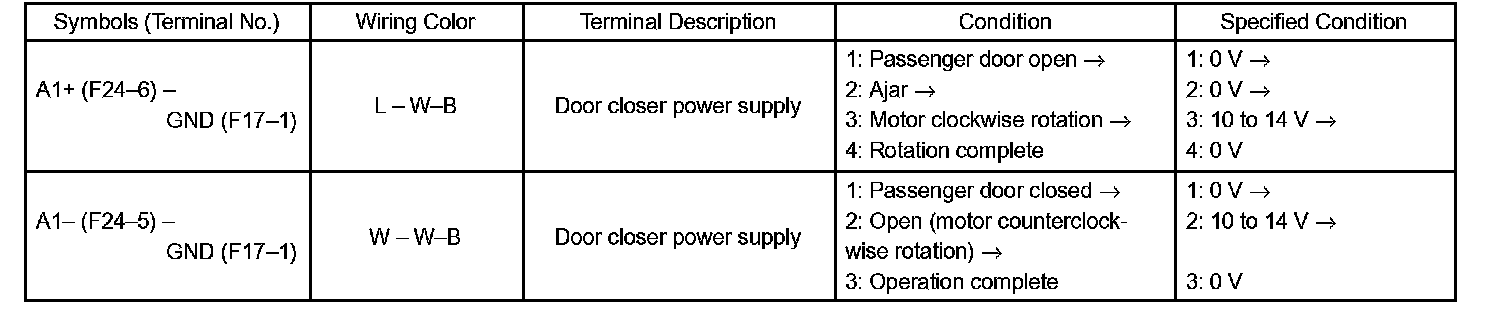

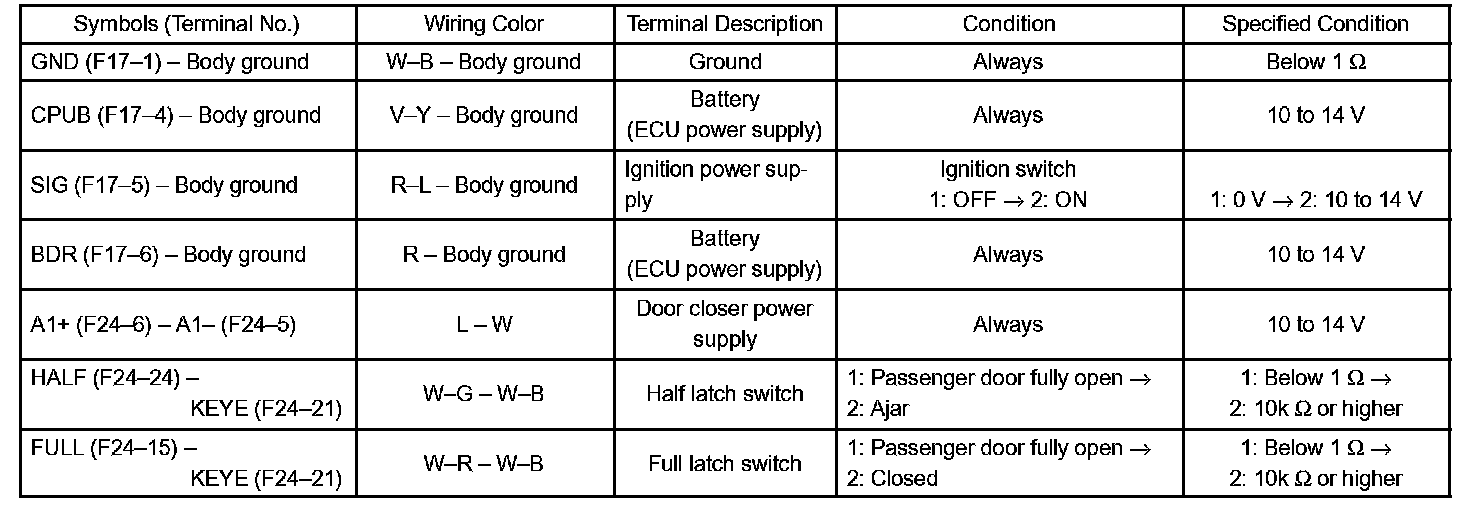

2. PASSENGER DOOR ECU
a. Disconnect the F17 and F24 ECU connectors.
b. Measure the voltage and resistance of the wire harness side connectors.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the F17 and F24 ECU connectors.
d. Measure the voltage of the connectors.
If the result is not as specified, the ECU may have a malfunction.
Terminals Of Control Module / Pinouts:

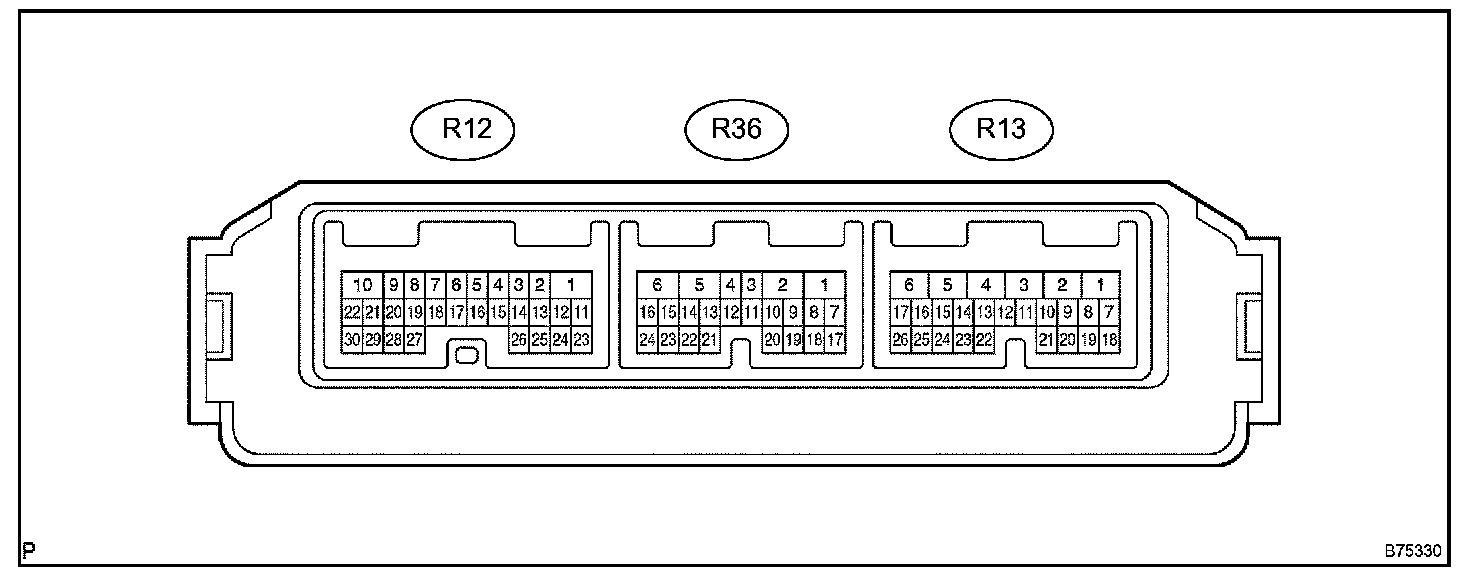

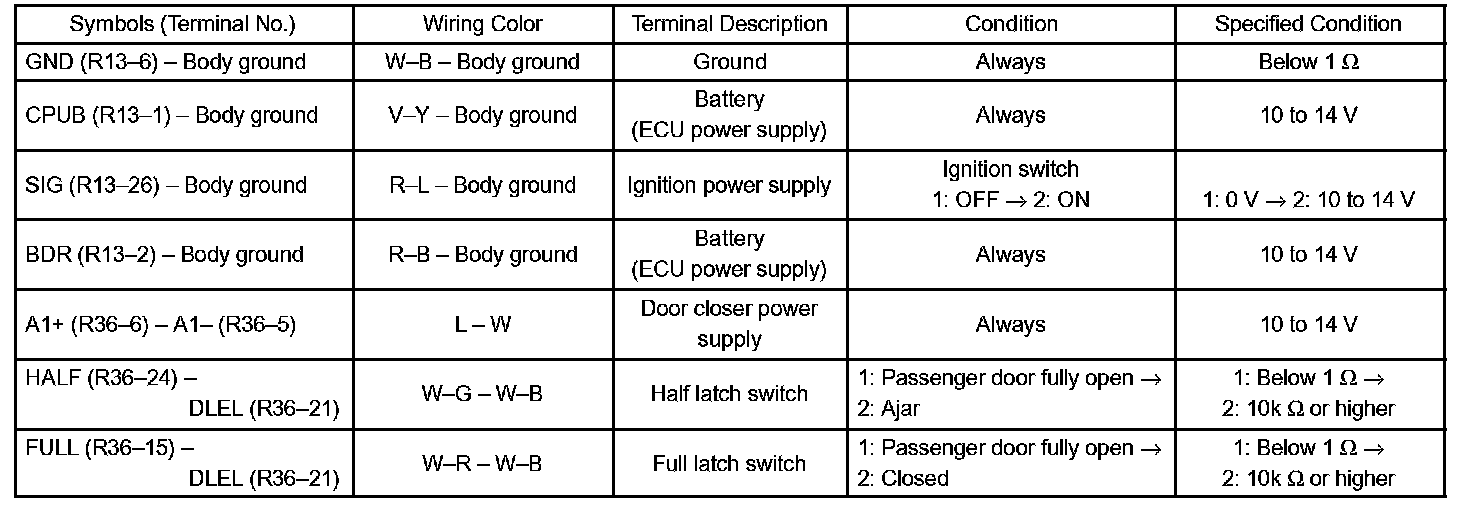

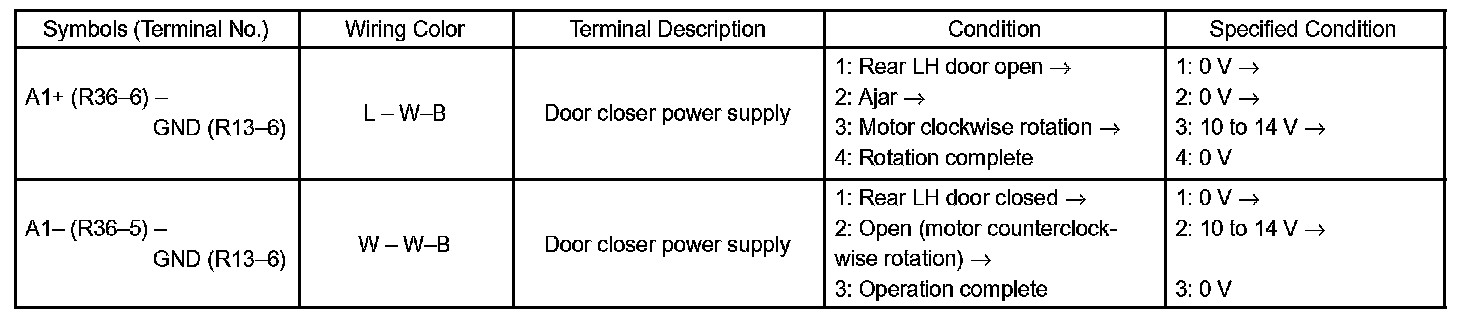

3. REAR DOOR ECU LH
a. Disconnect the R13 and R36 ECU connectors.
b. Measure the voltage and resistance of the wire harness side connectors.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the R13 and R36 ECU connectors.
d. Measure the voltage of the connector.
If the result is not as specified, the ECU may have a malfunction.
Terminals Of Control Module / Pinouts:

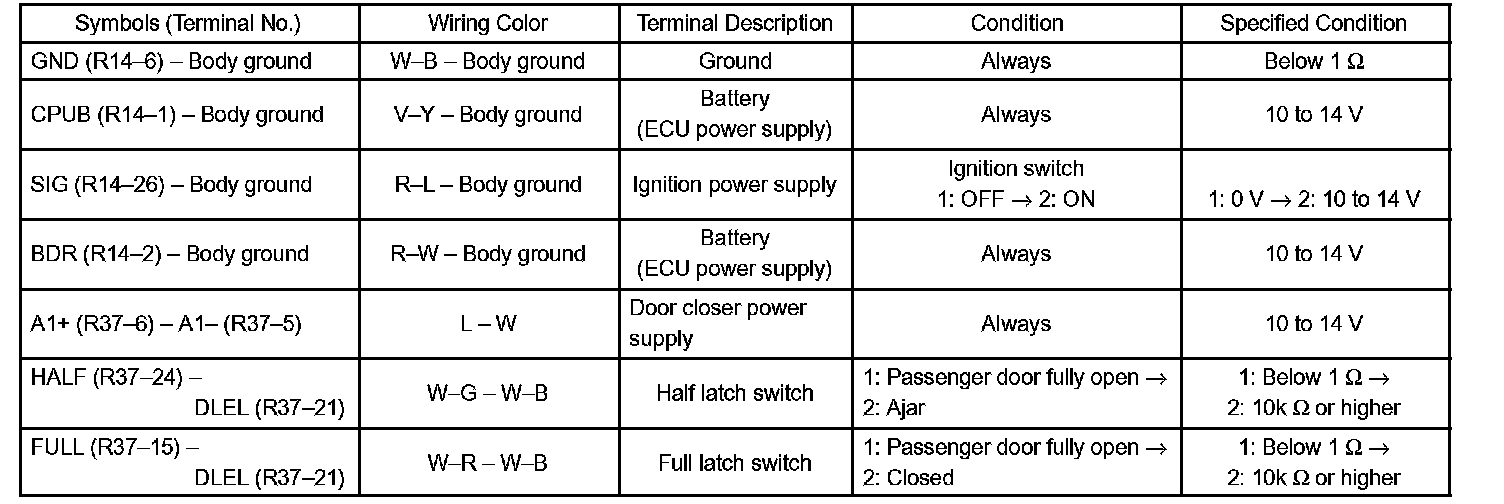

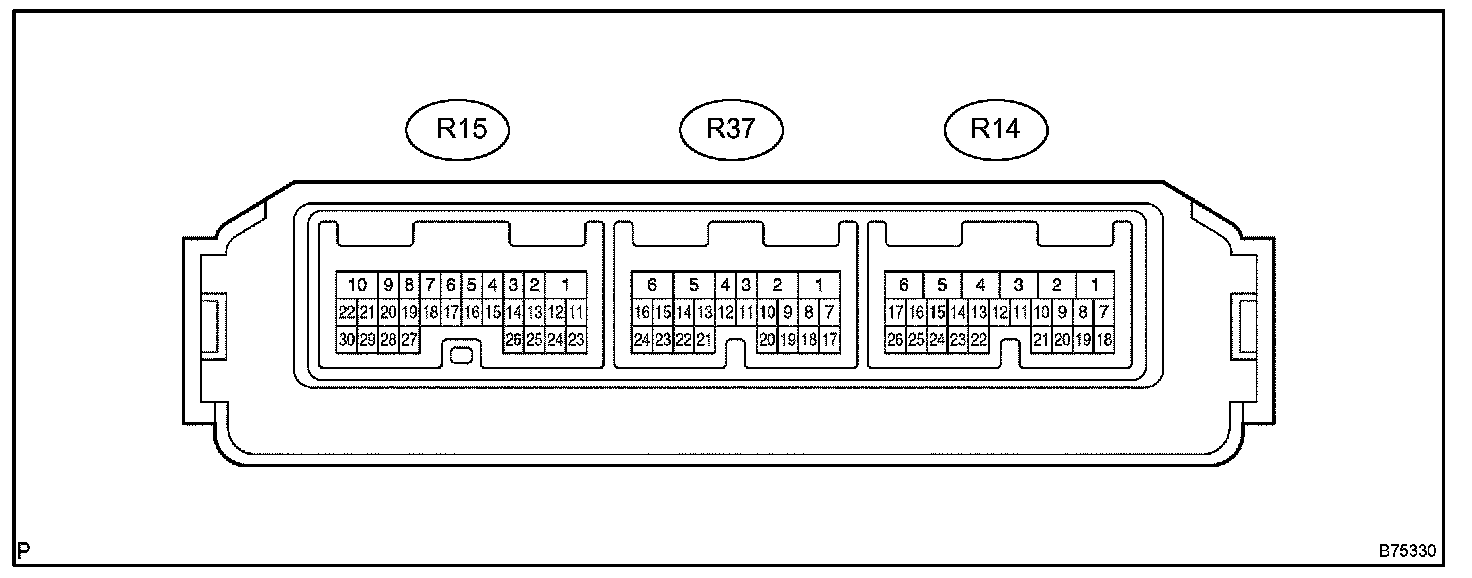

4. REAR DOOR ECU RH
a. Disconnect the R14 and R37 ECU connectors.
b. Measure the voltage and resistance of the wire harness side connectors.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the R14 and R37 ECU connectors.
d. Measure the voltage of the connector.
If the result is not as specified, the ECU may have a malfunction.
