Door Closer Position Switch Circuit on Rear Right Side Door

DOOR CLOSER POSITION SWITCH CIRCUIT ON REAR RIGHT SIDE DOOR

CIRCUIT DESCRIPTION

The door lock assembly has a built-in closer position switch, which detects the position of the closer.

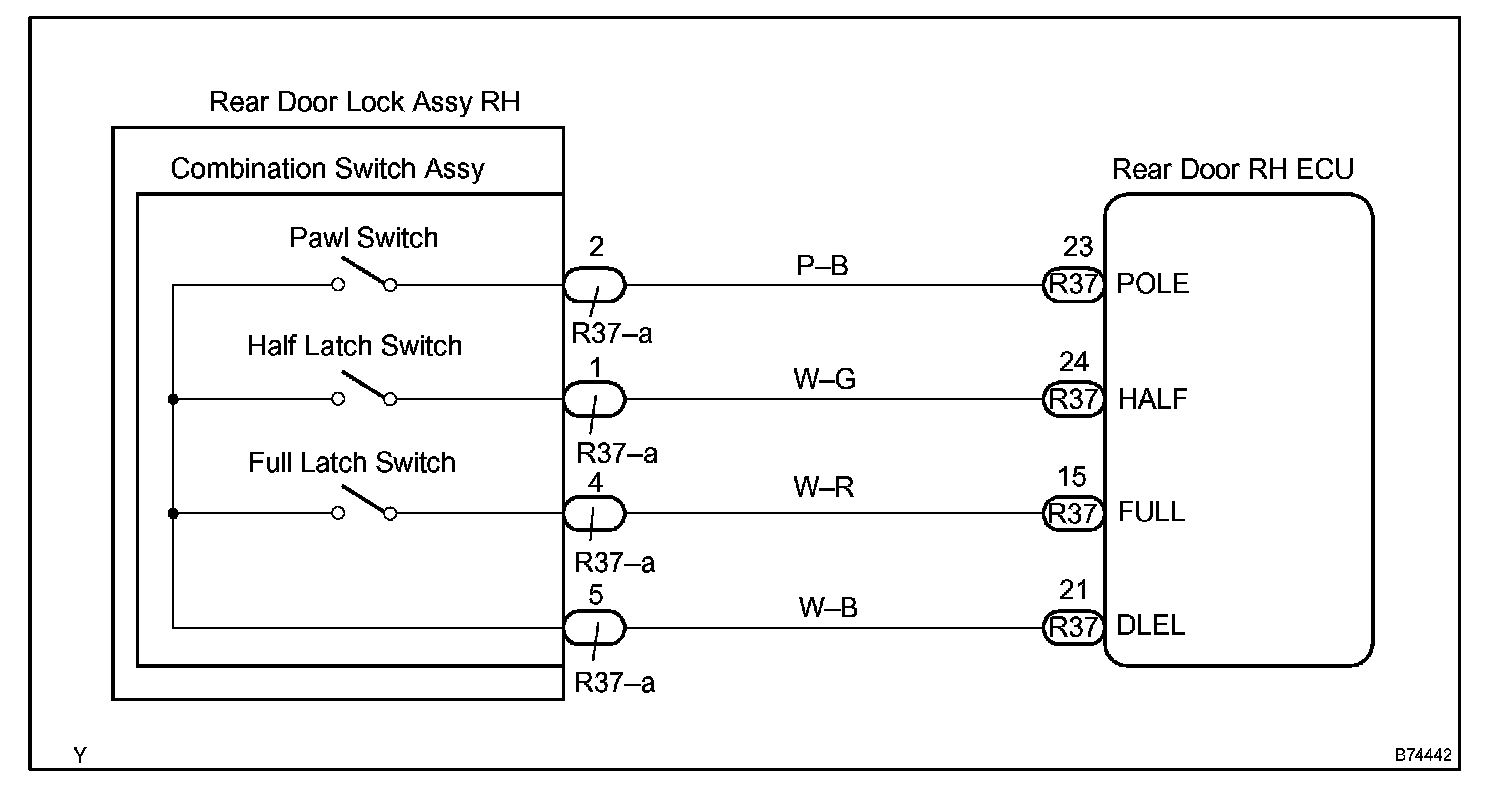

Wiring Diagram:

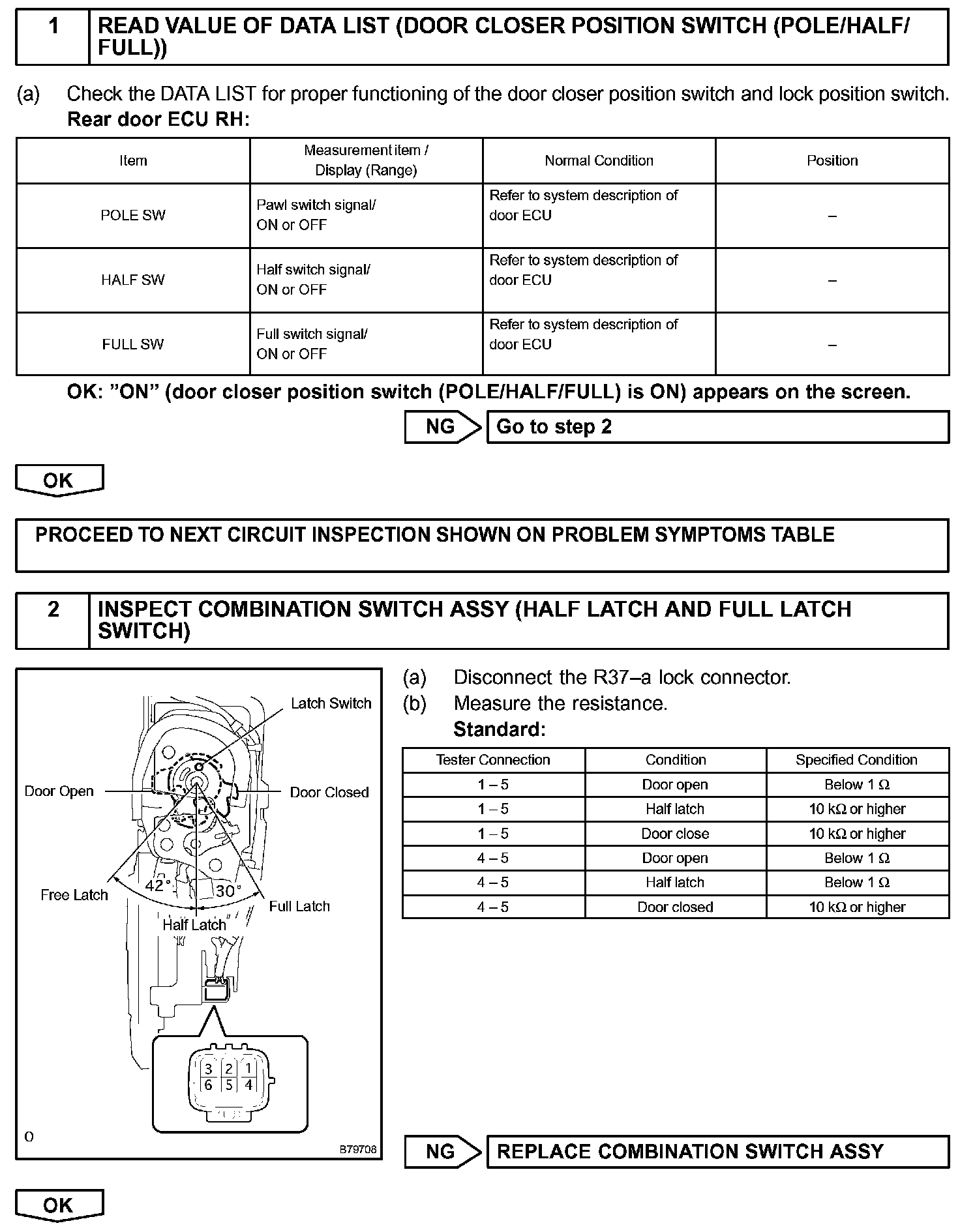

Step 1 - 2:

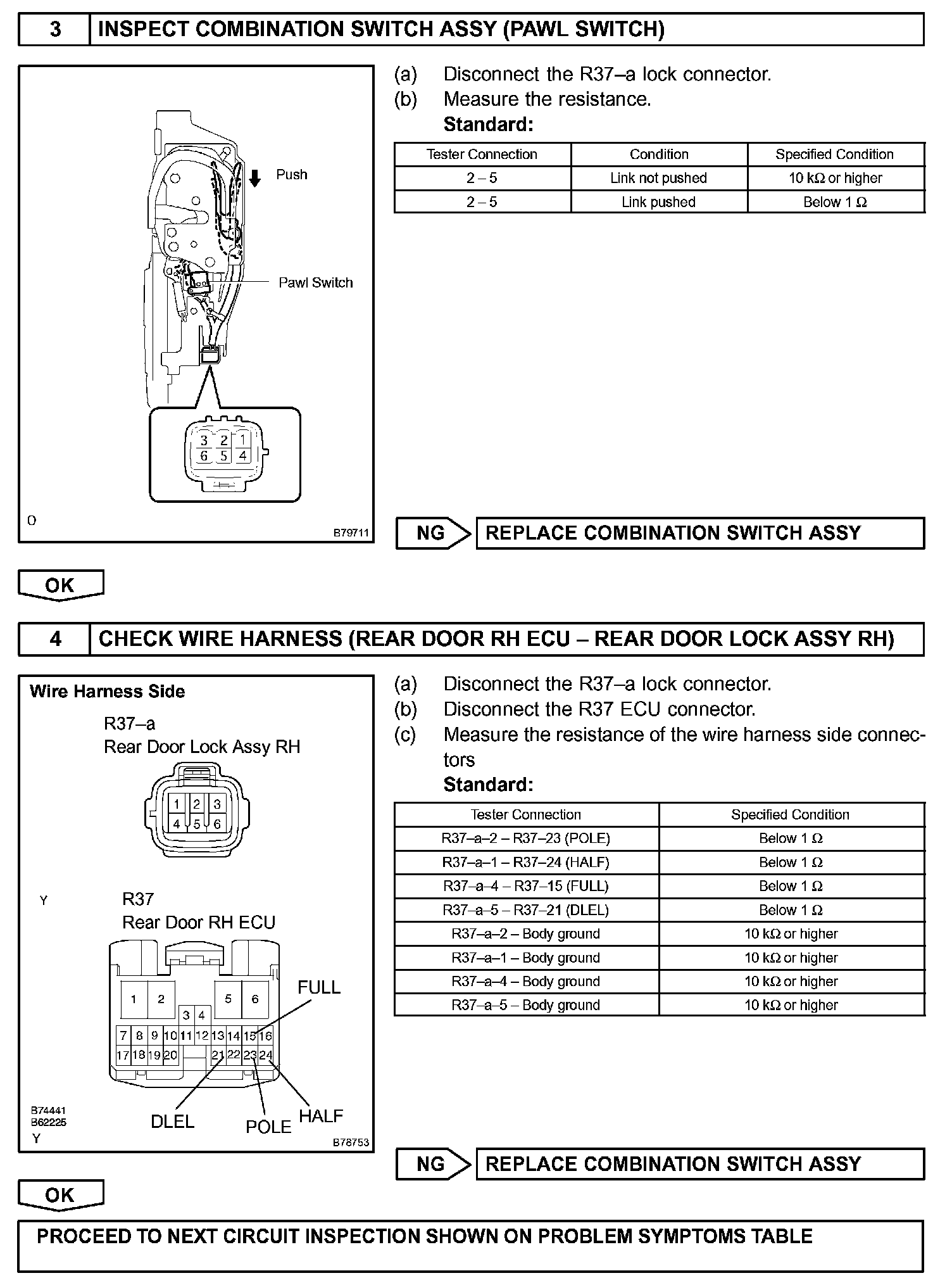

Step 3 - 4:

INSPECTION PROCEDURE
