Door Closer Position Switch Circuit on Driver Side Door
DOOR CLOSER POSITION SWITCH CIRCUIT ON DRIVER SIDE DOORCIRCUIT DESCRIPTION
The door lock assembly has a built-in closer position switch, which detects the position of the closer.

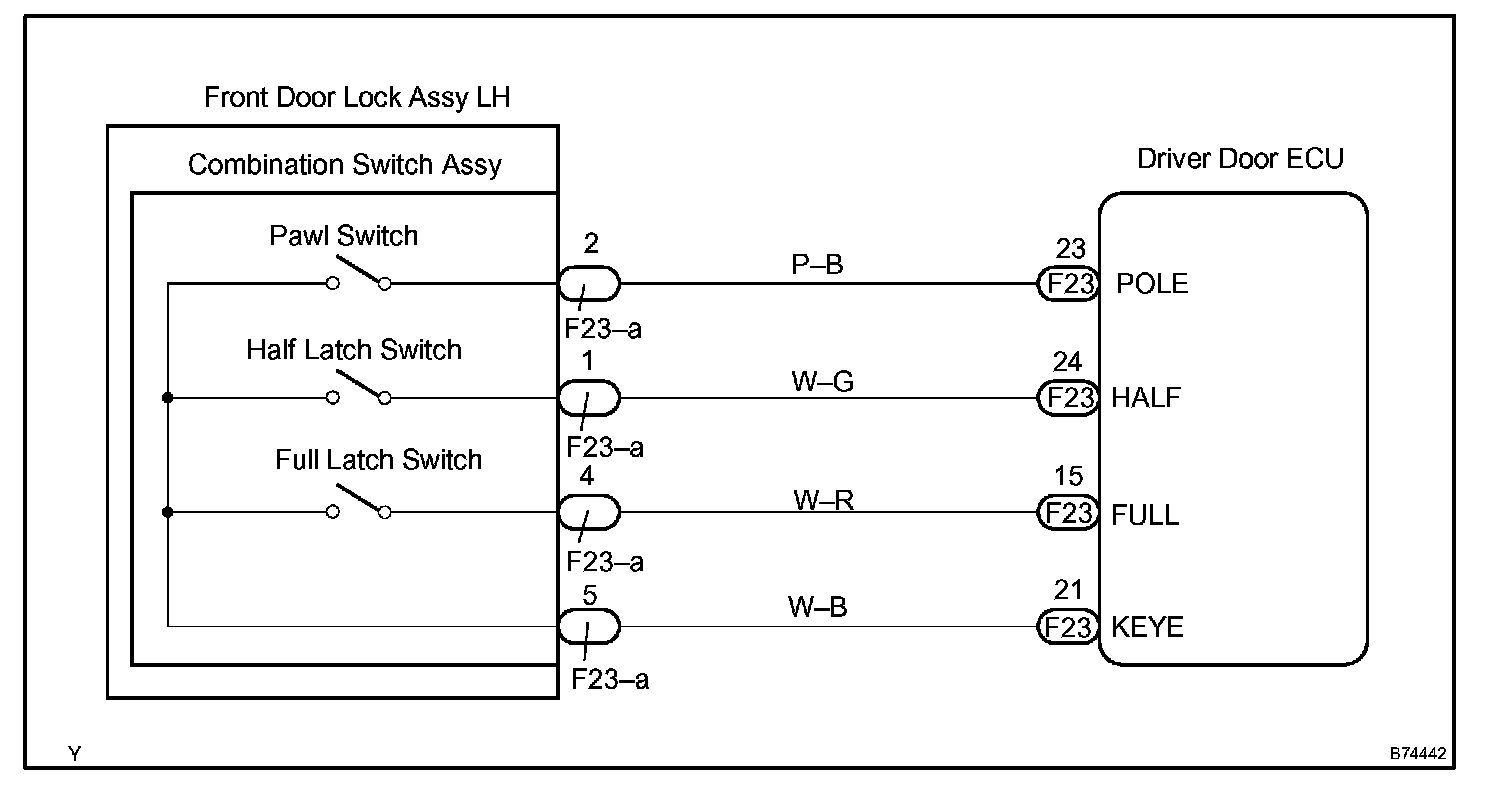

Wiring Diagram:

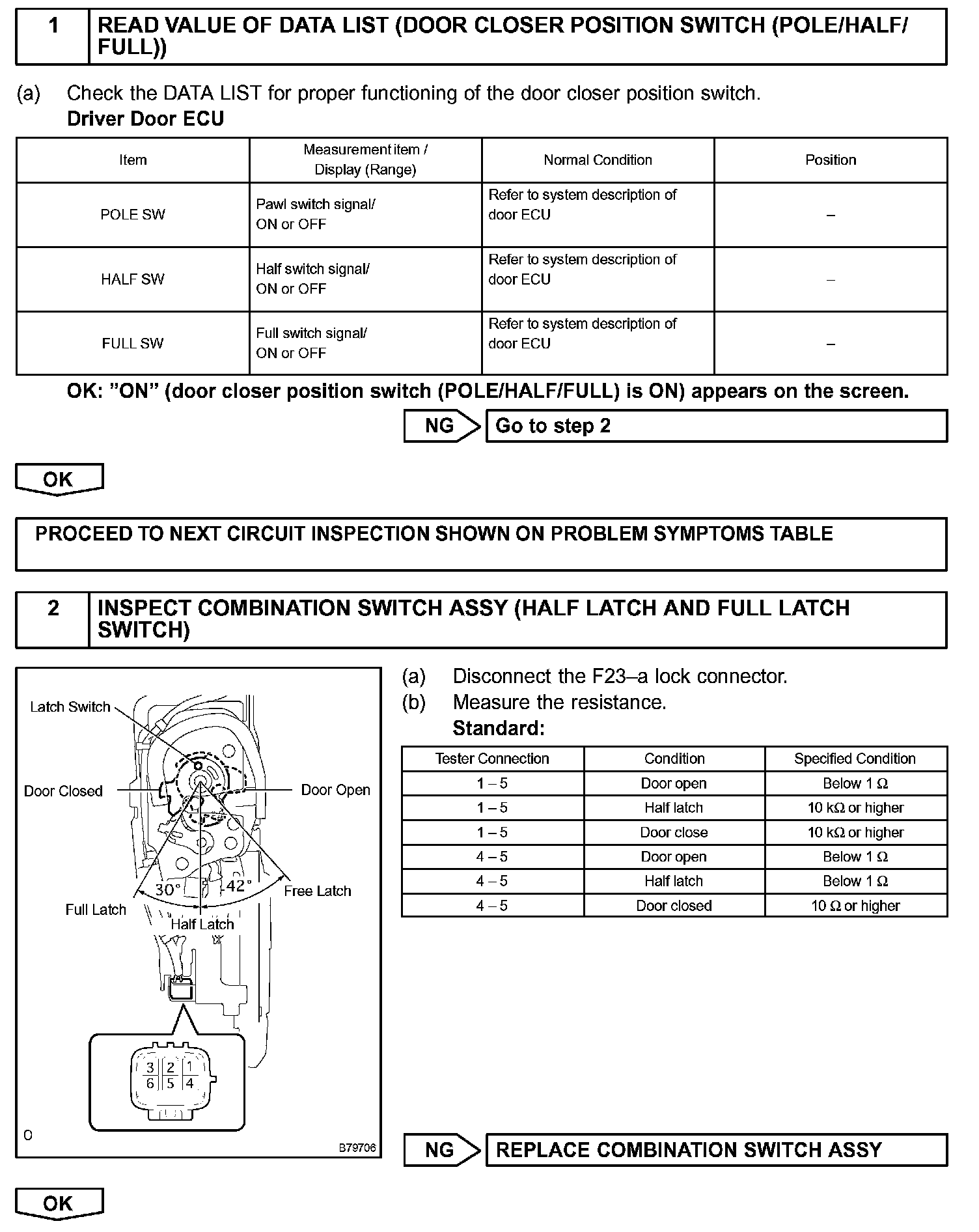

Step 1 - 2:

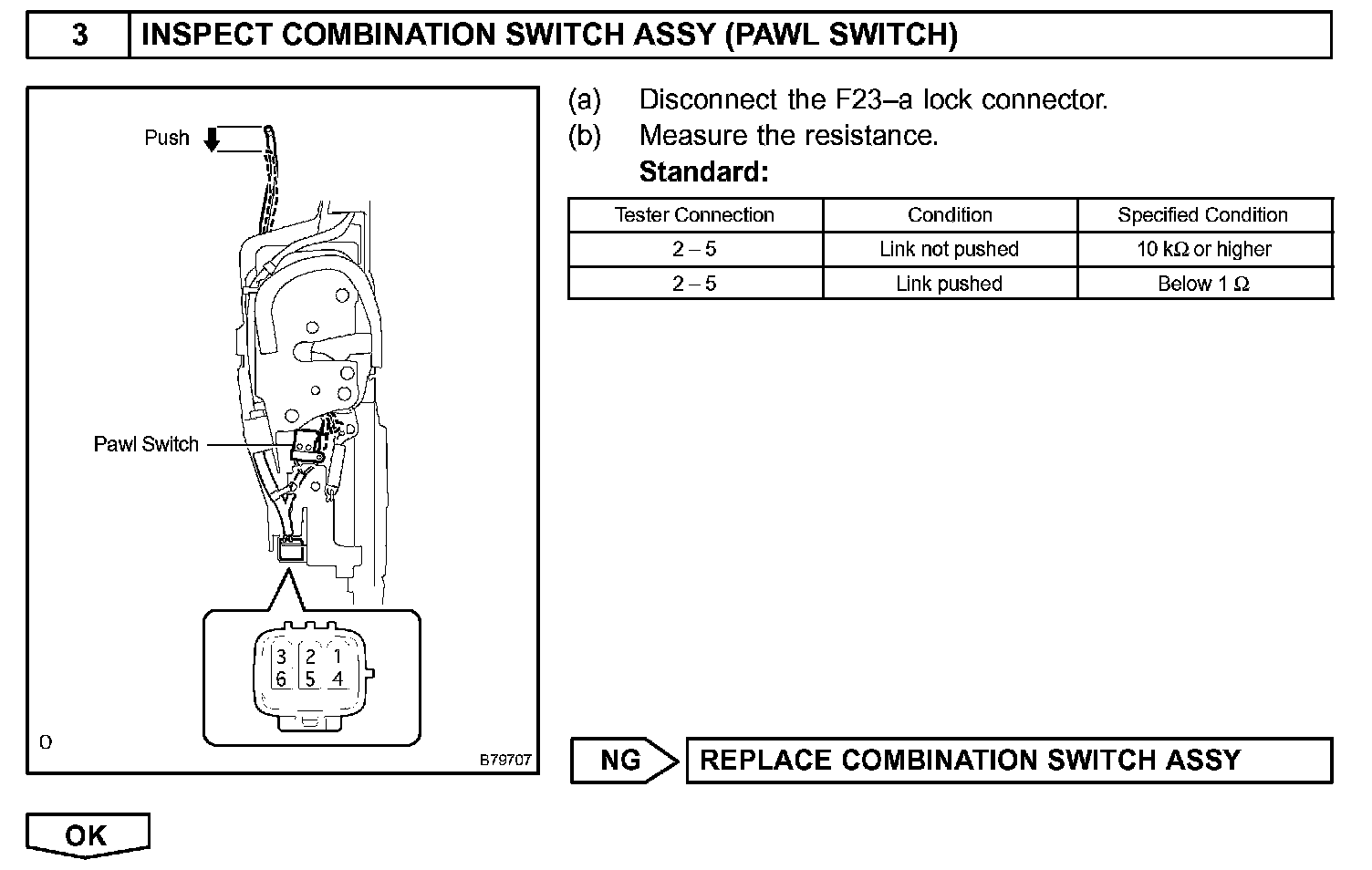

Step 3:

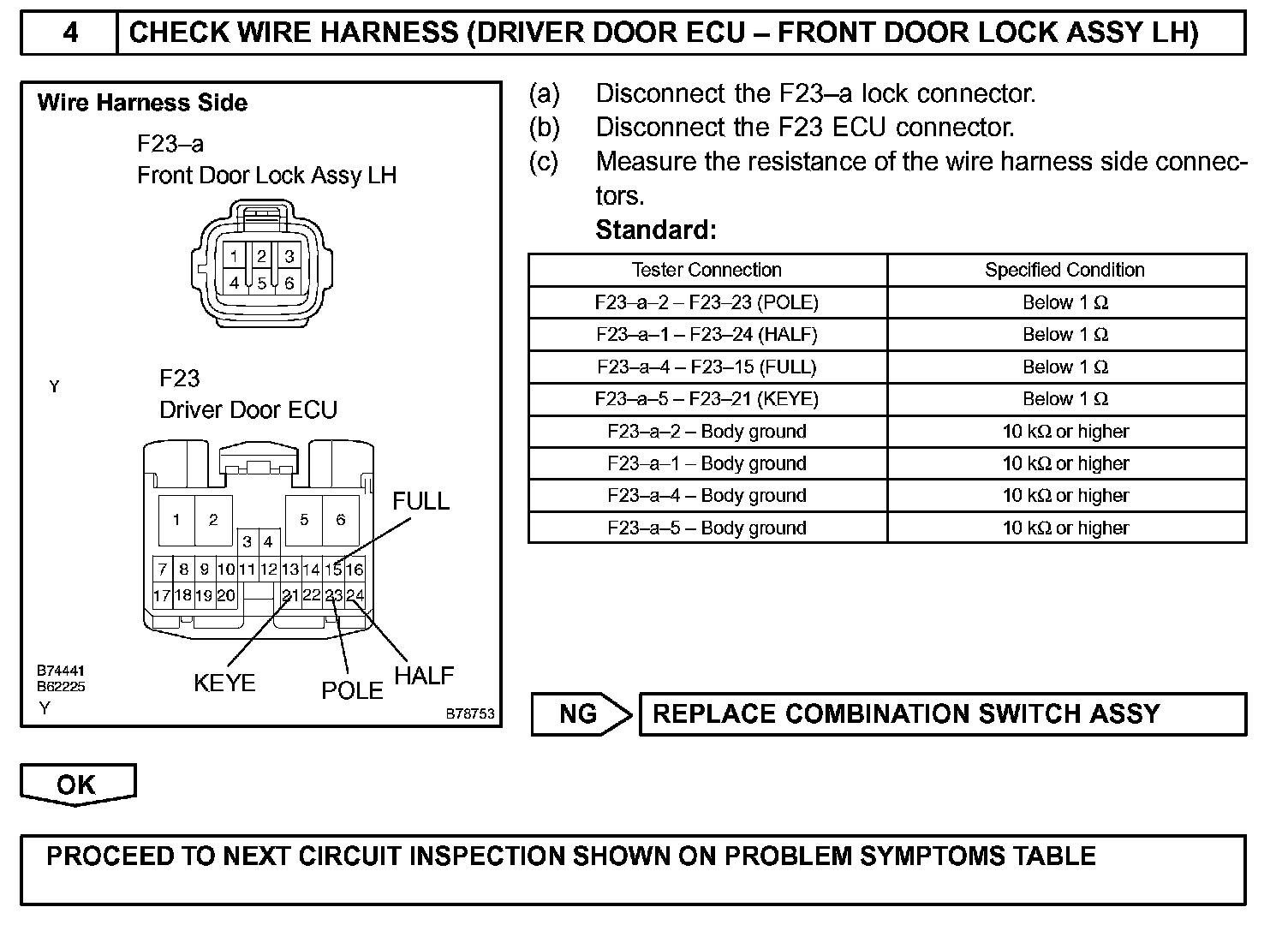

Step 4:
INSPECTION PROCEDURE
