Speed Signal Circuit (Multi-Display - Combination Meter Assy

SPEED SIGNAL CIRCUIT (MULTI-DISPLAY - COMBINATION METER ASSEMBLY

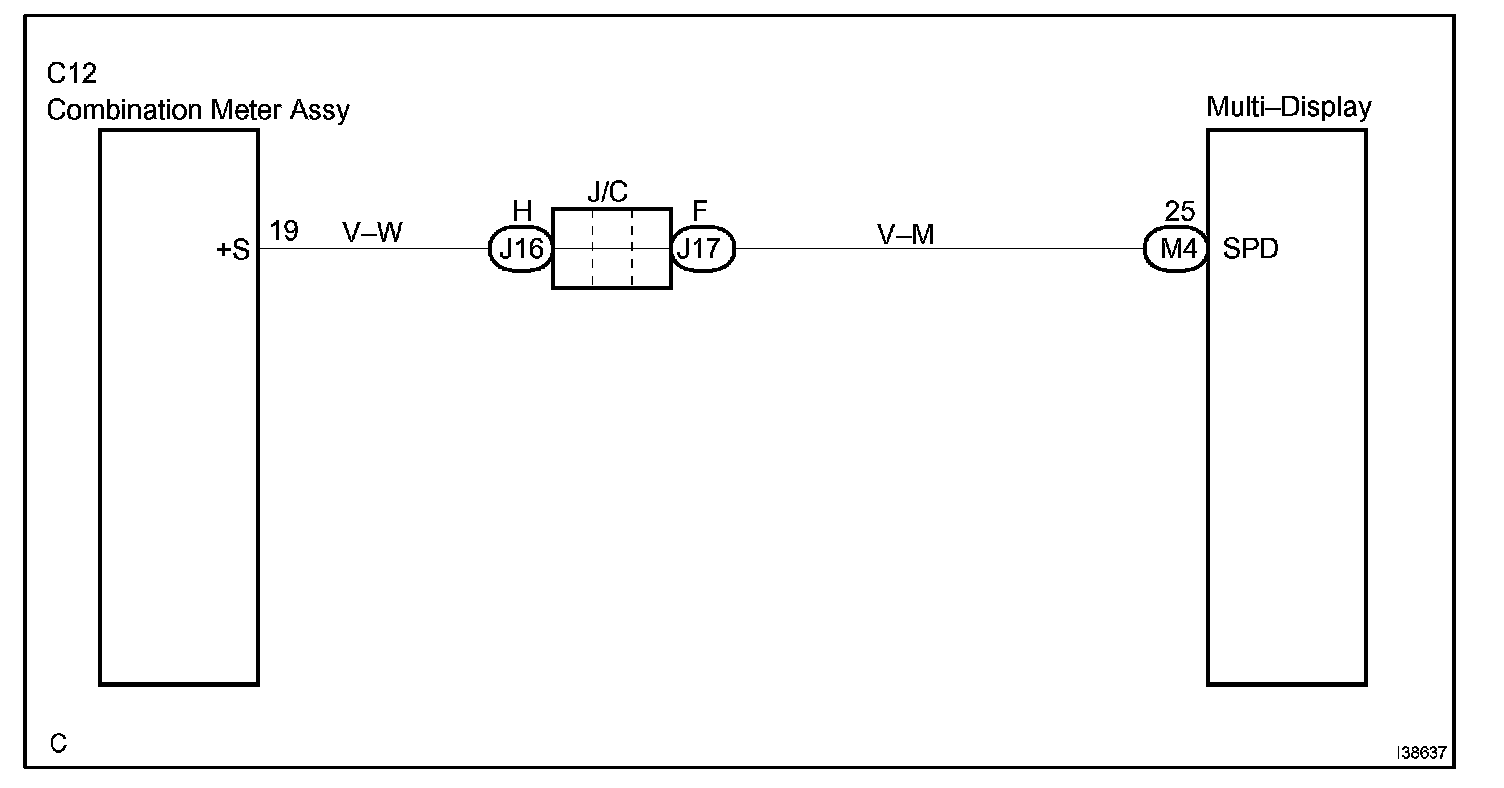

CIRCUIT DESCRIPTION

The multi-display performs the switch operation control during running by receiving the vehicle speed signal from the combination meter assembly.
