Microphone Circuit (Multi-Display - Navigation ECU)

MICROPHONE CIRCUIT (MULTI-DISPLAY - NAVIGATION ECU)

CIRCUIT DESCRIPTION

This circuit sends a microphone signal from the multi-display to the navigation ECU.

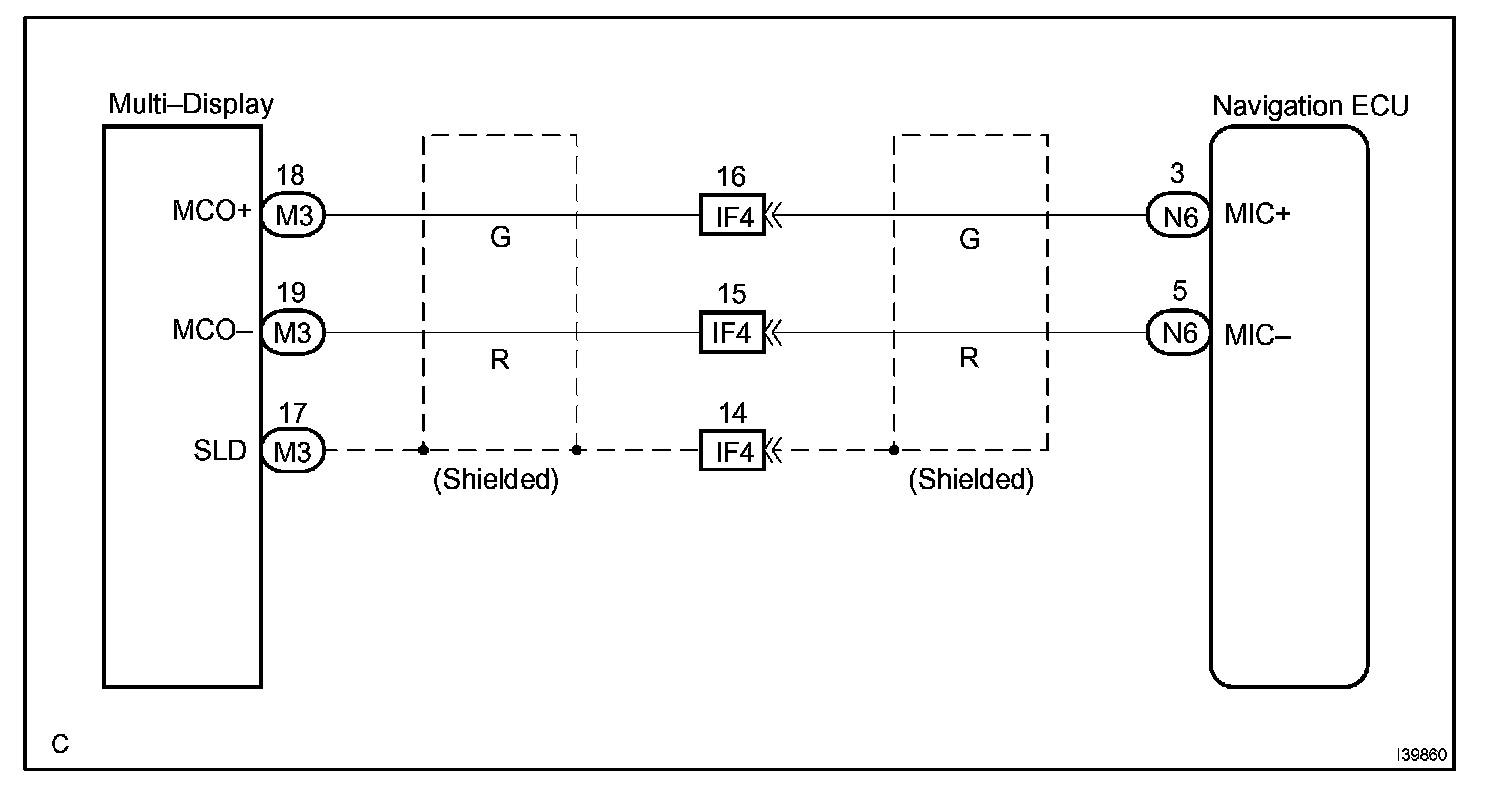

Wiring Diagram:

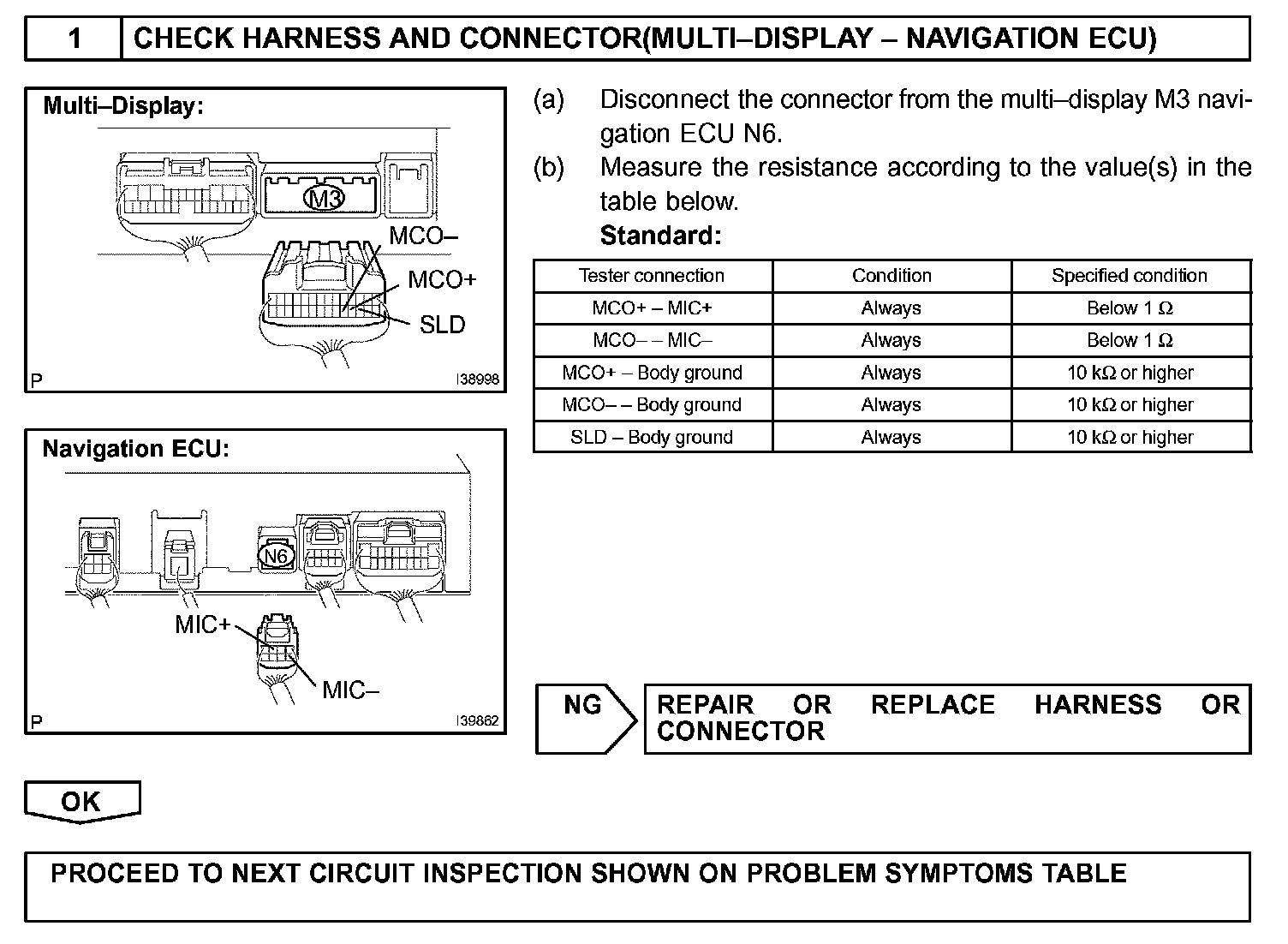

Step 1:




INSPECTION PROCEDURE
