Navigation Check Mode (Microphone Check)

NAVIGATION CHECK MODE (MICROPHONE CHECK)

HINT:
- The microphone is checked in the "Navigation Check (Microphone Check)" mode.
- Illustrations may differ from the actual vehicle depending on vehicle specifications.

1. Start the diagnostic mode.

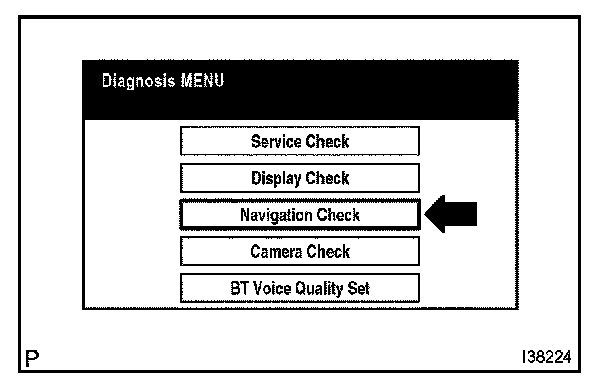

2. Select "Navigation Check" from "Diagnosis MENU".

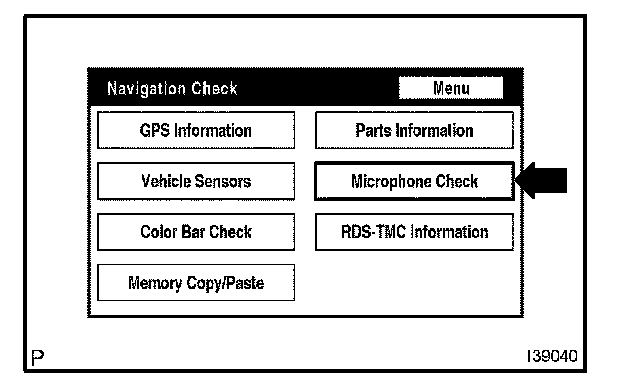

3. Select "Microphone Check" from "Navigation Check".

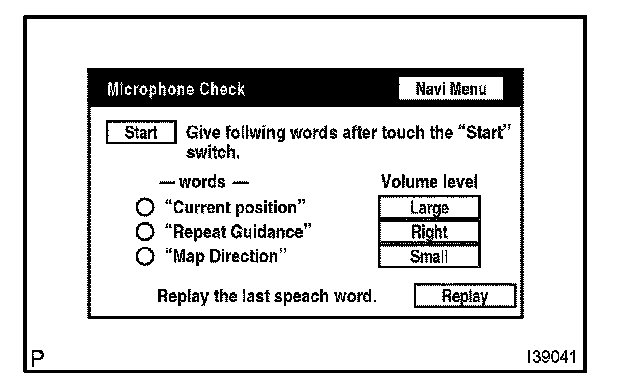

4. Perform the microphone check by following the directions on the "Microphone Check" screen.
