Rear View Monitor System
Rear View Monitor System

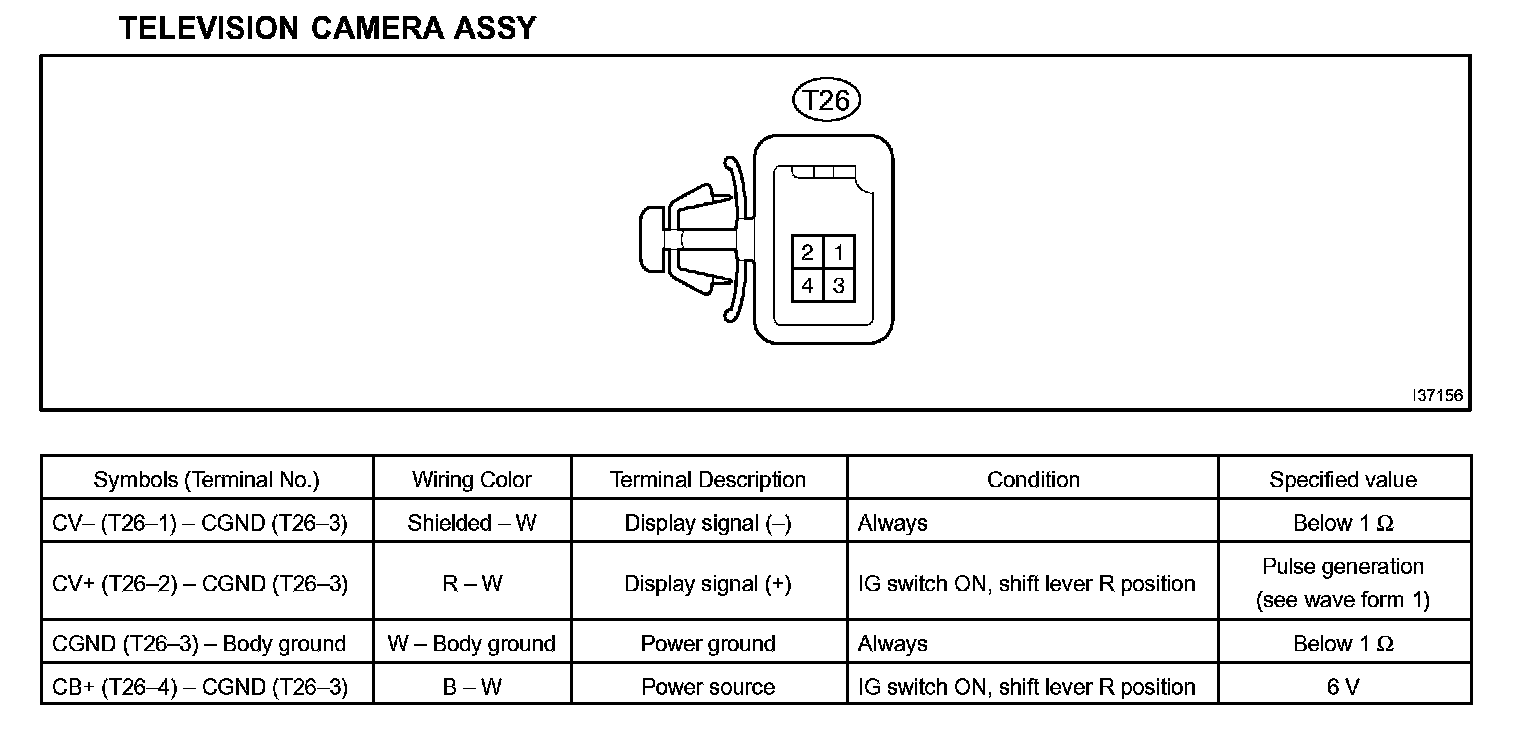

Terminals Of Control Module / Pinouts:

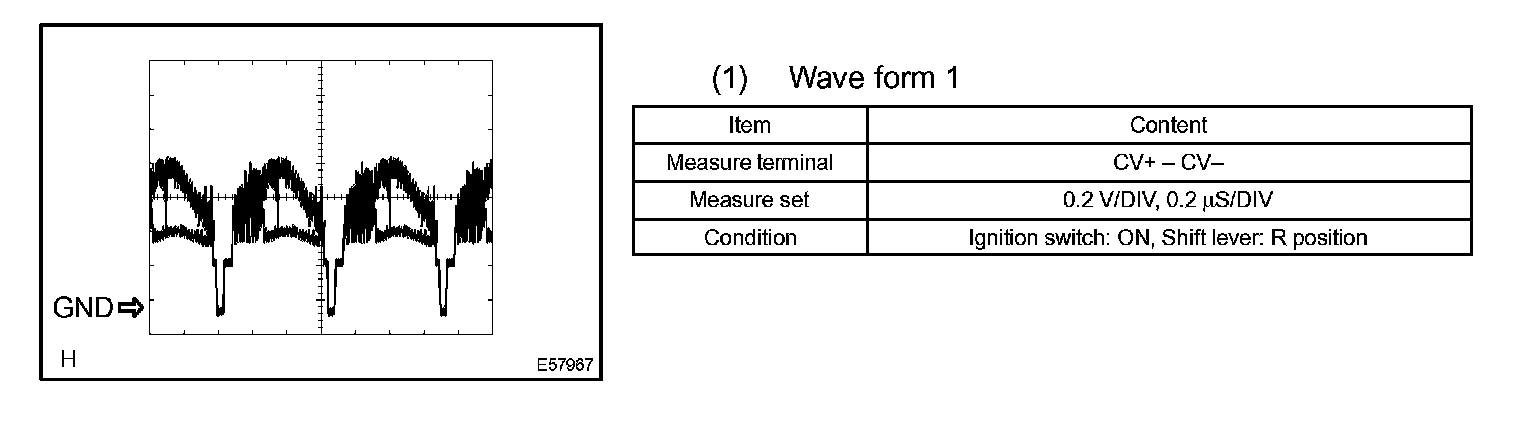

Oscilloscope Waveforms:

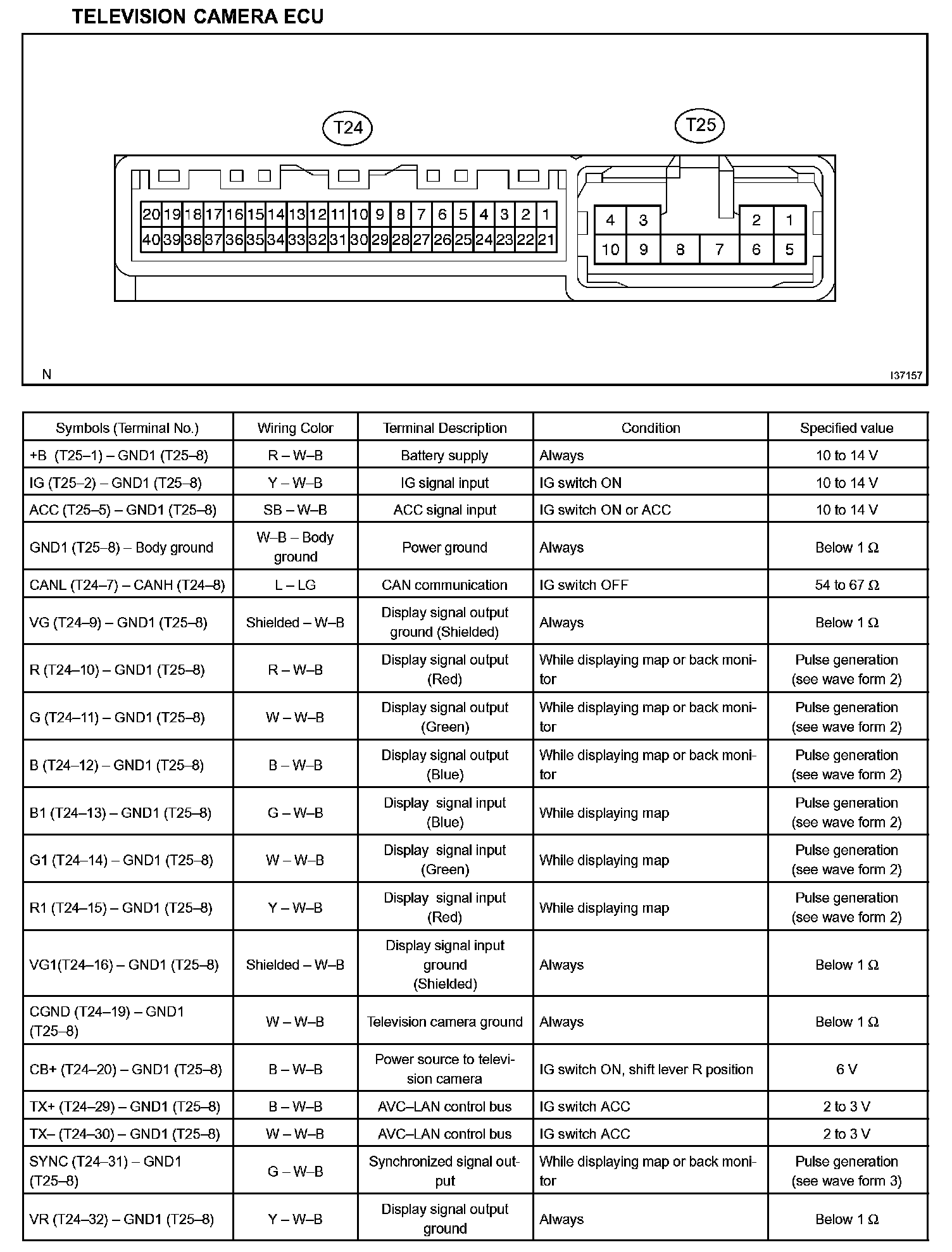

Terminals Of Control Module / Pinouts Part 1:

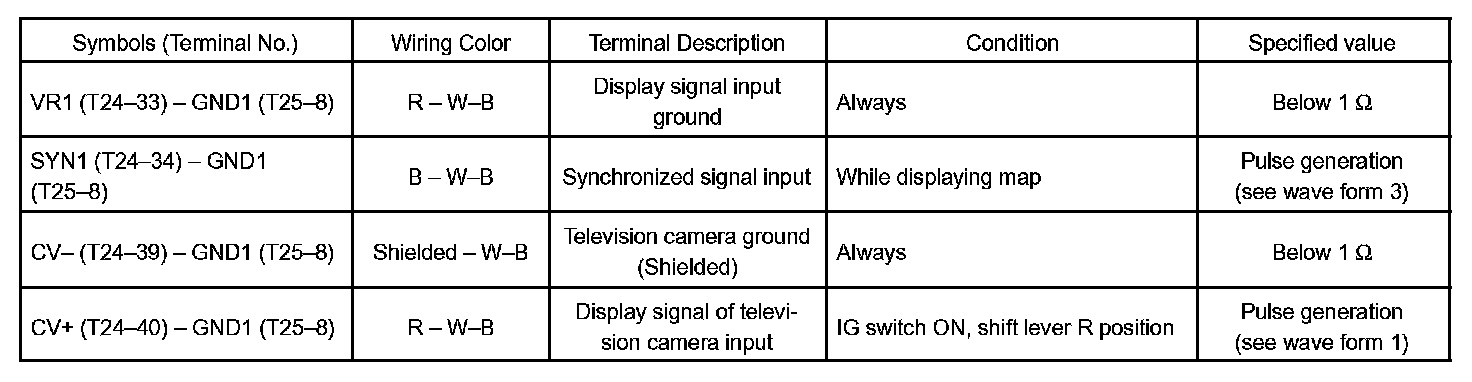

Terminals Of Control Module / Pinouts Part 2:

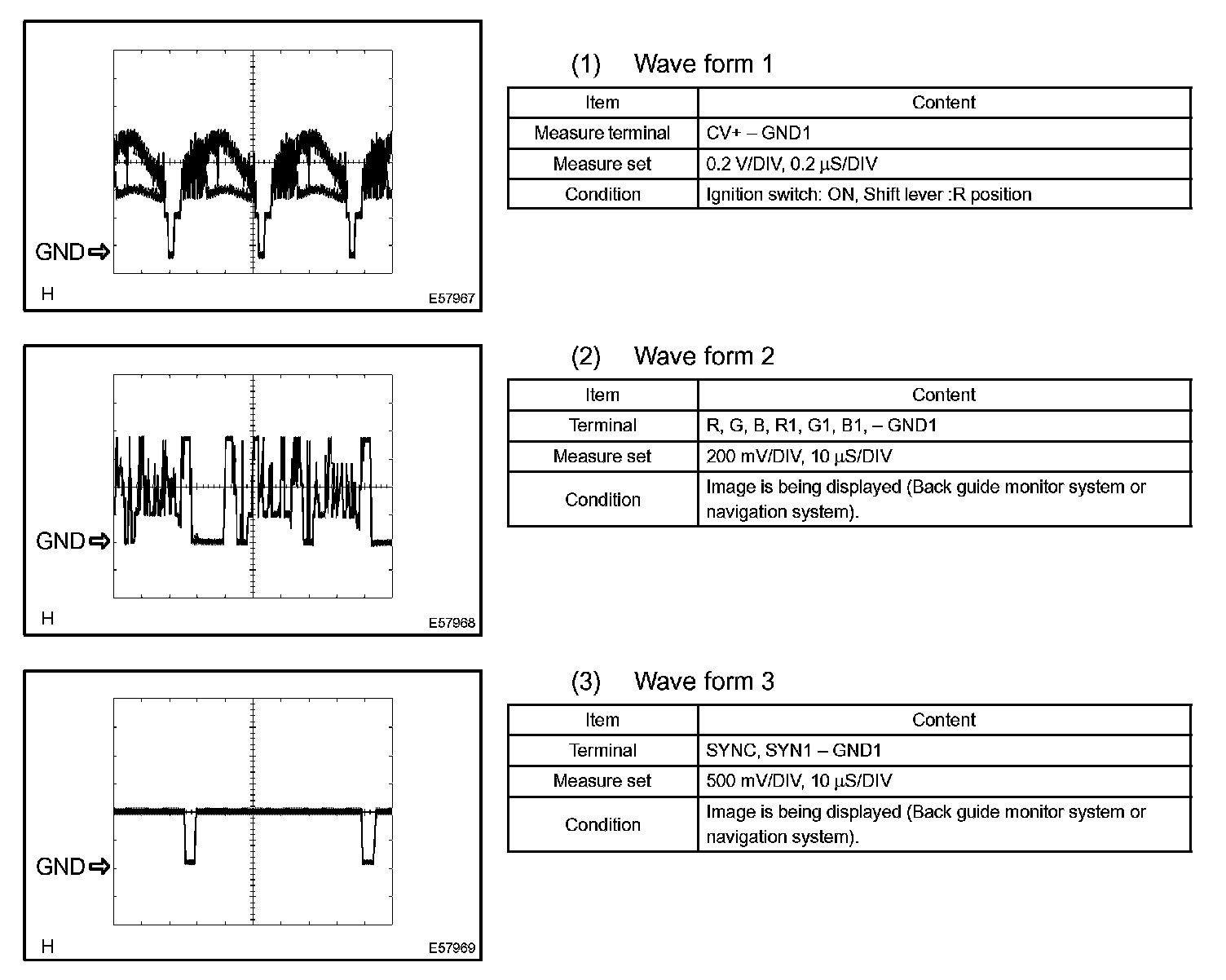

Oscilloscope Waveforms:
