Display Signal Circuit (Television Camera ECU - Multi-Display)

DISPLAY SIGNAL CIRCUIT (TELEVISION CAMERA ECU - MULTI-DISPLAY)

CIRCUIT DESCRIPTION

This is the display signal circuit from the television camera ECU to the multi-display.

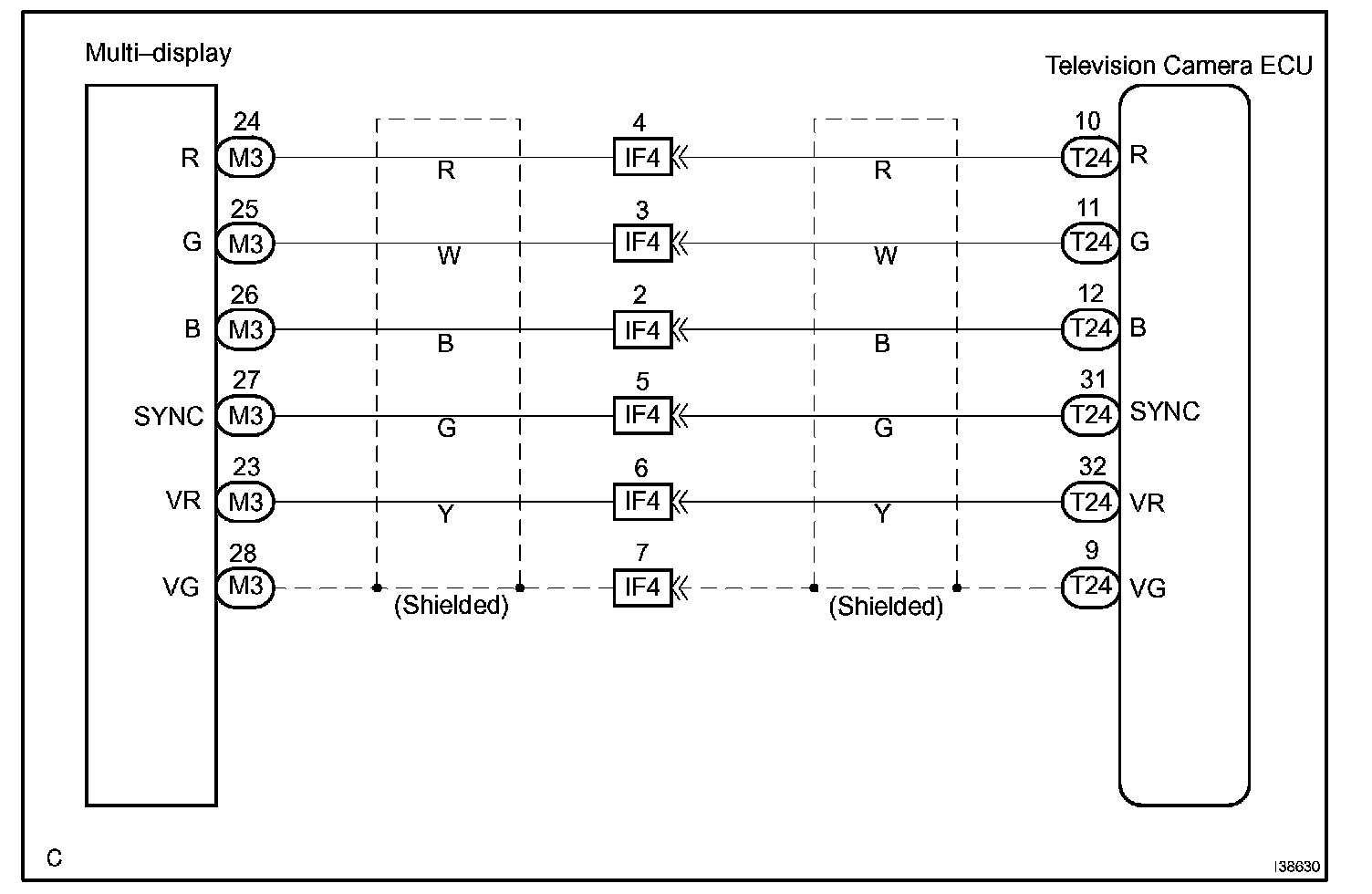

Wiring Diagram:

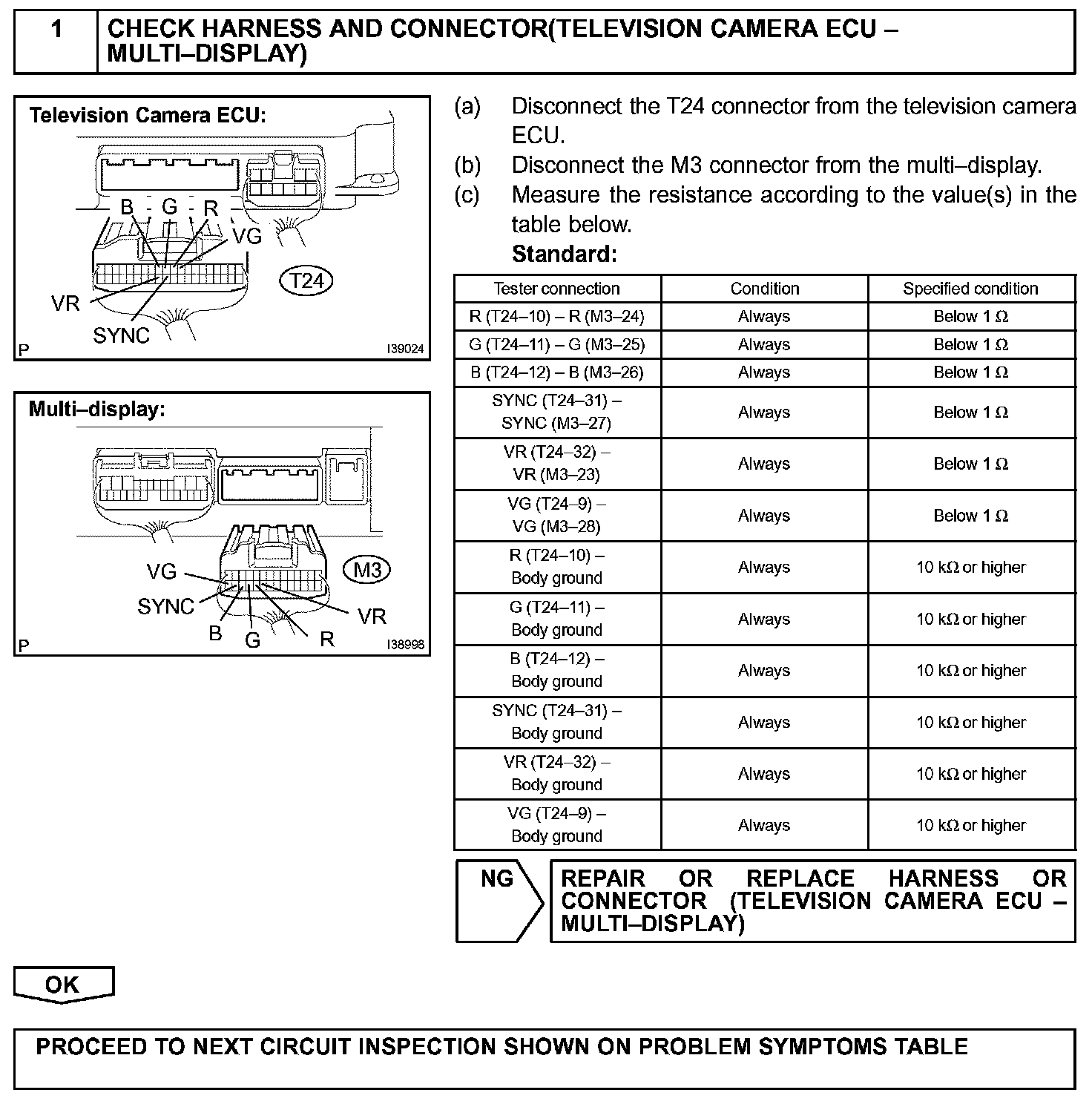

Step 1:




INSPECTION PROCEDURE
