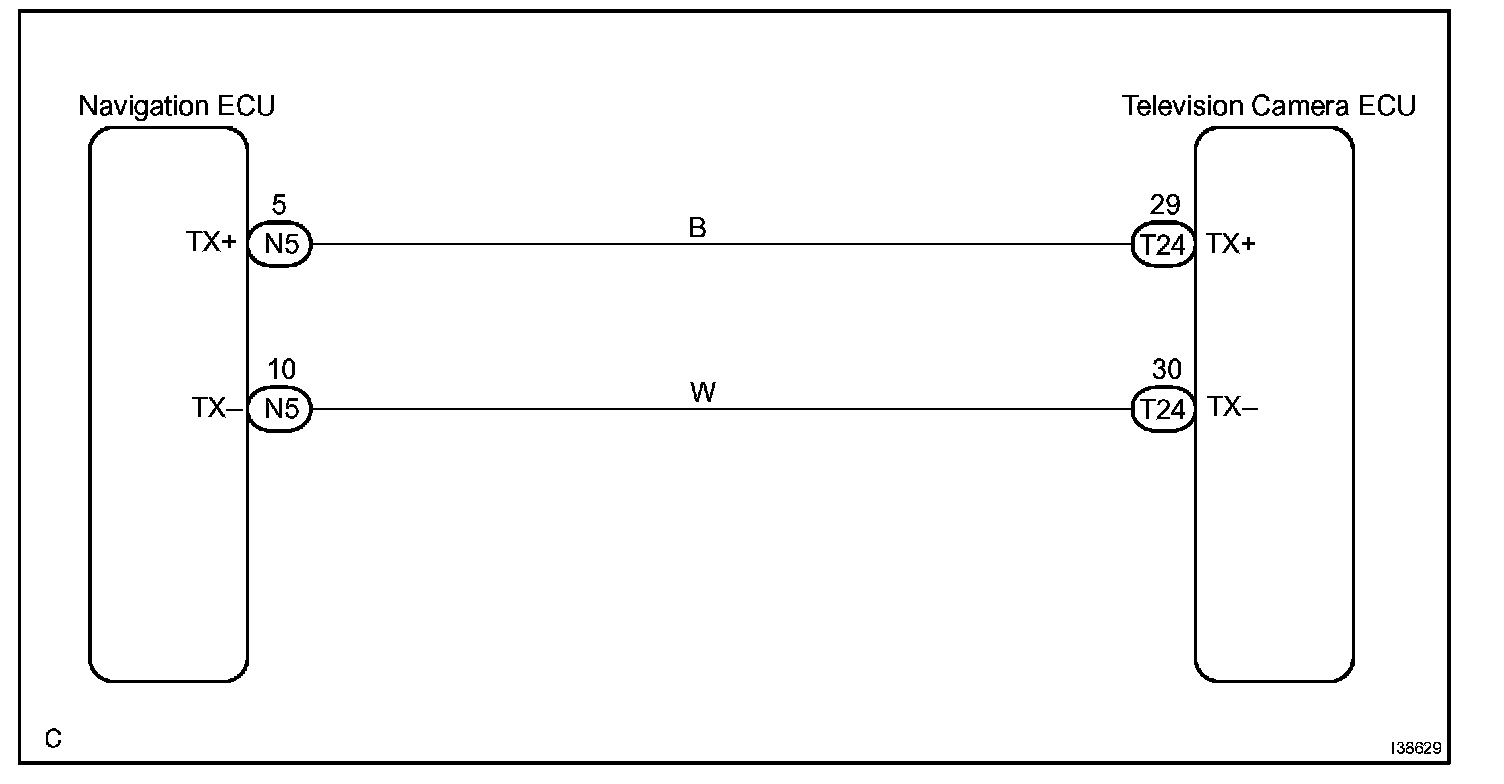

AVC-LAN Circuit (Navigation ECU - Television Camera ECU)

AVC-LAN CIRCUIT (NAVIGATION ECU - TELEVISION CAMERA ECU)

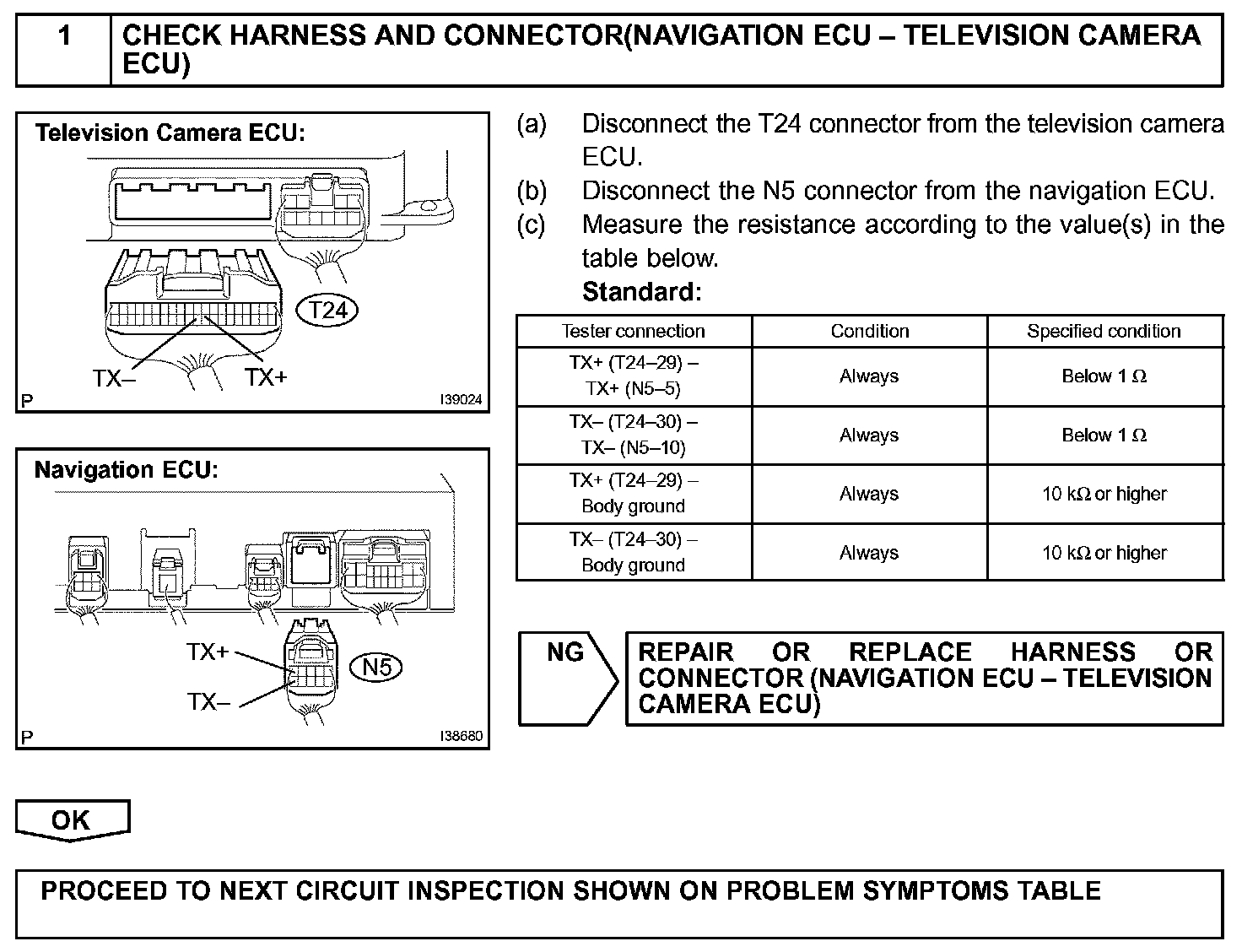

CIRCUIT DESCRIPTION

Each unit of the "REAR VIEW MONITOR SYSTEM" connected with AVC-LAN (communication bus) transfers the signal of each switch by communication.

When short to +B or short to ground occurs in this AVC-LAN, the "REAR VIEW MONITOR SYSTEM" will not function normally as the communication is discontinued.
