Clearance Warning Buzzer No.1 Circuit

CLEARANCE WARNING BUZZER NO.1 CIRCUIT

CIRCUIT DESCRIPTION

The clearance warning ECU assembly receives the ultrasonic sensor signal to sound the clearance warning buzzer.

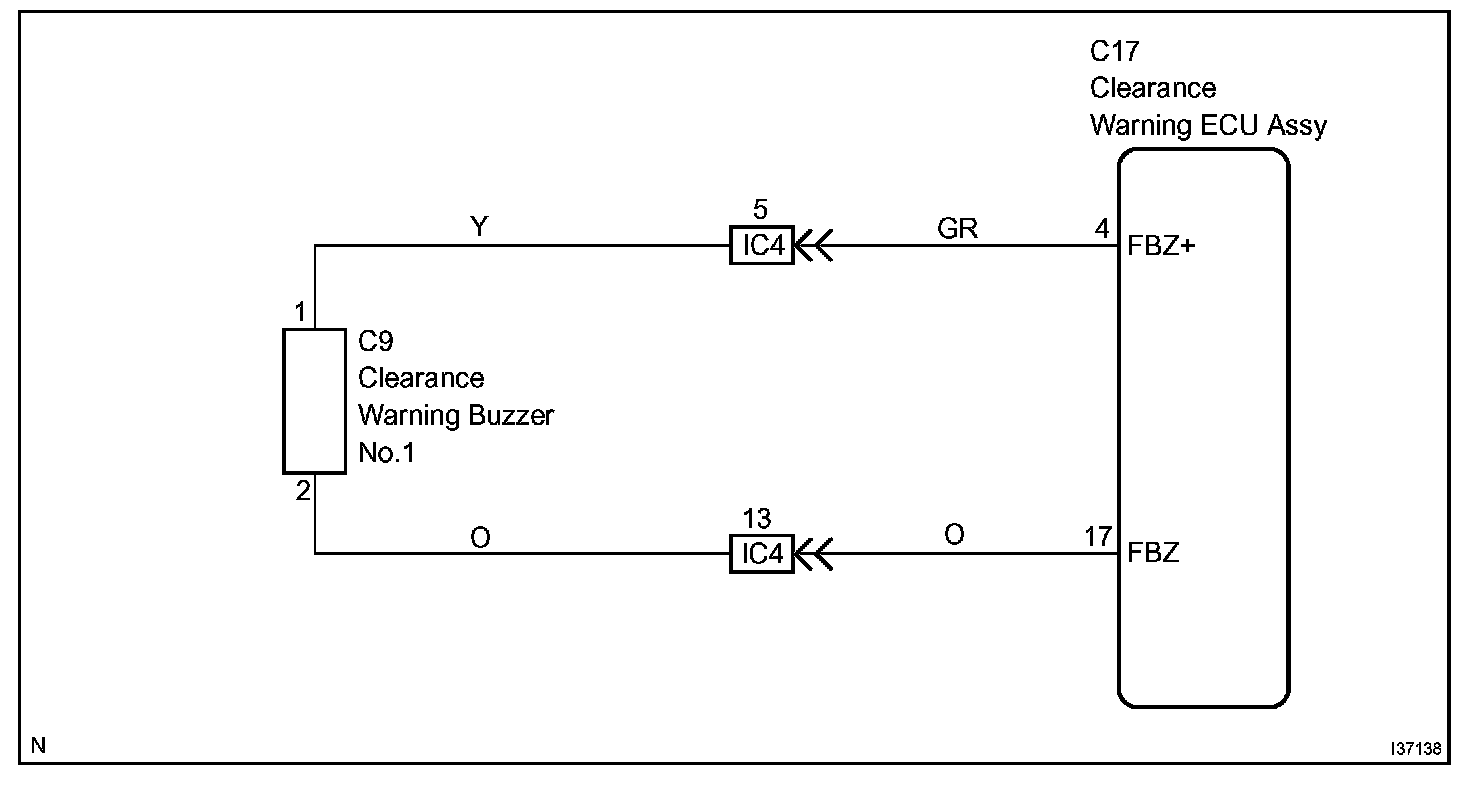

Wiring Diagram:

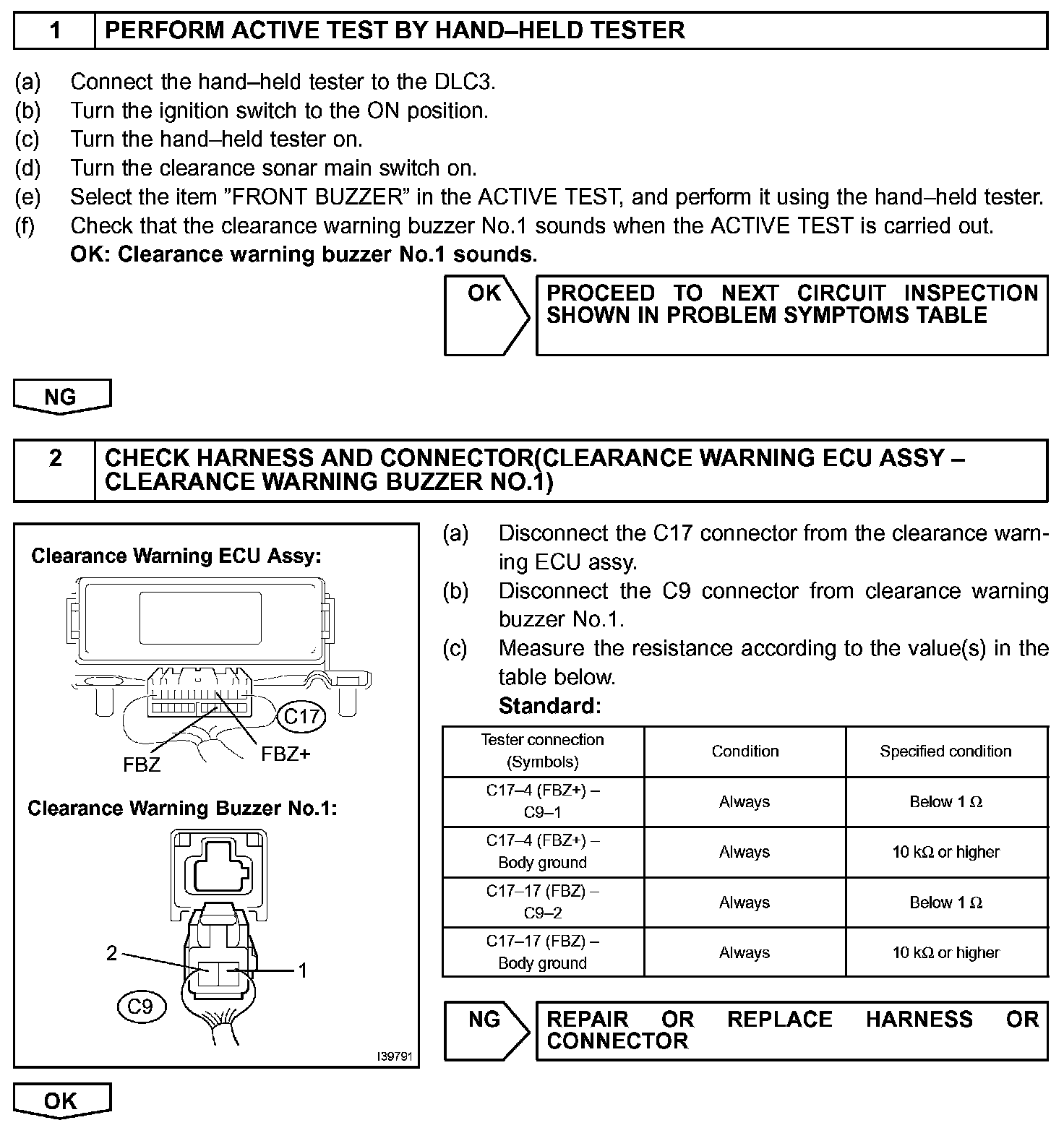

Step 1 - 2:

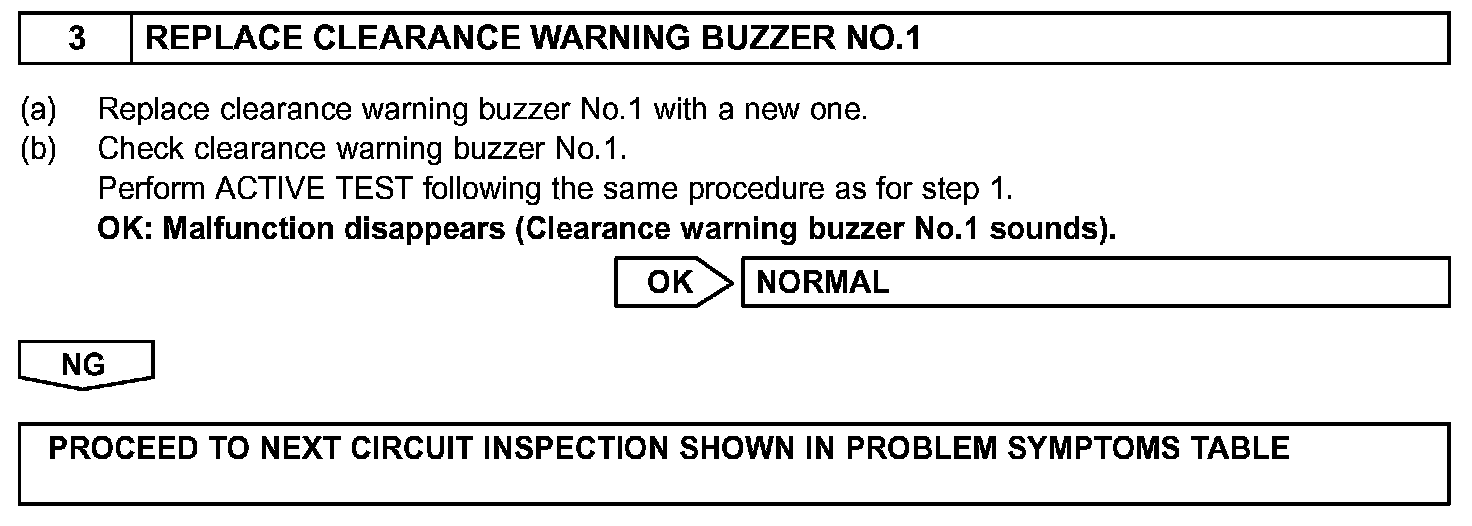

Step 3:

INSPECTION PROCEDURE
