Security Horn Circuit

SECURITY HORN CIRCUIT

CIRCUIT DESCRIPTION

When the theft deterrent system is operating, a relay in the theft warning ECU (theft deterrent ECU) turns ON and OFF continuously at 0.2 seconds intervals, causing the security horn to sound.

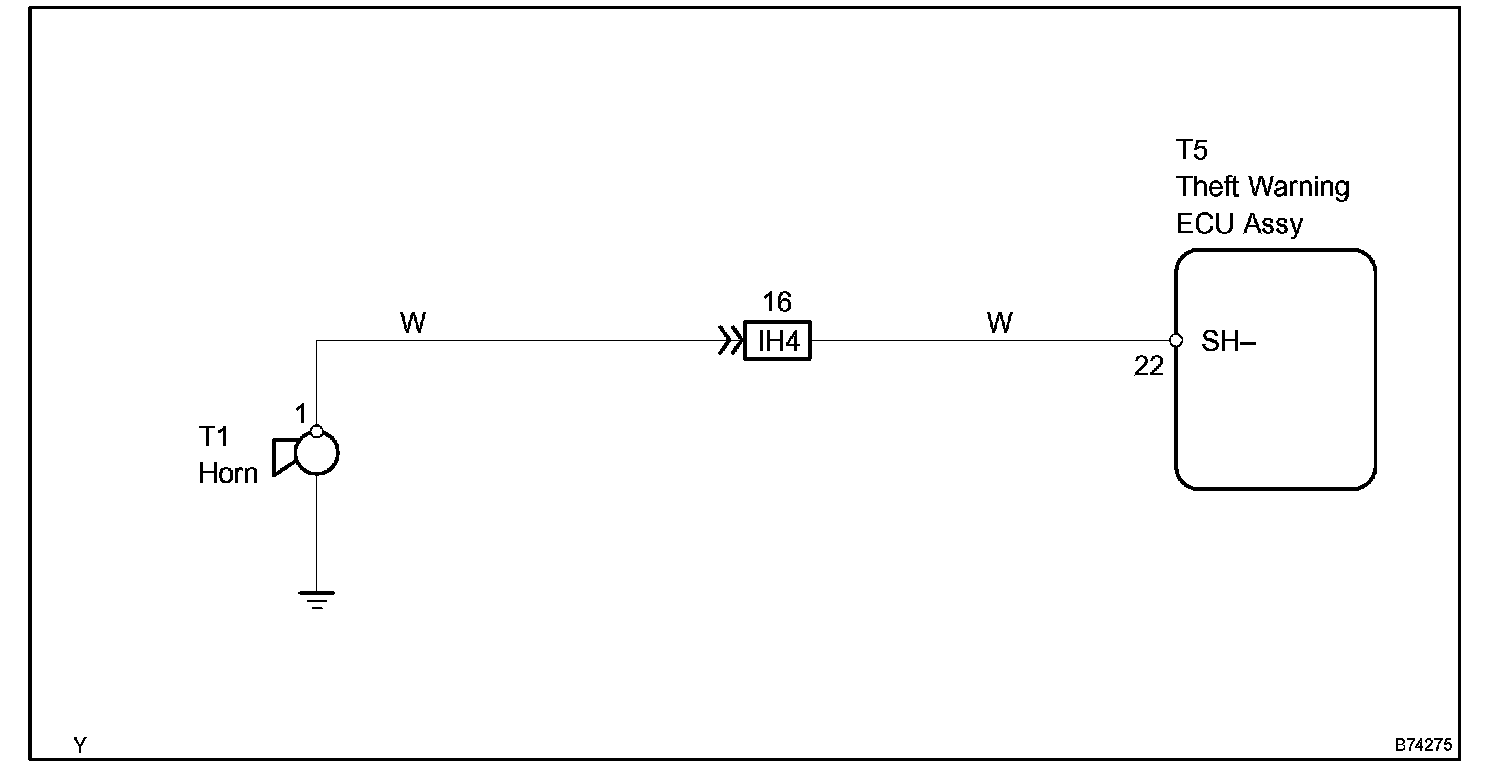

Wiring Diagram:

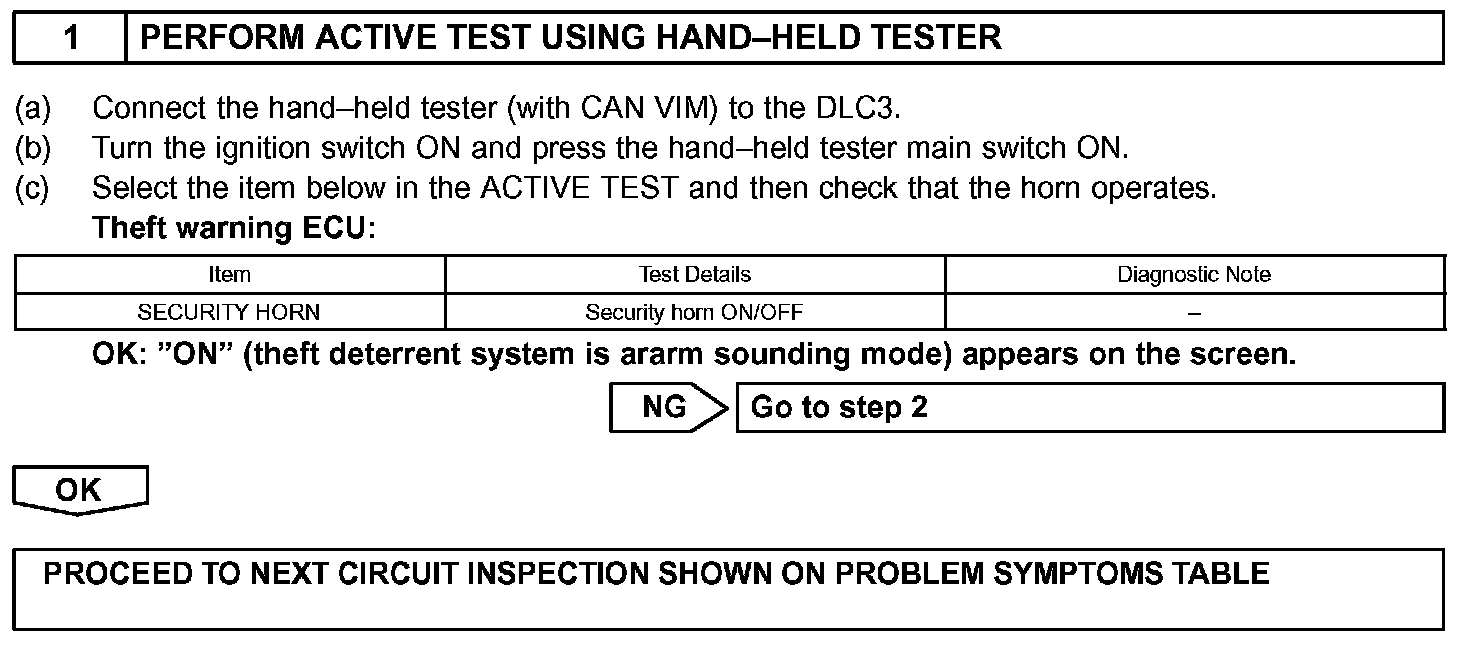

Step 1:

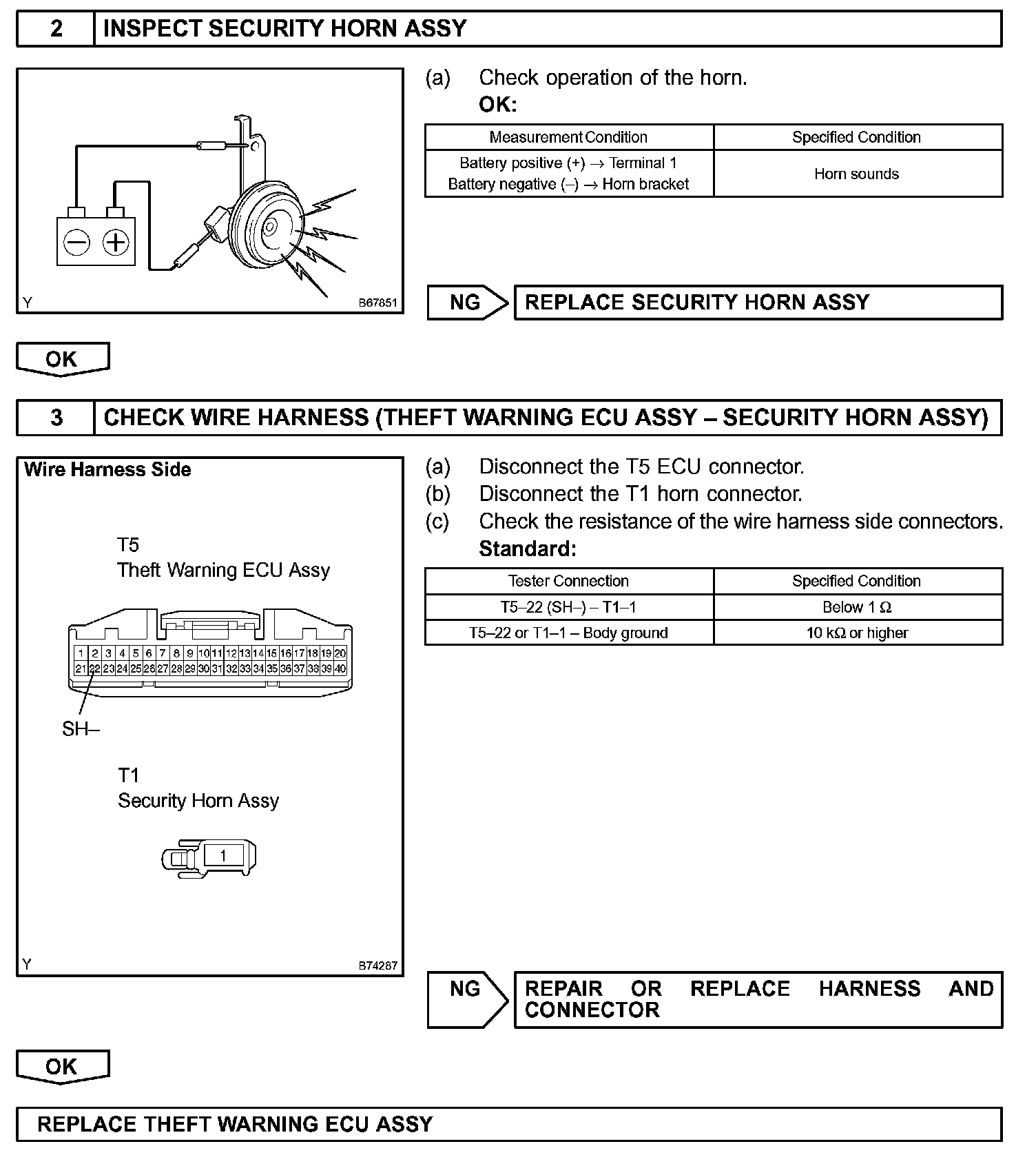

Step 2 - 3:

INSPECTION PROCEDURE
