Horn Circuit

HORN CIRCUIT

CIRCUIT DESCRIPTION

When the theft deterrent system is switched from the armed state to the alarm sounding state, the theft warning ECU (theft deterrent ECU) transmits a signal to cause the horn to sound at intervals of 0.4 seconds.

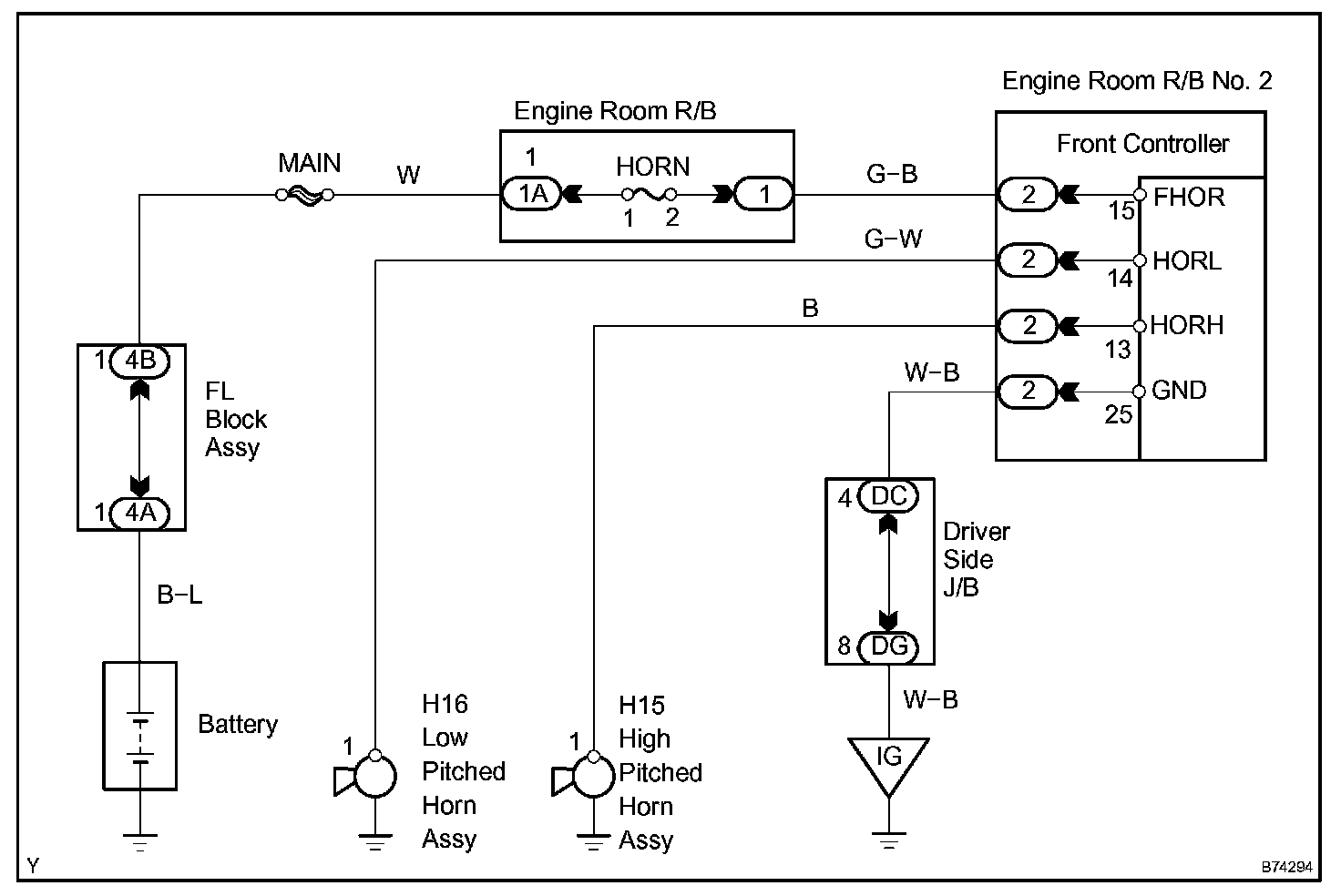

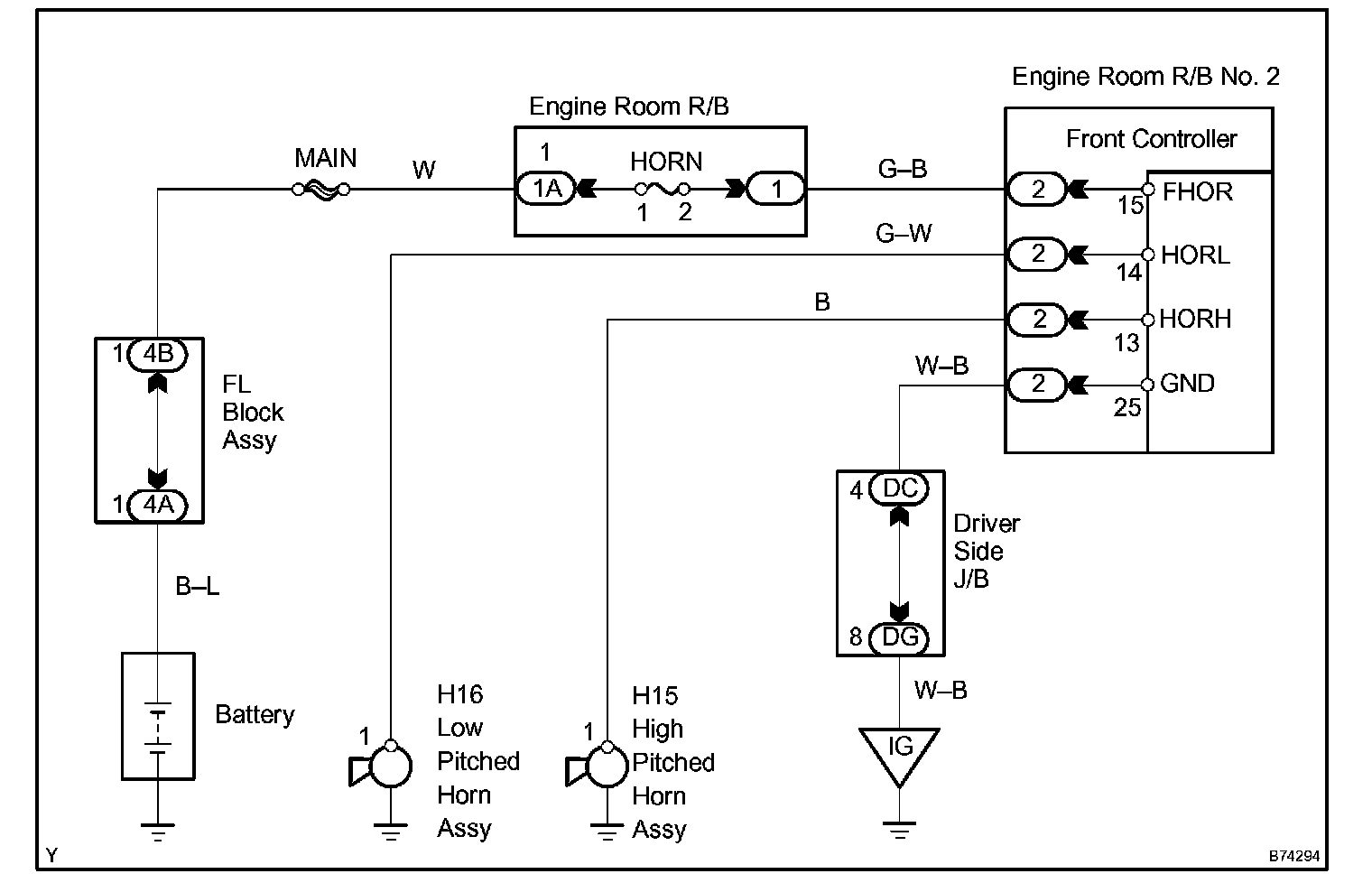

Wiring Diagram:

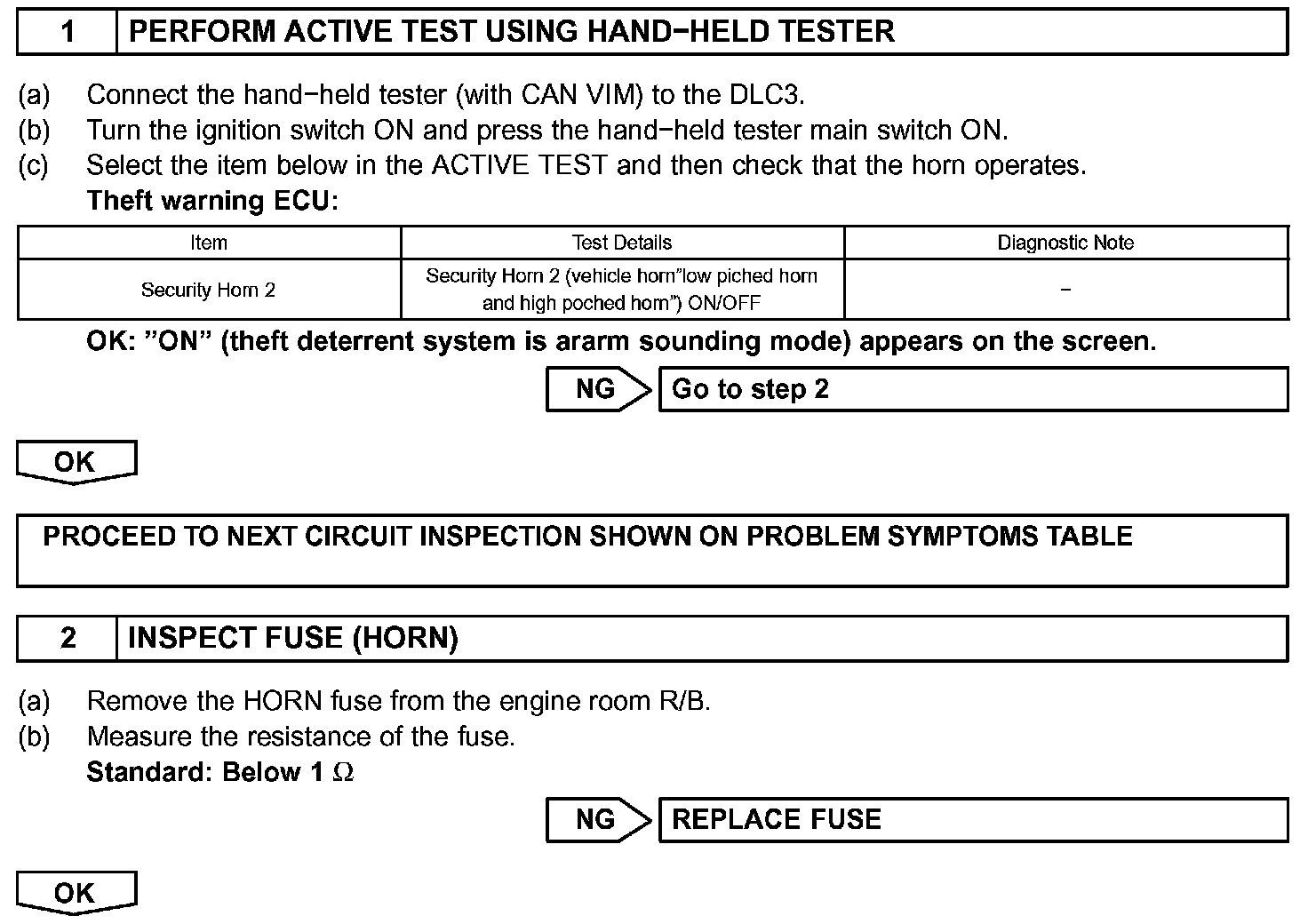

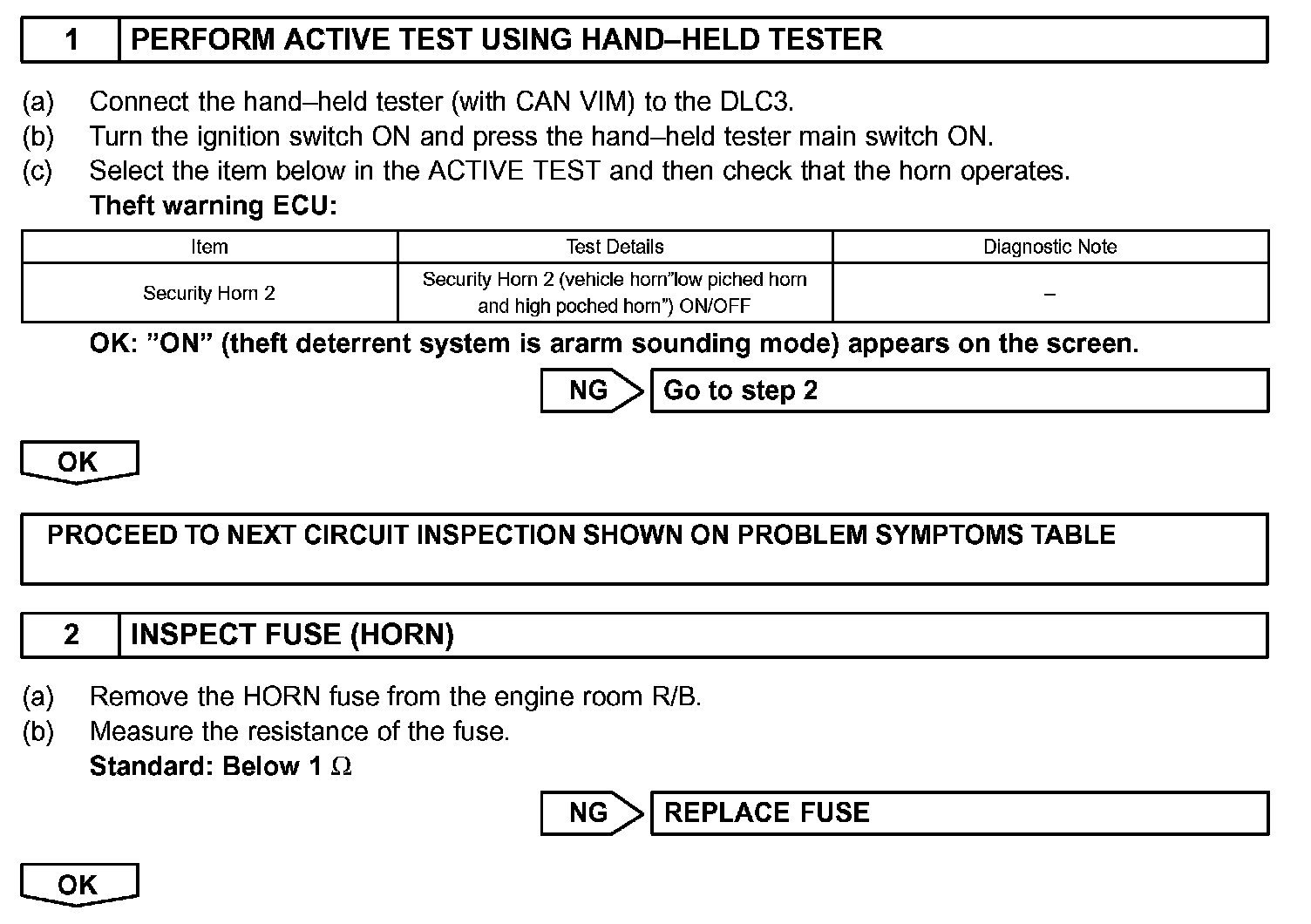

Step 1 - 2:

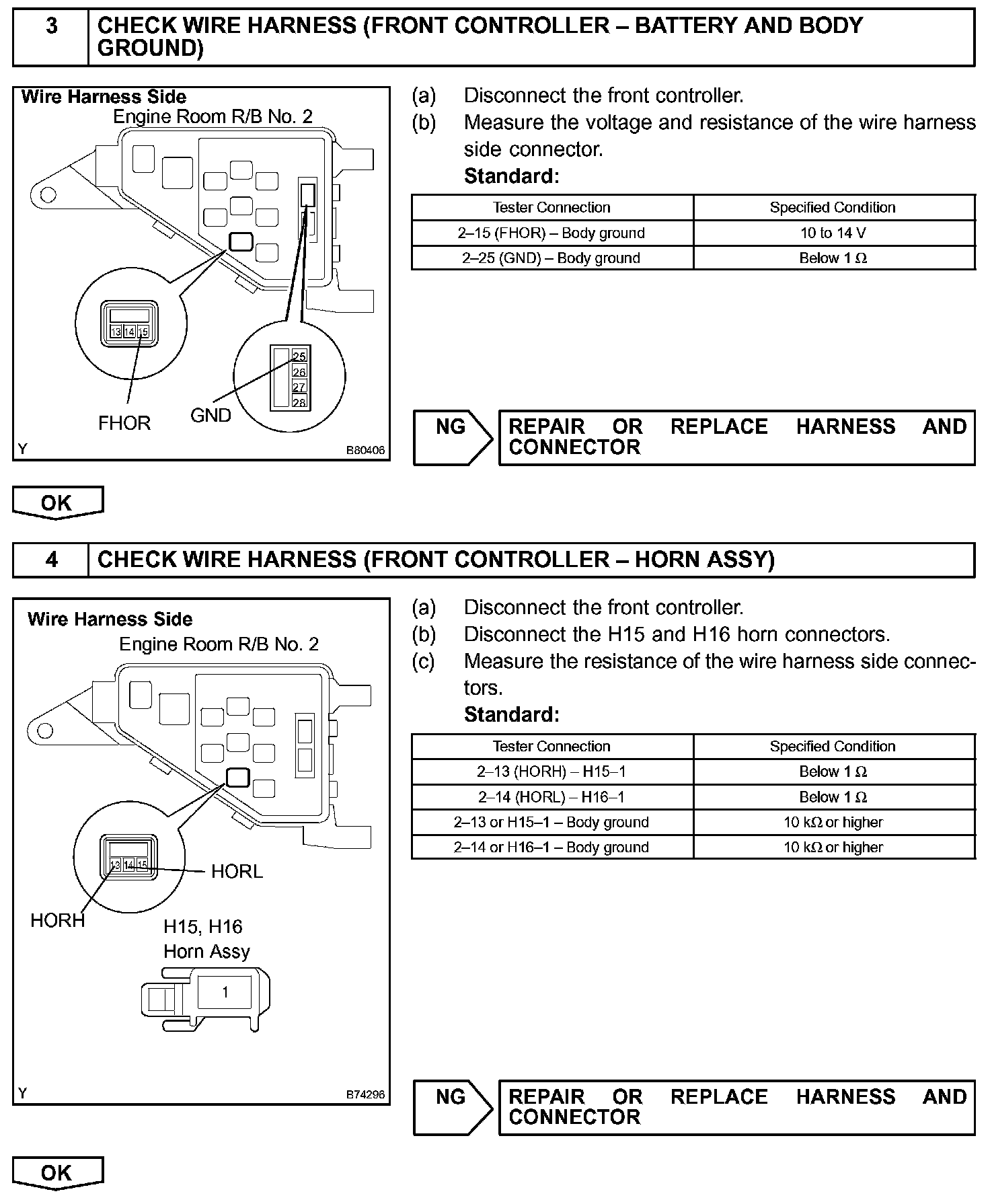

Step 3 - 4:

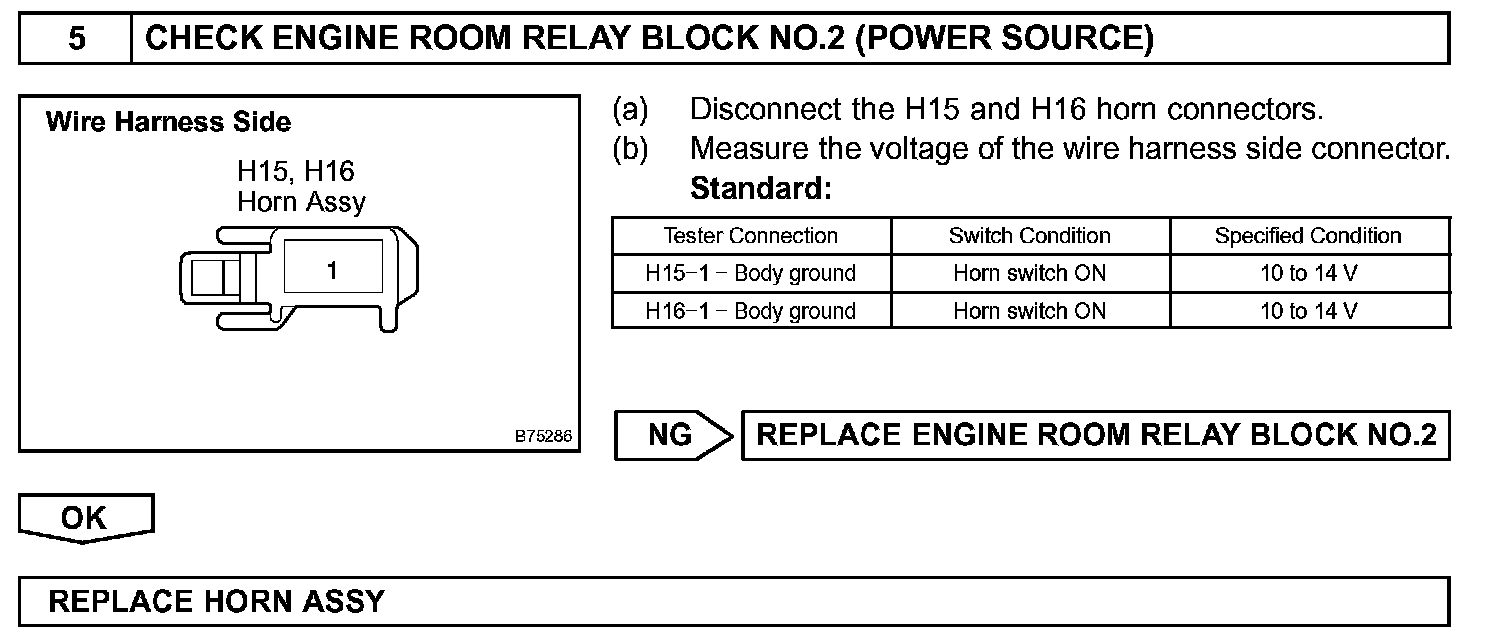

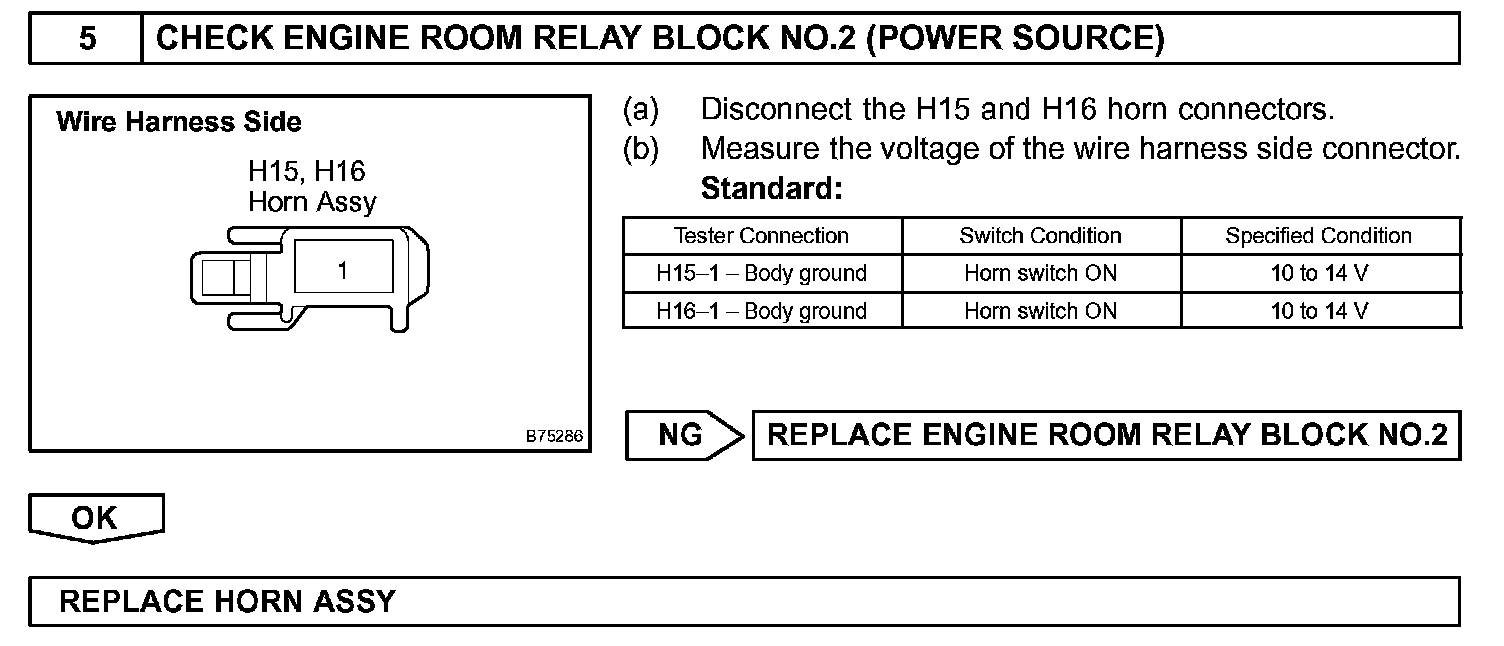

Step 5:

INSPECTION PROCEDURE
