Trigger Switch Circuit

TRIGGER SWITCH CIRCUIT

CIRCUIT DESCRIPTION

Trigger switches are built into the outside handles of each door. Door ECUs detect the conditions of the each lock switch (trigger switch).

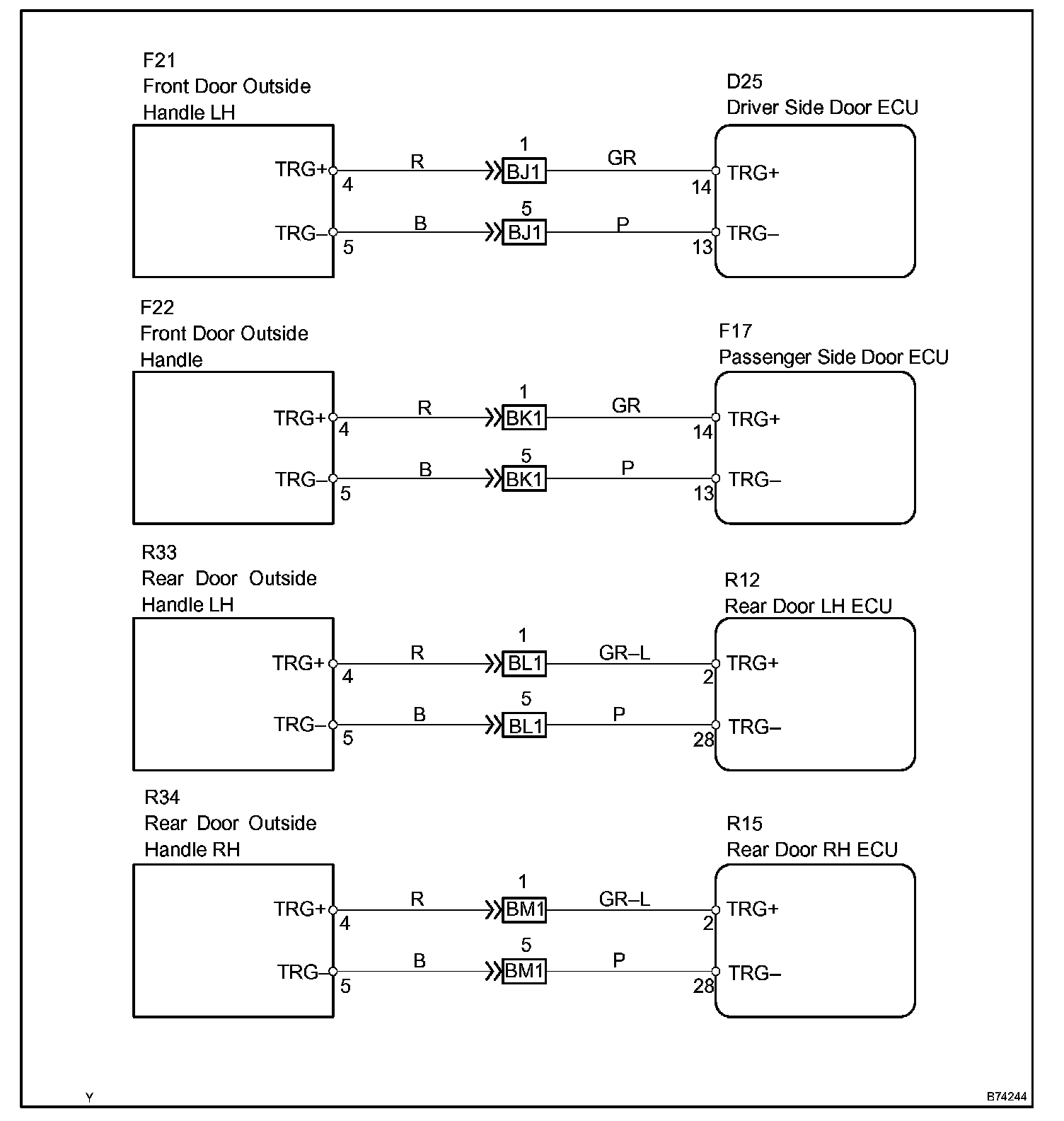

Wiring Diagram:

Step 1:

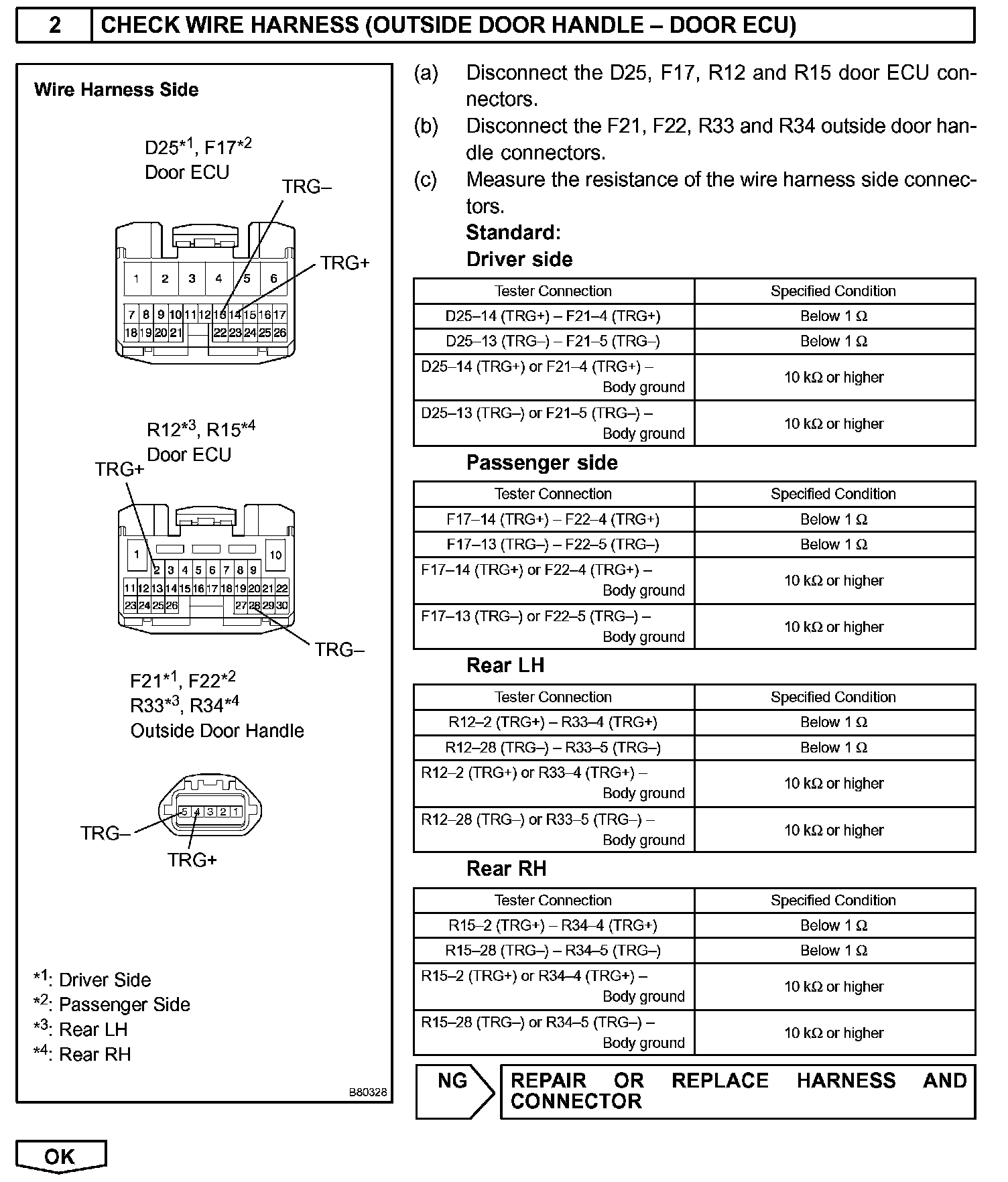

Step 2:

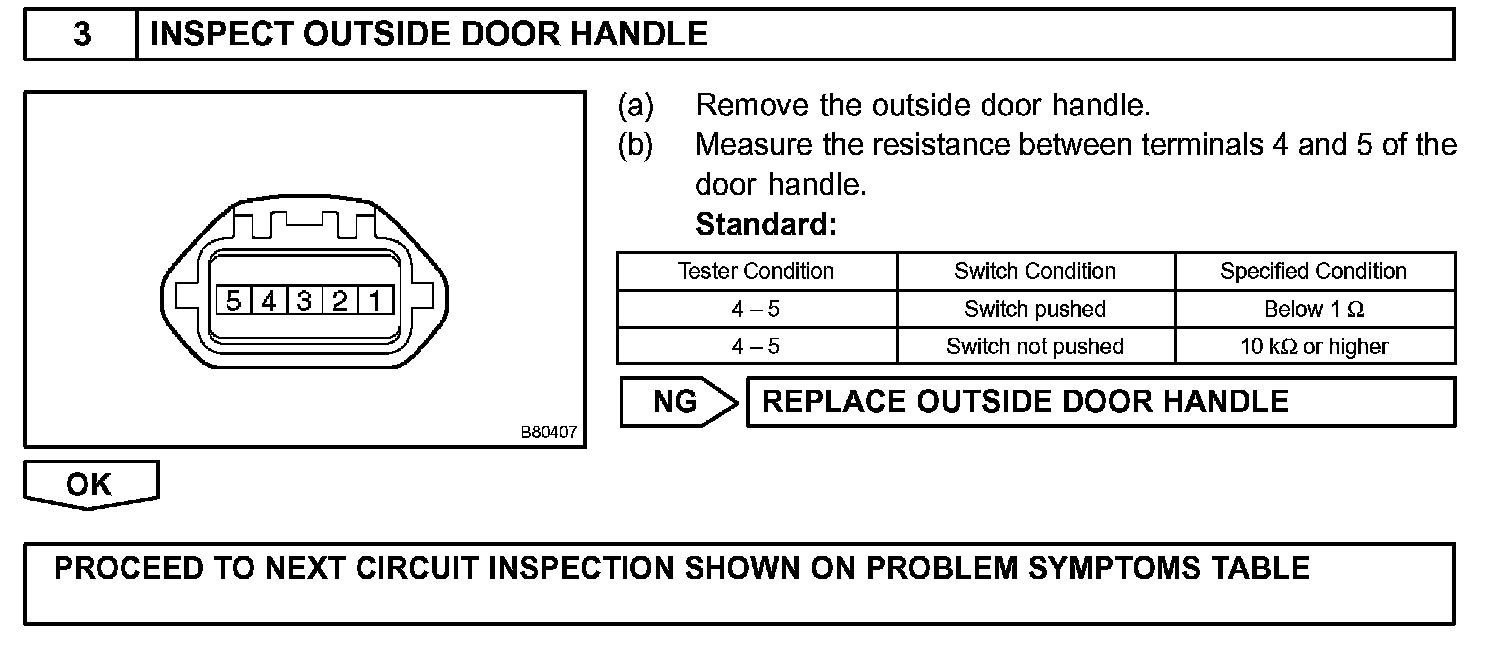

Step 3:

INSPECTION PROCEDURE
