Door Oscillator Circuit

DOOR OSCILLATOR CIRCUIT

CIRCUIT DESCRIPTION

Door oscillators are built into each door. Each of them forms its own detection area around its door and detects the presence of the smart key.

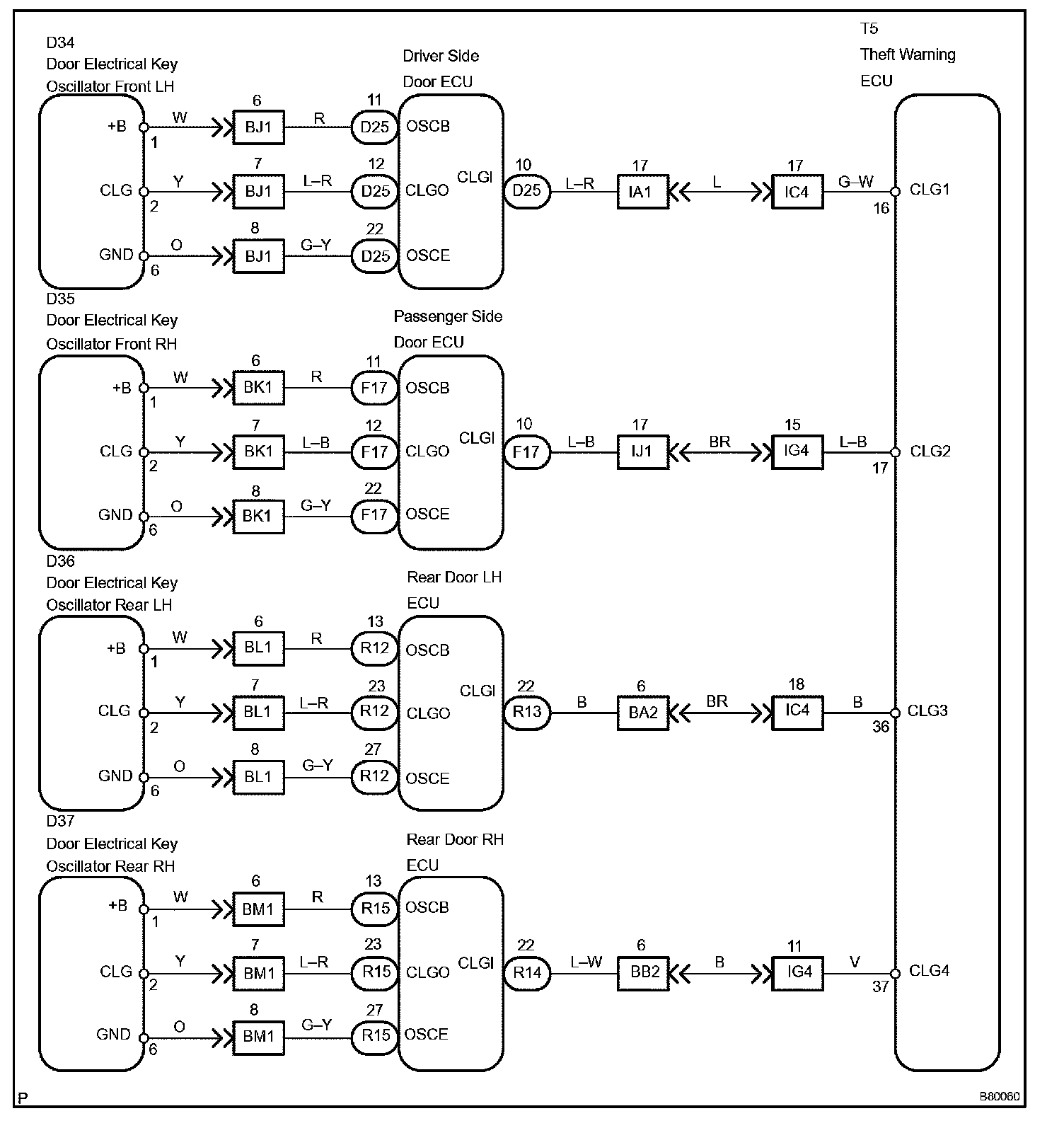

Wiring Diagram:

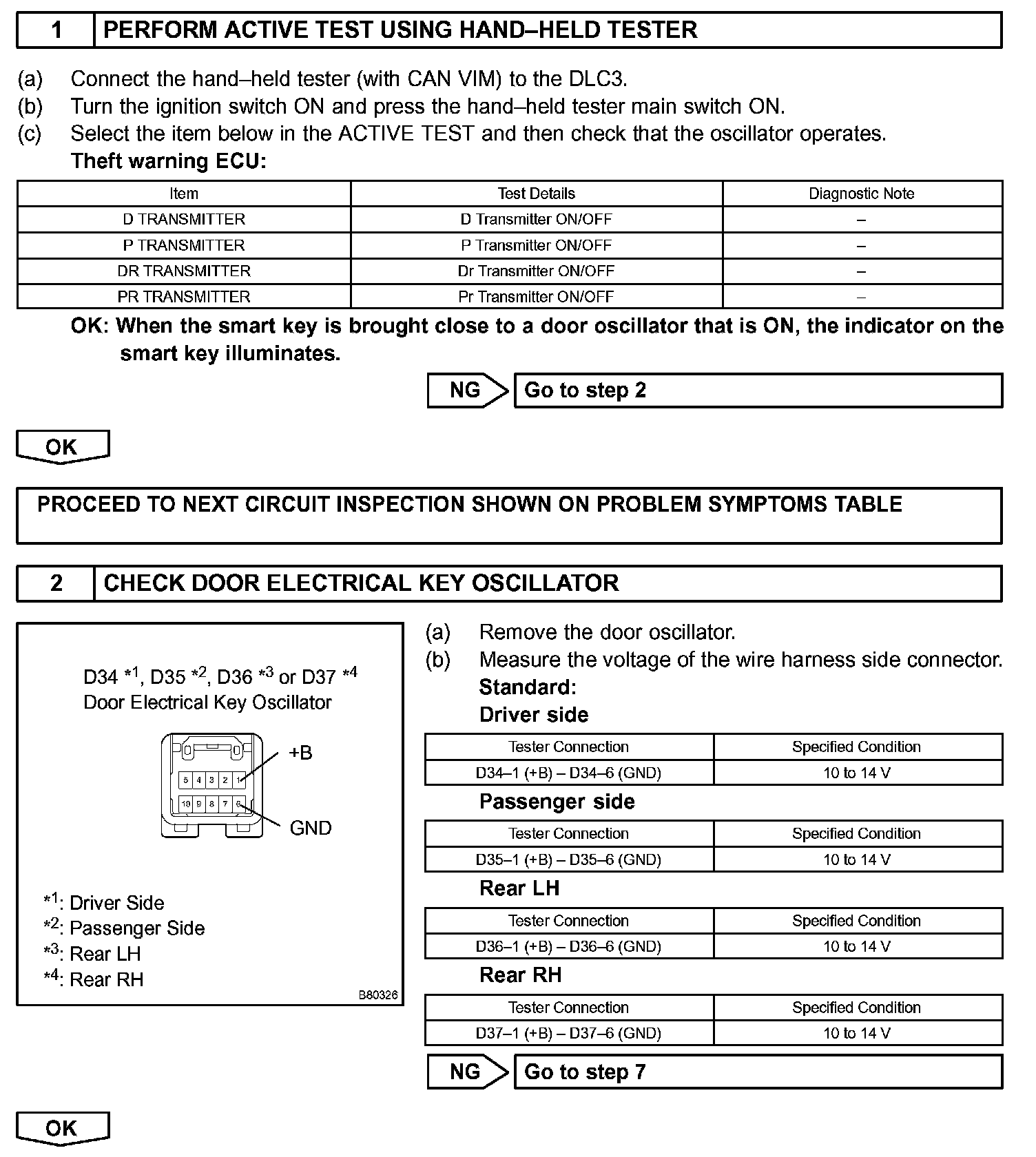

Step 1 - 2:

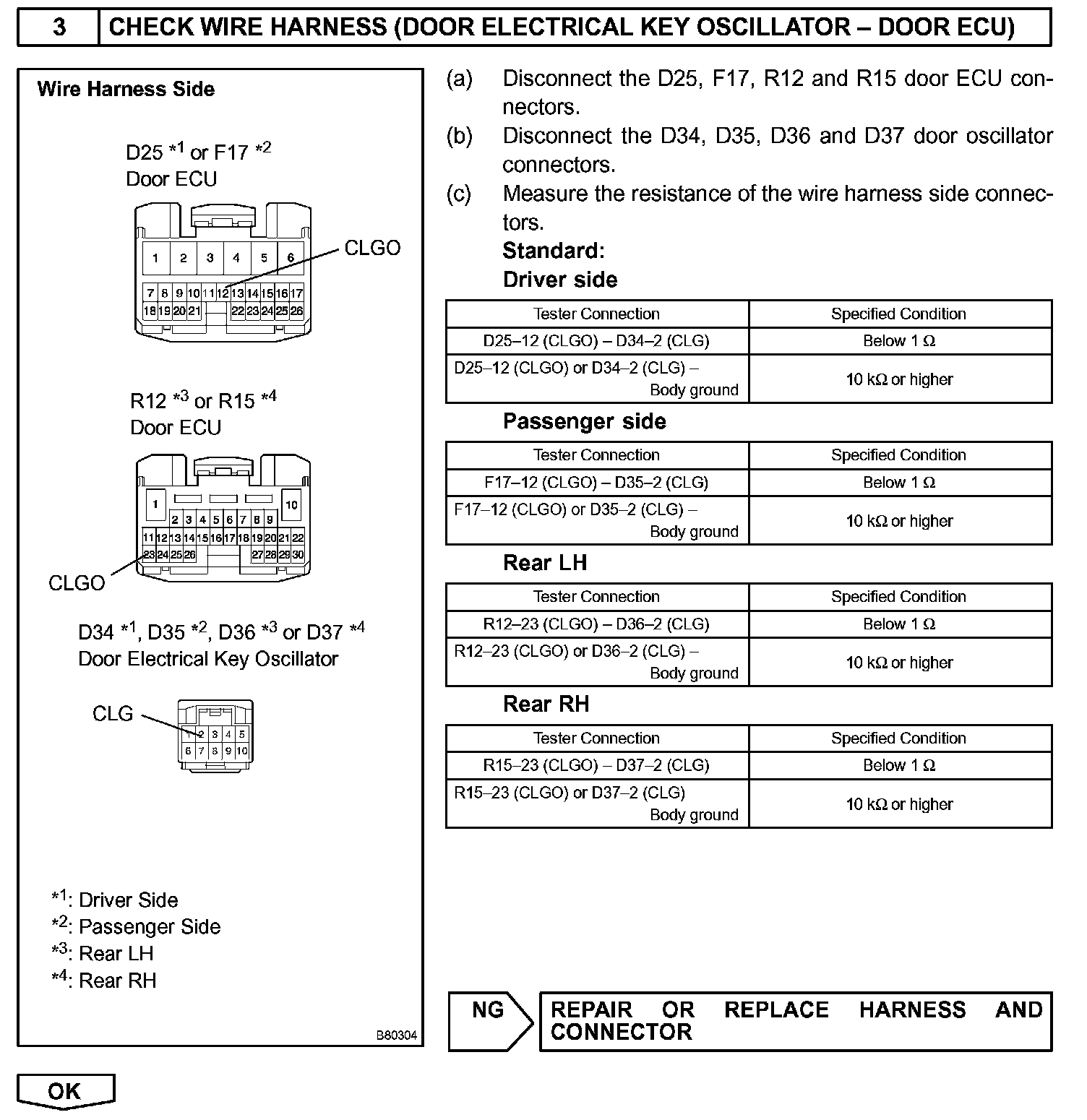

Step 3:

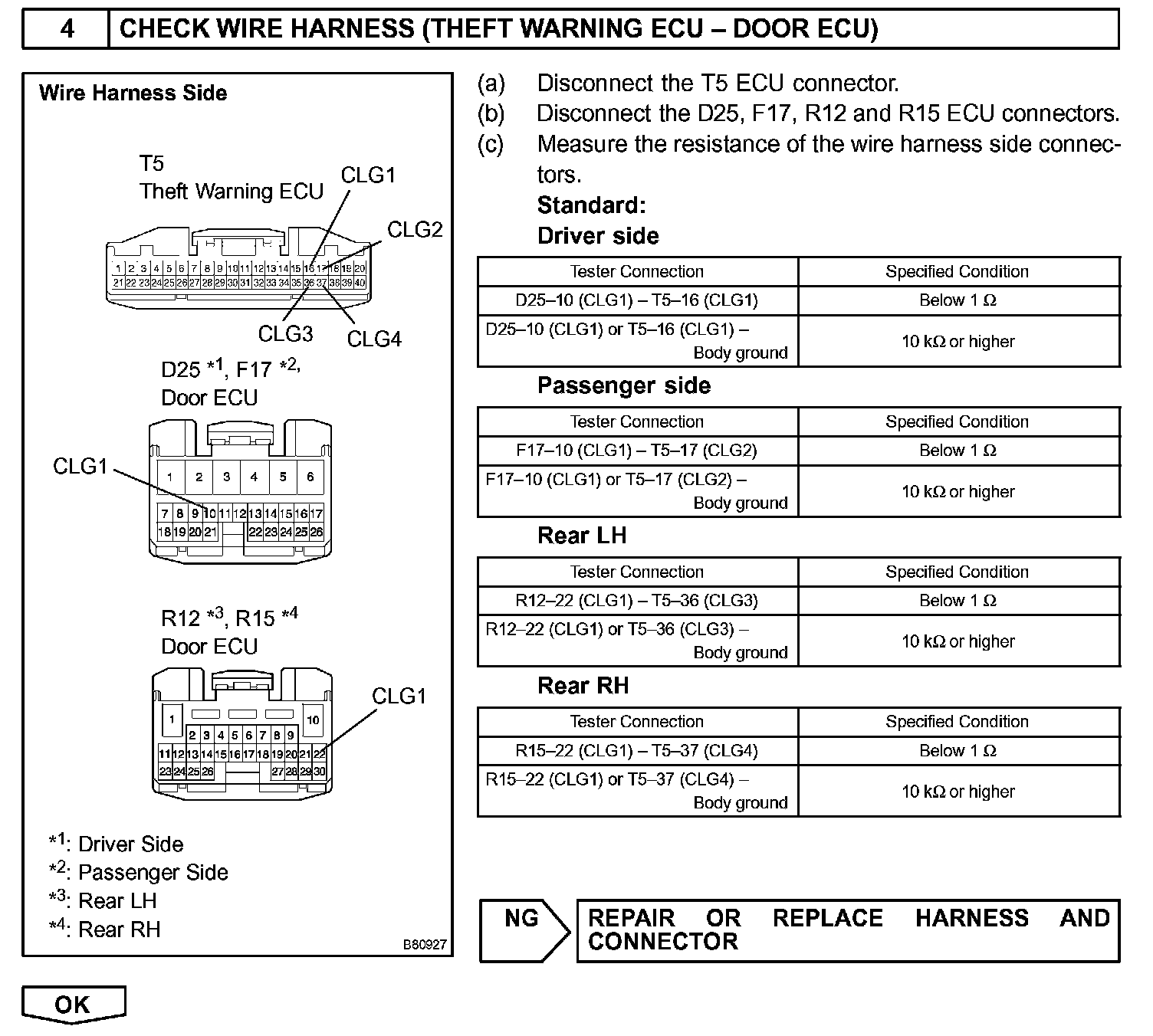

Step 4:

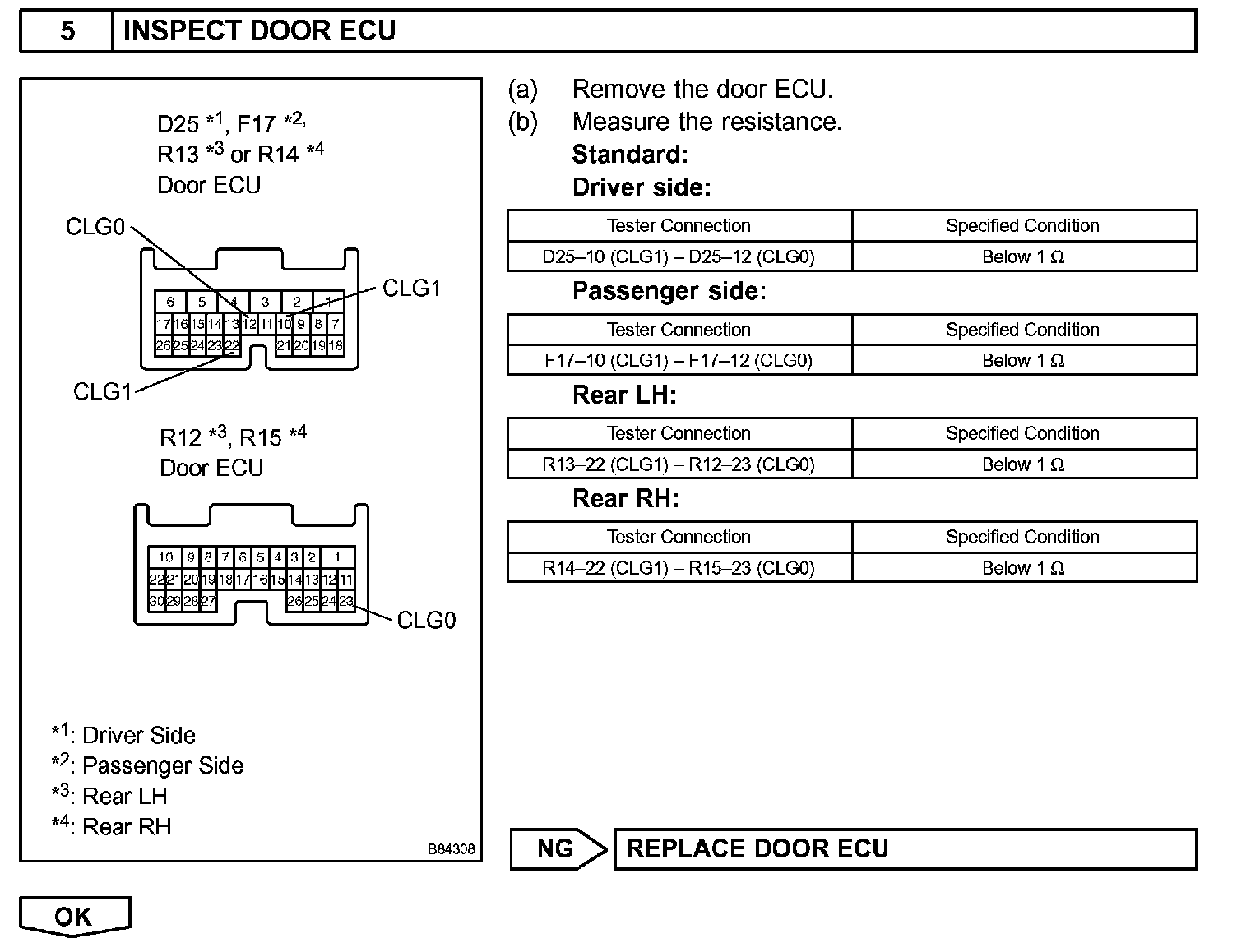

Step 5:

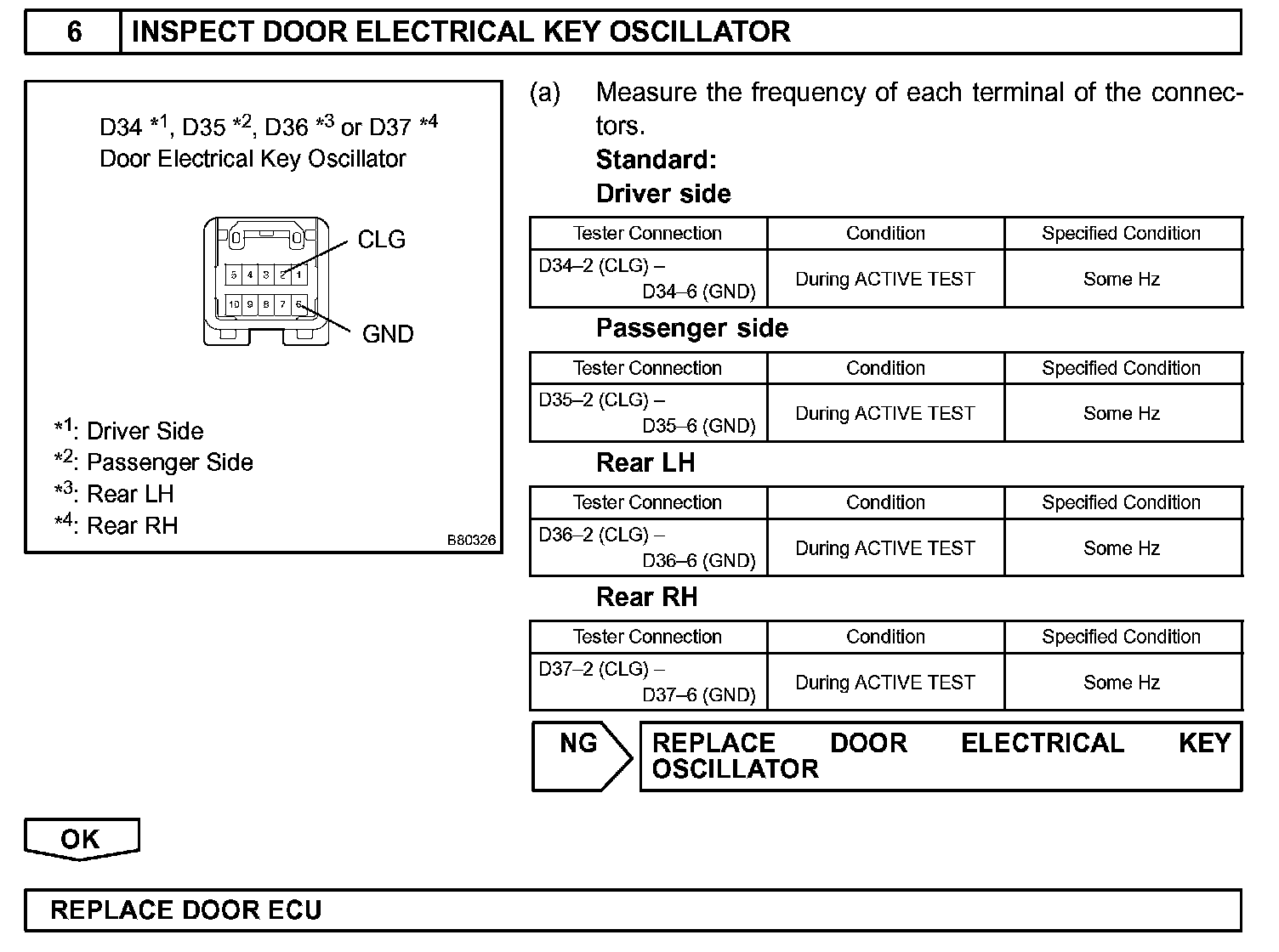

Step 6:

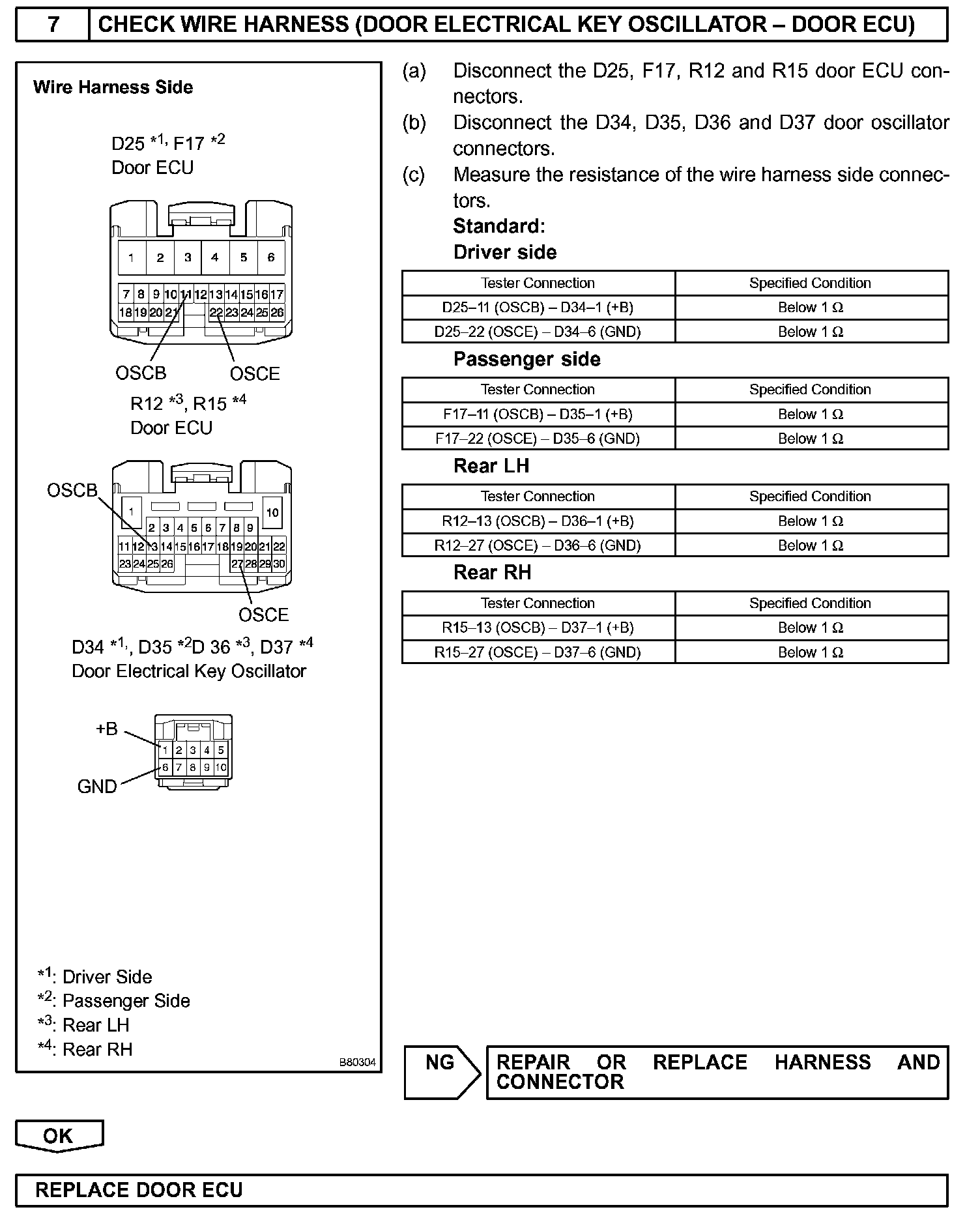

Step 7:

INSPECTION PROCEDURE
