Home >> Lexus >> 2005 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Locations

Antitheft and Alarm Systems: Locations

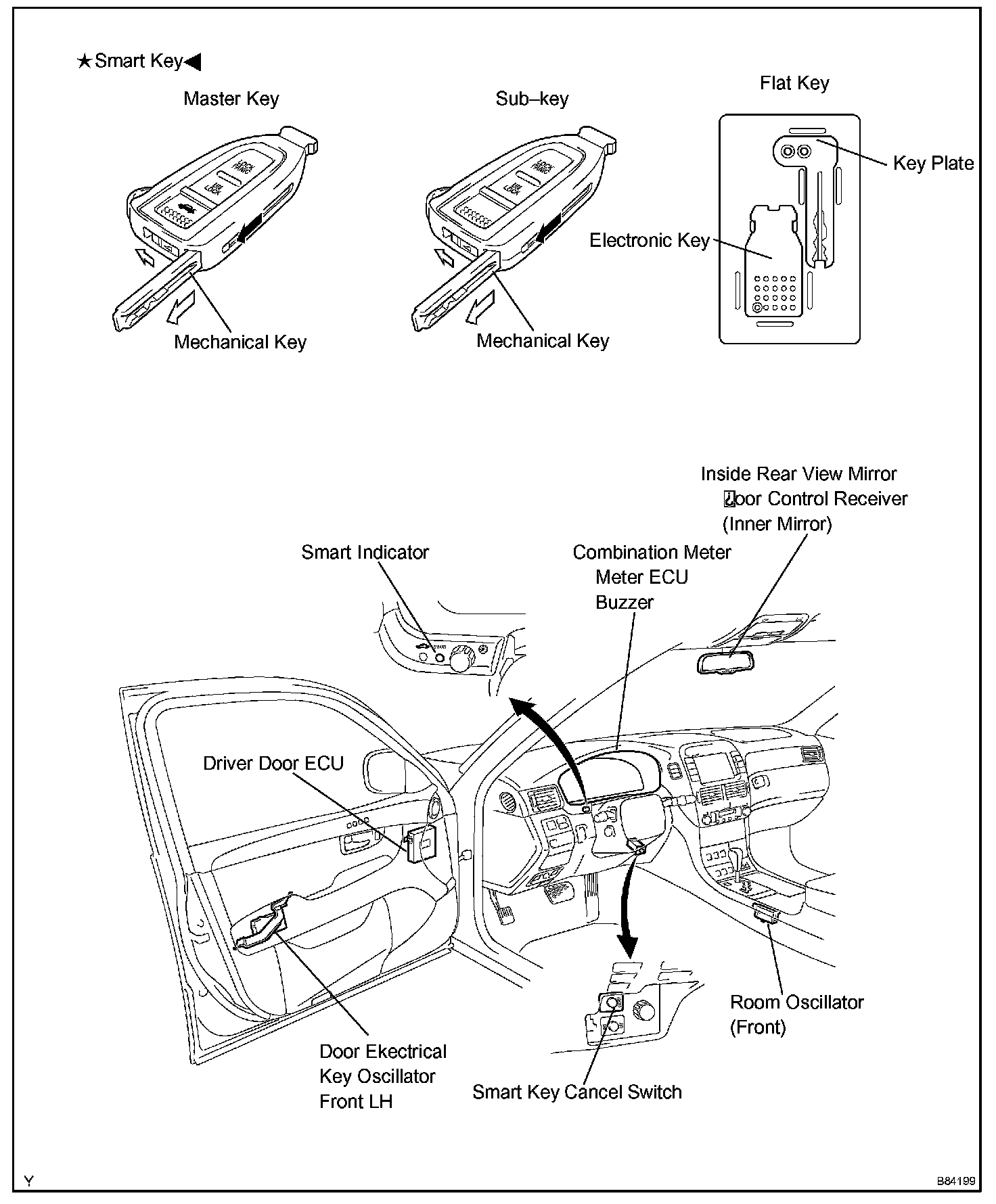

Smart Key System:



Smart Key System:

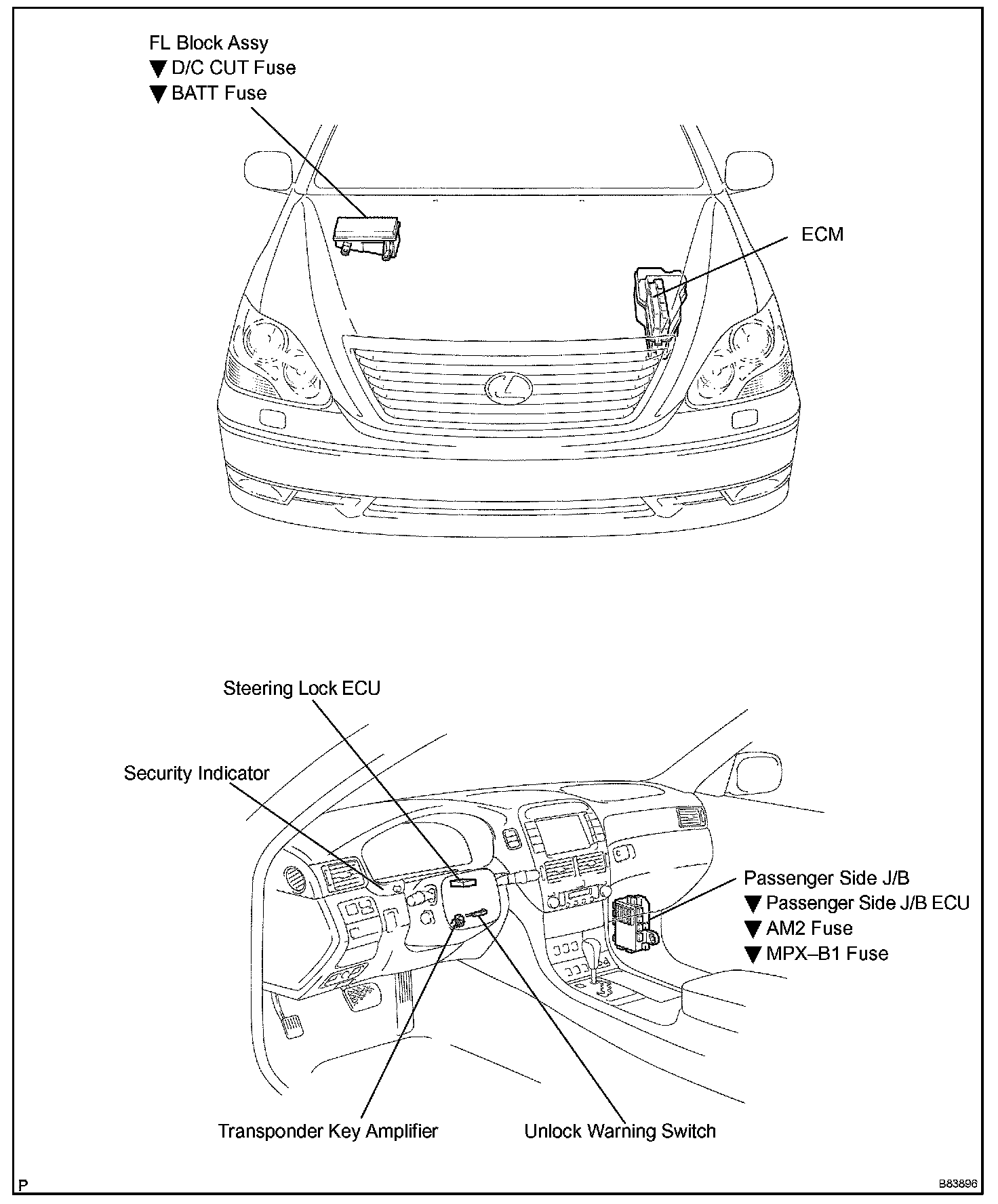

Engine Immobilizer System (W/ Smart Key System):

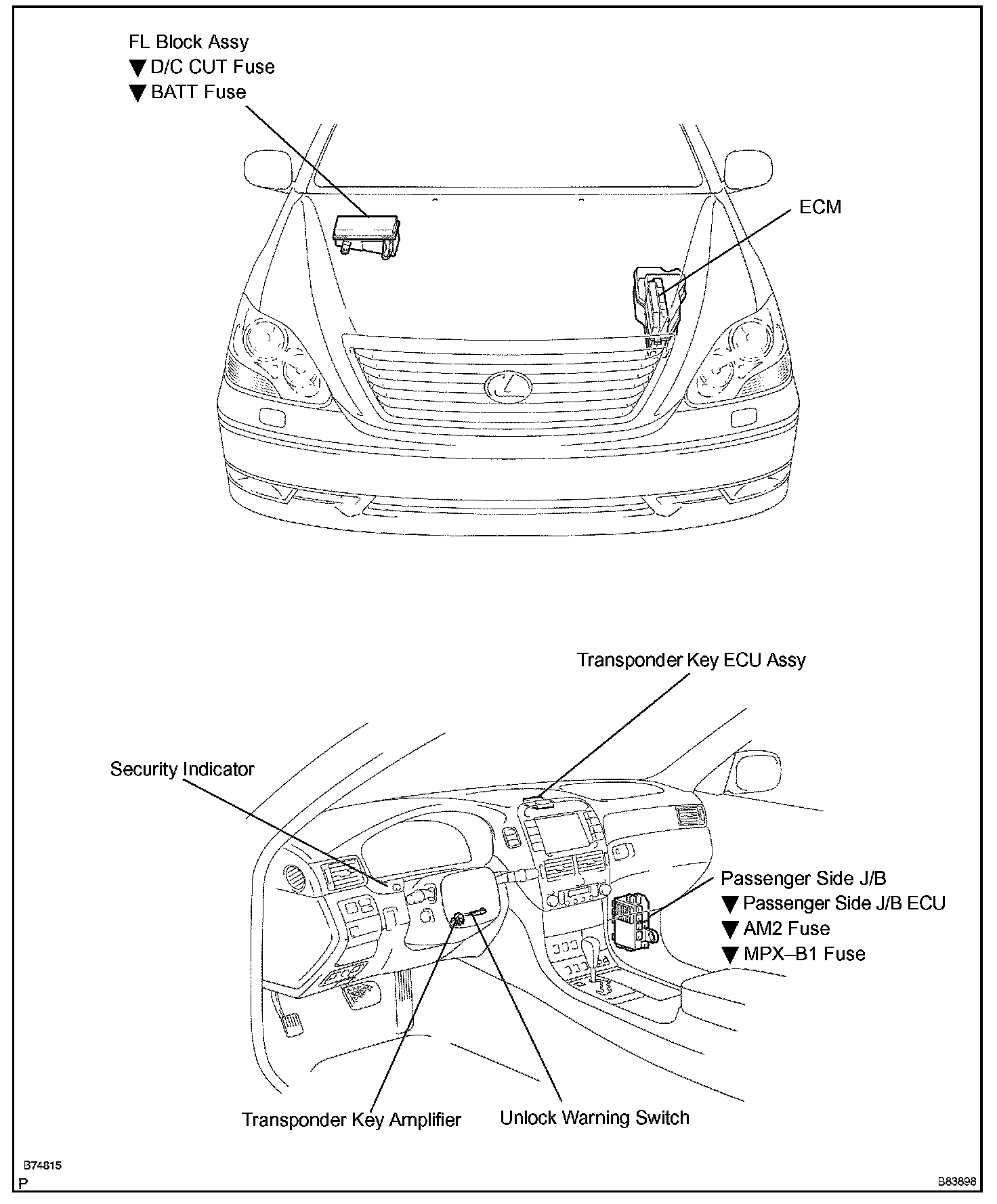

Engine Immobilizer System (W/O Smart Key System):

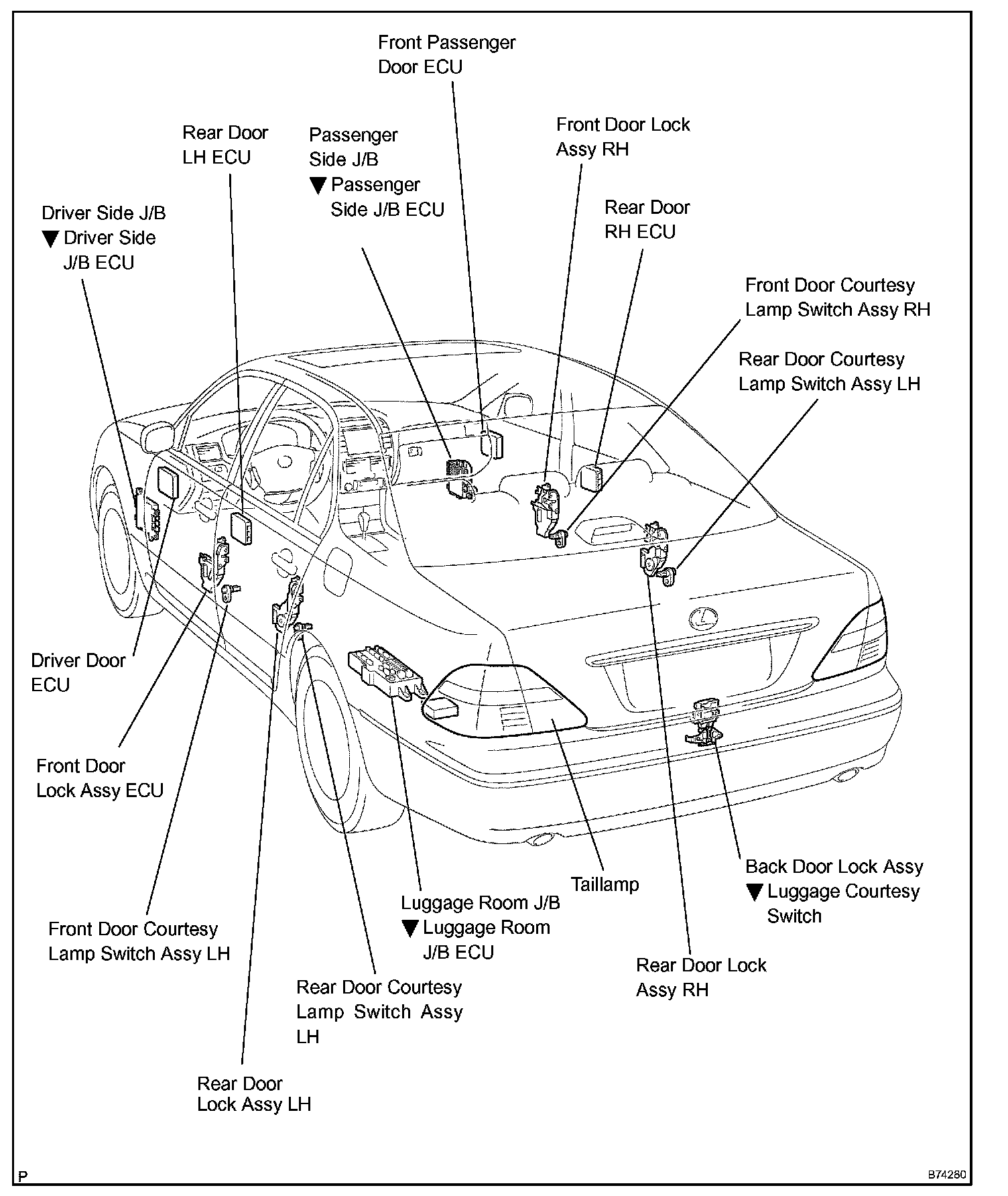

Theft Deterrent System:



Theft Deterrent System:
