Keyless Entry: Locations

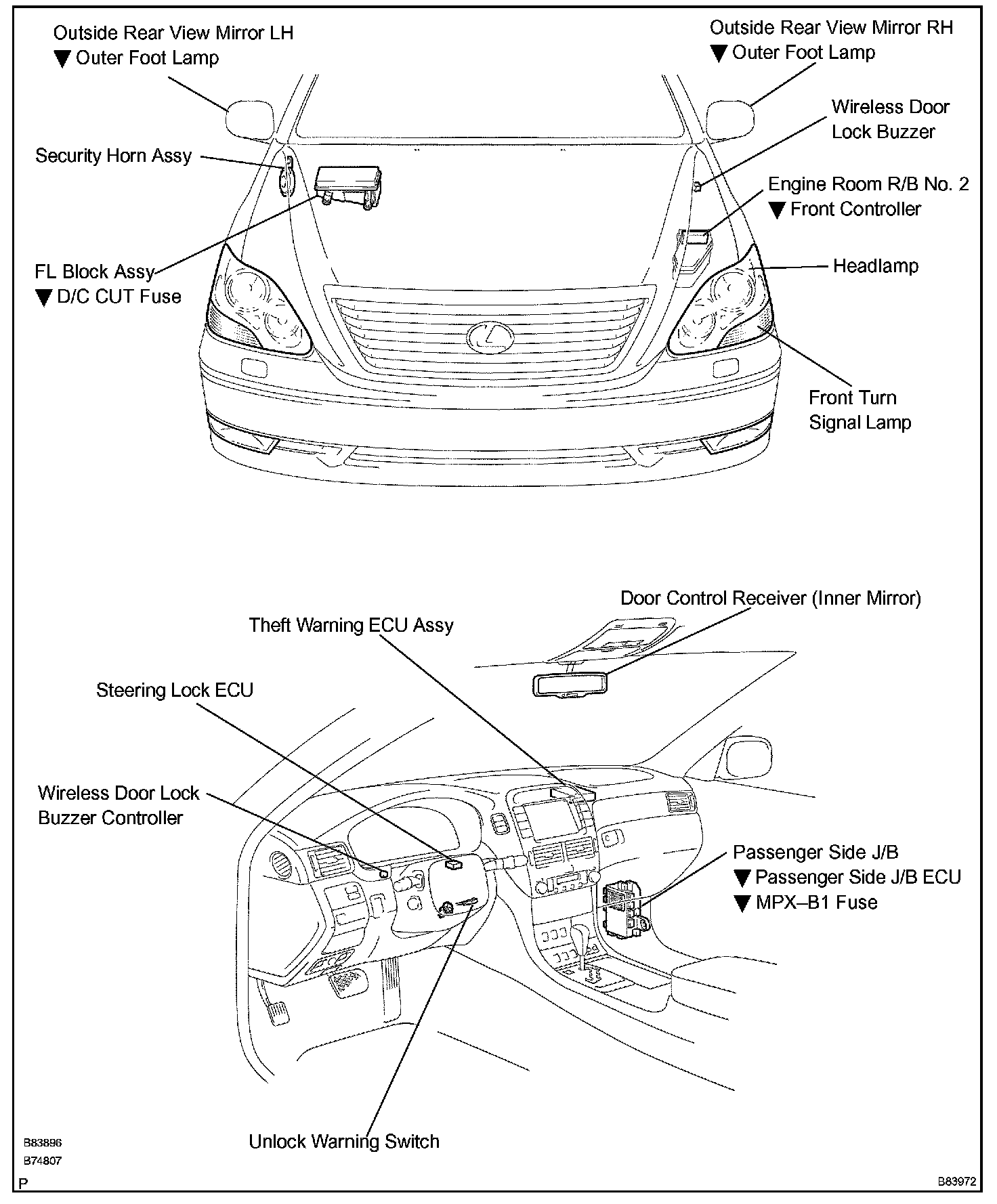

Wireless Door Lock Control System (W/ Smart Key System):

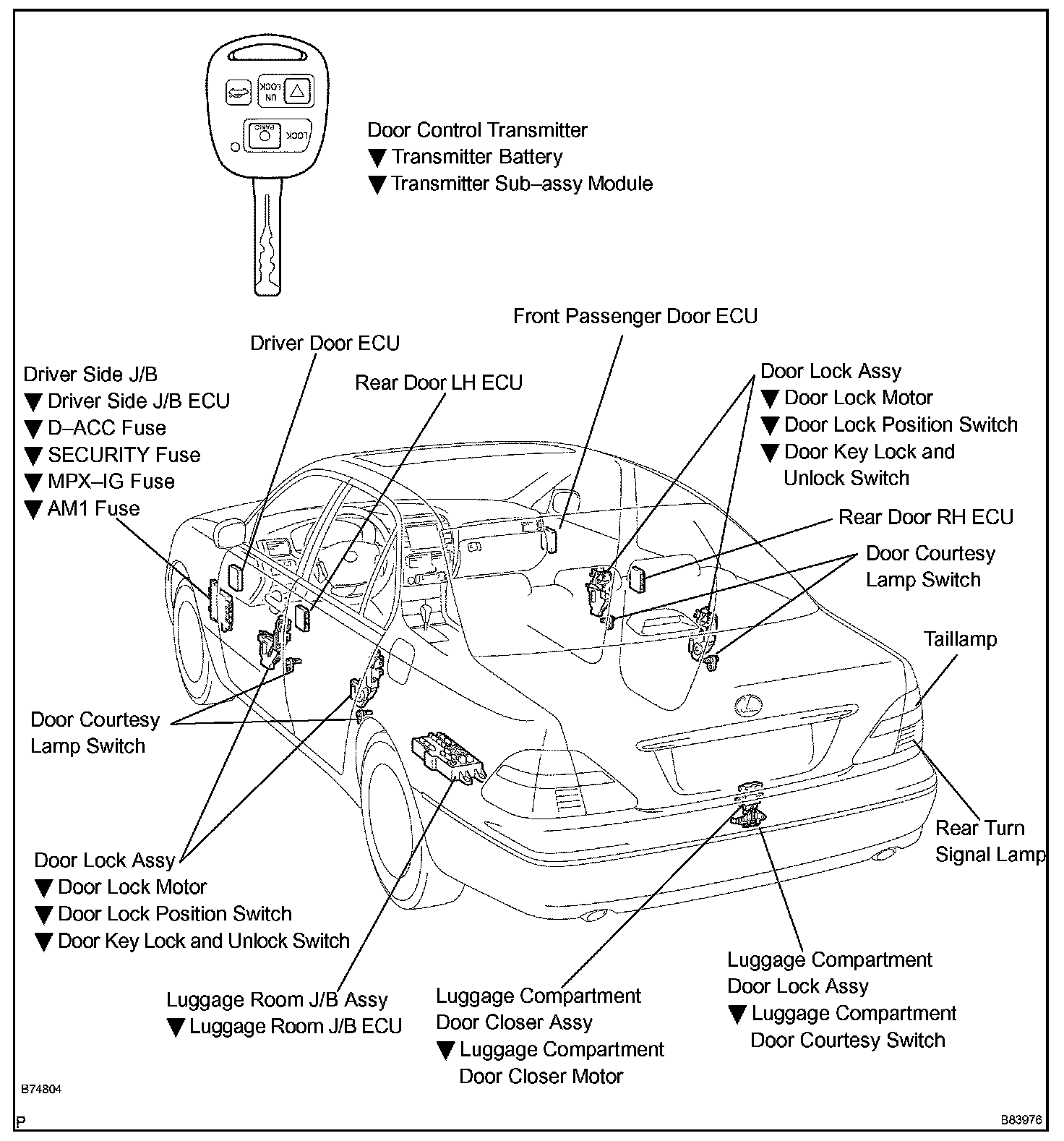

Wireless Door Lock Control System (W/ Smart Key System):

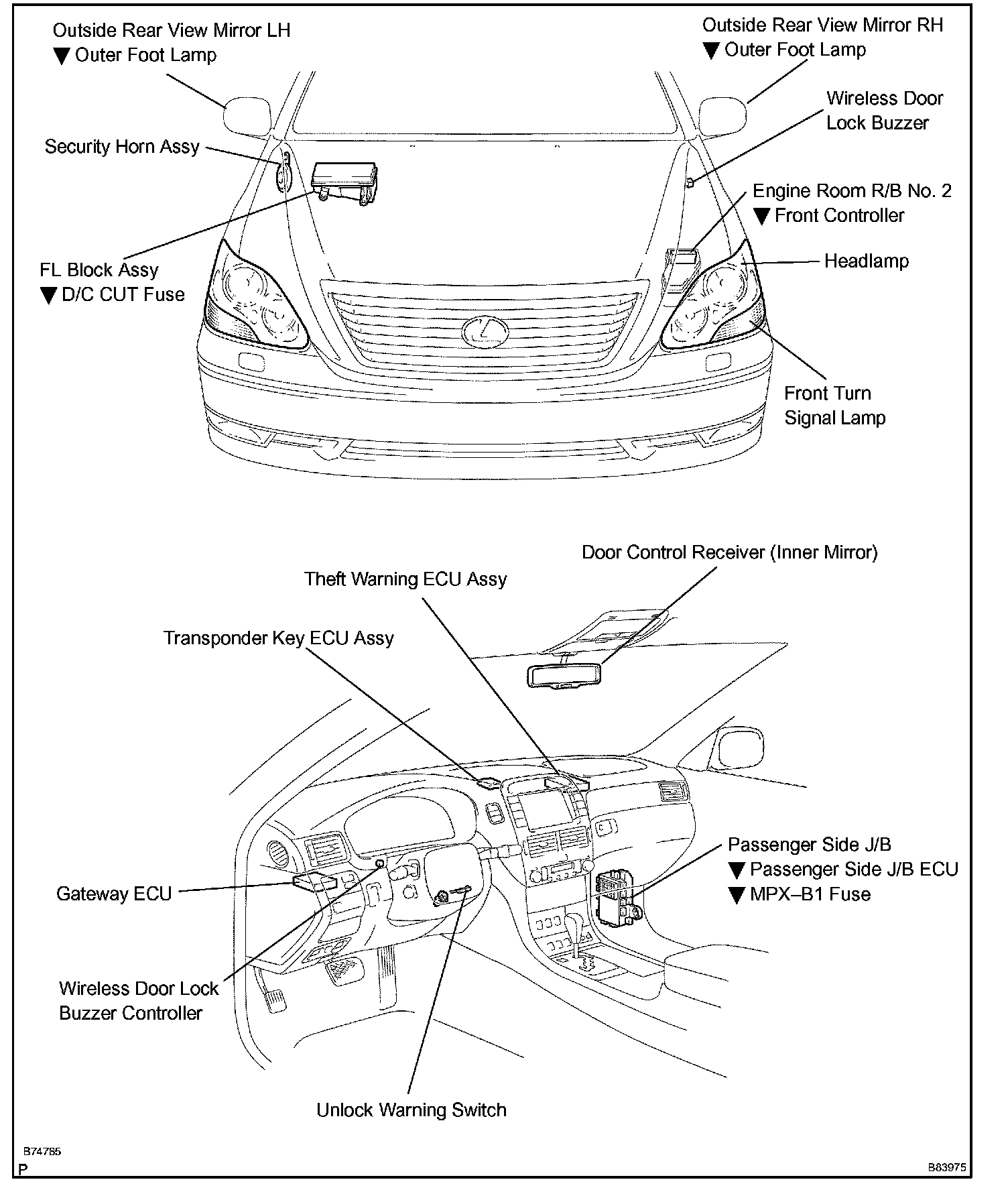

Wireless Door Lock Control System (W/O Smart Key System):

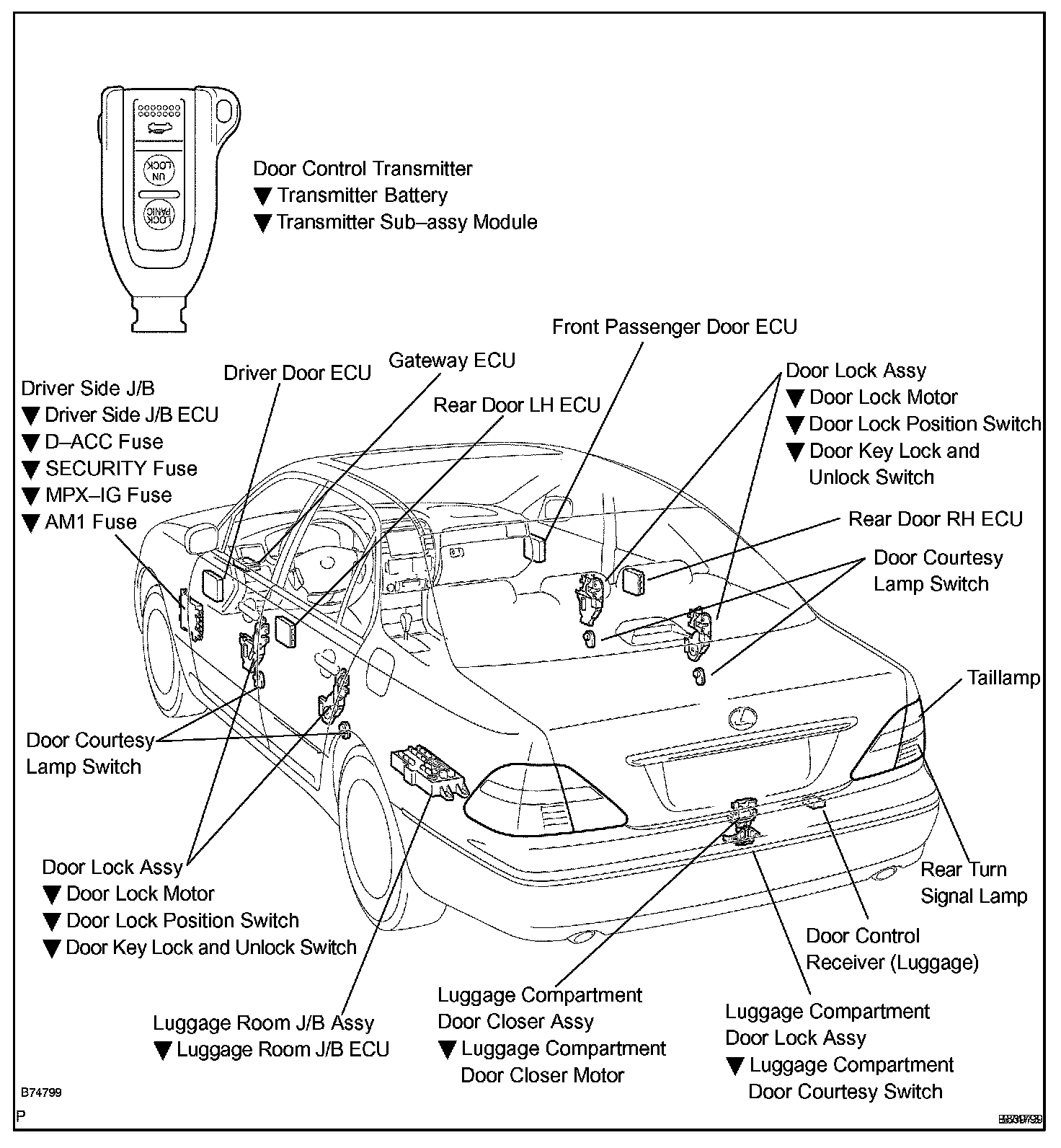

Wireless Door Lock Control System (W/O Smart Key System):
