Wireless Door Lock Control Without Smart Key System

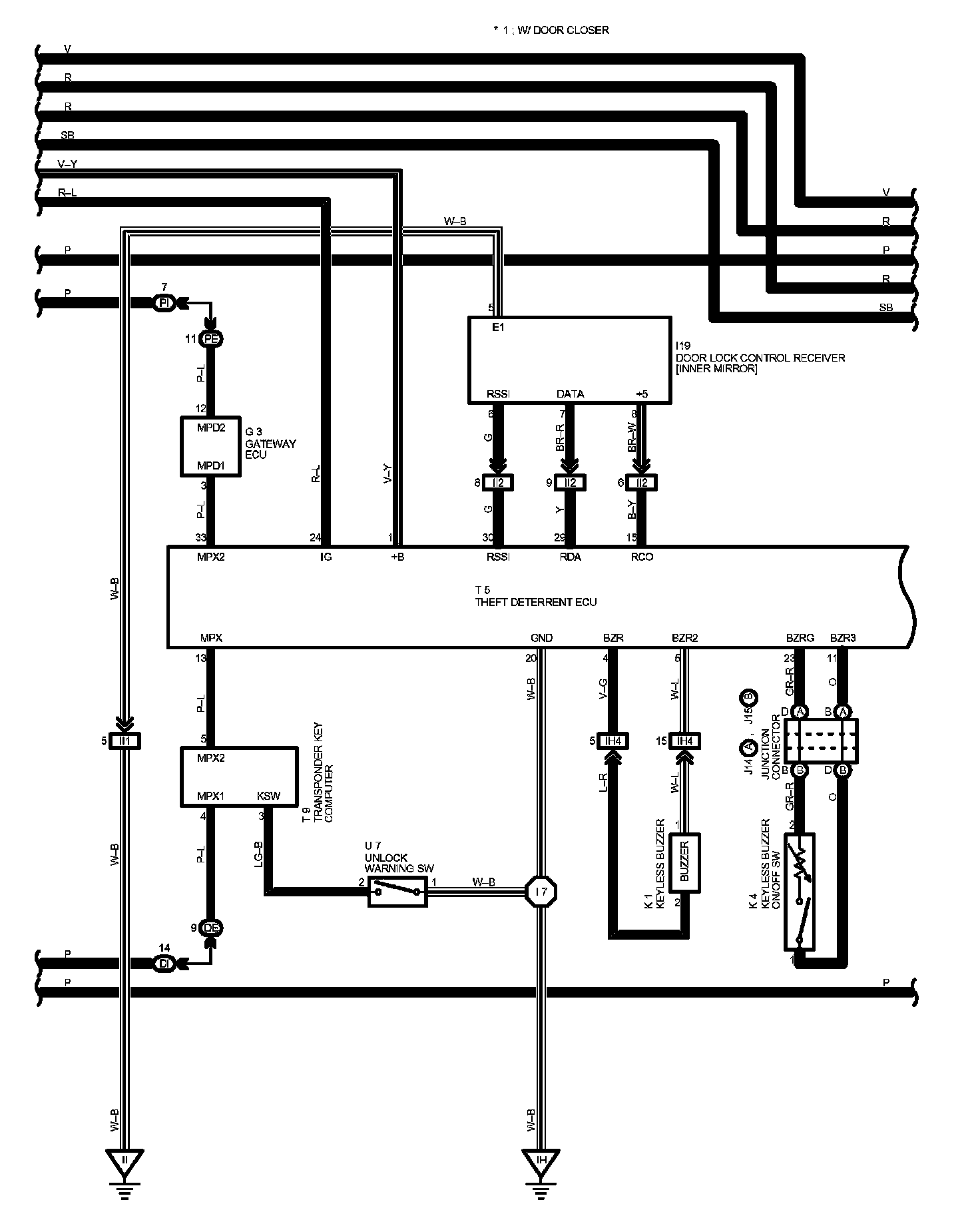

Wireless Door Lock Control Without Smart Key System Part 1:

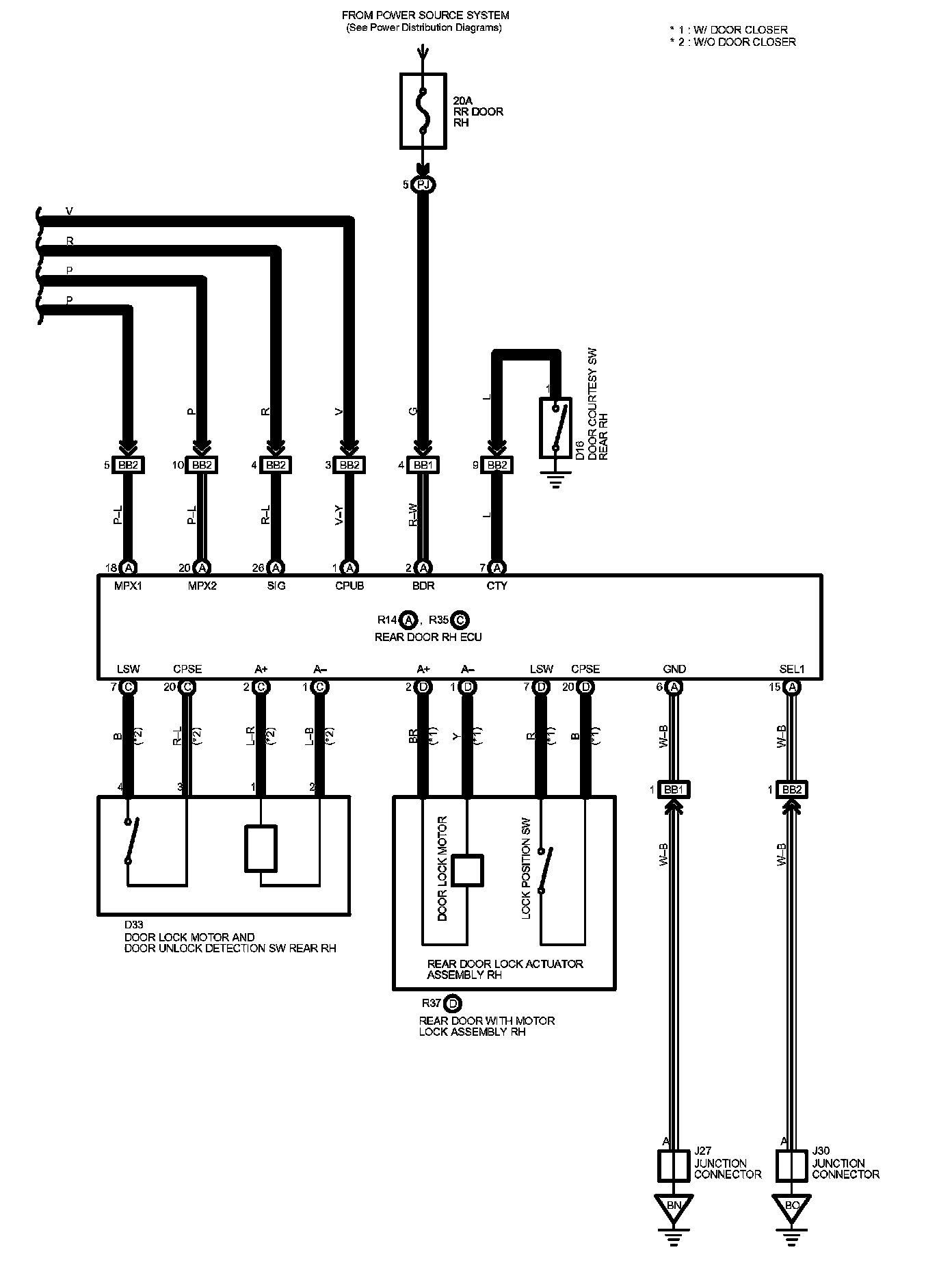

Wireless Door Lock Control Without Smart Key System Part 2:

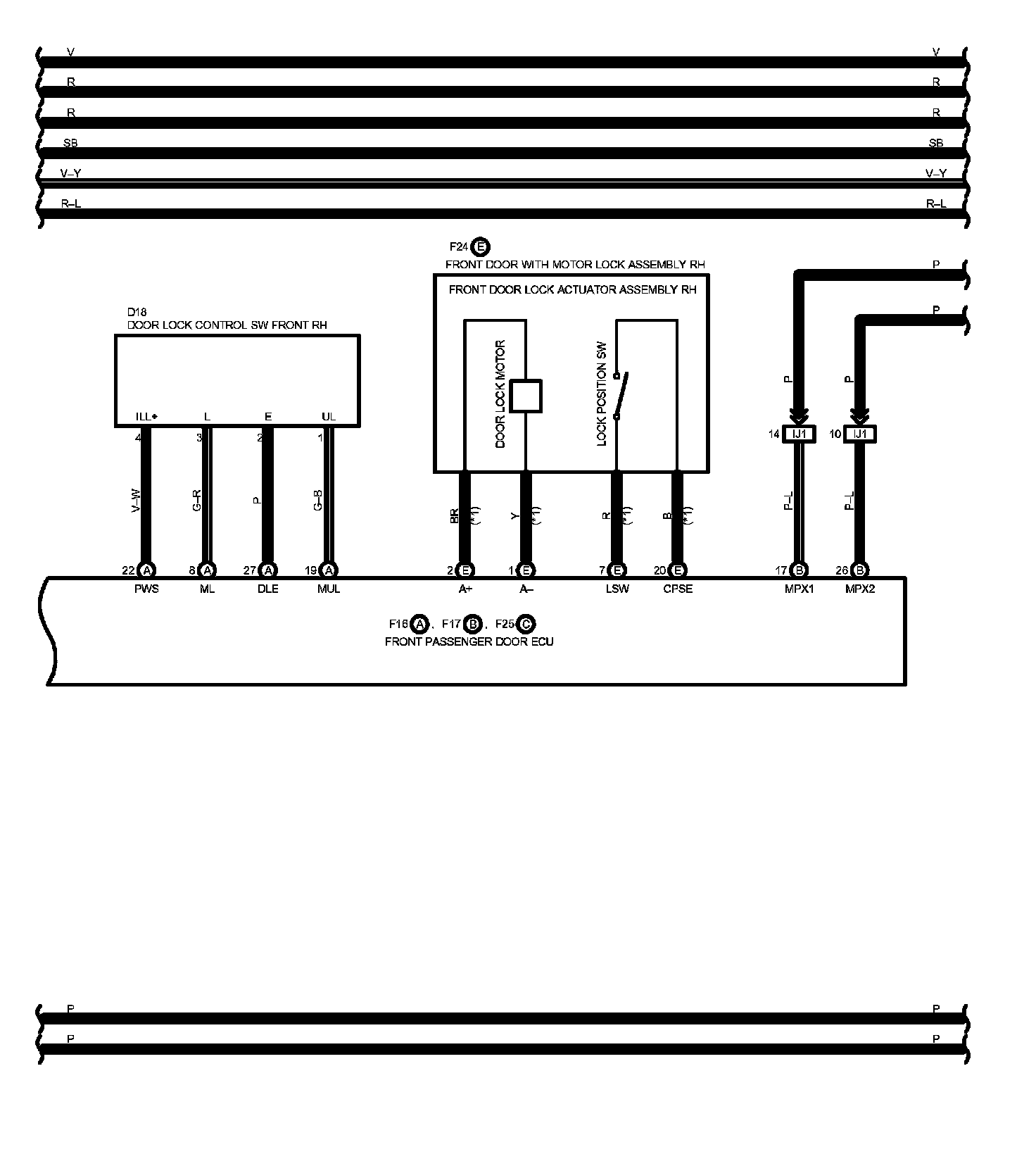

Wireless Door Lock Control Without Smart Key System Part 3:

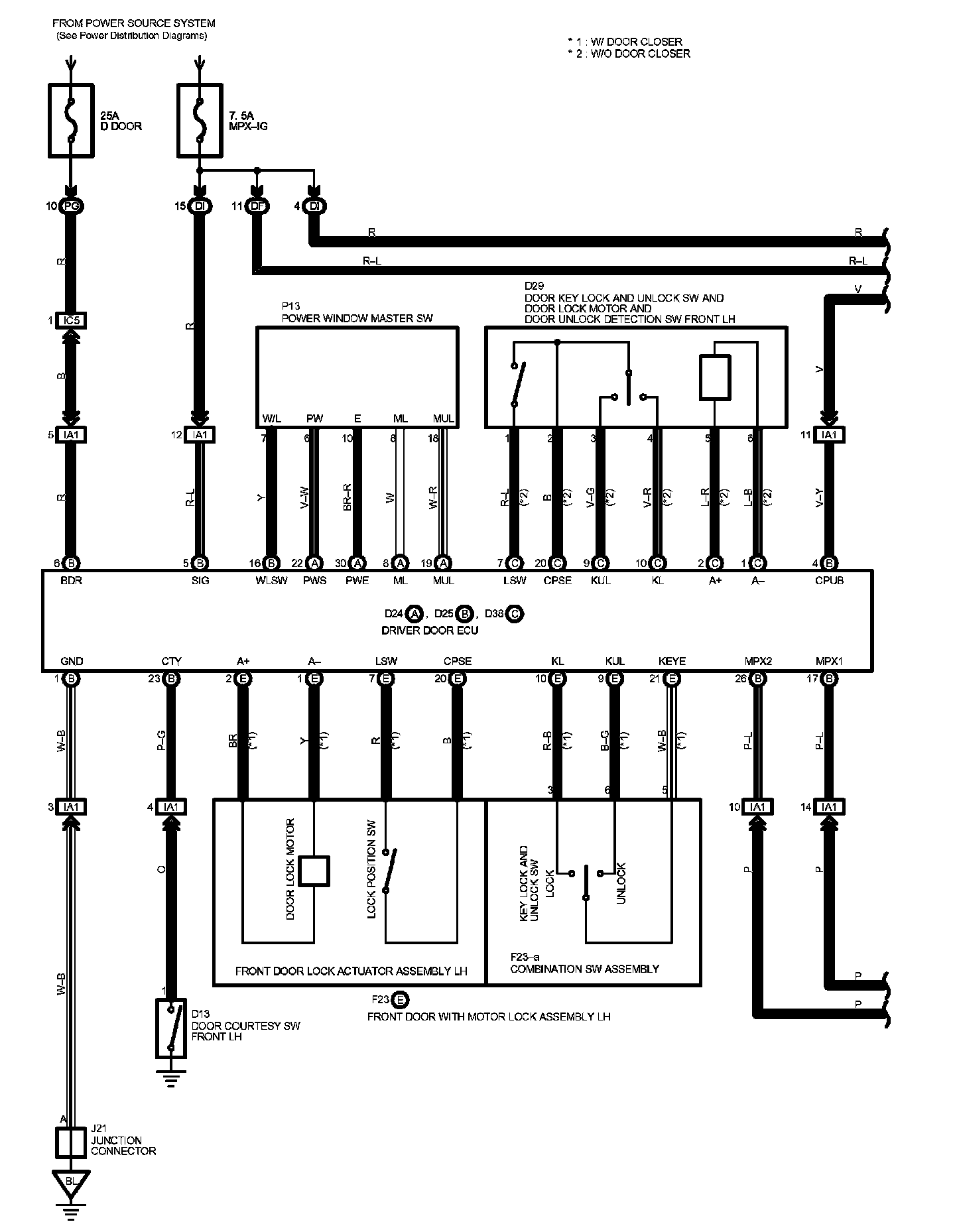

Wireless Door Lock Control Without Smart Key System Part 4:

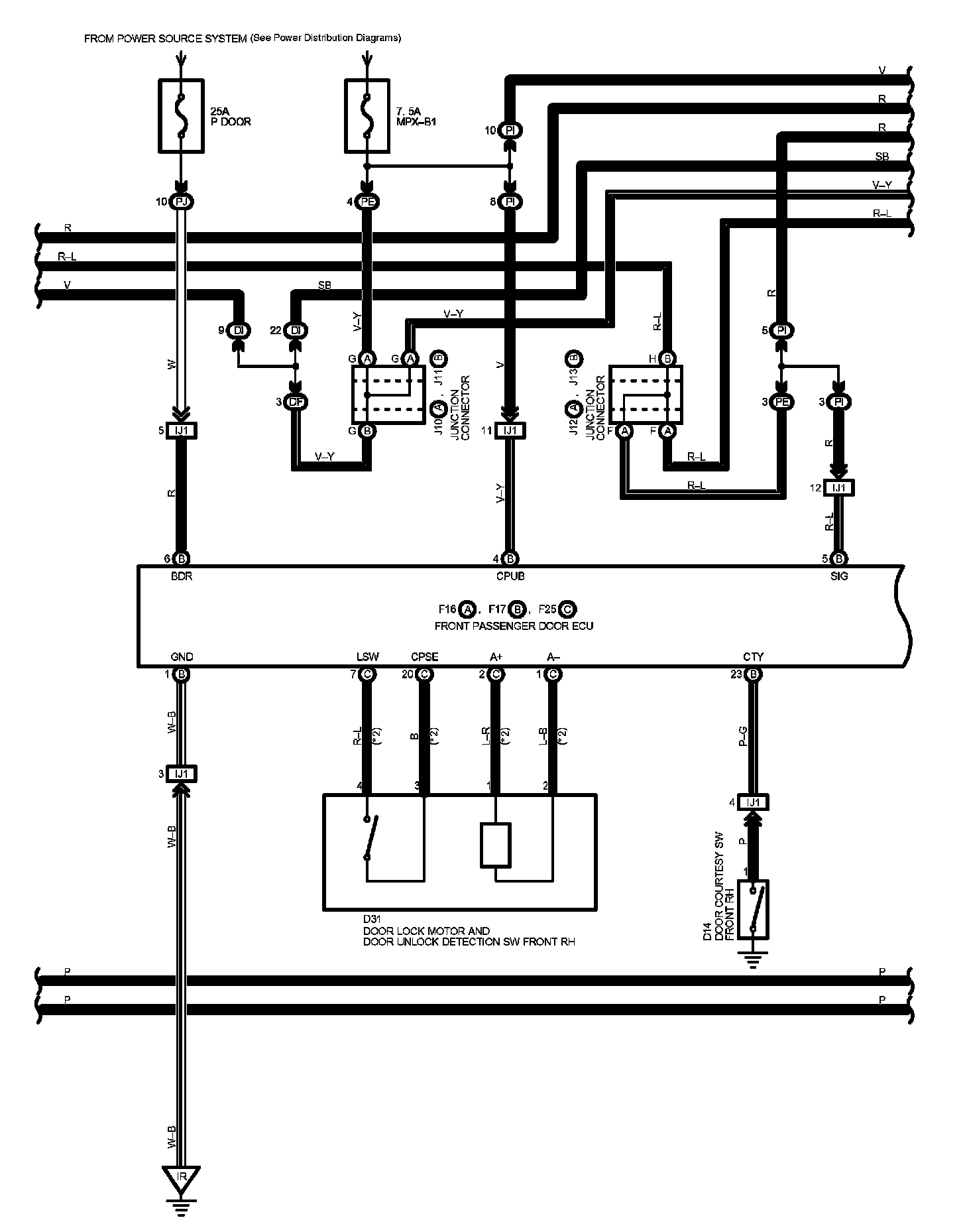

Wireless Door Lock Control Without Smart Key System Part 5:

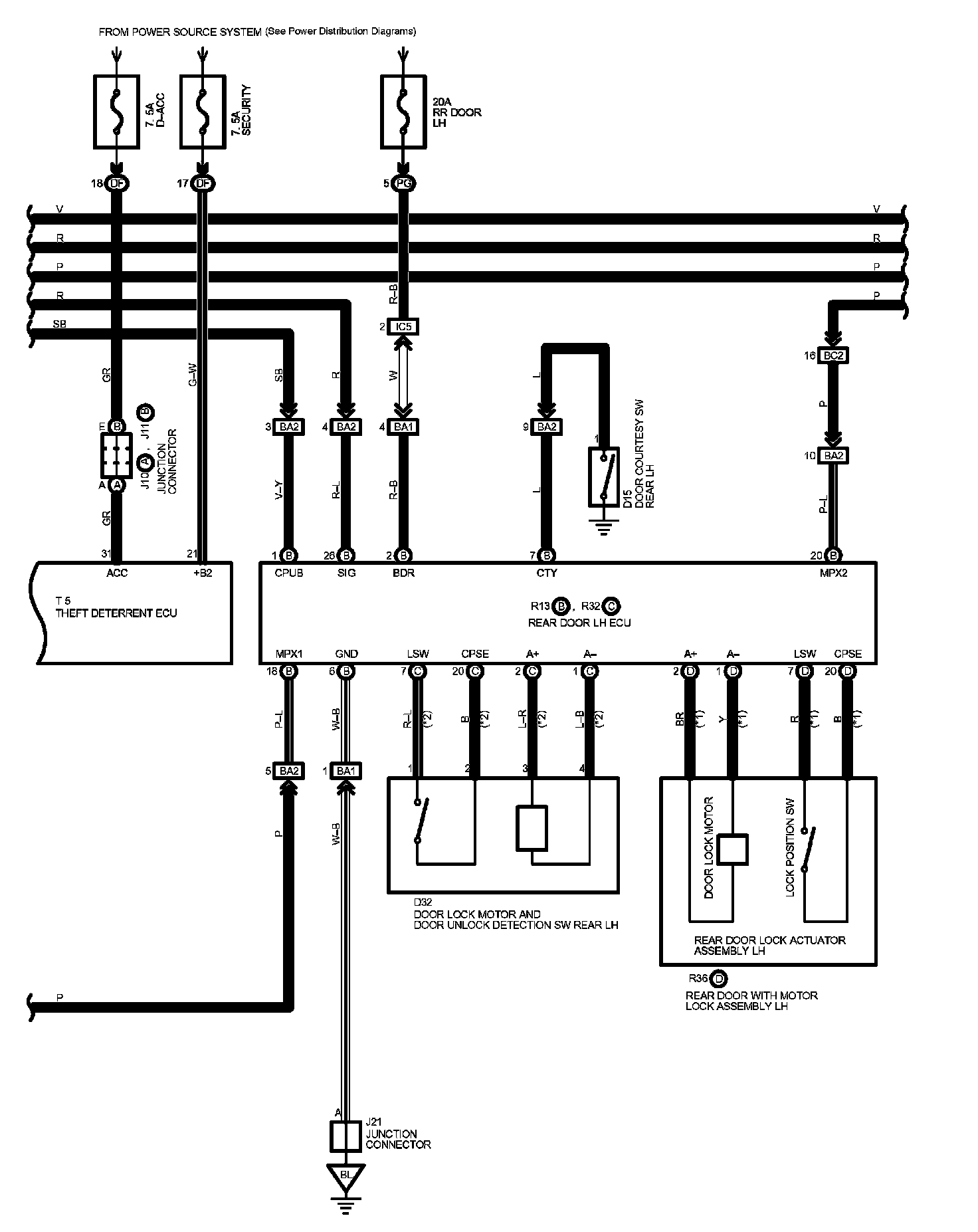

Wireless Door Lock Control Without Smart Key System Part 6:

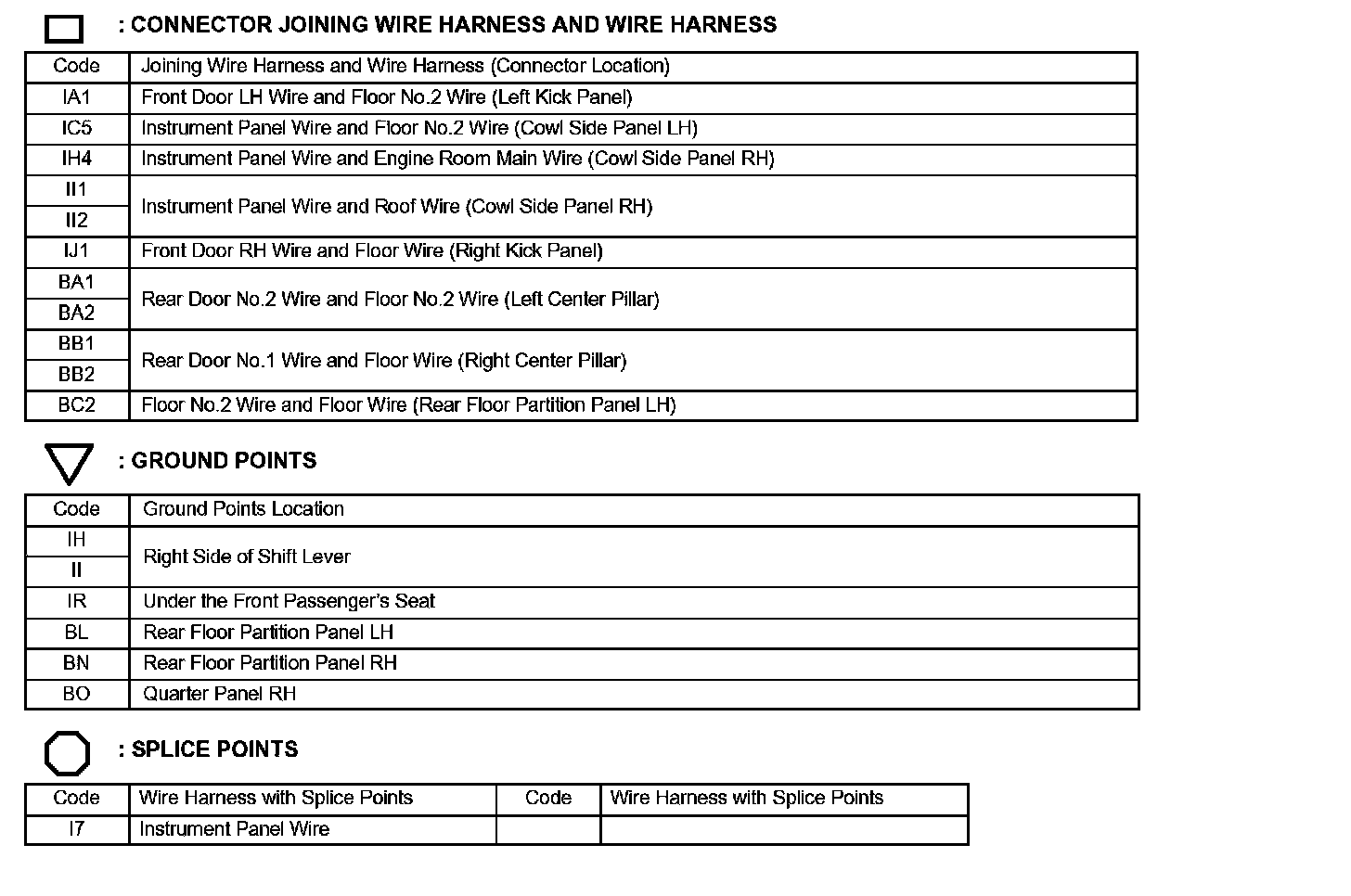

Diagram Legend Part 1:

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
