Alarm System Transponder: Testing and Inspection

TRANSPONDER KEY AMPLIFIER

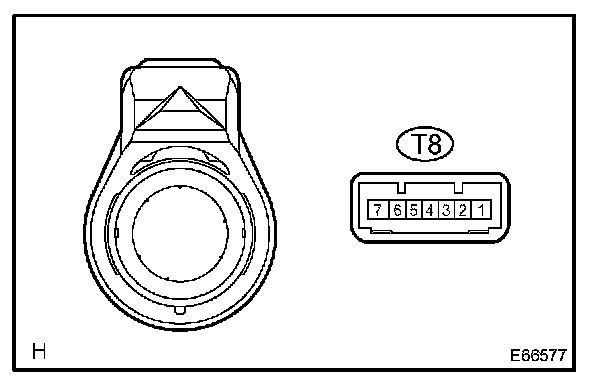

a. Inspect key cylinder light operation.
1. Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 6, and check that the light comes on.
OK: Comes on.
