Dynamic Radar Cruise Control System

DTC U0126 LOST COMMUNICATION WITH STEERING ANGLE SENSOR MODULE

CIRCUIT DESCRIPTION

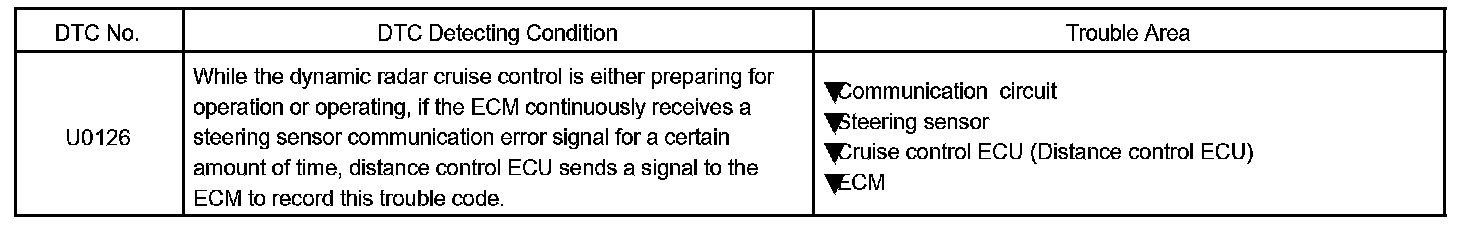

DTC Detecting Condition:

This circuit detects the angle and direction of steering and automatically transmits its signal to the skid control ECU and distance control ECU.

INSPECTION PROCEDURE

HINT: This circuit uses CAN for communication. Therefore, if there are any malfunctions in the communication circuit, one or more DTCs in the CAN communication system is/are output.

GO TO CAN COMMUNICATION SYSTEM
Testing and Inspection
