U0122 / INF732

SKID CONTROL ECU COMMUNICATION STOP MODE

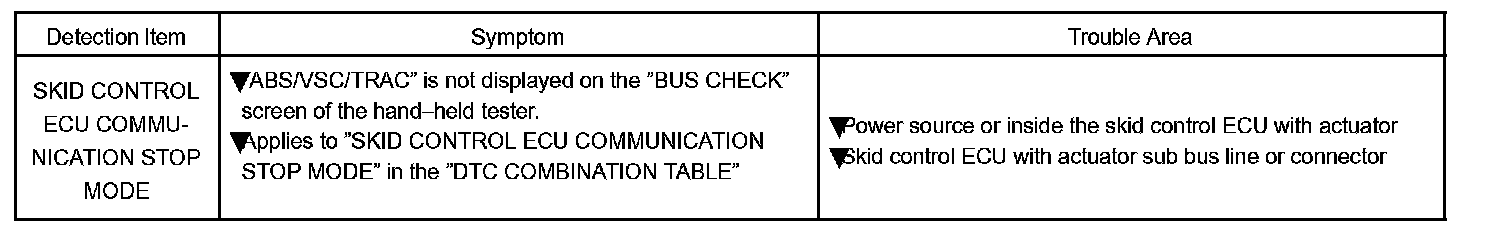

Detection Item:




MODE DESCRIPTION

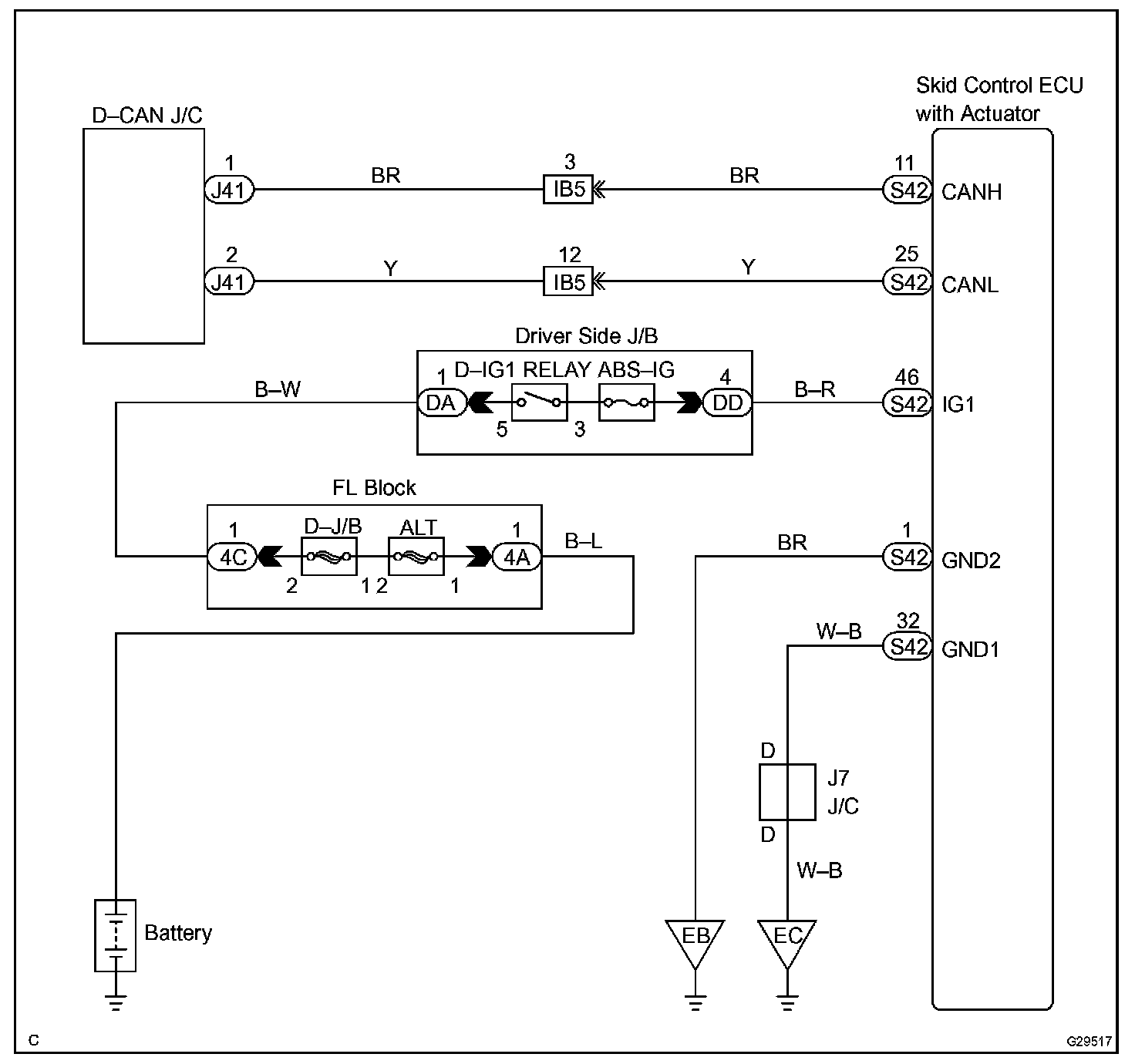

Wiring Diagram:

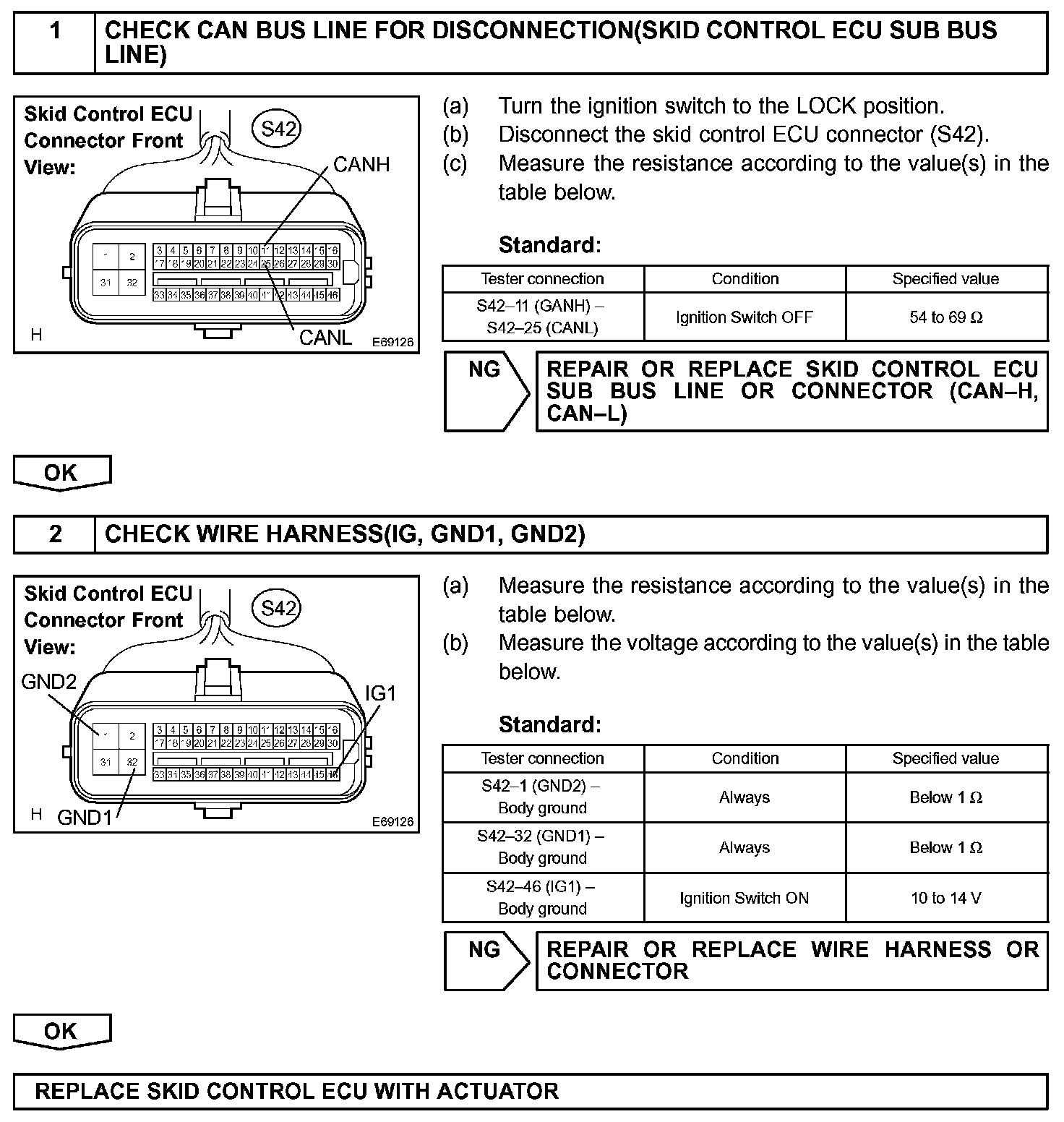

Step 1 - 2:




INSPECTION PROCEDURE
