Dynamic Radar Cruise Control System

DTC P1617 DISTANCE CONTROL ECU MALFUNCTION

CIRCUIT DESCRIPTION

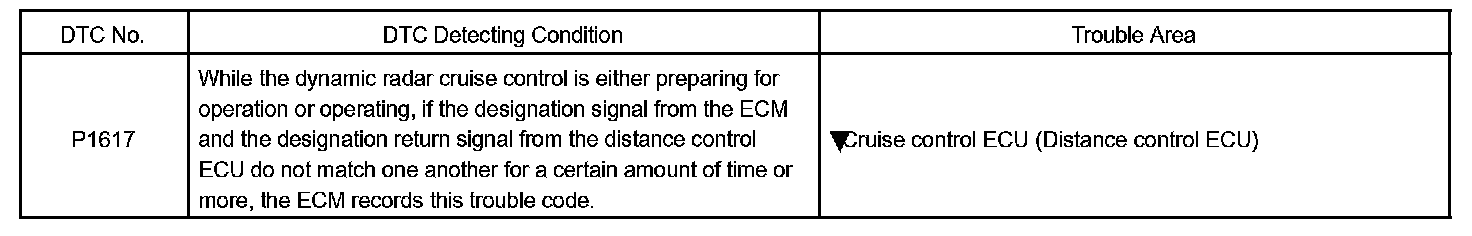

DTC Detecting Condition:

In the dynamic radar cruise control system, the ECM and the distance control ECU communicate with one another to control the system based on some designation information. If the designation information of the ECM and distance control ECU is different from each other, this DTC is recorded.

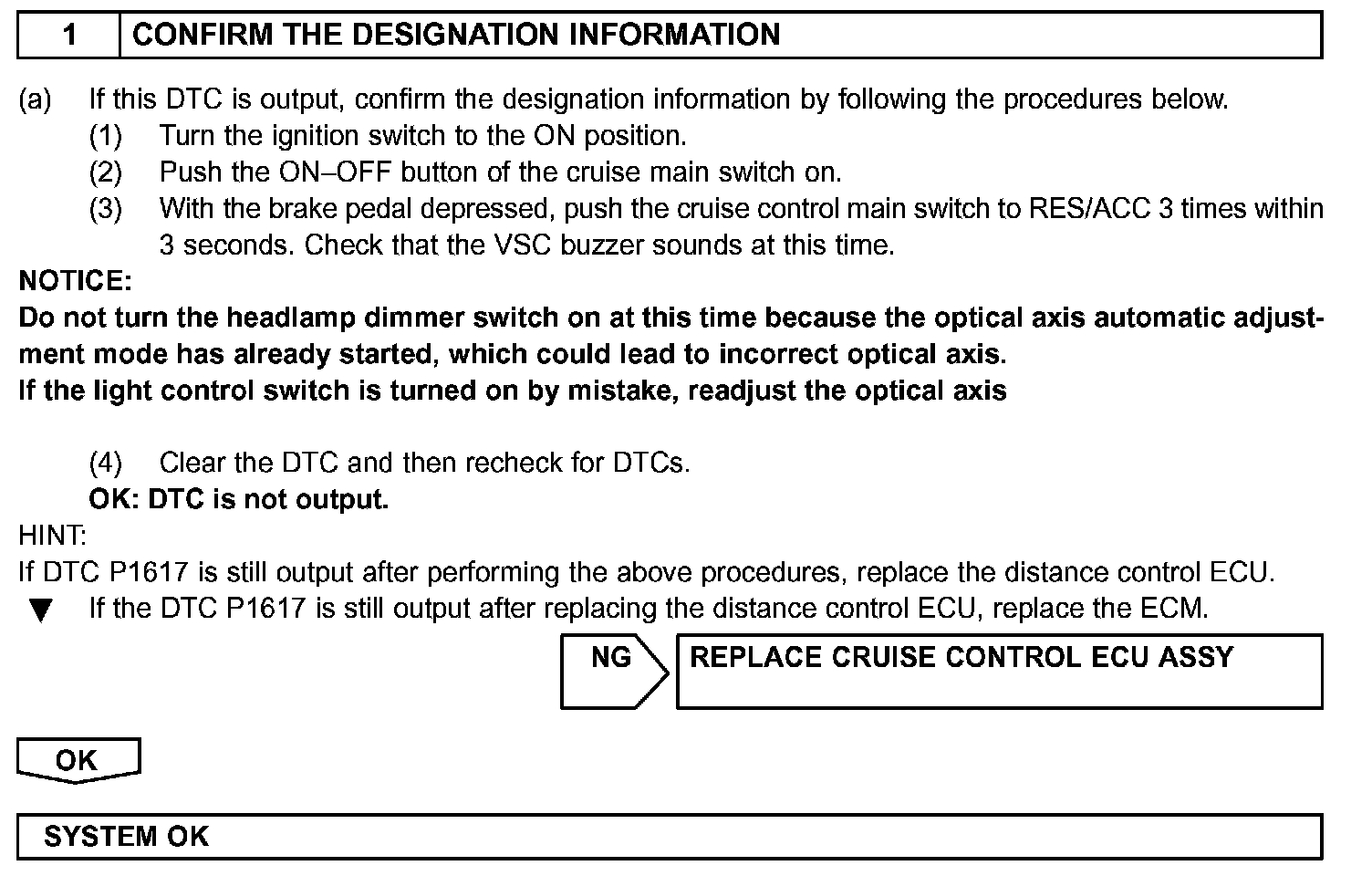

Step 1:

INSPECTION PROCEDURE
