Dynamic Radar Cruise Control System

DTC P1572 IMPROPER AIMING OF RADAR SENSOR BEAM AXIS

CIRCUIT DESCRIPTION

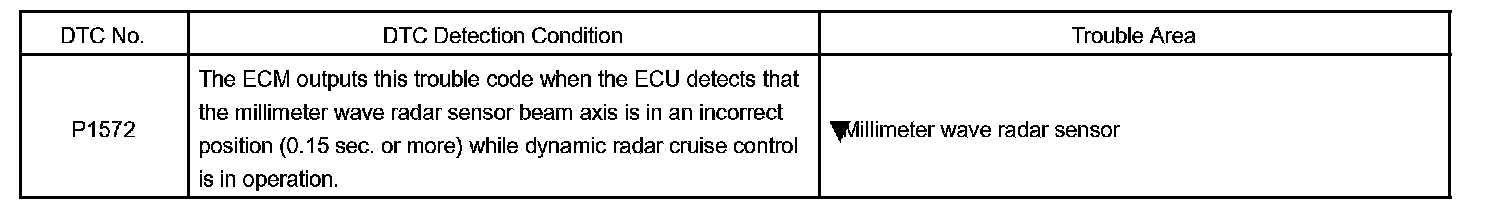

DTC Detection Condition:

This DTC is output when the scanning angle of the millimeter wave radar sensor is incorrect.

This DTC is also output when the ECU detects that the millimeter wave radar sensor beam axis is in an incorrect position.

HINT: If the beam axis deviates to the distance 4.0 to 6.0 m, upper/lower side ±2° or more and/or the right/left side ±4° or more, this DTC is detected.

INSPECTION PROCEDURE

ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY
