Steering Column
Steering Column

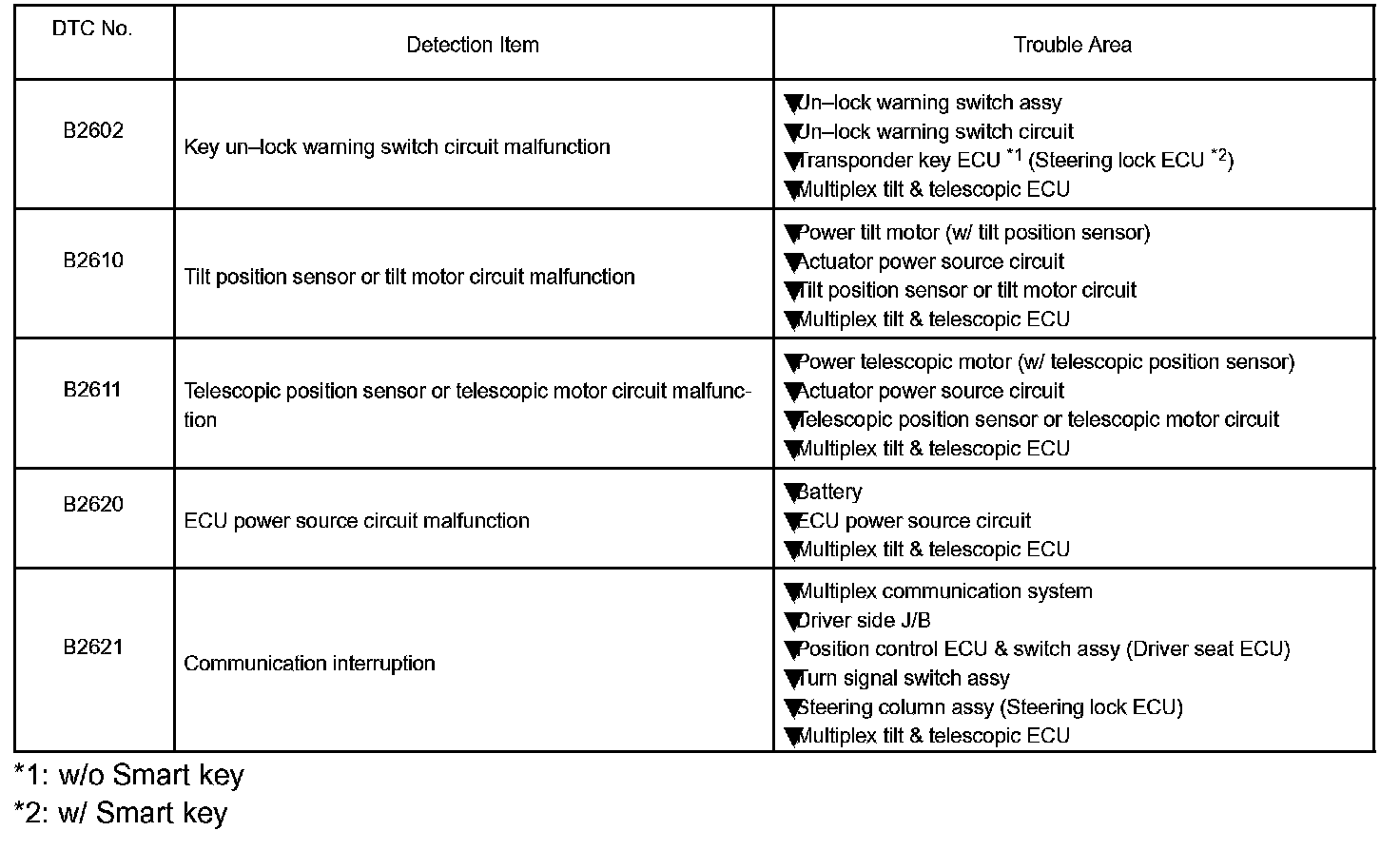

DIAGNOSTIC TROUBLE CODE CHART
B2602 - B2621:
If a DTC is displayed, check the circuit for that code listed in the table. For the details of each code, refer to the respective "DTC No." in the DTC chart.
