Engine Immobiliser System (W/ Smart Key System)

DIAGNOSTIC TROUBLE CODE CHART

B2780 - B2798:

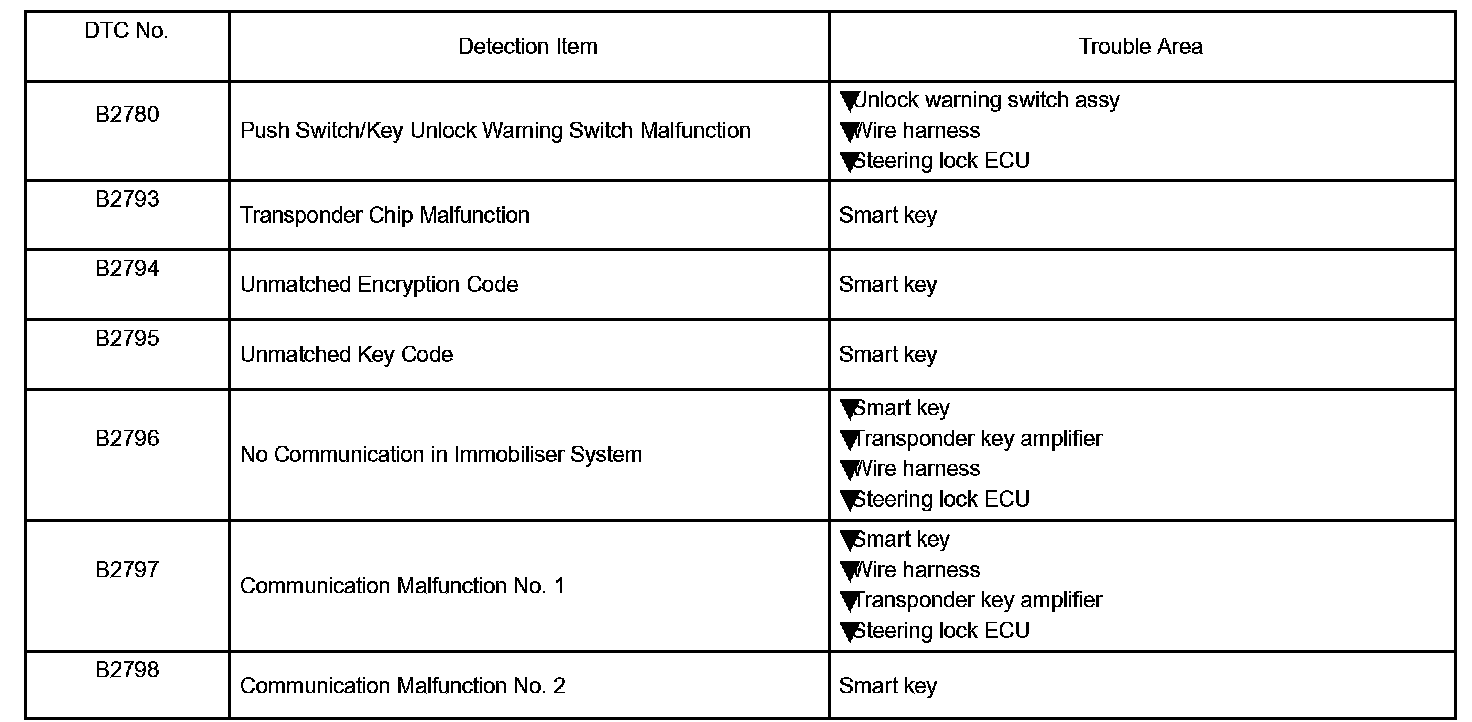

1. STEERING LOCK ECU DTC CHART

B2799:

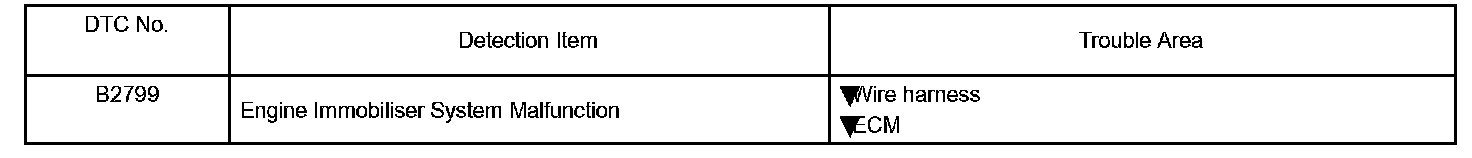

2. ECM DTC CHART

NOTE: The DTCs for the immobilizer system are specified. If the other codes are output, check the Trouble Code Descriptions for Computers and Control Systems.
