Air Conditioning System

DIAGNOSTIC TROUBLE CODE CHART

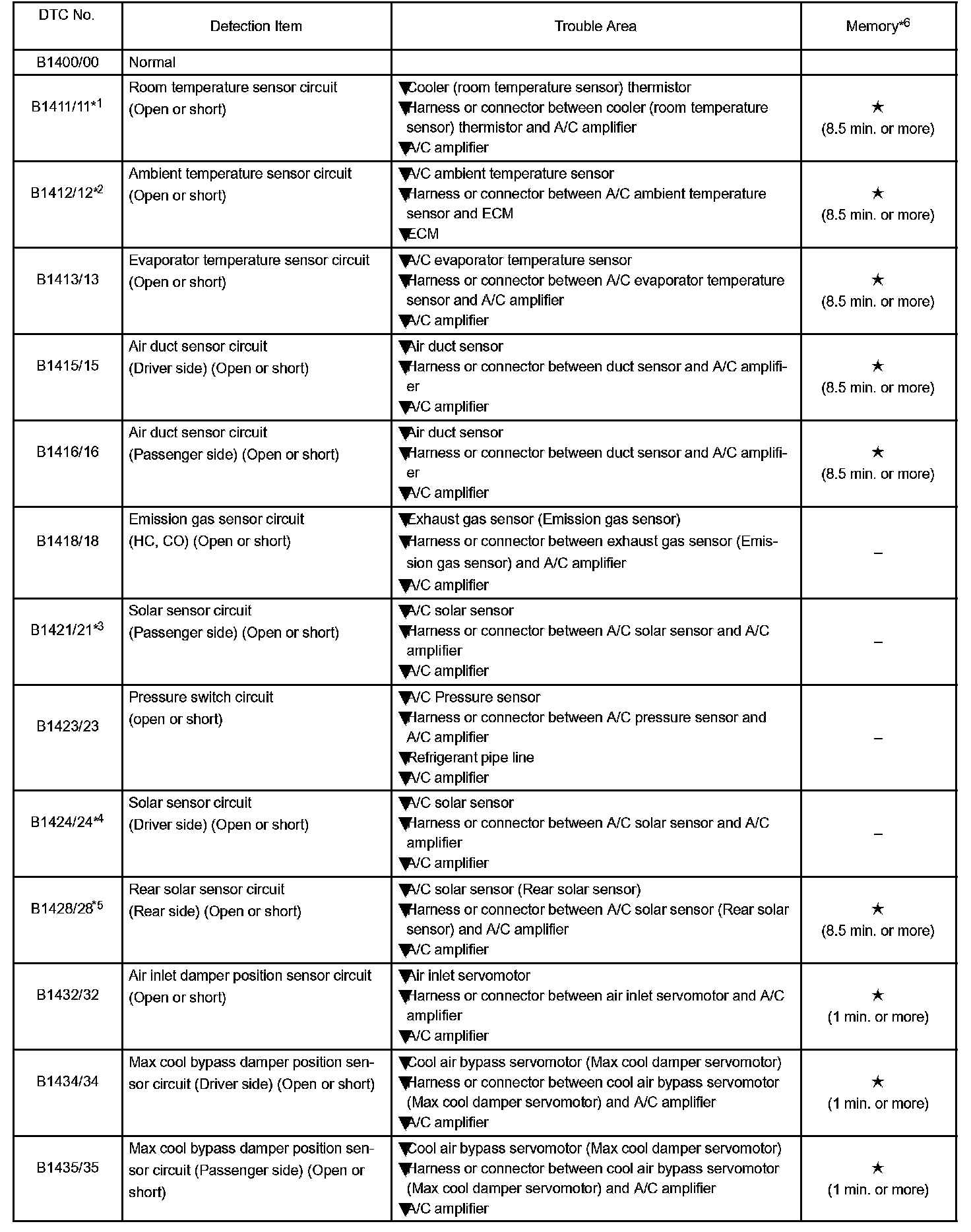

B1400/00 - B1435/35:

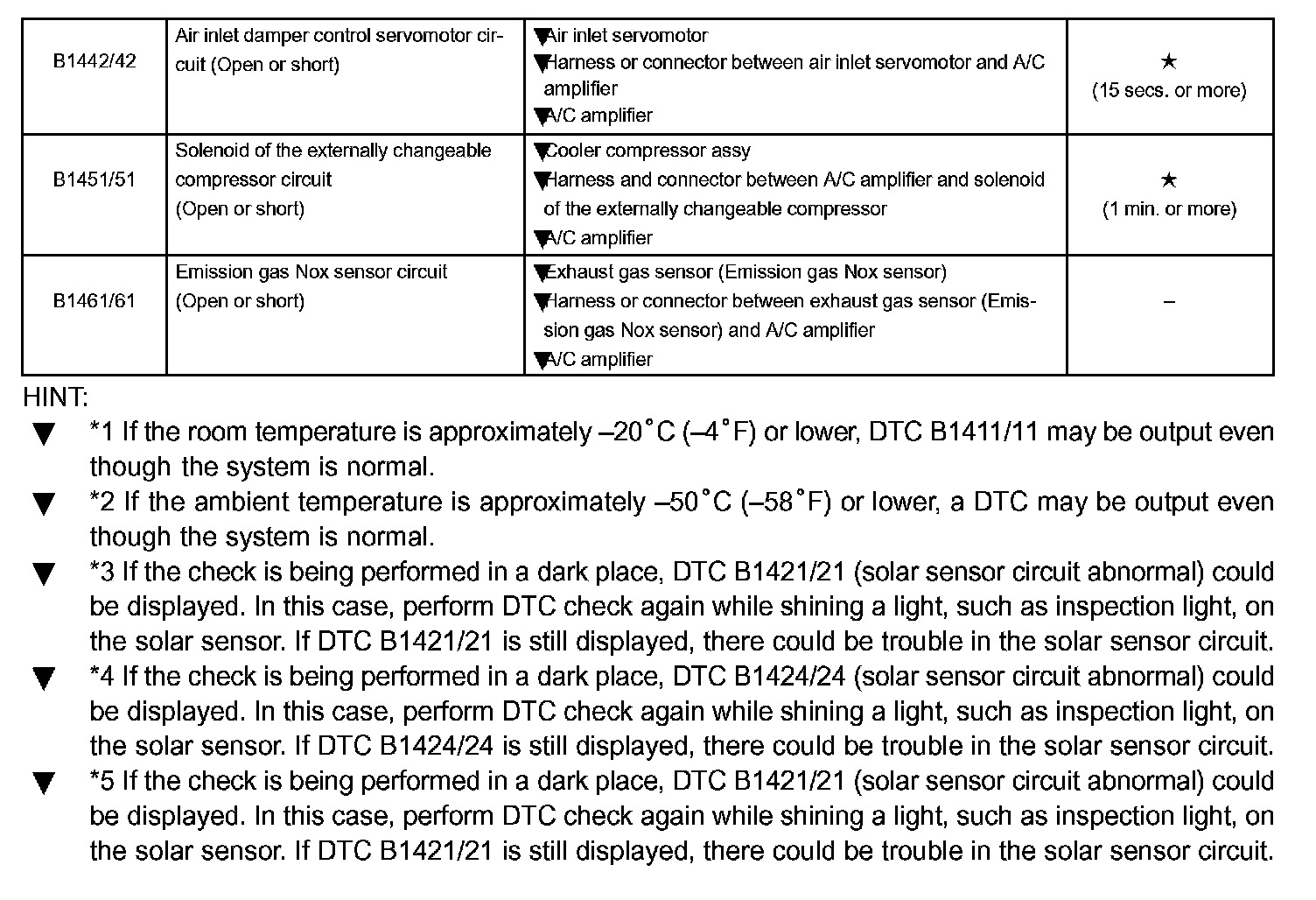

B1442/42 - B1461/61:

If a malfunction code is displayed during the DTC check (sensor check), check the circuit listed for that code in the table.
