ABS (Antilock Brake System)
DIAGNOSTIC TROUBLE CODE CHARTHINT: If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, turn to the respective "DTC No." in the DTC chart.

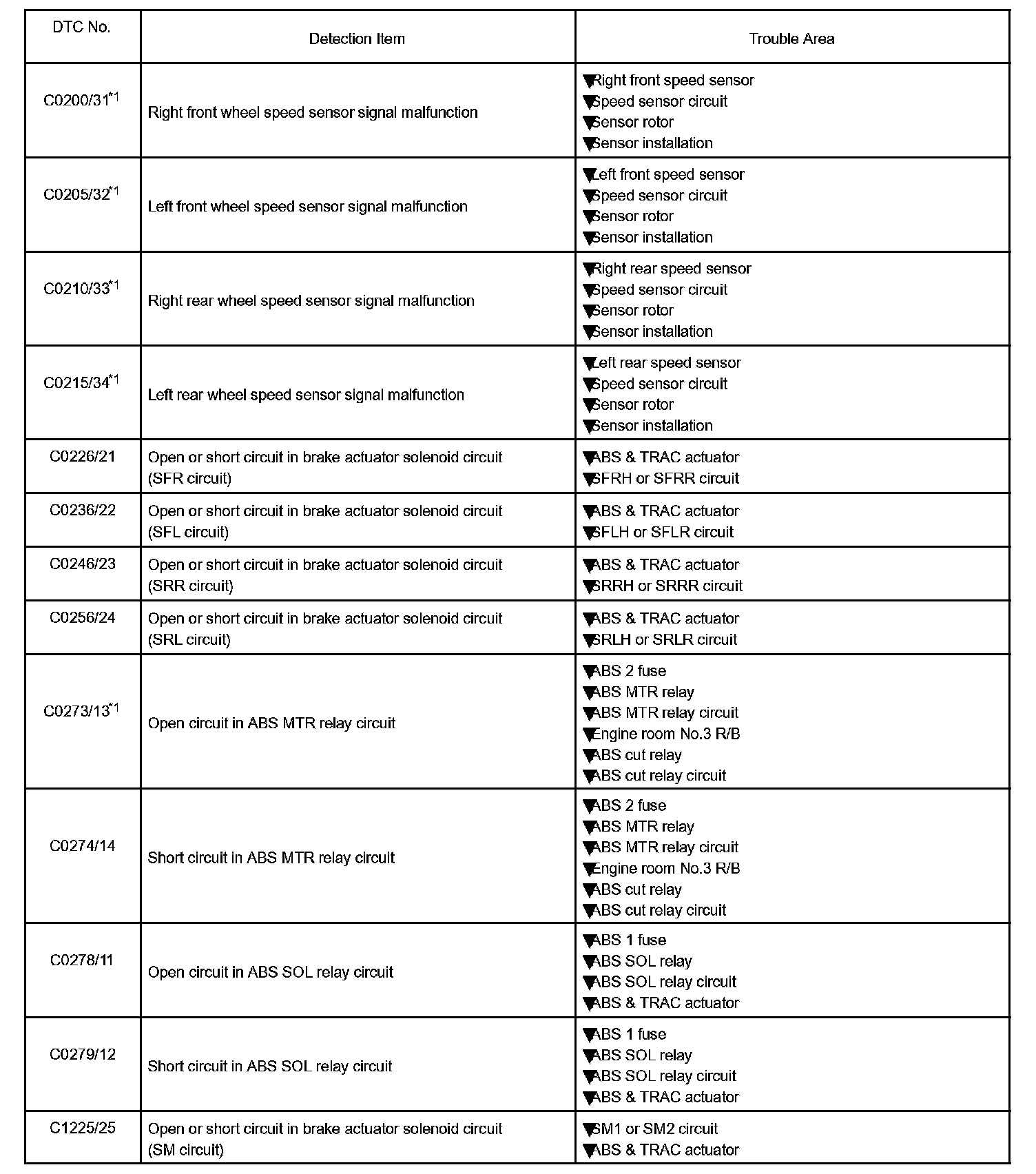

C0200/31 - C1225/25:

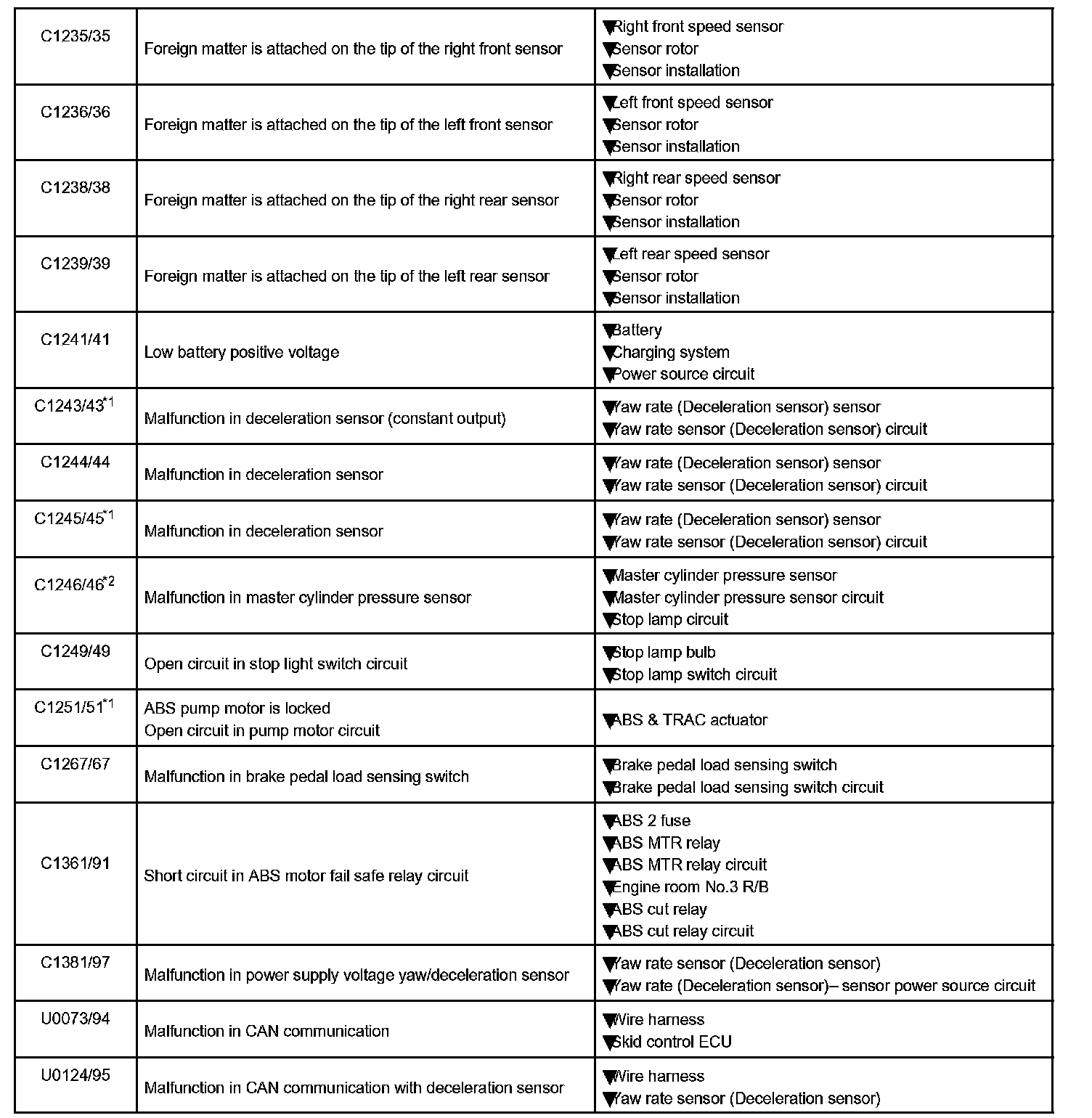

C1235/35 - U0124/95:
DTC chart of ABS:
*1, *2:
Even after the troubled areas are repaired, ABS warning light will not go off unless the following operations are performed.
- *1:
1. Drive the vehicle at 12 mph (20 km/h) for 30 seconds or more and check that the ABS warning light goes off.
2. Clear the DTC.
- *2:
1. Keep the vehicle in the stationary condition for 5 seconds or more and depress the brake pedal lightly 2 or 3 times.
2. Drive the vehicle at the vehicle speed of 31 mph (50 km/h) and keep depressing the brake pedal strongly for approximately 3 seconds.
3. Repeat the above operation 3 times or more and check that the ABS warning light goes off.
4. Clear the DTC.
HINT: In some cases, the hand-held tester cannot be used when ABS warning light remains on.

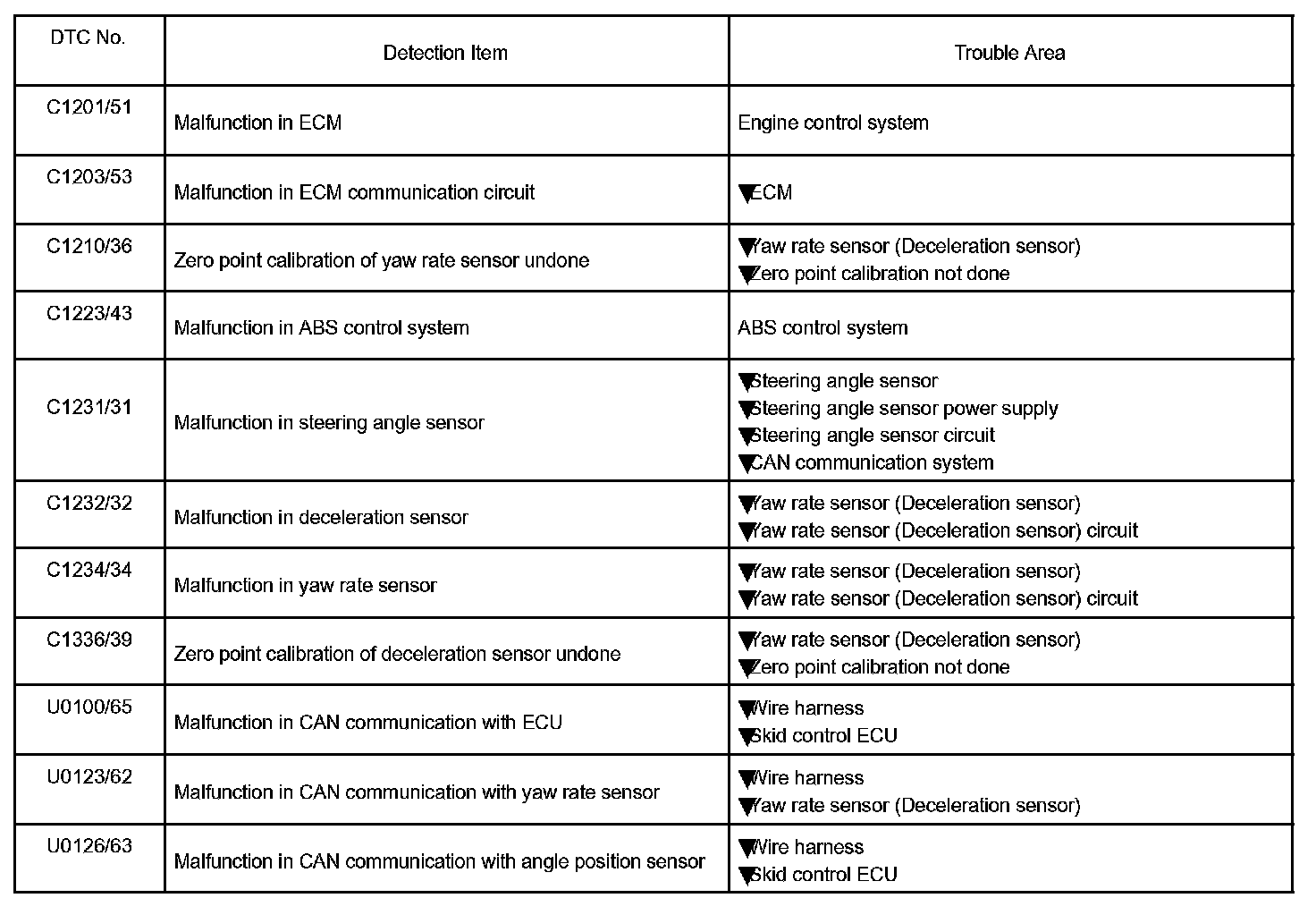

C1201/51 - U0126/63:
DTC chart of VSC:
HINT: In some cases, the hand-held tester cannot be used when VSC warning light is always on.

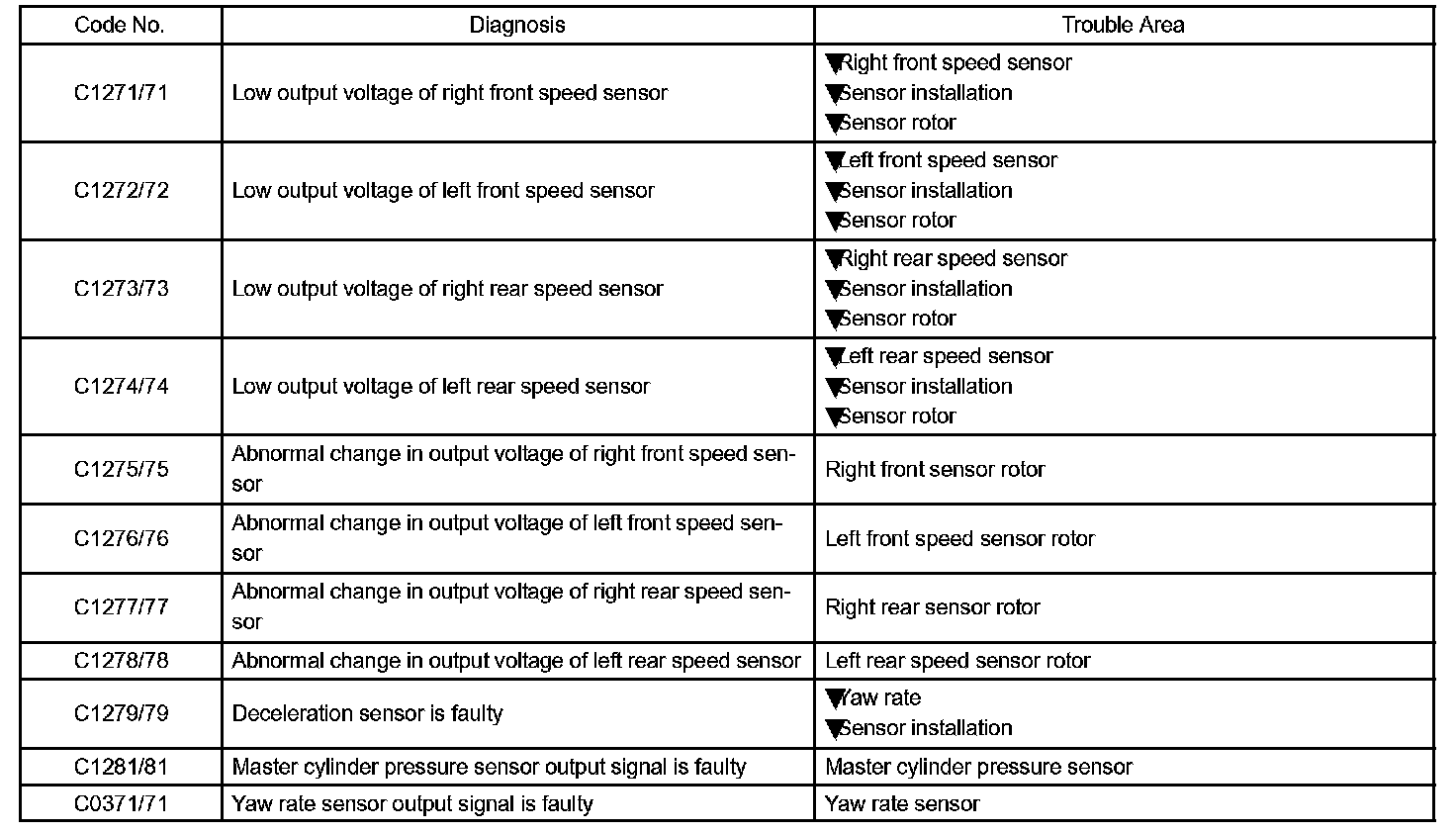

C1271/71 - C0371/71:
DTC of TEST MODE CODE:
HINT: The codes in this table are output only in TEST MODE.
