C1777

DTC C1777 STEERING ANGLE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

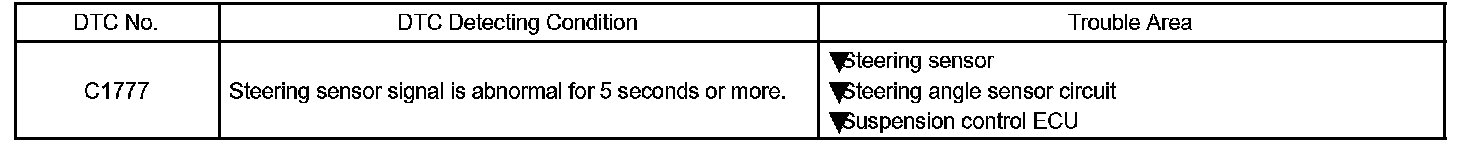

DTC Detecting Condition:

The steering angle sensor signal is sent to the suspension control ECU through the CAN communication system. When there is a communication malfunction, it will be detected by the diagnosis function.

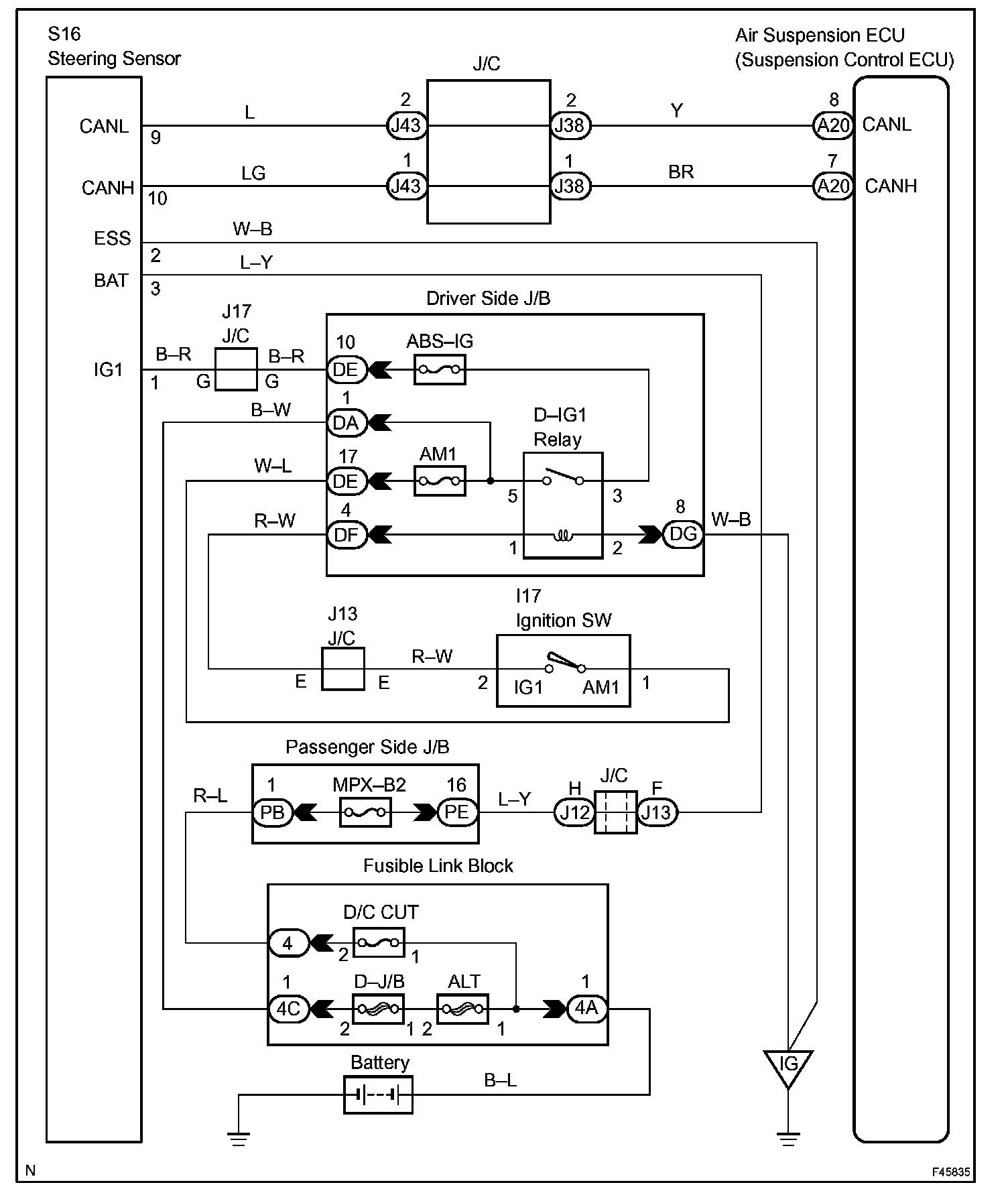

Wiring Diagram:

Step 1 - 2:

Step 3:

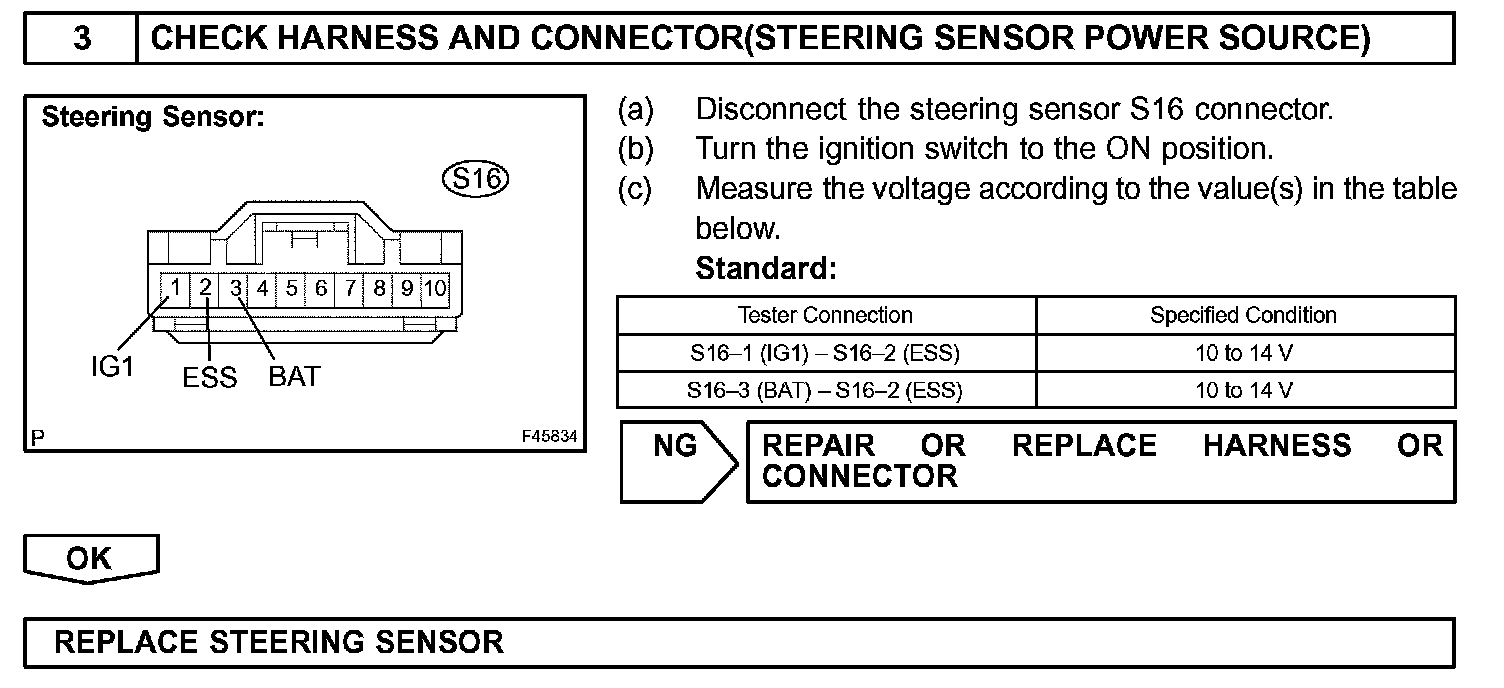

INSPECTION PROCEDURE
