Home >> Lexus >> 2005 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C1761

C1761

DTC C1761 ECU MALFUNCTION

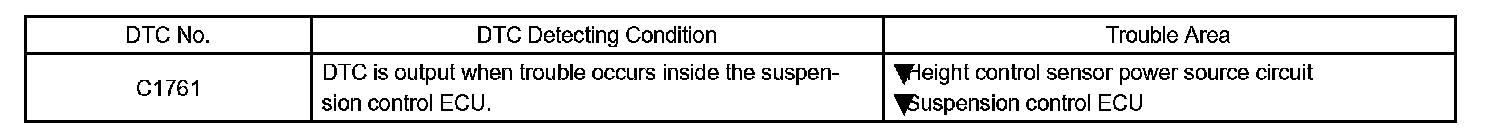

DTC Detecting Condition:




CIRCUIT DESCRIPTION

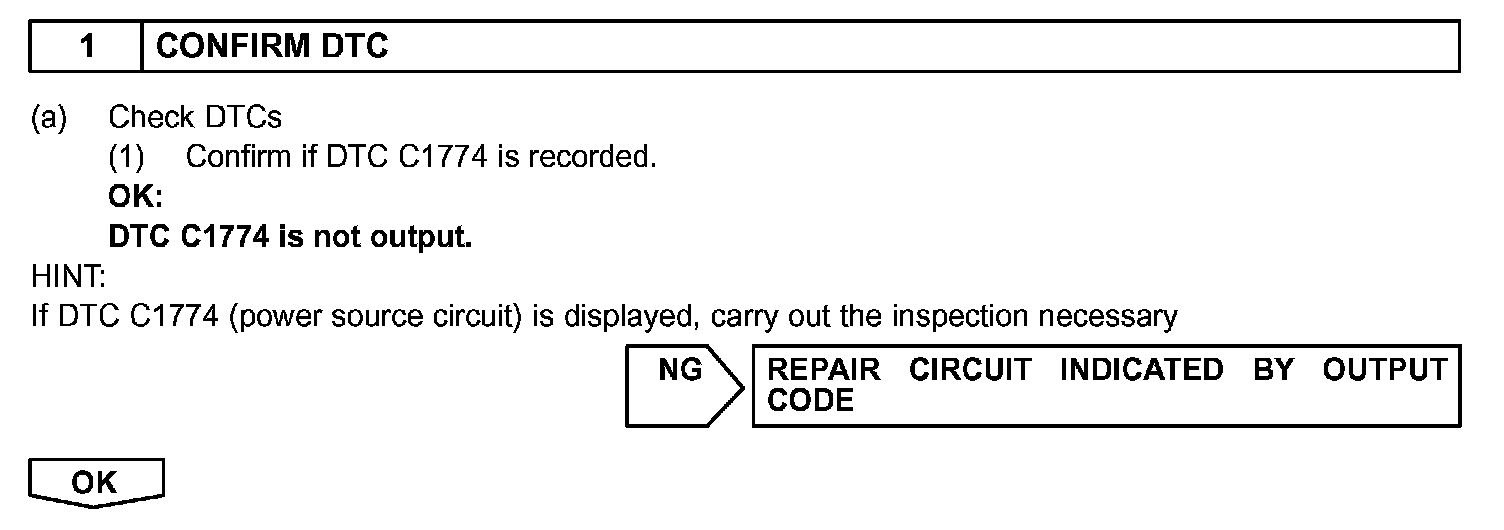

Step 1:

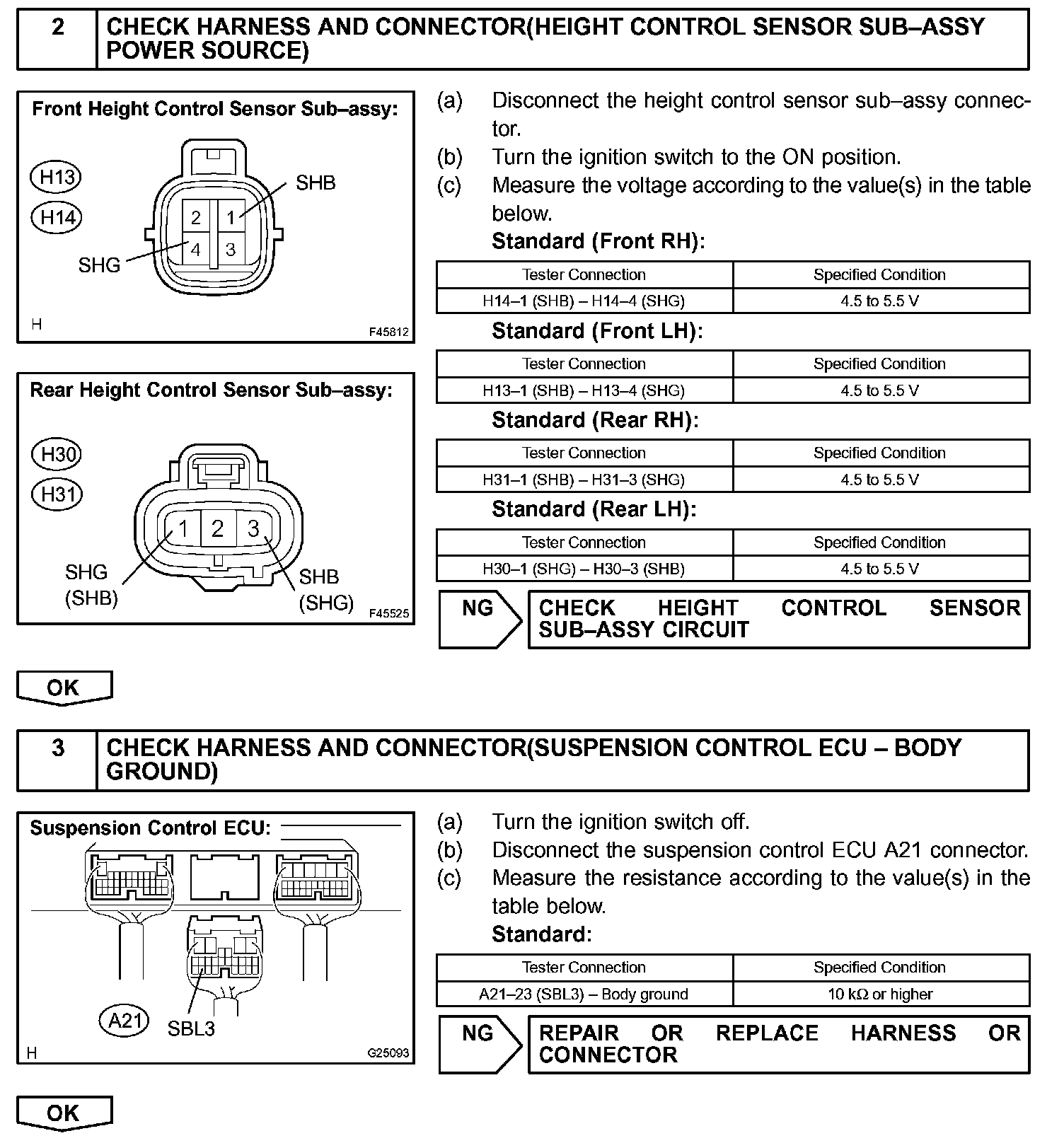

Step 2 - 3:

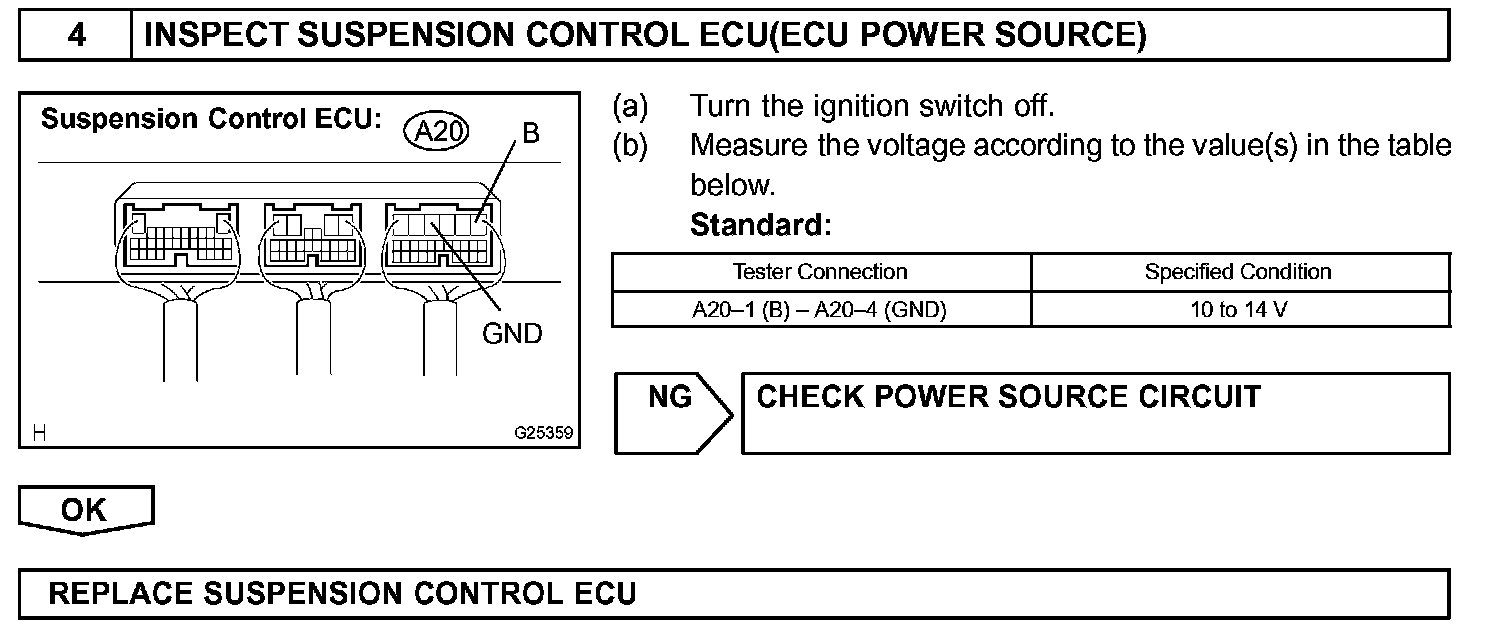

Step 4:




INSPECTION PROCEDURE
