C1741

DTC C1741 AIR SUS RELAY CIRCUIT

CIRCUIT DESCRIPTION

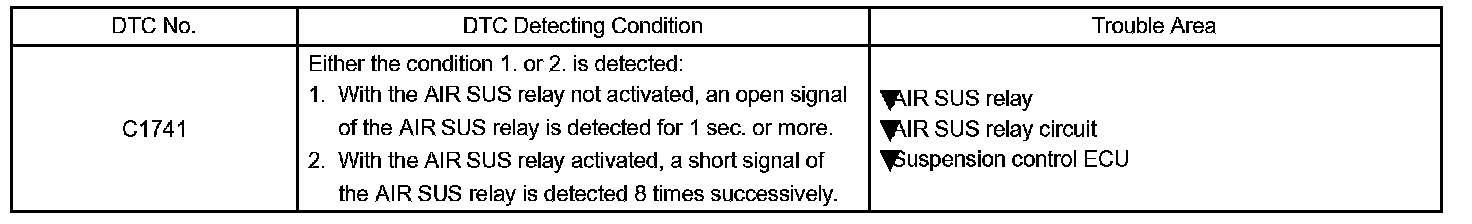

DTC Detecting Condition:

The signal from the suspension control ECU switches the AIR SUS relay on, and then the height control compressor motor starts.

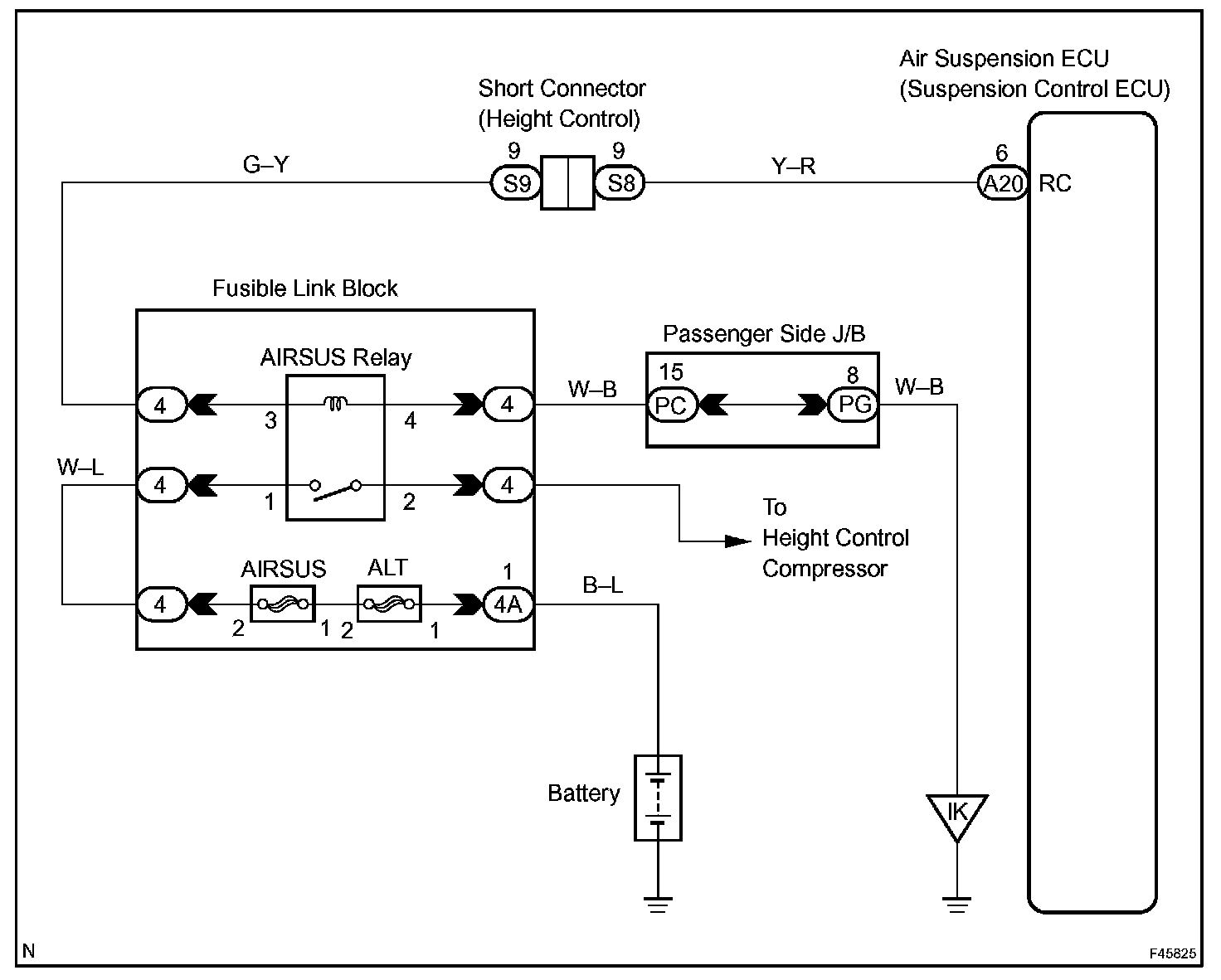

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

Step 5:

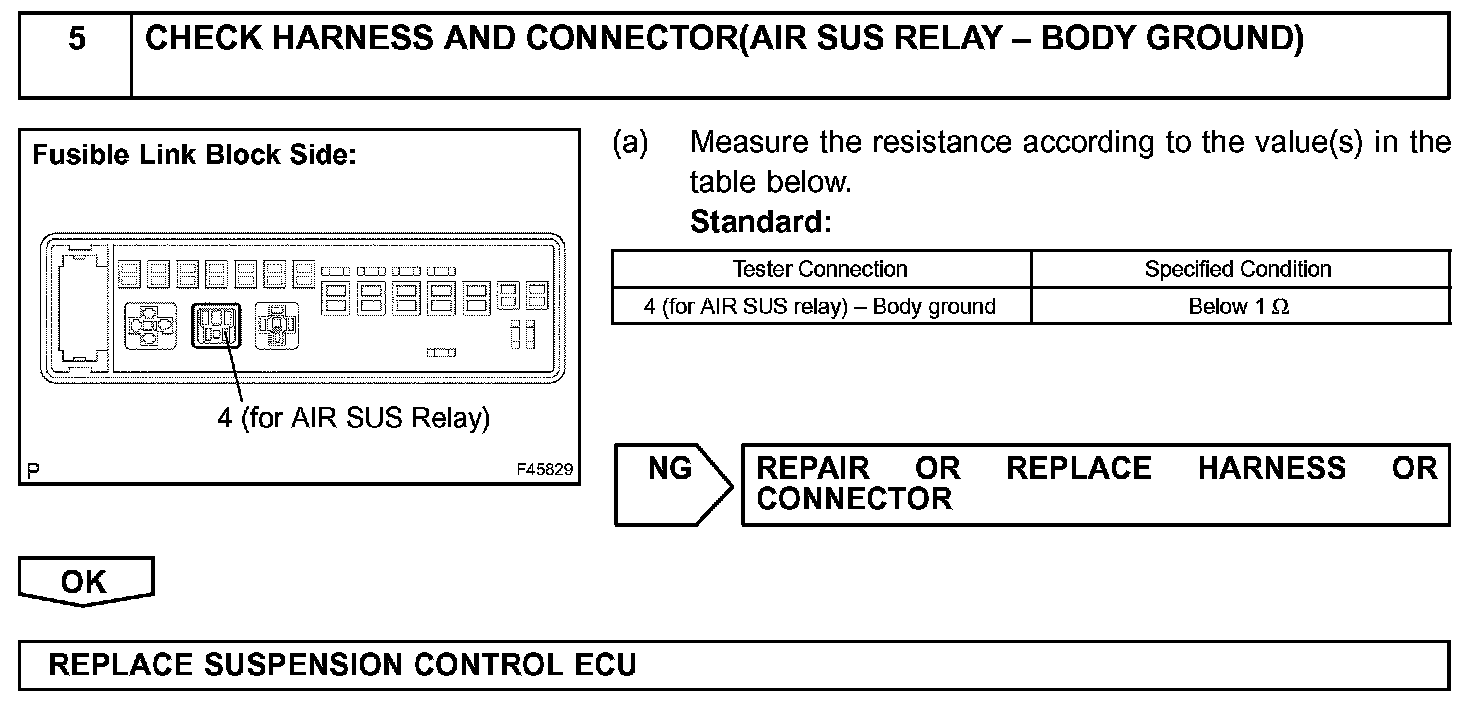

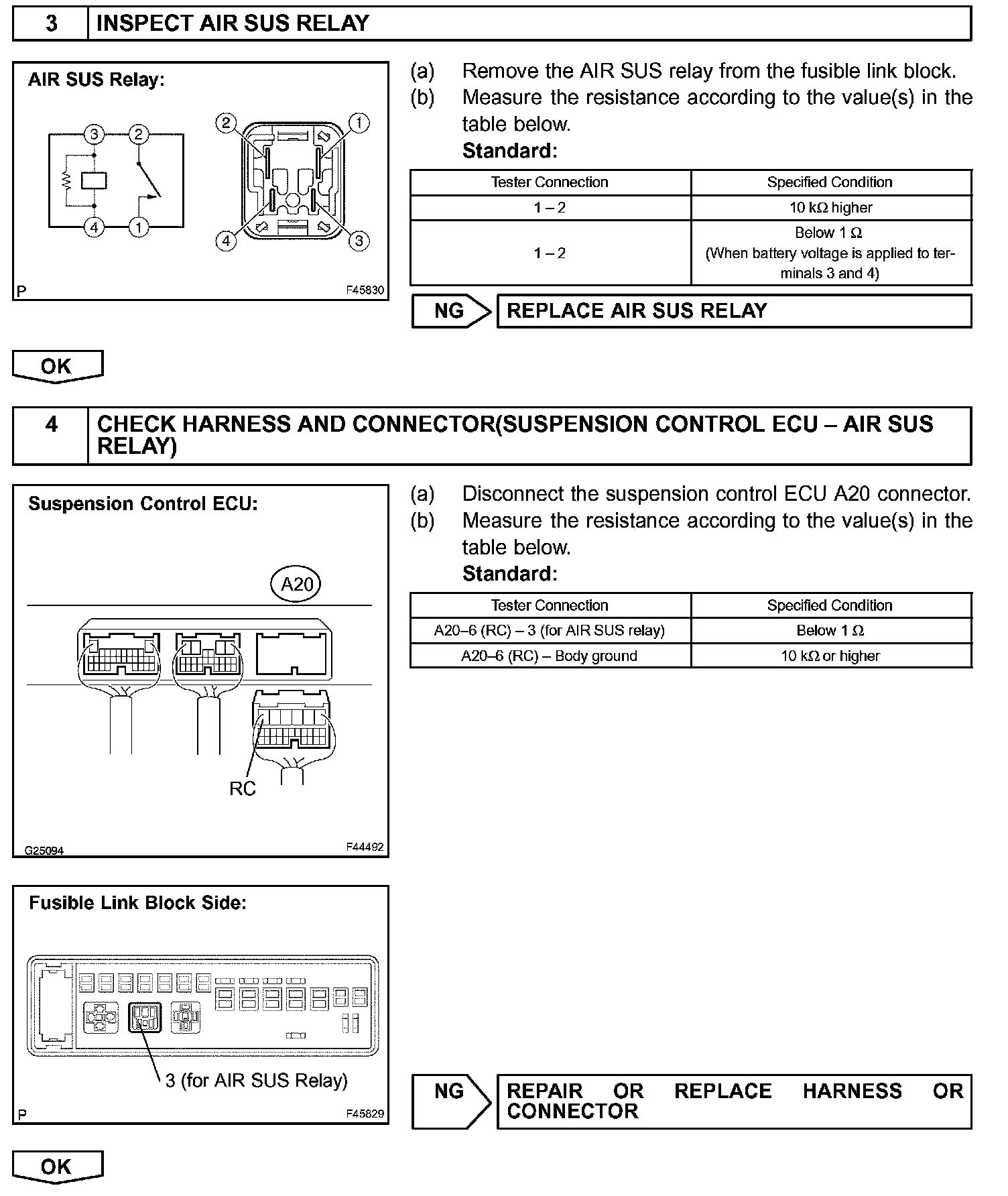

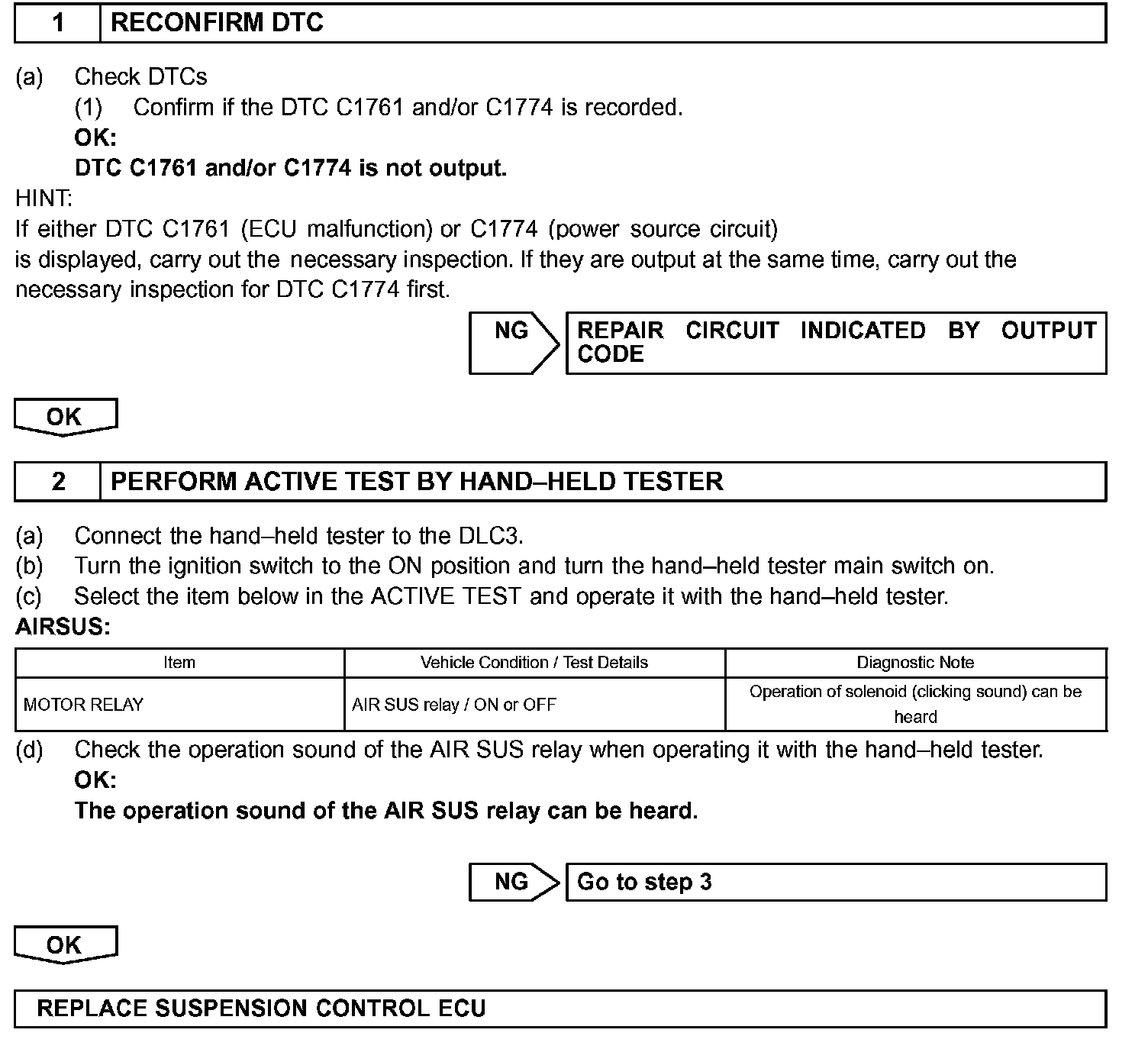

INSPECTION PROCEDURE
